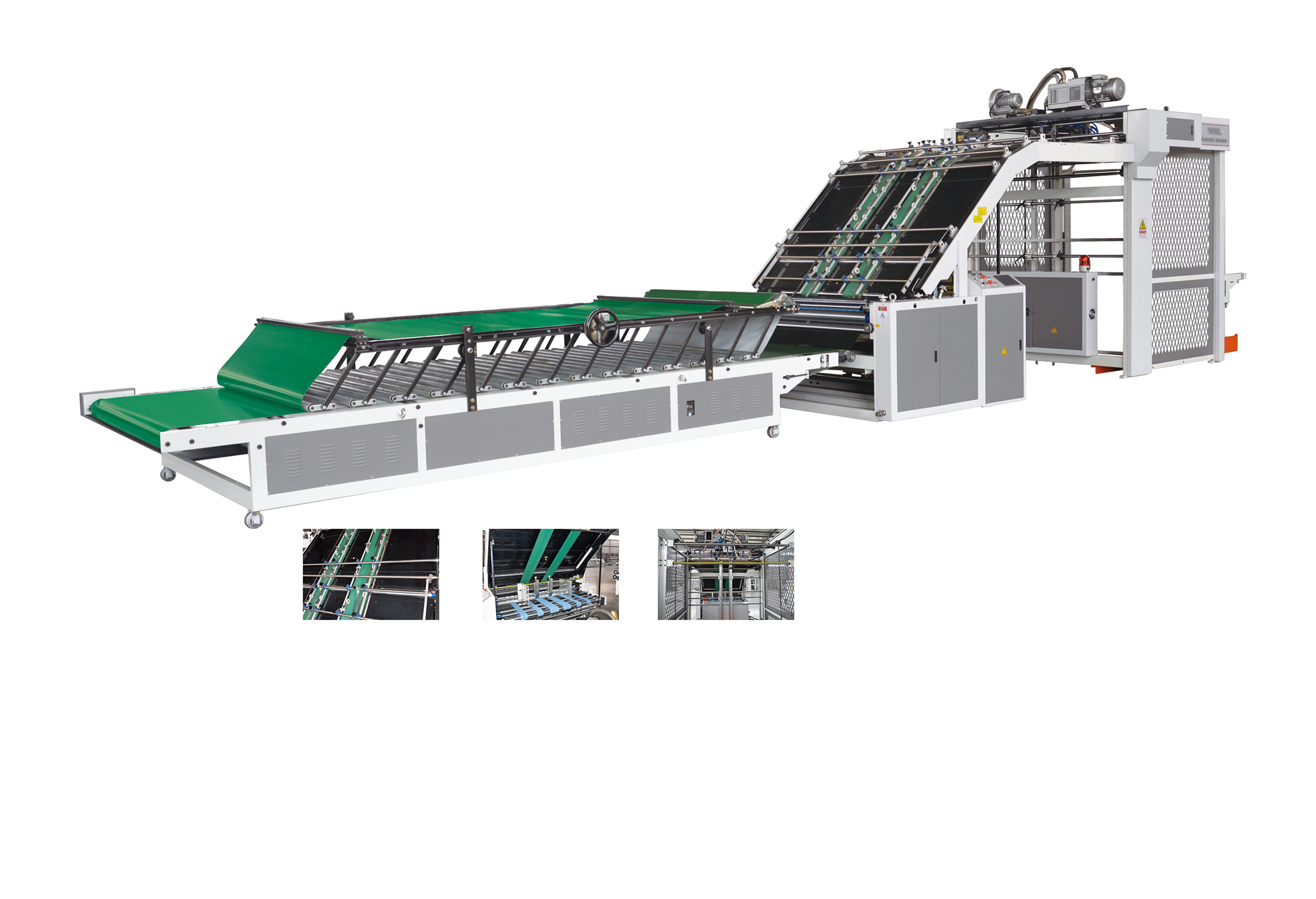

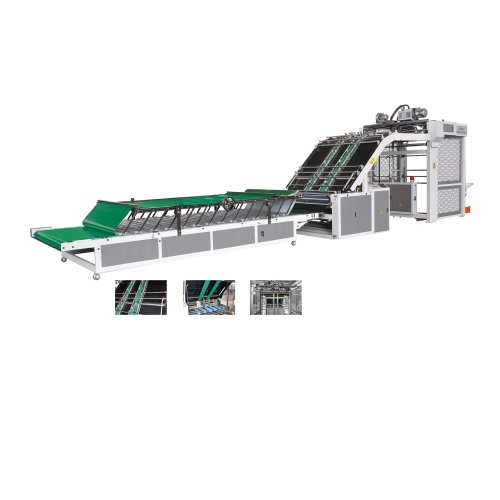

5 layers corrugated cardboard flute laminating machine

3, 5, 7 Layer Corrugated Cardboard Box Making Machine – High-Efficiency Automated Production Line for Packaging Solutions

The 3, 5, and 7-layer corrugated cardboard box manufacturing system is a fully automated production line designed for high-volume, precision packaging solutions. Engineered for commercial and industrial use, this machine integrates advanced mechanical engineering with smart control systems to produce durable, customizable corrugated boxes from raw paper stock. Whether you're producing standard shipping containers or custom-designed packaging for e-commerce, food, electronics, or pharmaceuticals, this versatile equipment delivers consistent quality, reduced waste, and optimized throughput.

Key features include a robust single facer, multi-ply pre-heater, glue application unit, double facer, slitter scorer, and automatic cutoff station—all working in harmony to ensure accurate layer bonding and precise cutting. With options for A, B, C, E, and F flute configurations, the system supports both lightweight and heavy-duty applications. The entire setup operates at speeds up to 150 meters per minute (theoretical), making it ideal for businesses seeking scalable, cost-effective packaging automation without sacrificing structural integrity or print compatibility.

This comprehensive solution includes essential components such as a Mill Roll Stand for seamless paper feeding, an auto splicer for continuous operation, and a glue mixing system that ensures uniform adhesive distribution using corn starch-based bonding medium—a sustainable alternative to synthetic glues. The machine’s modular design allows easy integration into existing production environments, while its adjustable width range—from 400mm minimum to 1650mm maximum—supports flexible formatting across multiple product lines. Each model (SJ-Q1300B, SJ-Q1450B, SJ-Q1600B) offers distinct capabilities tailored to different operational needs, including varying productivity levels (up to 7200 sheets per hour), load capacities (1500kg face paper support), and voltage compatibility (380V three-phase power).

Common applications span industries requiring reliable, eco-friendly packaging: logistics providers needing stackable, crush-resistant boxes; manufacturers of consumer goods looking for branded carton solutions; and retailers aiming to reduce material costs through efficient die-cutting and nesting. The system also accommodates specialty requirements like anti-static properties or moisture resistance when paired with appropriate liner materials. Its compact footprint and standardized dimensions (e.g., 13m x 2.55m x 2.5m for the largest variant) make installation feasible even in mid-sized facilities.

Users consistently praise the machine's reliability, ease of maintenance, and minimal downtime. Operators report that the intuitive electric control panel simplifies parameter adjustments, while the precision alignment mechanism maintains ±1.5mm accuracy regardless of paper thickness or humidity variations. Maintenance intervals are extended due to wear-resistant rollers and self-lubricating components, reducing long-term ownership costs. Additionally, the inclusion of a pressure-controlled steam system (8–10 Bar input) ensures optimal temperature regulation during the corrugation process, leading to stronger adhesion and fewer defects.

For those considering investment in automated packaging technology, this machine stands out for its balance of performance, durability, and adaptability. It meets international standards for safety, energy efficiency, and environmental compliance—ideal for markets prioritizing sustainability and regulatory adherence. While some users initially inquire about setup complexity, most find the factory training sessions and clear documentation sufficient for quick deployment. For further assistance, technical guidance is available through official channels, ensuring smooth integration into your facility’s workflow.
