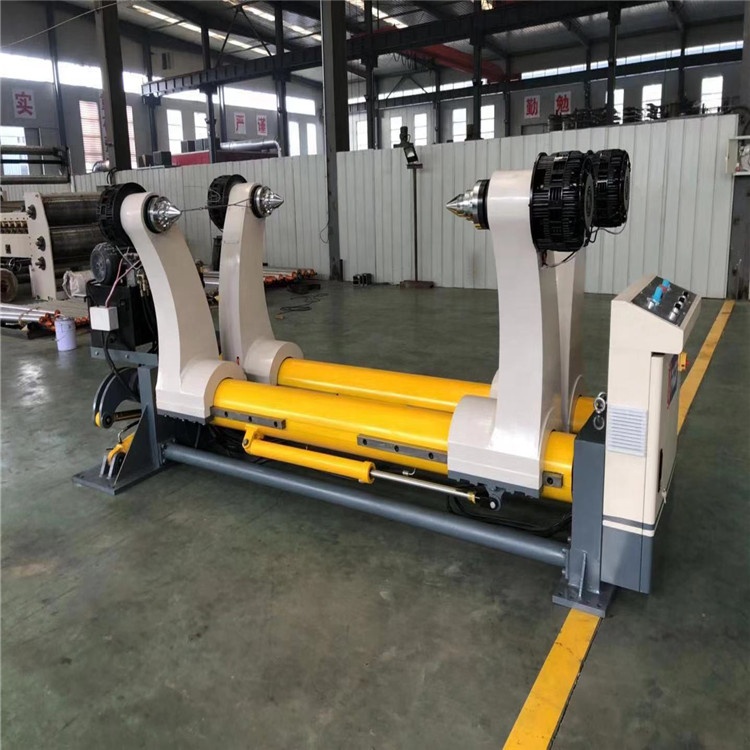

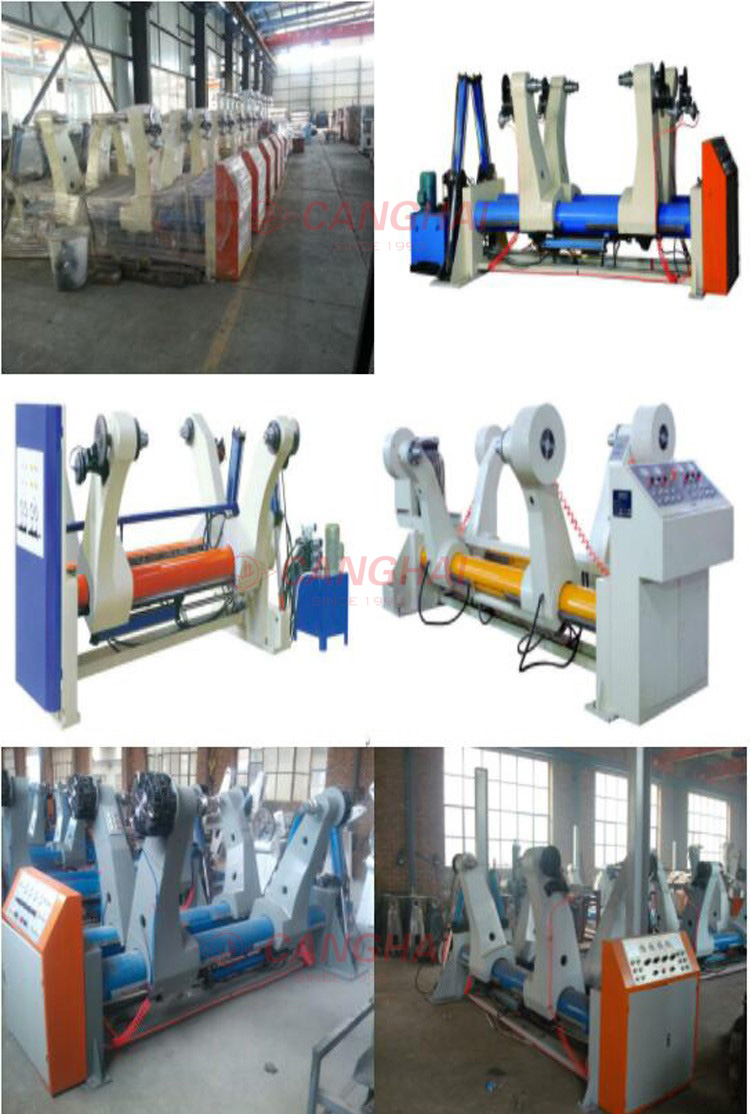

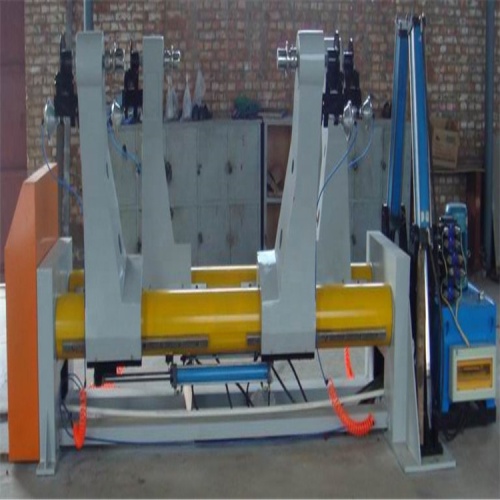

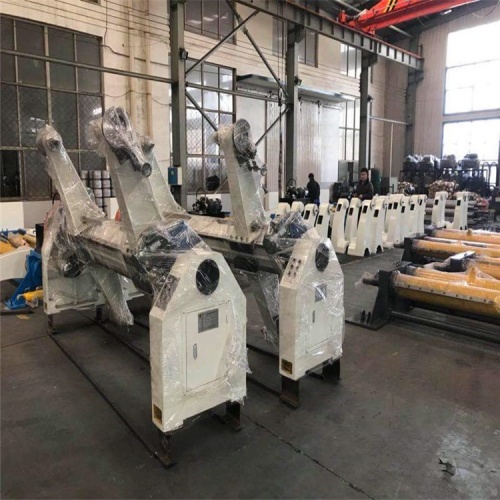

Automatic hydraulic mill roll stand

Automatic Hydraulic Mill Roll Stand for Paper Processing Line – High-Efficiency, Dual-Roll Loading System

This advanced automatic hydraulic mill roll stand is engineered to support paper rolls efficiently while ensuring seamless integration into high-speed production lines. Designed with precision and durability in mind, it serves as a critical component in converting, printing, and packaging operations where continuous paper feeding is essential. The system’s robust hydraulic mechanism ensures smooth operation, reduced downtime, and improved productivity across various industrial applications.

Key features include a dual-roll loading capability that allows operators to load two paper cores simultaneously without halting the machine—significantly enhancing operational efficiency. Each arm is equipped with intuitive four-direction control buttons, enabling precise manual adjustments for positioning, clamping, lifting, and lateral movement. This user-friendly interface minimizes training time and maximizes uptime in fast-paced environments.

The entire unit operates via six fully hydraulic cylinders, offering reliable and responsive control over all major movements: vertical lift/down, clamping/unclamping, and horizontal shifting. This hydraulically driven design ensures consistent tensioning and stable handling of heavy rolls, reducing wear on both the equipment and raw materials. The tension management system utilizes multi-point pneumatic brakes that provide excellent braking performance and rapid heat dissipation—critical for maintaining safety and quality during extended runs.

To minimize damage to paper cores and reduce material waste, the chuck design incorporates either inner expansion or tooth-type mechanisms. These configurations distribute pressure evenly across the core, preventing deformation and preserving roll integrity—a key factor in minimizing scrap rates and maximizing yield per roll. Additionally, the hydraulic system is specially developed for shaftless reel stands, meeting international standards such as GB/T3766-2001 (General Technical Conditions for Hydraulic Systems), guaranteeing compliance with global engineering practices.

Commonly used in corrugated board manufacturing, flexographic printing, label production, and tissue paper processing, this mill roll stand supports a wide range of roll weights and diameters. Its modular construction allows easy installation and maintenance, making it ideal for facilities seeking scalable solutions for modern paper converting lines. Whether operating in a standalone setup or integrated into an automated line, this equipment delivers consistent performance under demanding conditions.

Users report significant improvements in throughput and operator satisfaction due to the intuitive controls and minimal need for manual intervention. Many appreciate the ability to switch rolls quickly, which reduces idle time and boosts overall line efficiency. Feedback also highlights the reliability of the hydraulic system, especially when handling large-diameter rolls at high speeds.

Frequently asked questions often center around compatibility with different roll sizes, ease of maintenance, and integration with existing machinery. While some users initially inquire about setup complexity, most find the assembly straightforward thanks to clear instructions and well-designed mounting points. Maintenance typically involves routine checks of hydraulic fluid levels and brake pad wear—tasks that can be completed within minutes by trained personnel. Overall, this product has earned strong reviews for its balance of functionality, durability, and cost-effectiveness in industrial settings worldwide.
