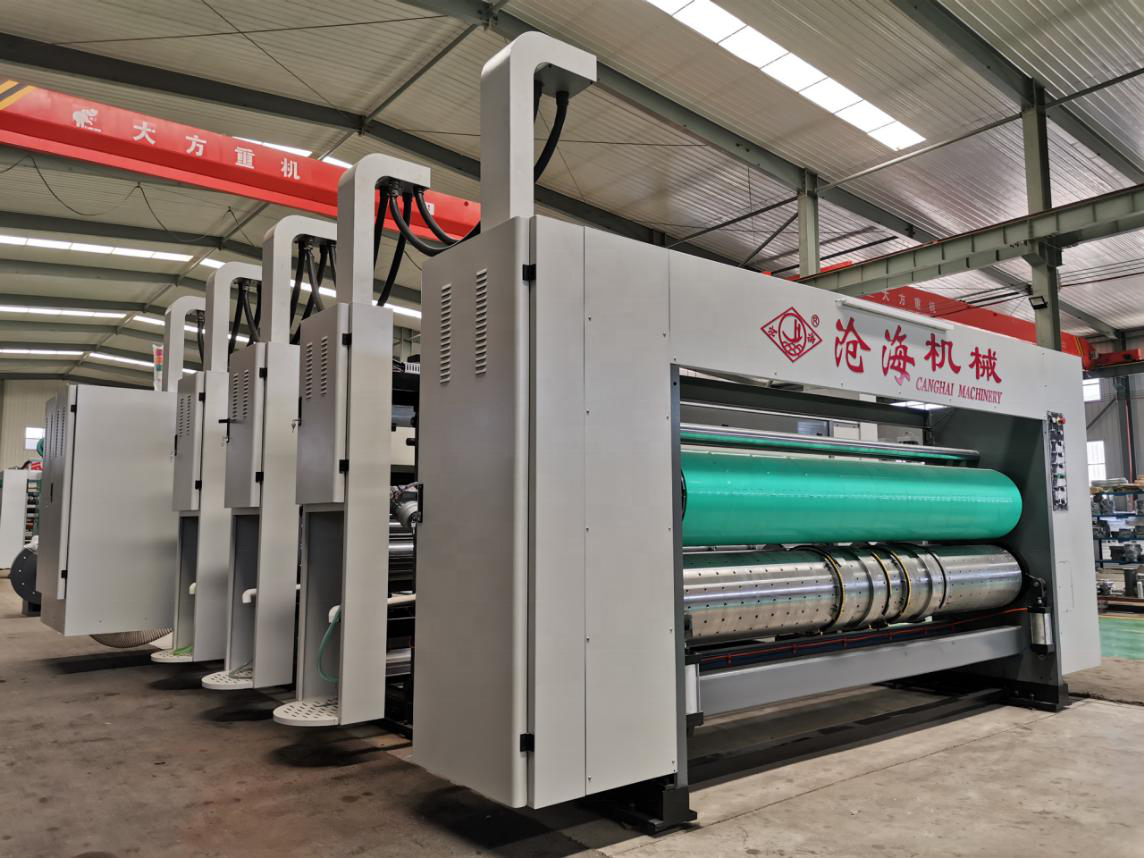

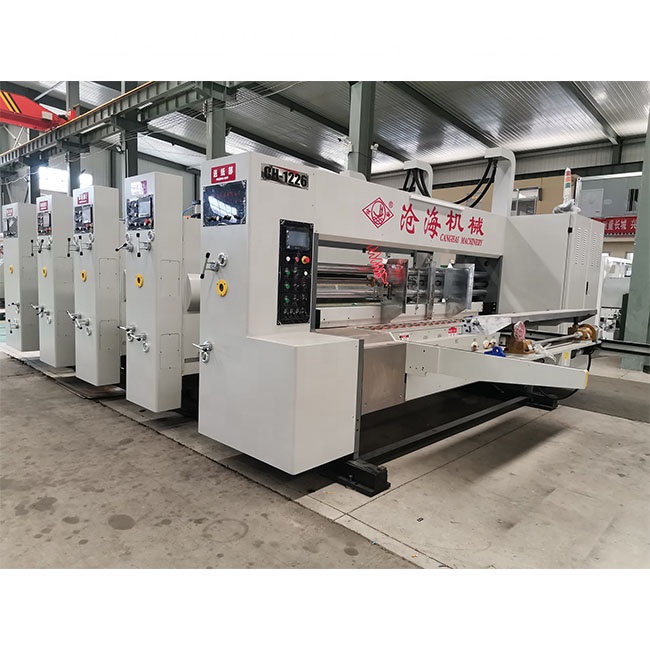

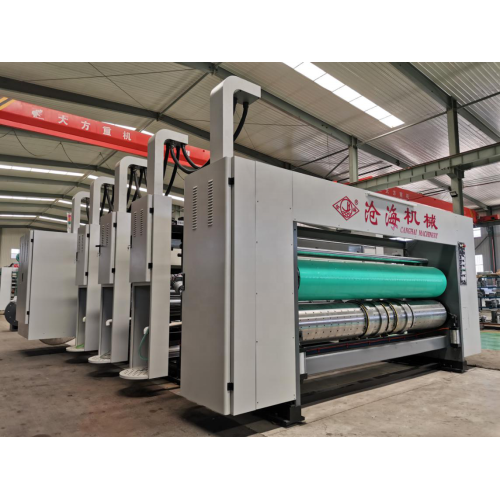

Automatic Flexo Printer Slotter Die cutter stacker machine

$74000

≥1
set

Min. Order:

1 set

Transportation:

Ocean,Land

Port:

TIANJIN

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: ZYKM920 ZYKM1224 ZYKM1426 ZYKM1630 ZYKM1836 ZYKM2235 ZYKM2540

Brand: CANGHAI

Status: New

Warranty Period: 1 Year

Applicable Industry: Printing Shops, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Kenya, Chile, Romania

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Viet Nam, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Thailand, Chile, Romania, Malaysia, Australia

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Gearbox, Gear, Bearing, Motor

Service System: Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support

Core Selling Point: Automatic, Easy To Operate, High-Accuracy, Long Service Life, High Safety Level, High Productivity, Multi Color

Supply Ability & Additional Information

Packaging: wooden case

Productivity: 200 sets/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 sets/year

Certificate: ISO9001 CE

HS Code: 844135000

Port: TIANJIN

Packaging & Delivery

Selling Units:: set

Package Type:: wooden case

Product Description

Specification

Design speed	180pcs/min
working speed	100-150pcs/min
Max feeding size	1200*2450mm
Max printing area	1200*2300mm
Min feeding size	320*750mm

①This machine is composed of paper feeding, printing, slotting, die cutting, vibration and stacking, etc. It can complete the printing, slotting, die cutting, stacking and other processes of three and five layers of corrugated cardboard at one time.
②The thickness of the wallboard is 50mm, and the internal stress of the intermediate frequency quenching and tempering increases the density, hardness, strength, toughness, and conductivity of the wallboard. Artificial aging treatment, large processing center processing in pairs, high strength and high precision.
③The main transmission system adopts gear transmission, high-precision gear grinding technology, low noise, enhanced gear strength, and improved gear transmission stability. All transmission gears are made of high-quality steel, high-frequency quenched, tempered, and finely ground, with high strength and durability.
④Bearings adopt famous brand bearings such as Renben, Harbin, Wafangdian, etc., and are inspected one by one, and they are qualified and put into storage.
⑤Each unit is electrically clutched and equipped with an alarm bell, and the alarm will continue to ring during the clutch to ensure the safety of the operators. The clutch motor is equipped with a constant torque clutch, which can buffer the collision of each unit in case of incorrect operation.
⑥On-line master lock: The main motor is automatically protected when the equipment is not combined, and automatically stops running when the running signal is obtained.
⑦The main motor starts with frequency conversion, and the motor adopts frequency conversion motor. Electric appliances adopt domestic famous brand products.
⑧Pneumatic components: Airteck and other famous brand products are used for pneumatic components, and Wuhan Jinchangjiang famous brand products are used for diaphragm pumps.
⑨The ink is evenly applied to the machine, and the ink volume is controllable to prevent ink overflow and ensure that the outside of the ink path is clean and sanitary.
⑩The whole machine adopts closed spray lubrication to keep the gears in a highly lubricated state. Each unit is equipped with a contact flow-type oil level balance mechanism to prevent the lack or overflow of lubricating oil in individual units.
⑪The gap adjustment of the whole machine adopts double guards for quick adjustment without wrenches and self-locking mechanism.

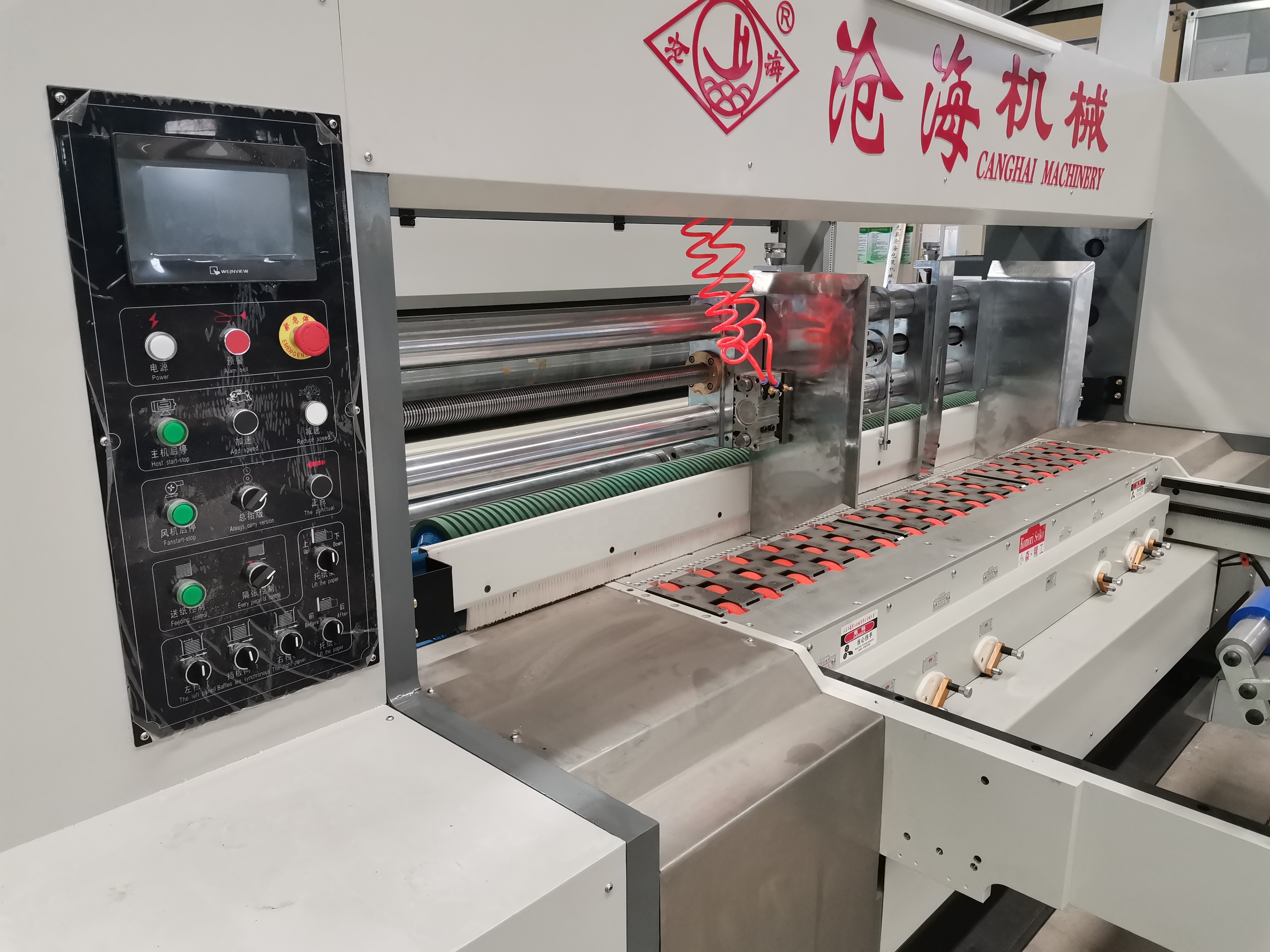

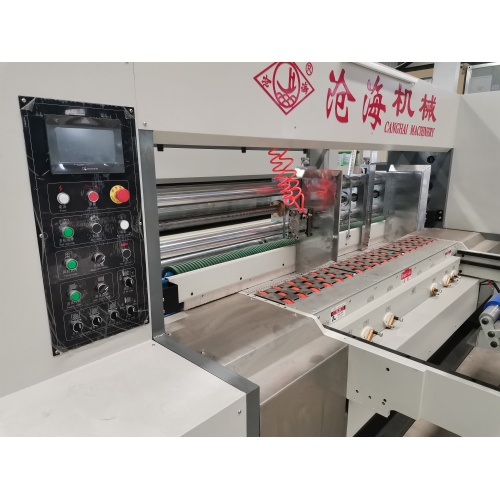

⑫The whole machine is equipped with a full-process PLC touch control system, and the slotting part contains an order memory function. The order can be automatically changed by entering the length, width and height of the cardboard. After the second production, the stored order can be directly retrieved and fine-tuned. For rapid production.

Packing & Delivery

Company Profile

FAQ

1. Are you a trading company or factory?
We are the manufacturer and also we have import export license. We have been making automatic high speed water based printing slotting Die Cutting Machine for more than 25 years.
2. Where is your company located? How can I visit there?
Our factory address: dongguang county, Cangzhou city, hebei province,China. You could go to tianjin airport fist, and then take high speed rail come to cangzhou, we will pick you up.
3. Can you send technician for installation and training?
Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
4. What’s your advantages ?
--25 years' experience: We have been in making die cutting machine carton box for 25 years. --After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.

5. Whats your guaranty time?
We can take 1 years warranty, actually our longest cooperation customer have been using our product for more than 10 years with no problem.
