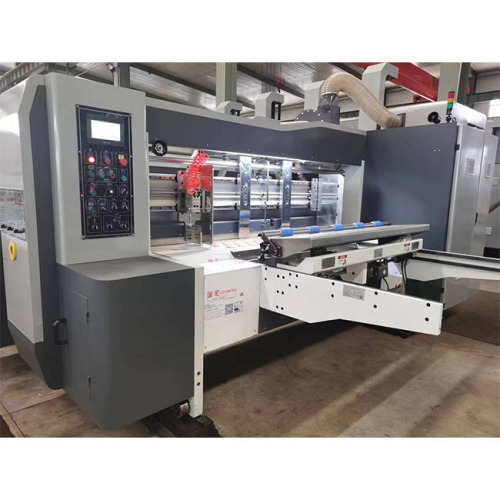

High-Speed Automatic Paperboard Printing and Die-Cutting Machine – YK1224
The YK1224 is a fully integrated, high-efficiency printing and die-cutting system designed for precision packaging production in modern manufacturing environments. Engineered for optimal performance across a wide range of board thicknesses—from 2mm to 10mm—it delivers consistent results on corrugated cardboard, chipboard, and rigid paperboard substrates. With its advanced automation features, robust construction, and intuitive control interface, this machine supports rapid order changes, reduces downtime, and ensures superior print quality with minimal operator intervention.
Key Features:

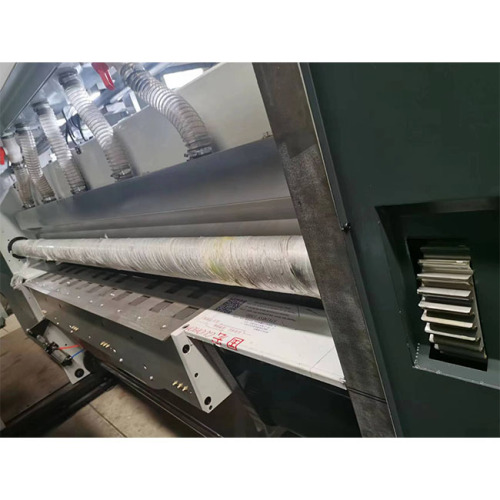

- • Precision-engineered plate roller diameter (405 mm) and 2420 mm length ensure uniform pressure distribution during printing and die-cutting operations.
- • Max output speed up to 160 sheets per minute, with economical operating speed at 120 sheets/min for balanced productivity and energy efficiency.
- • Advanced PLC touch-screen control enables digital storage of job parameters, reducing setup time significantly—ideal for short-run or frequent format changes.
- • Chrome-plated rollers and cylinders enhance durability, reduce wear, and maintain surface integrity over extended use.
- • High-precision slotting (±1.2 mm) and die-cutting (±1.5 mm) tolerances support intricate box designs for premium packaging applications.
- • Integrated automatic anilox roller lift mechanism synchronized with feeding unit improves ink transfer consistency and minimizes waste.
- • Self-locking gap adjustment systems on all units (printing, slotting, die-cutting) allow quick, safe, and accurate calibration without manual tools.
- • Emergency stop switches and safety interlocks comply with international industrial standards for operator protection.
- • Modular hanging structure simplifies maintenance, part replacement, and tooling adjustments—critical for continuous production lines.
- • Imported electrical components, bearings, and pneumatic elements from reputable global brands ensure long-term reliability and uptime.
This industrial-grade equipment excels in handling diverse paper formats—from compact 320 × 720 mm to large-format 1270 × 2600 mm—with ease. The feeder system includes dual rubber rollers, air volume regulation via inverter, dust removal brushes, and automatic reset functionality, guaranteeing stable, distortion-free feeding even under high-speed conditions. For printing accuracy, the unit utilizes dynamically balanced rollers with electromagnetic clutch locking technology, enabling precise phase positioning in both static and dynamic states. Die-cutting modules feature auto-separation mechanisms that reduce mechanical stress on blades and rubber rollers, extending their service life while maintaining sharpness and alignment.
Ideal for manufacturers producing folding cartons, display boxes, retail packaging, and custom rigid containers, the YK1224 offers unmatched versatility for both small-batch customization and high-volume production runs. Whether used in food packaging facilities, pharmaceutical labeling operations, or consumer goods logistics centers, this machine meets stringent quality benchmarks while minimizing material waste and maximizing throughput.
Users consistently report improved operational efficiency after integrating the YK1224 into their workflow. Operators appreciate the user-friendly touchscreen interface, which displays real-time metrics such as production count and speed. Maintenance teams praise the modular design and accessibility of internal components, making routine servicing straightforward. Additionally, the machine’s ability to handle variable board weights and complex die patterns makes it a preferred choice among packaging professionals seeking precision, flexibility, and long-term cost-effectiveness.
Frequently Asked Questions:
What is the maximum sheet size this machine can process? Answer: The YK1224 supports a maximum feeding dimension of 1270 × 2600 mm and a maximum printing area of 1200 × 2400 mm, accommodating most standard and oversized packaging formats.
How does the machine ensure accurate die-cutting alignment? Answer: Through a combination of PLC-controlled electric phase adjustment, electromagnetic clutches, and self-locking gap settings, the system maintains ±1.5 mm tolerance throughout the cutting cycle, ensuring perfect registration across multiple passes.
Is it suitable for frequent changeovers between different product types? Answer: Yes—thanks to pre-programmable job profiles stored in the touch screen interface, operators can switch between configurations in under two minutes, significantly reducing idle time and enhancing overall equipment effectiveness (OEE).
What kind of materials can be processed using this machine? Answer: It handles various paperboard grades including kraft board, chipboard, corrugated board, and laminated stock, with thickness ranging from 2mm to 10mm—perfect for food-safe, cosmetic, and e-commerce packaging needs.
Does the machine come with technical support or training? Answer: While specific service details vary by region, the manufacturer provides comprehensive documentation, remote diagnostics access, and optional on-site installation guidance to help users maximize performance from day one.
