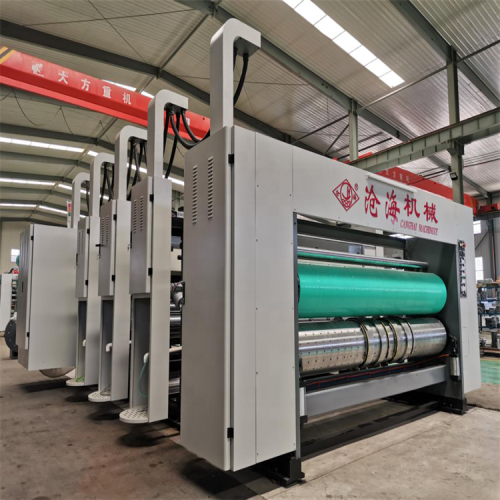

Flexo Printing Slotting Die Cutting Machine

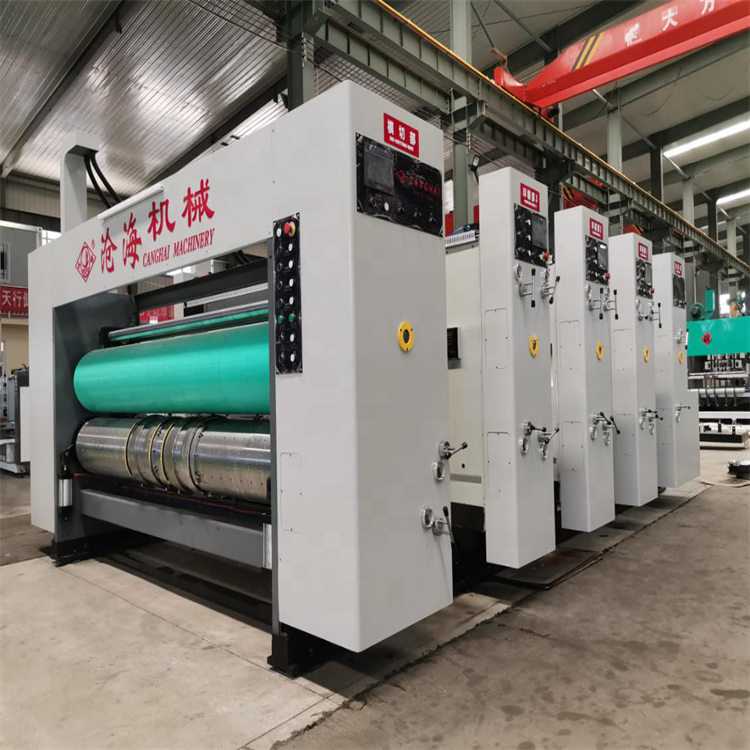

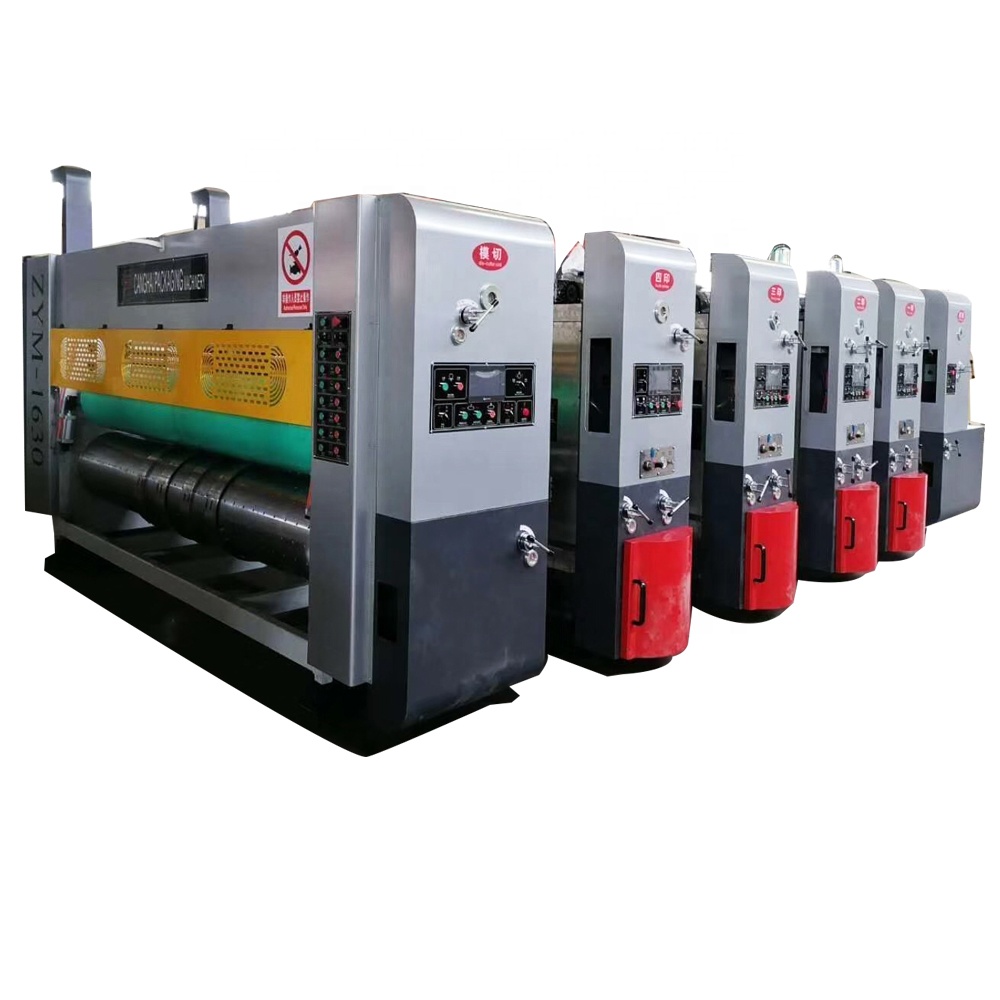

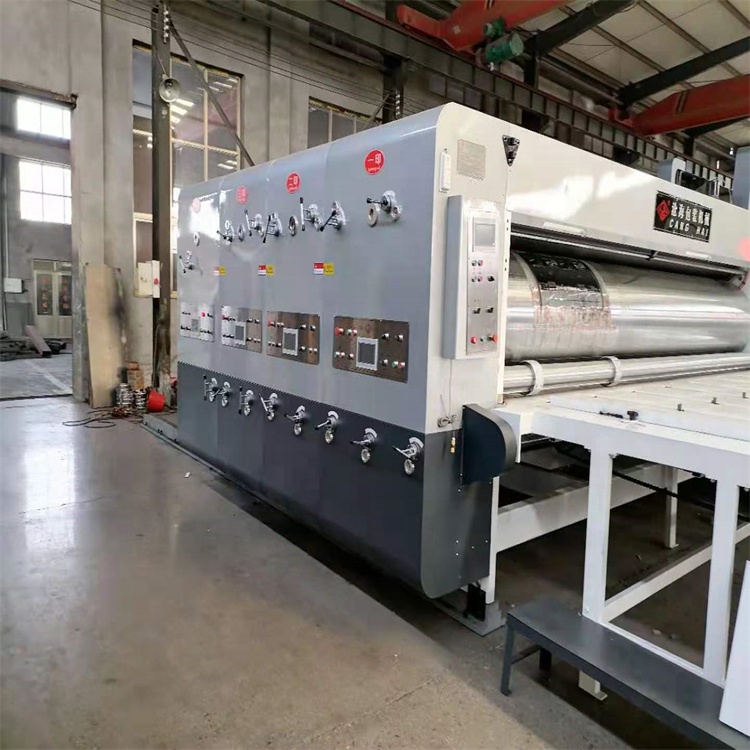

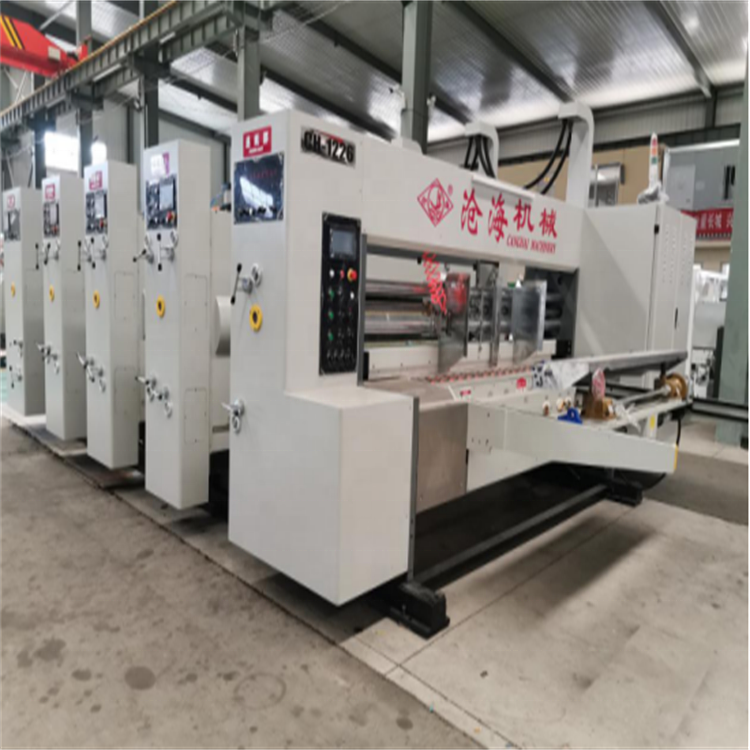

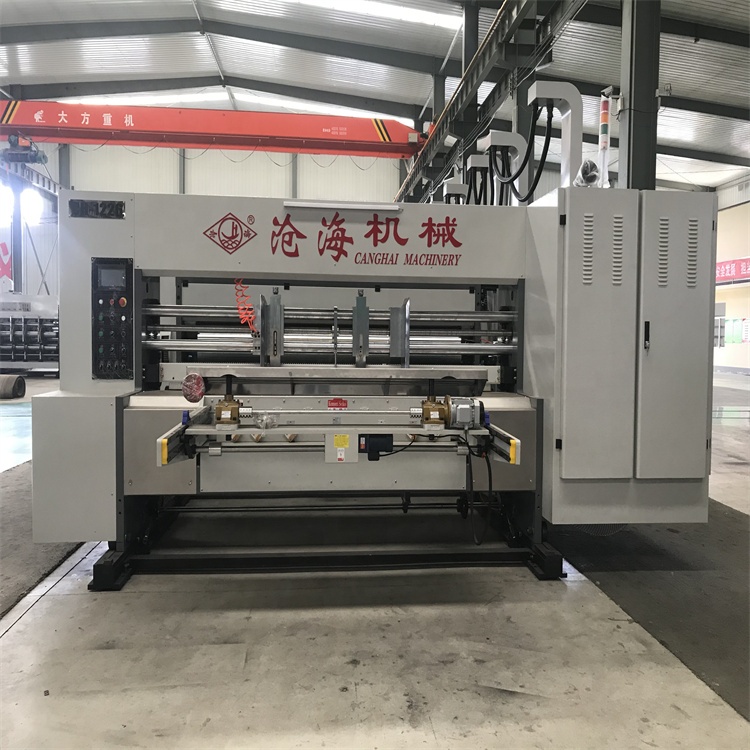

High-Speed Printing, Slotting & Die-Cutting Carton Box Packing Machine – ZYKM-1630 Model

This advanced automated system is designed for efficient and precise production of corrugated cardboard boxes, combining high-speed printing, accurate slotting, and die-cutting in a single integrated process. Ideal for packaging manufacturers seeking to optimize productivity while maintaining superior print quality and dimensional accuracy, the ZYKM-1630 model delivers consistent performance across various paper thicknesses and sizes.

With a maximum paper coverage area of 1660×3200 mm and an effective printing zone of 1600×3000 mm, this machine supports both large-format and small-order box manufacturing. It handles cardboards up to 7.2 mm thick and can manage multi-layered sheets (up to 5 layers), making it suitable for diverse packaging needs—from retail packaging to industrial shipping containers. The machine operates at speeds up to 140 pieces per minute, with economical operation between 100–120 pieces per minute, ensuring flexibility for different production volumes.

Key features include a lead-edge feeding system with variable air volume control for stable and accurate sheet handling, dual feeding rollers with quick-replacement mechanisms, and dust removal brushes and suction devices that ensure clean surfaces before printing. The digital touch screen interface provides real-time monitoring of speed and quantity, enhancing operational transparency and ease of use. Precision is maintained through ±0.5 mm alignment accuracy for four-color printing, ±1.5 mm for slotting, and ±1.5 mm for cutting—critical for professional-grade packaging results.

The printing unit incorporates hardened chrome-plated rollers with balanced design and surface grinding for smooth ink transfer and long-term durability. A phase-adjusting mechanism using electric planetary gears allows full 360° circumferential adjustment, displayed digitally for intuitive setup. The die-cutting module includes a specialized roller system with automatic separation via cylinder eccentricity, reducing wear on rubber components and extending service life. Additionally, the machine offers optional free die mold slotting functionality, eliminating the need for custom dies in standard box configurations—an excellent cost-saving feature for frequent production runs.

This equipment excels in environments requiring high-volume, reliable output such as e-commerce fulfillment centers, food and beverage packaging facilities, pharmaceutical packaging units, and consumer goods manufacturers. Its robust construction, measuring 5000×3500×2500 mm, ensures stability during continuous operation, while the frequency converter motor (7.5–18.5 kW) enables energy-efficient performance tailored to load demands.

Customers consistently praise its reliability, precision, and minimal downtime. Many note how the integration of intelligent controls and mechanical enhancements reduces manual intervention and increases throughput without compromising quality. Feedback highlights the ease of maintenance, particularly with replaceable parts like the rubber roller and anilox roller, which are made from wear-resistant materials and support multiple reconditioning cycles.

Common inquiries often focus on technical support, warranty, and customization options. The manufacturer offers comprehensive after-sales assistance and has provided over two decades of service to clients worldwide. With a standard three-year warranty and proven longevity in real-world applications—even exceeding ten years in some cases—the machine represents a durable investment for modern packaging operations. Installation by trained technicians is available upon request, though costs related to travel and accommodation are typically borne by the buyer.
