High-Performance Flexo Printer Slotter Die Cutter Machine for Corrugated and Paperboard Carton Production

This advanced flexographic printing and converting system is engineered for precision, durability, and high-volume output in corrugated packaging manufacturing. Designed with European engineering principles and certified to CE standards, the ZYK-M1425 model delivers reliable performance across multiple industries—from e-commerce packaging to food and pharmaceutical cartons. With a maximum speed of 220 sheets per minute and an economic operating range of 180 sheets per minute, this machine ensures both efficiency and consistency in production environments worldwide.

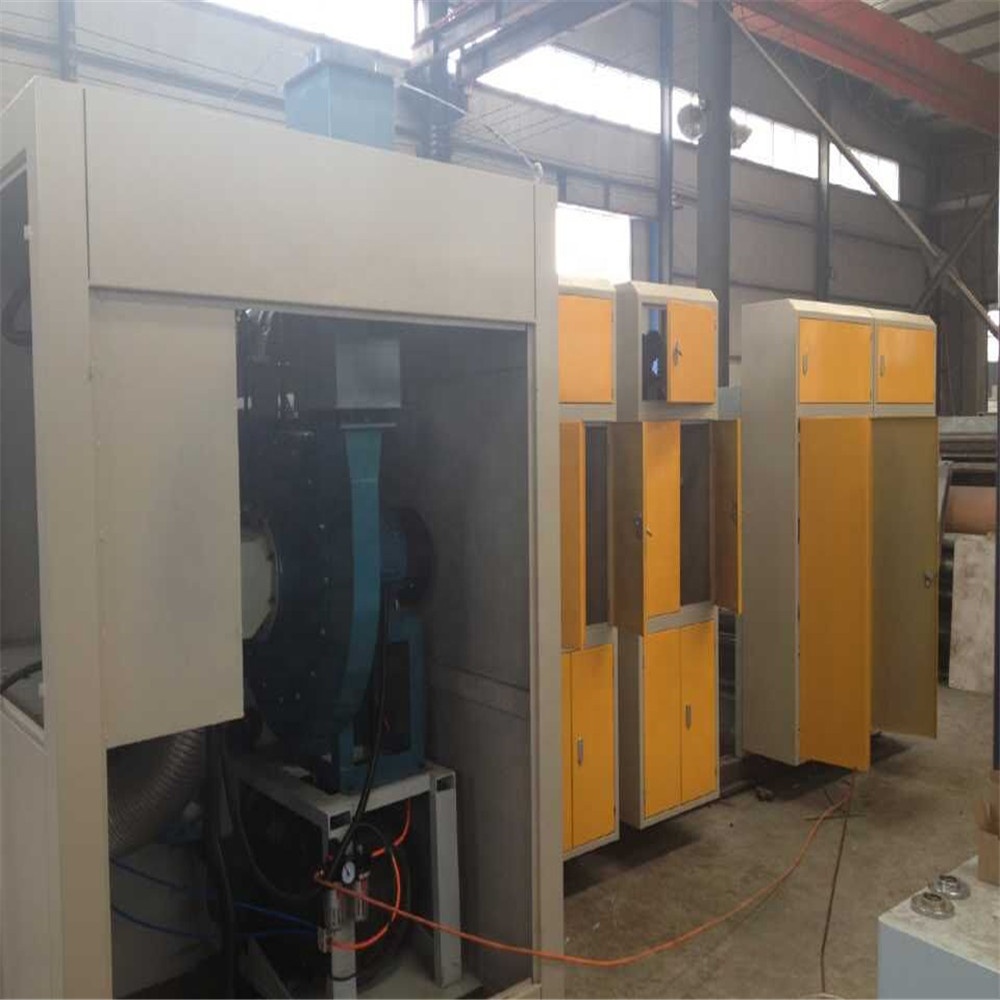

Key features include a fully computerized control system that stores job orders directly on the slotting unit, enabling rapid changeovers and simplified operation without compromising accuracy. The electric components are sourced from Panasonic, while Schneider France provides critical control elements like circuit breakers and relays, ensuring long-term reliability. Imported ceramic anilox rollers deliver sharp, uniform ink transfer, ideal for full-color graphics up to DPI-level detail on coated substrates. A vacuum feeding mechanism powered by a 7.5kW high-pressure centrifugal fan with variable frequency control guarantees stable handling of thin or warped materials—critical for minimizing waste and improving yield rates.

The machine’s structural integrity comes from hardened steel transmission rollers, each undergoing dynamic and static balancing tests followed by chrome plating and polishing for wear resistance. Gear systems exceed 60 Rockwell hardness, and Japanese bearings paired with top-tier Chinese Harbin brand units ensure smooth motion under continuous load. Safety is prioritized through automatic unit release mechanisms, pneumatic locking, acoustic alarms during movement, and emergency stop switches integrated into every module. An optional digital display beneath the cable channel allows operators to monitor real-time speed from any position, enhancing workflow visibility and operational safety.

For surface treatment, all parts undergo derusting, phosphating, lacquering, and baking processes to create corrosion-resistant finishes that withstand industrial conditions. Optional hot air or infrared drying systems accelerate curing times, allowing faster turnaround on glossy or coated stock. Additional benefits include a central dusting system for cleanliness, a robust frame made from 5mm-thick steel plates, and modular design that supports easy maintenance. This flexo printer slotter die cutter is suitable for boards ranging from 2–10mm thickness, accommodating sheet sizes between 380×750mm and 1400×2600mm—ideal for custom box makers seeking flexibility in format and volume.

Manufacturers in North America, Europe, and Asia rely on this equipment for consistent quality, reduced downtime, and compliance with international safety regulations. Whether producing retail boxes, shipping containers, or specialty packaging, users report improved productivity and fewer rejects thanks to precise registration, even pressure distribution, and intelligent automation. Its modular architecture also makes it adaptable for future upgrades such as inline gluing or automated stacking systems.

Common inquiries often revolve around setup complexity and material compatibility. While initial configuration may require trained personnel, the intuitive interface and built-in diagnostics reduce learning curves significantly. Most users find it compatible with a wide variety of paperboard types—including solid bleached sulfate (SBS), kraft board, and corrugated fiberboard—when paired with appropriate inks and substrates. Maintenance intervals are straightforward due to accessible components and clear visual indicators for oil levels and gear health.

Product Categories : Carton Box Printing Slotting Die-Cutting Machine > ZYKM High speed printing slotting die cutting
