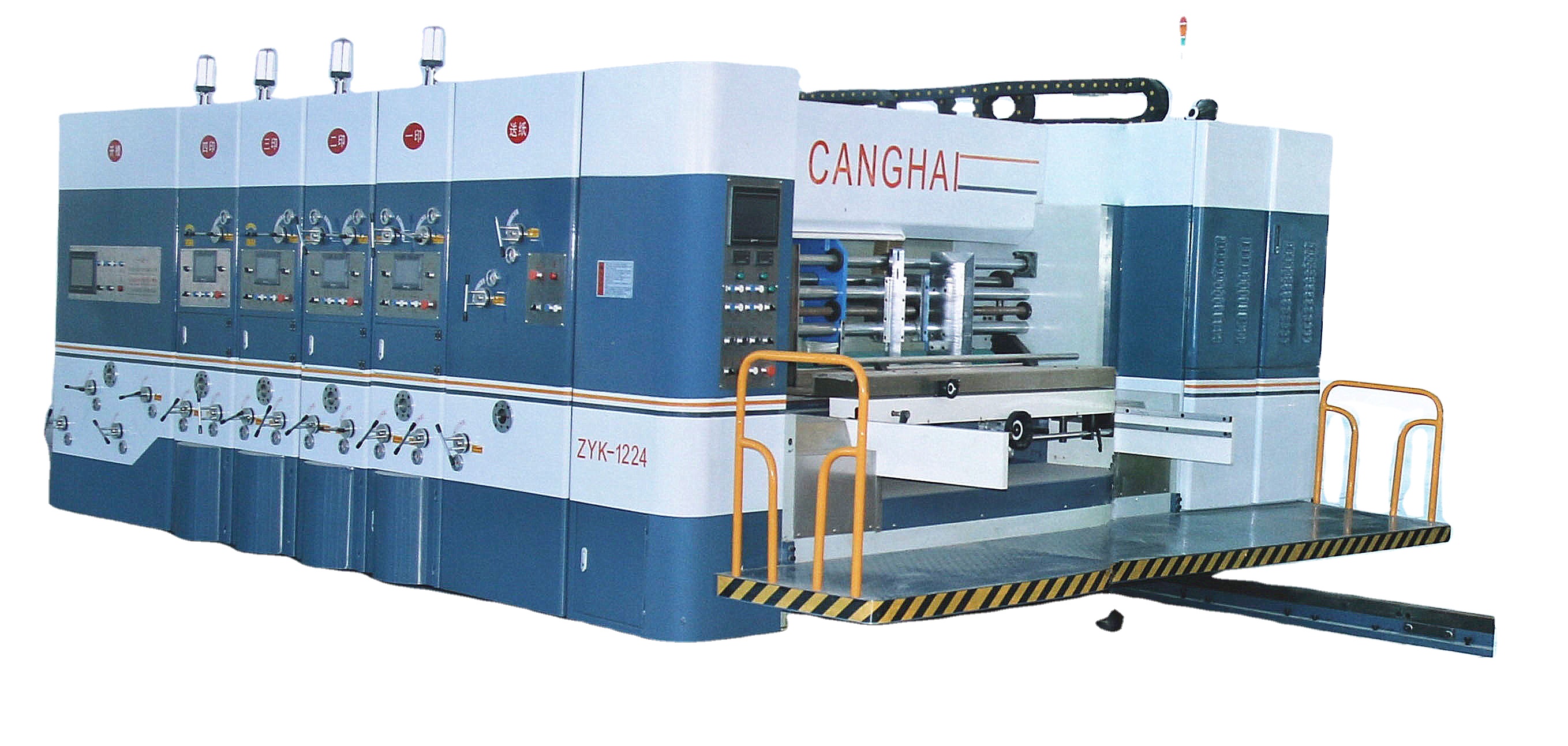

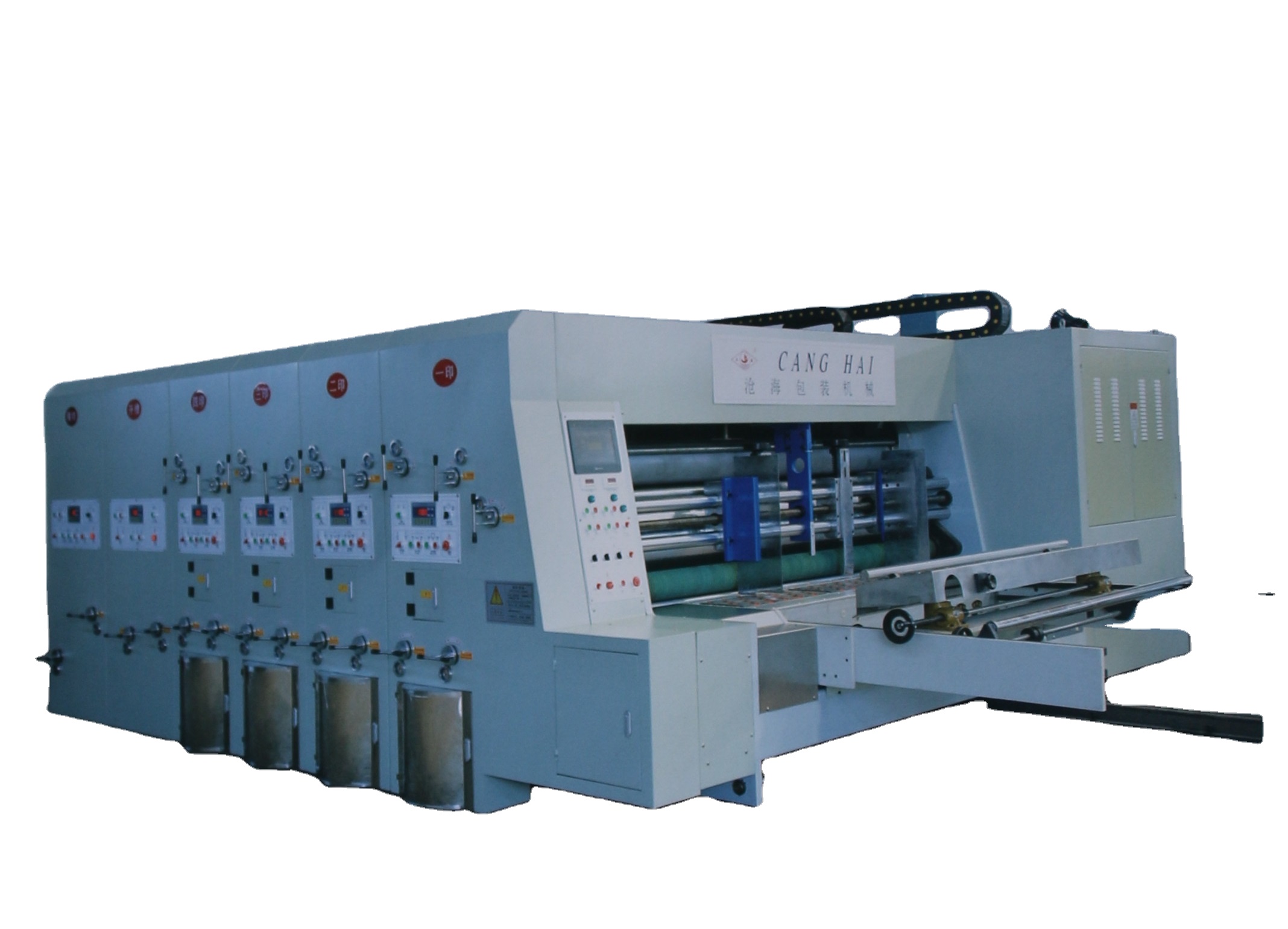

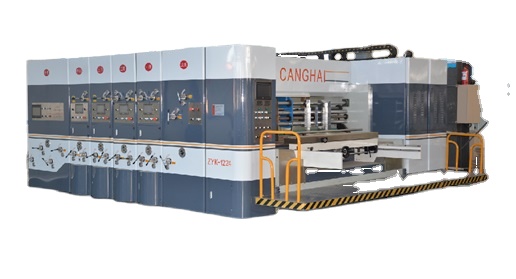

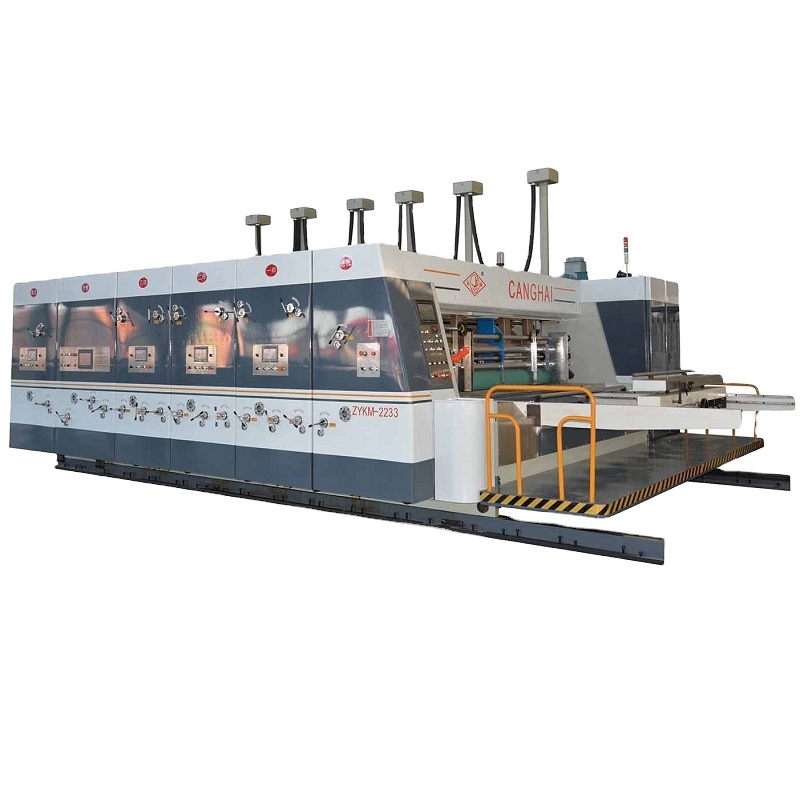

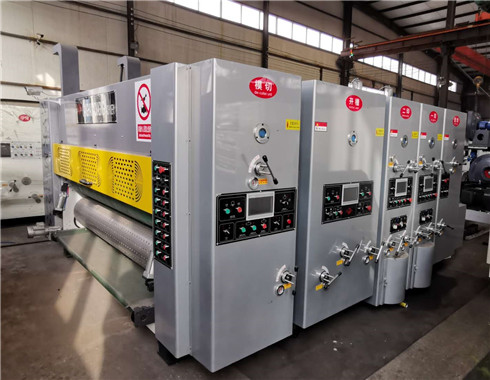

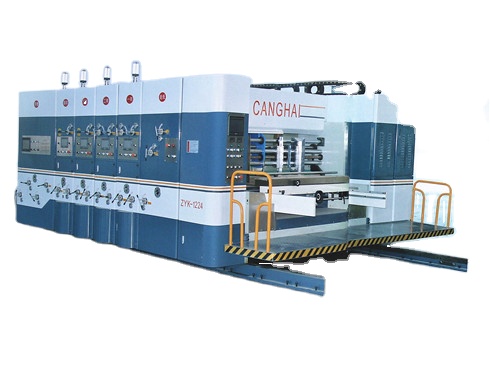

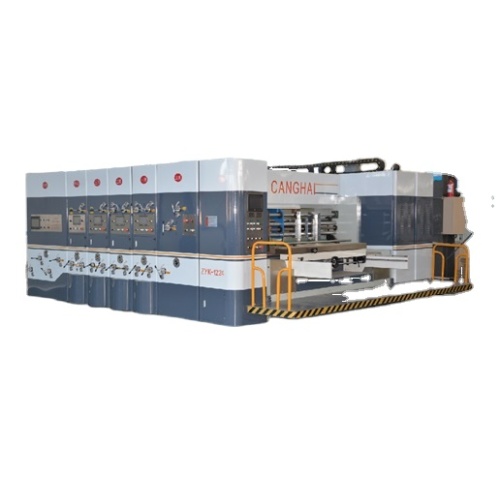

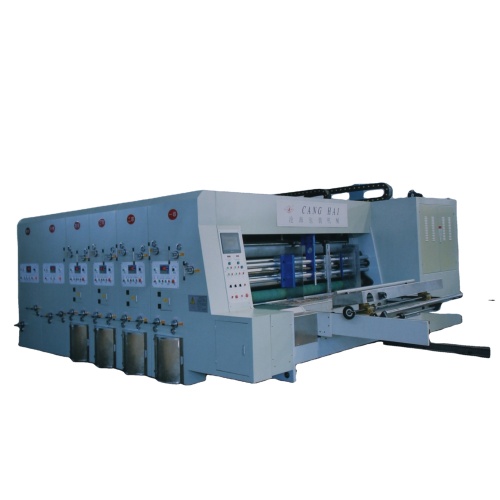

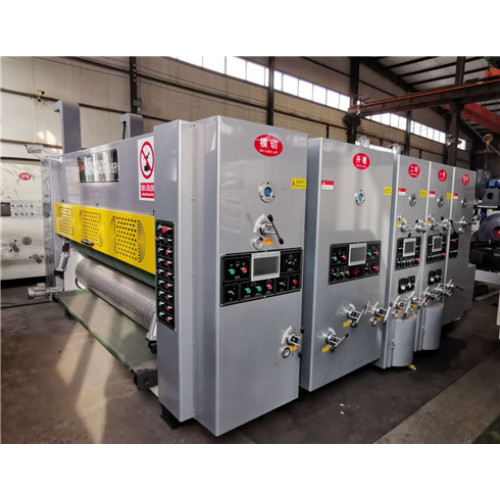

High-Speed 4-Color Flexographic Printing, Slotting, and Die-Cutting Machine for Corrugated Board – Efficient, Precision, and Reliable
This advanced automatic corrugated board processing system integrates high-speed flexographic printing, precise slotting, and die-cutting in a single seamless workflow. Designed for modern packaging production lines, it delivers exceptional performance across multiple formats—from small cartons to large-format boxes—while maintaining superior registration accuracy and consistent quality. Ideal for manufacturers of folding cartons, display boxes, and industrial packaging materials, this machine ensures fast turnaround times, reduced waste, and minimal downtime.
Key features include an intelligent PLC-controlled touch screen interface that allows for quick order changes, automated plate handling, and real-time monitoring of speed and output. The robust mechanical design incorporates chrome-plated rollers, precision-ground alloy gears, and self-locking gap adjustment mechanisms for long-term durability and consistent print alignment. With optional punch units and dual-slotter technology, the machine adapts effortlessly to complex box structures while minimizing tool collision risks during high-volume runs.
Each component is engineered for reliability: the feeder unit uses lead-edge control with variable air pressure for stable feeding; the printing module employs hanging cylinders with dynamic balancing for sharp image reproduction; the double slitter offers accurate creasing and scoring with adjustable depth up to 430mm; and the die-cutter includes automatic rubber roller lifting to reduce wear and ensure perfect cut quality per sheet. All electrical components, bearings, and pneumatic parts are sourced from globally recognized brands, ensuring safety, efficiency, and compliance with international standards.
Common applications span food packaging, consumer goods, cosmetics, pharmaceuticals, electronics, and logistics industries where high-quality printed corrugated boxes must meet strict dimensional tolerances and aesthetic requirements. Whether producing standard retail packaging or custom-designed promotional displays, this integrated solution supports flexible production schedules, rapid prototyping, and efficient batch switching without compromising output consistency.
Users report significant improvements in productivity, especially when transitioning between different box sizes and print jobs. Many highlight the intuitive touchscreen interface as a game-changer for reducing setup time, while others praise the machine’s ability to maintain color registration within ±0.5mm even at top speeds of 140 meters per minute. Operators appreciate the modular design that simplifies maintenance, and engineers value the built-in diagnostics and fault alerts that prevent unexpected breakdowns.
Q: Is this machine suitable for both small and large-scale production? A: Yes, it handles everything from short-run specialty boxes to continuous high-volume manufacturing thanks to its programmable memory functions and easy format adjustments.
Q: What kind of material thickness can it process? A: It supports paperboard and corrugated stock ranging from 2.5 to 12 points (approximately 0.6–3 mm), making it versatile for various packaging needs.
Q: How does the machine ensure accurate positioning across all four colors? A: Through a combination of servo-driven phase control, electromagnetic clutch locking, and 360-degree digital adjustment via the touch panel, which guarantees alignment precision down to ±0.35mm under optimal conditions.
Q: Can I get technical support abroad if needed? A: Yes, trained technicians can be dispatched internationally for installation, training, and troubleshooting—though travel expenses are the buyer’s responsibility.
With over two decades of innovation in automated corrugated processing equipment, this machine represents the latest evolution in integrated printing, slotting, and die-cutting technology—ideal for global manufacturers seeking to enhance their packaging capabilities with minimal operational friction.
