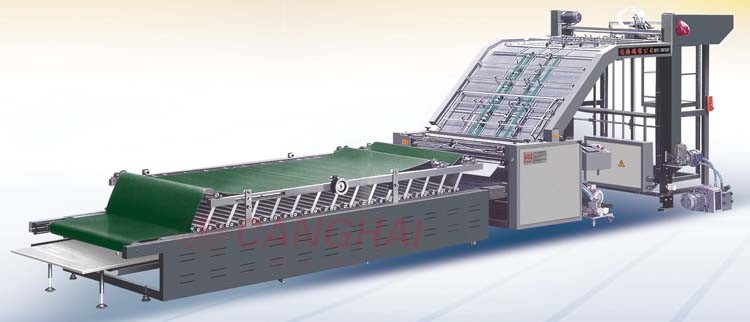

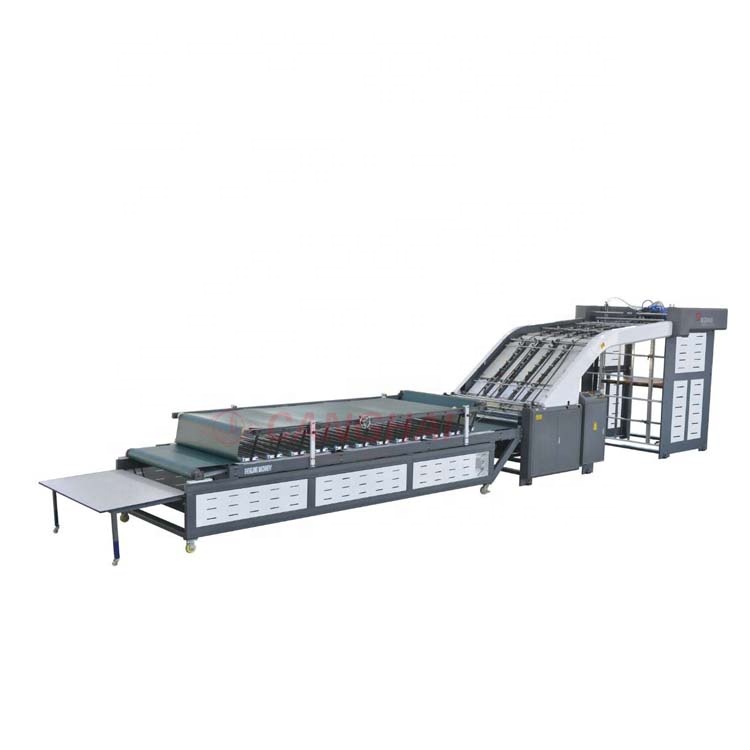

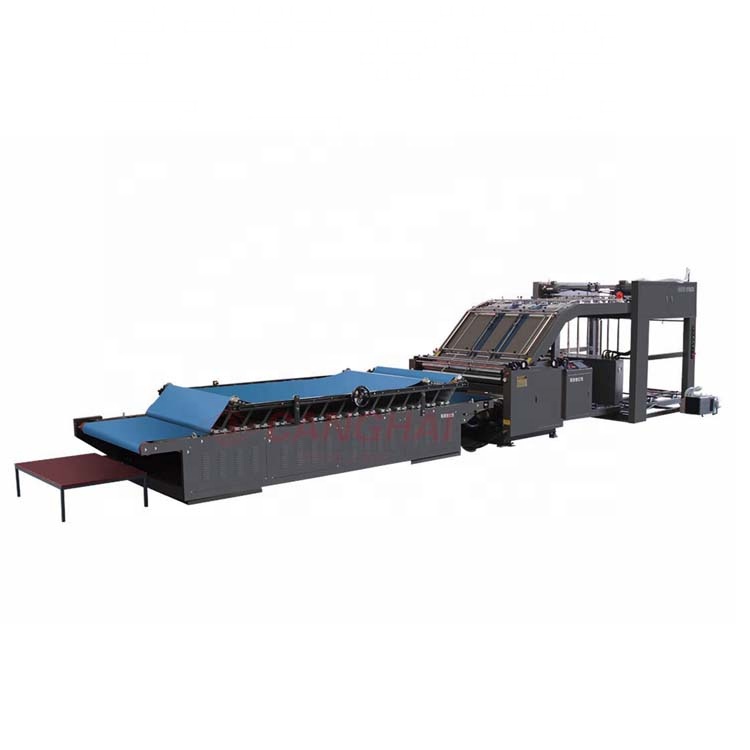

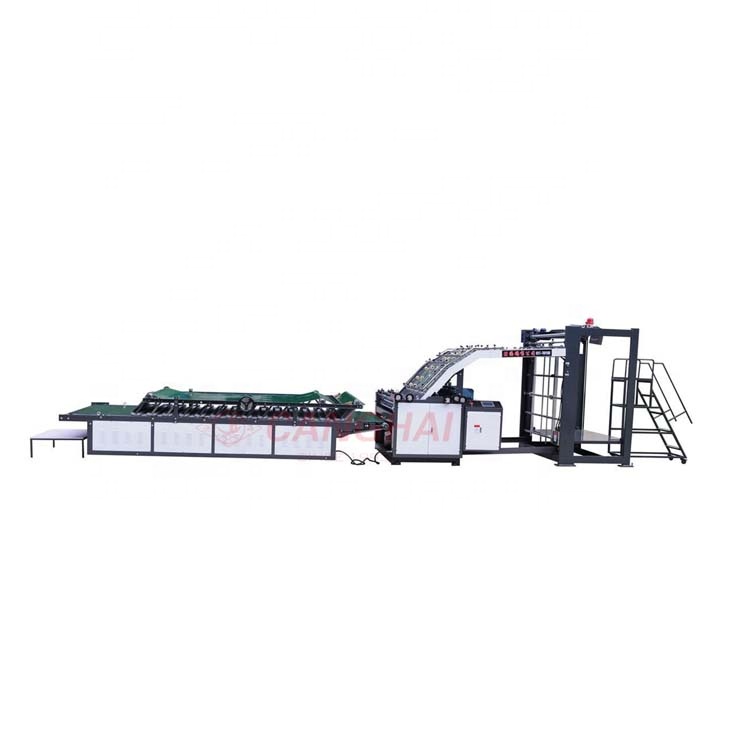

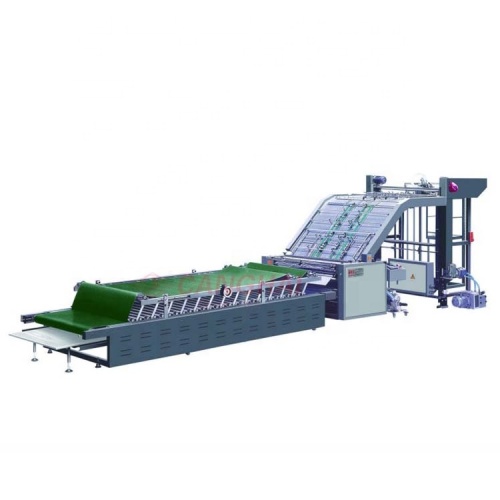

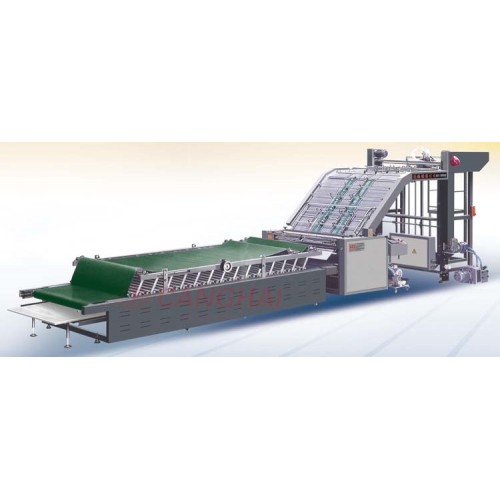

Vacuum Automatic corrugated cardboard Flute Laminator

$40000 - 48000 /set
Min. Order:
1 set
Transportation:
Ocean,Land
Port:
Xingang,China
Share:
  • Product Description
Overview
Product Attributes

Model No.: 1350/1450/1650

Brand: Canghai

Origin: China

Certification: ISO9001 CE

Types Of: Laminating Machine

Applicable Industry: Printing Shops, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Viet Nam, Peru, Indonesia, Pakistan, Mexico, Russia, Thailand, Malaysia, Chile, Romania

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Viet Nam, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Romania, South Africa, Malaysia, Australia

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc, Gearbox, Motor, Gear

Status: New

Application: Apparel

Type Of Packaging: Film, Case

Packaging Materials: Plastic, Wood

Degree Of Automation: Automatic

Power Type: Electric

Place Of Origin: China

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Type: Laminating Machine

Applicable Industries: Food & Beverage Shops

Showroom Location: South Africa

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty Of Core Components: 1 Year

Condition: New

Packaging Type: Cartons, Cans, Bottles, Barrel, Stand-Up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case

Packaging Material: Plastic, Paper, Metal, Glass, Wood

Automatic Grade: Semi-Automatic

Driven Type: Electric

Voltage: Customized

Place Of Origin: Hebei, China

Brand Name: Canghai

Dimension(L*W*H): 9.5m x 1.95m x 1.7m

Weight: 5T

Warranty: 1 Year

Key Selling Points: Low Noise Level

After-sales Service Provided: Online Support

Name: automatic vacuum adsorb cardboard laminator machine

Model: Flute Laminator 1300H

Max Laminating Width: 1300mm

Speed: 15000pcs/h

Supply Ability & Additional Information

Packaging: wood packing and plastic packing

Productivity: 10sets/month

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10Sets /Month

Certificate: ISO9001 CE

HS Code: 84413909

Port: Xingang,China

Packaging & Delivery
Selling Units:
set
Package Type:
wood packing and plastic packing

New Type Full Automatic Flute Laminating Machine



Product Description

Model

CH-1300A-Ⅲ

CH-1450A-Ⅲ

CH-1550A-Ⅲ

CH-1650A-Ⅲ

CH-1700A-Ⅲ

Max laminating size

1300×1250mm

1400×1250mm

1500×1250mm

1600×1250mm

1700×1400mm

Min laminating size

400×400mm

400×400mm

400×400mm

400×400mm

400×400mm

Economic speed

0-100sheets/min

0-100sheets/min

0-100sheets/min

0-100sheets/min

0-100sheets/min

Laminating precision

±1.5

±1.5

±1.5

±1.5

±1.5

Power

10kw

12kw

12kw

12kw

15kw

Size

13.5m×2m×2.4m

13.5m×2.05m×2.4m

13.5m×2.15m×2.4m

13.5m×2.25m×2.4m

13.5m×2.4m×2.4m

Weight

About 4.8t

About 5t

About 5.2t

About 5.4t

About 5.6t

Bottom paper thickness

A/B/C/E/F flute,2/ 3/4/5/7/ layer , less than 12mm thickness



Surface paper gram weight

150-400 g/m2







SPECIFICATION



1,Independent research and development, we are the first manufacturer for servo

Semi-automatic flute laminator.

2,Adopt PLC control system, working is more precision and stable,improved the speed, circuit faults can automatically alarm.

3,This machine adopts Taiwan servo motor, instead of the break,clutch and electronic eye, realized PLC & servo single control independently.

4,Worker feeds the surface paper, demand for surface paper is low, all kinds of 175g-500g surface paper can work well.

5,Corrugated cardboards auto feeding, as fast as the surface papers' working.

6,The machine operation is stable, surface paper with corrugated paper joint very

Accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.

7,Automatic gluing, and the glue can be used circulatory, avoid glue waste.

8,Roller design scientifically, avoid glue fly out when the speed is high.

9,All electrical equipment import from Taiwan, ensure the machine running stable.

10,Pressure rollers adopt one side adjustment, convenient and fast.

11,Rocker controls wash roller's fluctuation, easy cleaning.

12.Counter designs scientifically, easy recording the amount you have been worked.
