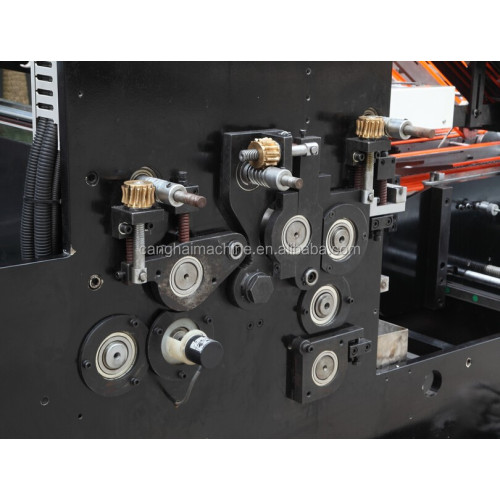

Manual paper corrugated flute lamination machine

Manual Paper Corrugated Flute Lamination Machine – High-Efficiency Solution for Industrial Packaging Production This semi-automatic corrugated paper lamination system is engineered for precision, durability, and consistent performance in manufacturing high-quality cardboard products. Designed for industrial-scale operations, this machine enables seamless bonding of flute layers with top and bottom paperboard, ideal for producing rigid packaging materials used across food, beverage, cosmetics, and chemical industries. Key Features: - Automatic feeding mechanism for bottom sheet with elastic front register ensures accurate alignment - Manual top sheet loading allows flexibility for various paper thicknesses including film-coated boards - Wide range of laminating sizes (360mm x 360mm to 1300mm x 1100mm) supports diverse product formats - Floating press unit maintains uniform pressure for smooth, bubble-free lamination - Compact yet robust design (8.8m x 1.95m x 1.5m), weighing approximately 3 tons for stable operation - Energy-efficient motor (6kW) reduces operational costs while maintaining optimal output speed (up to 100 pieces per minute) - Precision control system offers ±1mm accuracy—critical for professional-grade packaging consistency Detailed Description: The BZJ-B1300H manual corrugated flute lamination machine integrates advanced engineering principles to deliver reliable results in commercial packaging environments. Its feeding station features an elevated table that accommodates up to 1.8 meters of stacked top sheets, enabling continuous workflow without frequent interruptions. The bottom sheet feeds automatically through a synchronized conveyor system, ensuring minimal operator effort and maximum throughput. This setup makes it particularly suitable for manufacturers seeking cost-effective solutions without compromising on quality. The pressing unit uses a floating roller mechanism that adapts dynamically to variations in material thickness, preventing wrinkles or uneven adhesion during lamination. Unlike fully automated systems, this model balances automation with human oversight—ideal for small to medium enterprises looking to scale production gradually. It supports multiple flute types (A, B, C, D, E), making it versatile for creating everything from standard shipping boxes to premium retail packaging. Use Cases: This industrial laminator excels in applications requiring durable, moisture-resistant packaging such as carbonated drink bottles, mineral water containers, pesticide jugs, oil drums, and hot-fill food jars. It’s also widely adopted by companies involved in custom box fabrication, especially those serving e-commerce, pharmaceuticals, and logistics sectors where structural integrity and print-ready surfaces are essential. Customer Feedback: Users praise the machine’s ease of use, noting how intuitive the manual feeding process becomes after initial setup. Many highlight its ability to handle both thick boardstock and thin films without jamming—a common issue with cheaper alternatives. Operators report improved productivity within weeks due to reduced downtime and fewer misalignments compared to older models. Frequently Asked Questions: What materials can be laminated using this machine? It works efficiently with kraft paper, white linerboard, test liner, and even coated or printed papers. Film-laminated substrates are also compatible thanks to the adjustable tension system. Is technical training required for operation? No formal certification is needed, but basic instruction on handling paper rolls and adjusting registration settings is recommended for best results. How does it compare to fully automatic lamination equipment? While less automated, this unit offers better control over delicate materials and lower maintenance needs—making it a preferred choice for specialized packaging producers who prioritize customization over raw speed. This manual corrugated flute lamination machine represents a smart investment for businesses aiming to enhance their packaging capabilities while minimizing capital expenditure. With its blend of mechanical reliability, user-friendly interface, and broad compatibility, it stands out as a practical solution for global manufacturers focused on sustainable, high-performance cardboard production.
