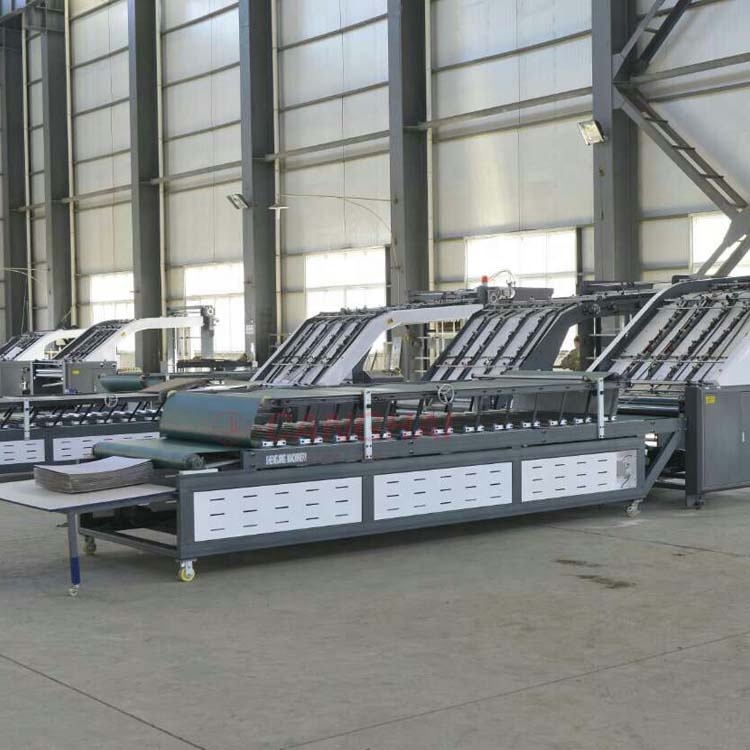

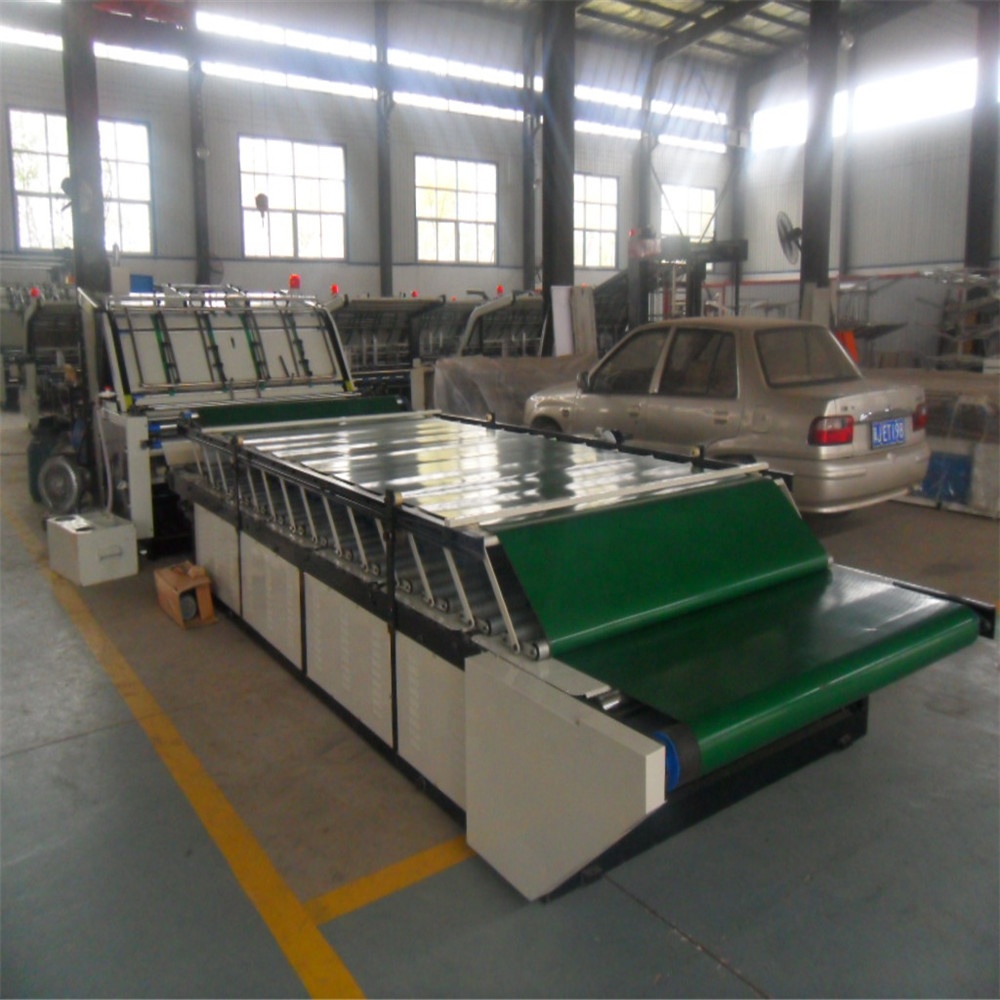

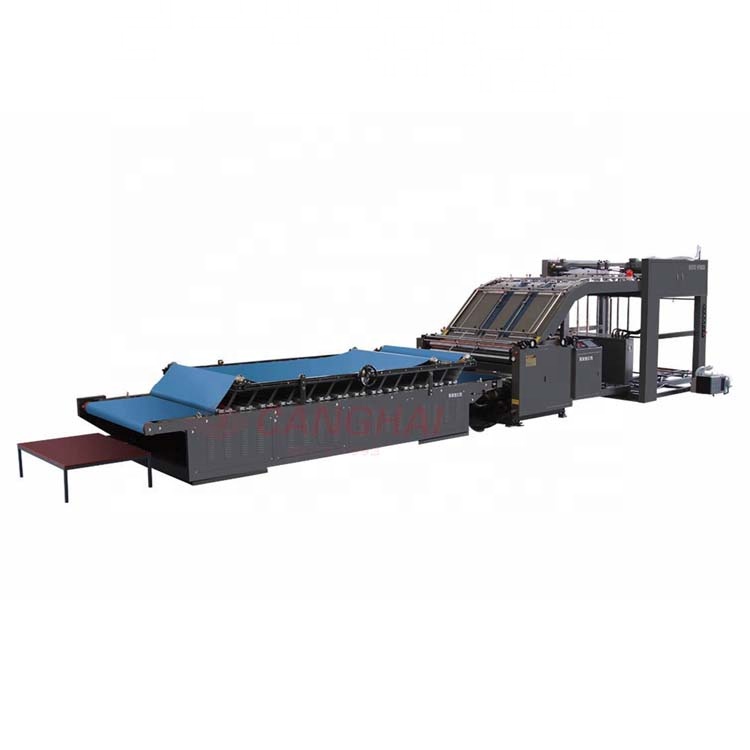

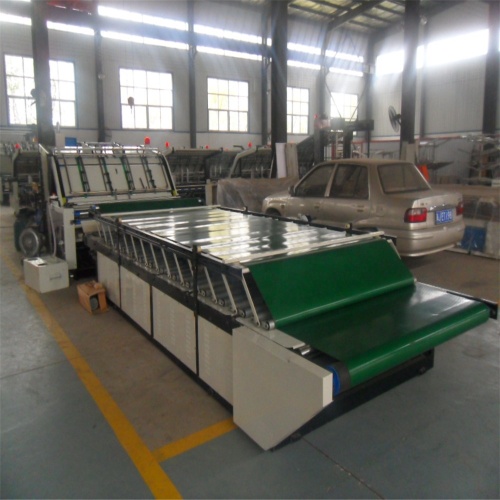

Auto Flute Lamination Machine for High-Efficiency Corrugated Board Production
This advanced semi-automatic lamination system is engineered for precision bonding of paperboard layers in corrugated packaging manufacturing. Designed to handle a wide range of materials including ABCDE flute corrugated cardboard, this machine ensures consistent quality and high throughput across diverse industrial applications—from beverage containers to pharmaceutical packaging. Ideal for small to medium-scale production lines, it delivers reliable performance with minimal operator intervention.
Key features include an automated feeding mechanism that supports both top and bottom sheet alignment with exceptional accuracy (±1mm), enabling efficient laminating of various paper types such as kraft paper, film-coated stock, or recycled board. The floating press unit allows smooth surface contact during bonding, reducing air bubbles and ensuring uniform adhesion. With a maximum cover face size of 1300mm x 1100mm and a minimum of 360mm x 360mm, the BZJ-B1300H model accommodates multiple product formats without compromising speed or consistency. It operates at up to 100 pieces per minute, making it suitable for continuous production environments where efficiency and repeatability are critical.
The machine’s compact footprint—measuring 8.8 meters long by 1.95 meters wide and 1.5 meters tall—and a total weight of approximately 3 metric tons make it easy to integrate into existing facilities. Its power consumption is optimized at just 6 kW, offering energy-efficient operation while maintaining robust output. Built with durable components and ergonomic design, this lamination solution reduces manual labor, minimizes material waste, and enhances overall productivity in corrugated box fabrication processes.
Common uses span across industries requiring custom packaging solutions: carbonated drink bottles, mineral water containers, cosmetic jars, hot-fill food products, pesticide containers, oil bottles, and wide-mouth jars. Whether you're producing eco-friendly packaging for sustainable brands or high-volume commercial boxes for logistics companies, this equipment supports versatility and scalability. It also serves well in converting operations where flexibility in paper type and format is essential.
Users report improved process control, reduced downtime due to fewer misalignments, and enhanced bond strength compared to traditional manual methods. Many appreciate the intuitive setup, especially the elastic front register system that simplifies sheet positioning and prevents overhang issues during lamination. Operators often note how the high table feeding system allows one person to manage large volumes efficiently, contributing to cost savings in labor-intensive settings.
For those new to automated laminating technology, the machine includes clear operational guidelines and safety protocols built into its structure. Maintenance is straightforward thanks to accessible components and modular construction. While some users initially seek training for optimal configuration, most adapt quickly after a short learning curve. Common inquiries involve compatibility with different flute profiles and customization options for specific industry standards—answers typically provided through detailed documentation included with each unit.
As global demand grows for environmentally conscious packaging, this lamination machine offers a scalable pathway toward greener manufacturing practices by supporting lightweight yet durable corrugated structures. It aligns perfectly with modern sustainability goals while delivering measurable improvements in production efficiency, product consistency, and worker safety.
