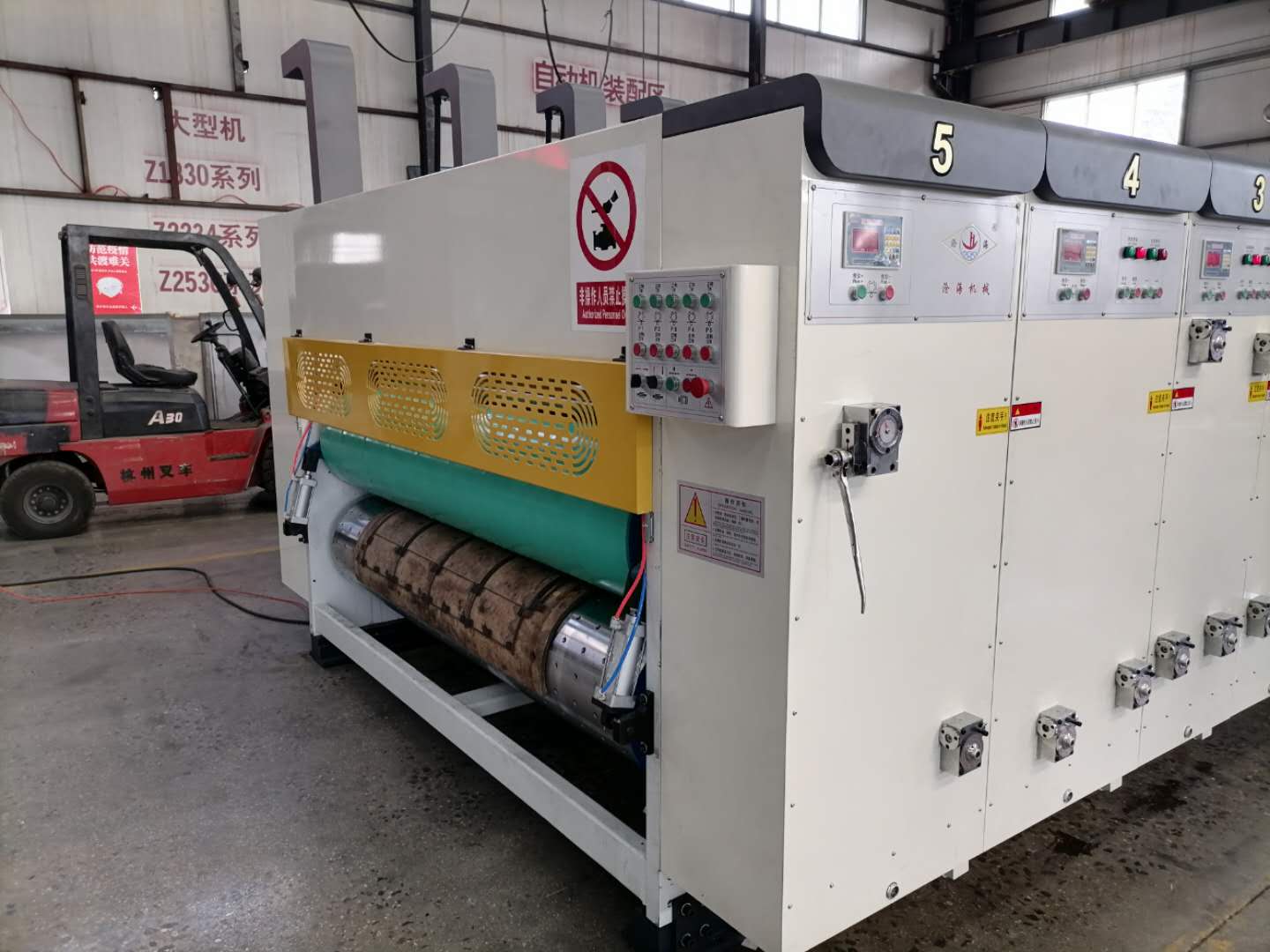

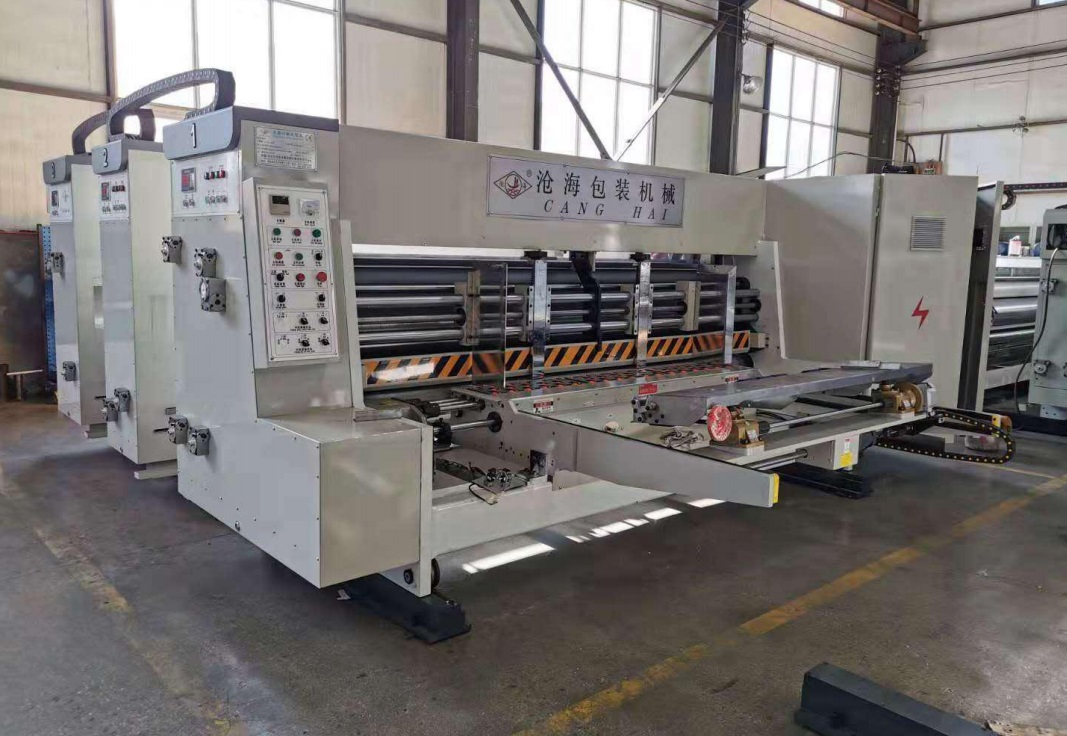

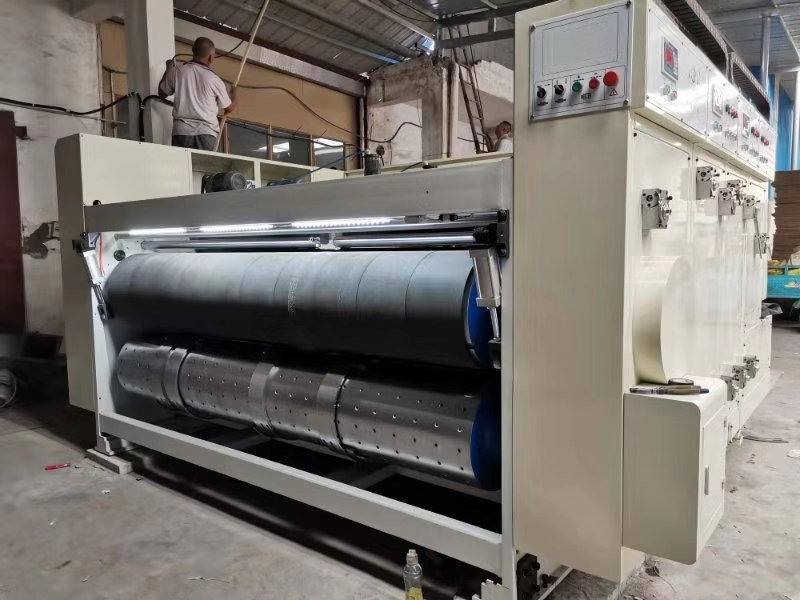

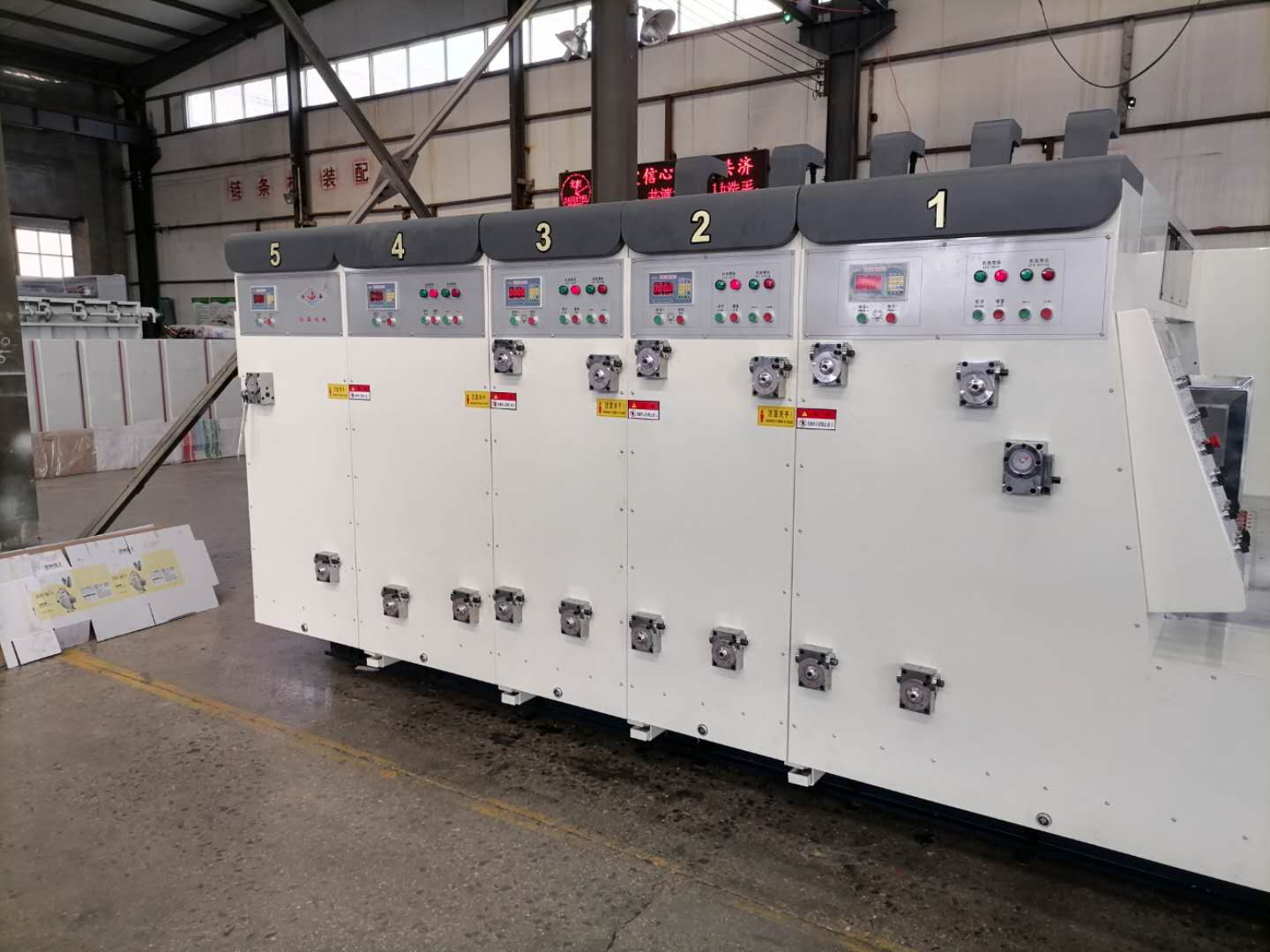

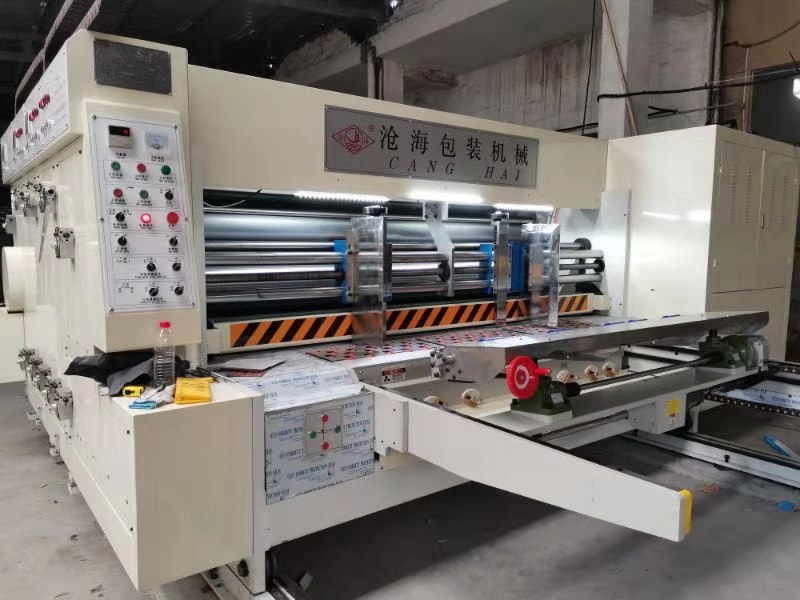

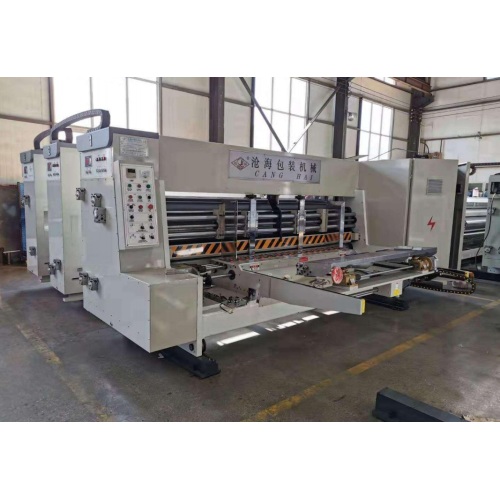

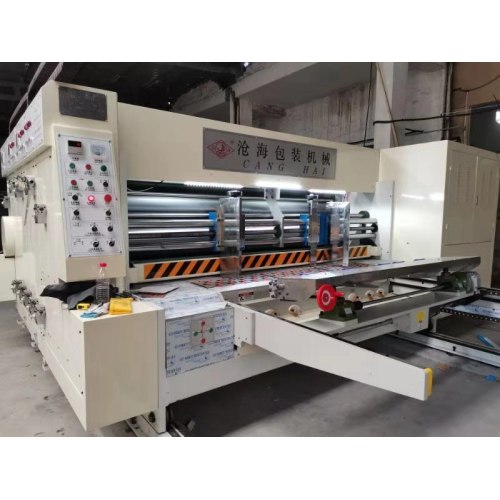

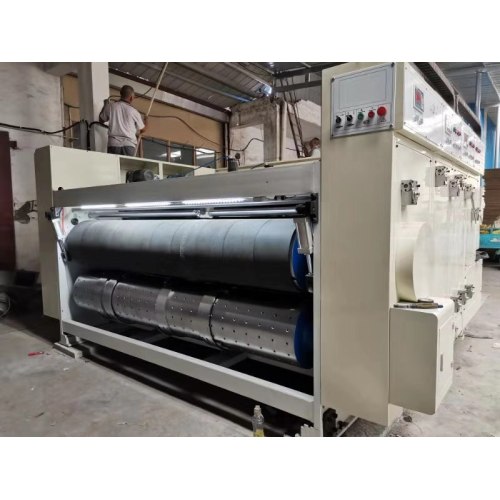

High-Speed Automatic Water-Based Printing, Slotting, and Die-Cutting Machine for Corrugated Board – Efficient, Precise, and Durable
This advanced corrugated board processing machine integrates printing, slotting, and die-cutting functions into a single high-efficiency unit, ideal for manufacturers seeking to streamline production of packaging materials such as cartons, boxes, and containers. Designed for both three- and five-layer corrugated boards, it delivers consistent quality at speeds up to 150 pieces per minute while maintaining operational stability across various material thicknesses—from 300x650mm to 1000x2200mm. Engineered with industrial-grade components, this system ensures long-term reliability, reduced downtime, and superior output consistency in global packaging operations.
Key features include a gear-driven transmission system using hardened steel gears treated with high-frequency quenching and precision grinding for minimal noise and maximum durability. The machine employs brand-name bearings from reputable suppliers like HRB and Wafangdian, ensuring smooth motion control and extended service life. Each module is independently powered via a clutch mechanism equipped with an audible alarm system—enhancing operator safety during start-up, shutdown, or unexpected stops. Additionally, the main motor uses frequency conversion technology for energy-efficient acceleration and deceleration, supported by Siemens-certified electrical systems for stable performance under varying loads.
The machine’s closed-loop spray lubrication system maintains optimal gear condition through continuous oil distribution, preventing wear and reducing maintenance needs. Its ink delivery mechanism allows precise control over ink flow, minimizing waste and keeping surfaces clean—a crucial factor for food-safe packaging compliance. With a slotting accuracy of ±1.5mm and a maximum cutting depth of 250mm, this equipment supports complex box designs without compromising structural integrity. Internal stress relief through artificial aging treatment and medium-frequency heat treatment enhances the frame's rigidity, enabling accurate handling of heavy-duty corrugated sheets up to 50mm thick.
Common applications span commercial packaging lines producing shipping containers, retail boxes, display units, and custom-printed cardboard products. It is particularly suited for businesses involved in e-commerce fulfillment, consumer goods distribution, and logistics solutions where fast turnaround times and consistent product dimensions are essential. Whether used in small-scale workshops or mid-sized manufacturing facilities, this machine offers scalability and adaptability for diverse production volumes and material types—including kraft paper, test linerboard, and recycled fiber boards.
Users report exceptional ease of operation after initial setup, especially when paired with trained personnel familiar with automated sheet-fed processes. Many appreciate the machine’s robust build quality and low maintenance requirements compared to older models. Feedback highlights improved productivity gains of up to 40% when replacing manual or semi-automatic methods, along with fewer errors in edge alignment and print registration due to its integrated precision controls.
Q: What makes this machine suitable for international markets? A: It complies with global standards for mechanical safety, noise emission, and electrical certification. Its modular design allows easy adaptation to different voltage inputs and environmental conditions, making it ideal for use outside China.
Q: Can it handle multiple colors and variable box sizes? A: Yes—it supports multi-color water-based ink systems and can be adjusted quickly between formats within its maximum feeding range (1000x2200mm), allowing efficient switching between standard and custom box configurations.
Q: How does it ensure worker safety? A: Safety mechanisms include automatic stop functions upon detection of misfeeds or incorrect operation, along with visual and audio alerts triggered by clutch activation. These features reduce risk while improving operational confidence in unattended settings.
Q: What kind of support is available post-purchase? A: A dedicated technical team provides remote troubleshooting and spare parts assistance. While on-site installation may require buyer coordination for travel expenses, comprehensive documentation and video tutorials are provided to facilitate self-setup in most cases.
