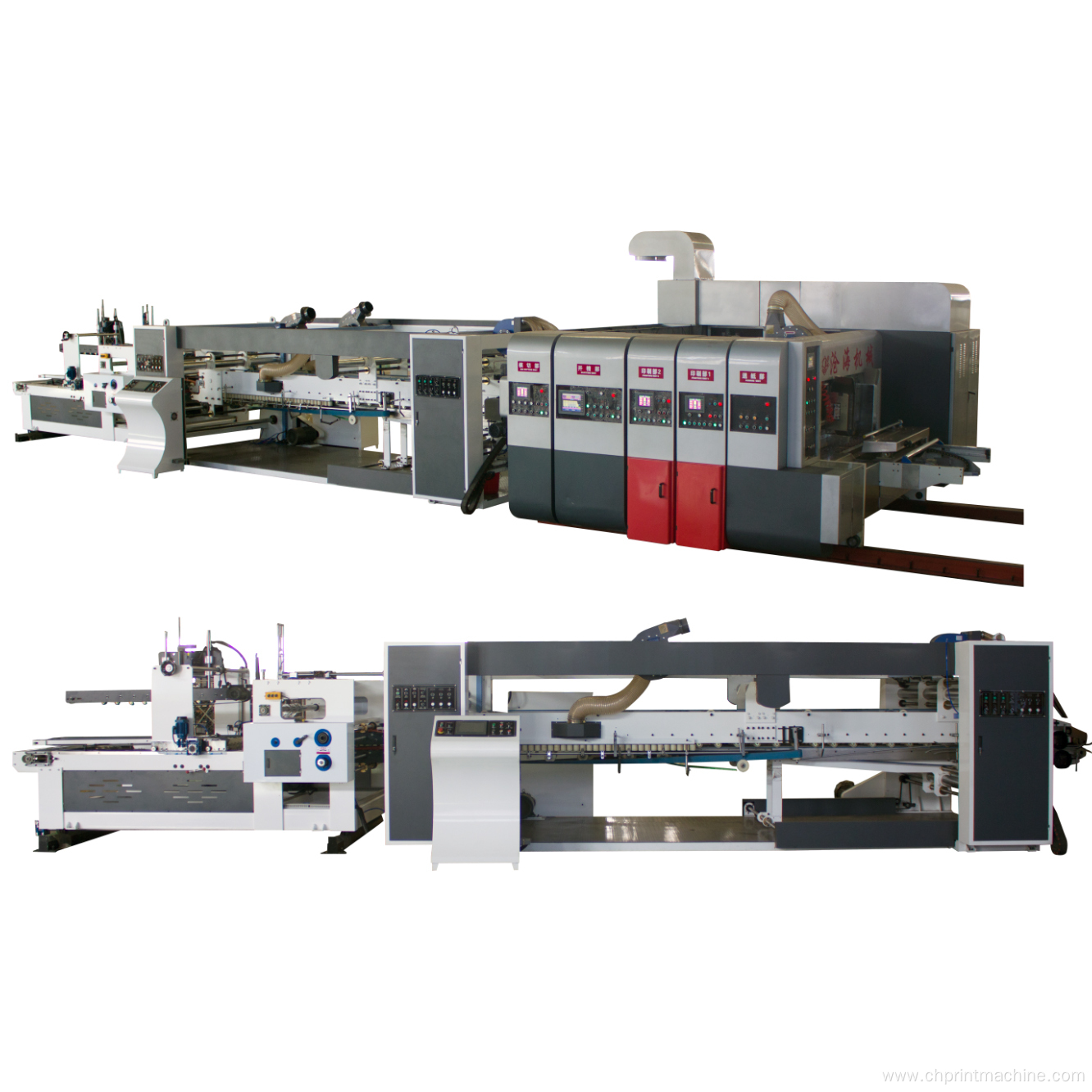

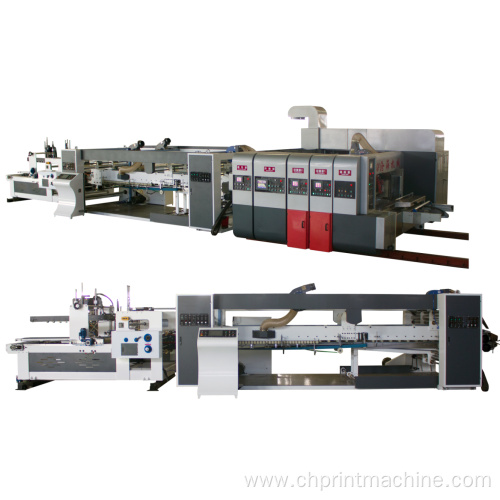

High-Speed Automatic Corrugated Carton Box Making Machine with Flexo Printing, Slotting, Die Cutting, Folding, Gluing & Strapping – ZYKM1224 Model
This advanced automated corrugated box production system integrates multiple functions into one seamless workflow—paper feeding, flexographic printing, slotting, die cutting, folding, gluing, and strapping—making it ideal for high-volume packaging operations. Designed for efficiency, precision, and durability, this machine delivers consistent quality while reducing labor costs and material waste. With international-grade components and an intuitive human-machine interface, the ZYKM1224 ensures reliable performance across diverse packaging applications.
Key Features:
- Complete automation from raw sheet input to bundled finished boxes
- Max speed up to 160 pieces per minute (economic speed: 120 ppm)
- Print area up to 1200×2400 mm; feeding paper size range from 320×720 mm to 1500×2600 mm
- Stainless steel rollers for long-term wear resistance and hygiene compliance
- ±0.35mm positioning accuracy for precise slitting, scoring, and die-cutting
- Quick-change ceramic anilox roller with doctor blade for sharp, consistent ink transfer
- Electrically adjustable slotting phase, die cutter angle, and folder gluer settings
- Automatic induction ink detection system with visual and audible alarms

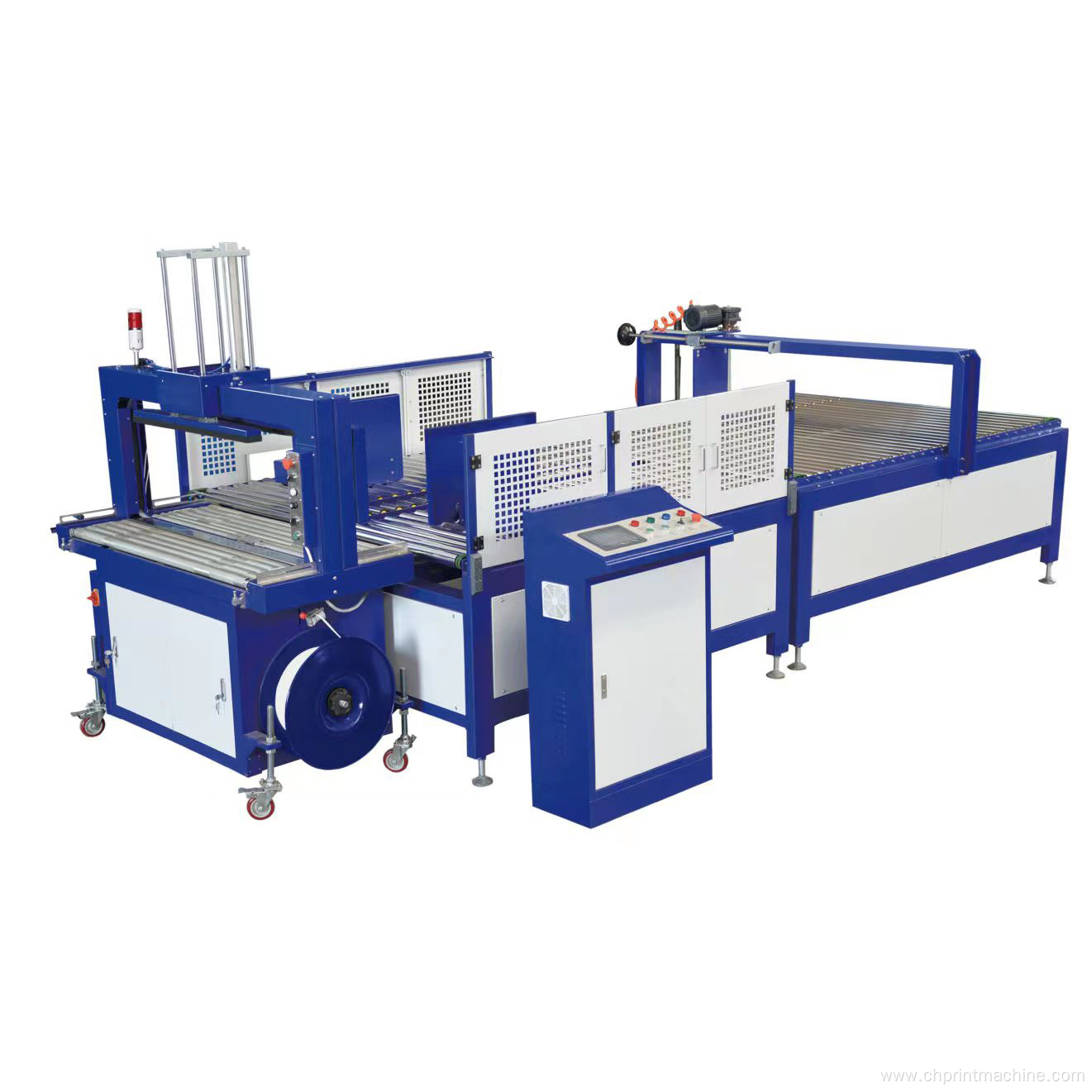

- Integrated automatic strapping unit for secure bundling of finished cartons
- Robust frame structure with 60mm thickness for stable operation at high speeds

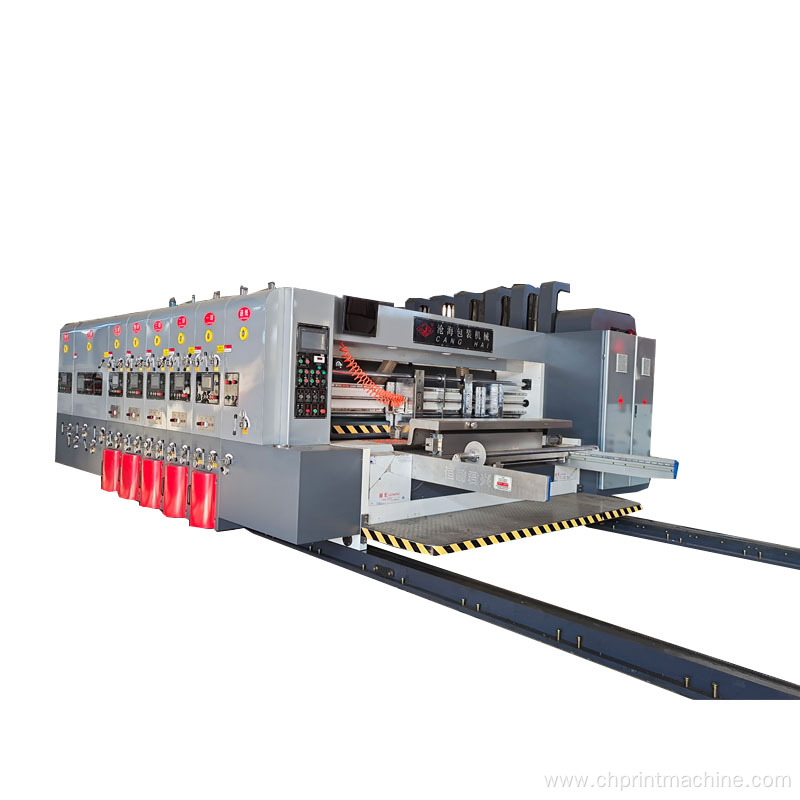

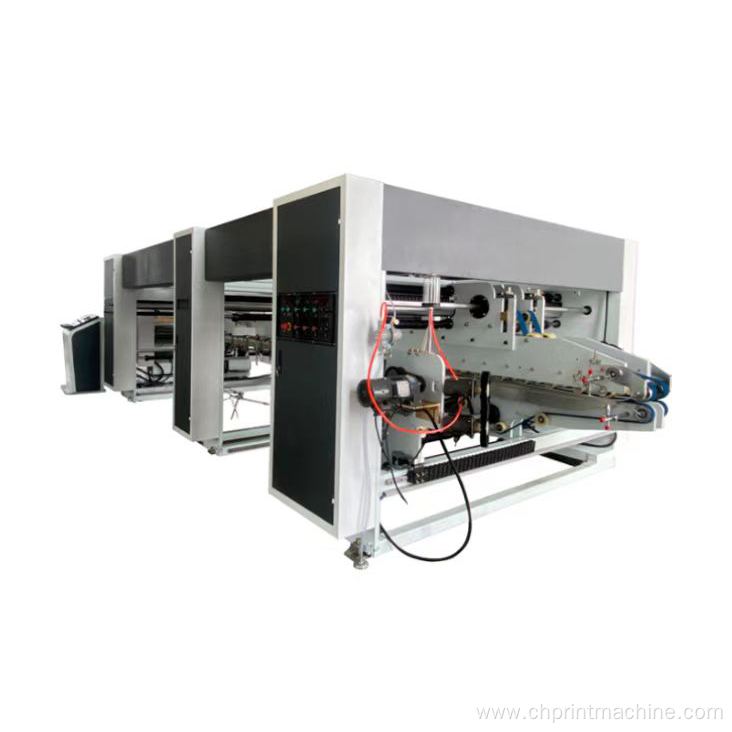

The ZYKM1224 features a modular design that allows easy maintenance and component replacement. The feeder unit uses dual vacuum suction systems, electrostatic dust removal, and brush rollers for clean, smooth paper handling—minimizing misfeeds and improving print quality. The flexo printing section includes a full vacuum transfer system with digital display control for accurate nip pressure adjustment (0–12mm). The rotary die cutter employs a gear-driven phase adjustment mechanism enabling 360° electric positioning, ensuring perfect alignment even during complex pattern changes. The folder gluer unit combines precision guide wheels and adsorption belts to maintain straight-line folding without deviation, while the strapping module offers tightness control from 0 to 45 kg and operates at 18 packages per minute. All units are built with premium brands like Siemens, Schneider, and ABB, guaranteeing operational stability in industrial environments worldwide.
This versatile machine is suitable for manufacturers producing corrugated boxes for food, cosmetics, electronics, pharmaceuticals, and consumer goods industries. It supports both standard and custom box designs, making it a valuable asset for businesses seeking scalable, cost-effective packaging solutions. Whether used in small-scale production lines or integrated into larger automated facilities, the ZYKM1224 enhances productivity through its intelligent controls, low energy consumption, and minimal downtime.
Users report significant improvements in output consistency and reduced manual intervention after adopting this machine. Its user-friendly interface simplifies setup and troubleshooting, while the robust build ensures longevity under continuous use. Many operators appreciate the inclusion of safety features such as alarm systems for clutch disengagement and real-time monitoring of critical parameters like air pressure (0.5–0.8 MPa) and glue temperature. Additionally, the machine’s ability to handle board thicknesses between 2–10mm makes it adaptable to various substrate types—from lightweight kraft paper to heavy-duty corrugated cardboard.
Frequently Asked Questions:
Is this a factory-made product? Yes, we are a certified manufacturer with over 25 years of experience in designing and producing high-speed automatic carton box making machines. We also hold import-export licenses for global distribution.
Can technicians be sent overseas for installation? Yes, our engineers can provide on-site setup and training services abroad, though travel expenses—including flights, accommodation, meals, and local transport—are the responsibility of the buyer.
What kind of warranty do you offer? We provide a three-year comprehensive warranty covering all major mechanical and electrical parts. Some clients have operated similar models continuously for more than a decade without issues, demonstrating exceptional reliability.
How does it compare to other automatic box makers? Unlike traditional semi-automatic equipment, the ZYKM1224 eliminates bottlenecks by integrating printing, die-cutting, folding, gluing, and strapping into a single line. This reduces cycle time, minimizes errors, and increases throughput significantly—especially beneficial for businesses aiming to meet growing demand efficiently.
