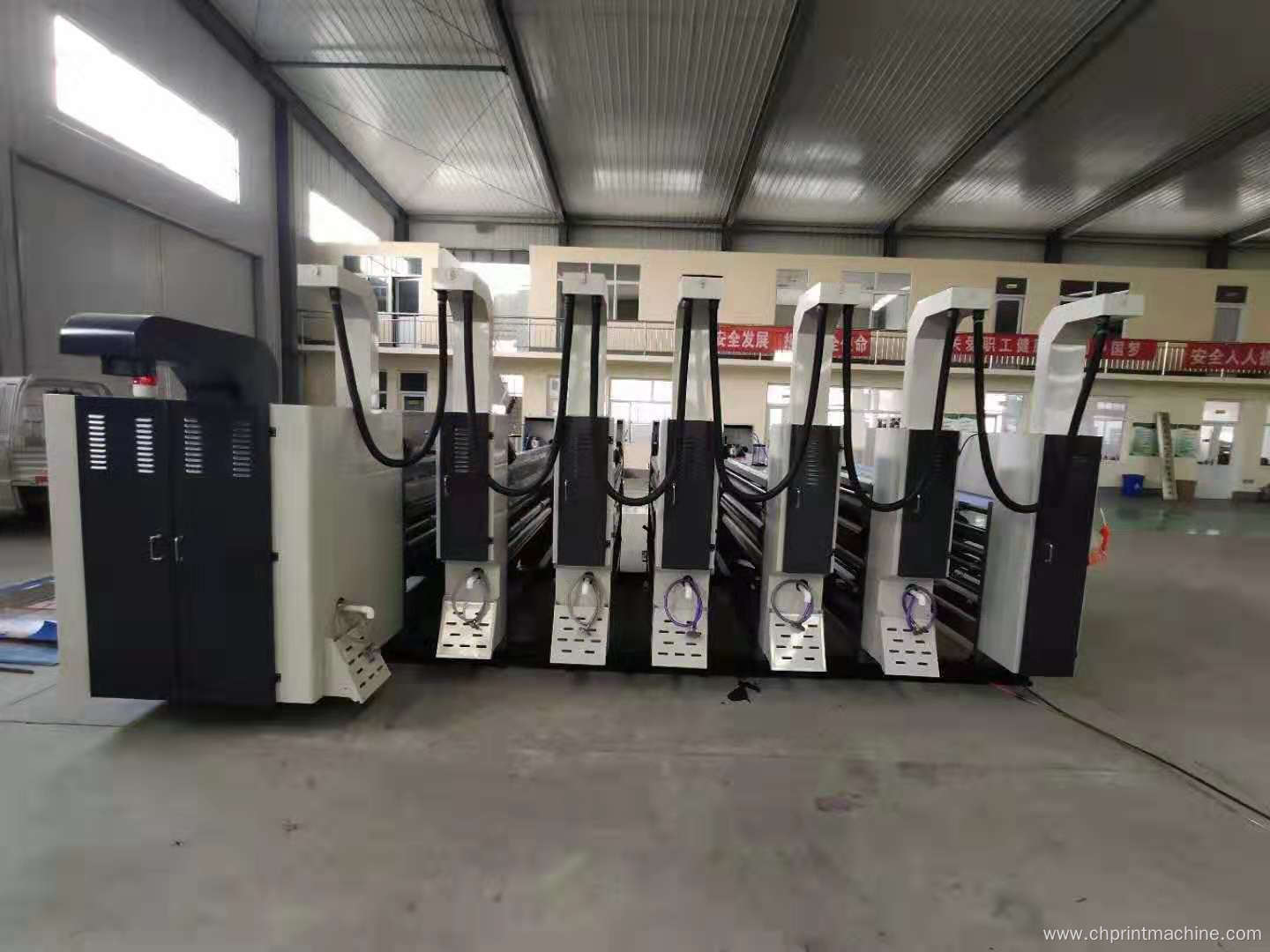

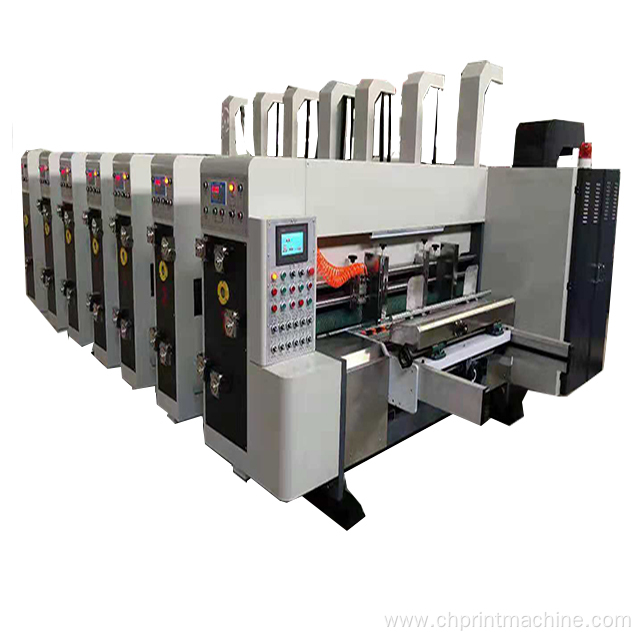

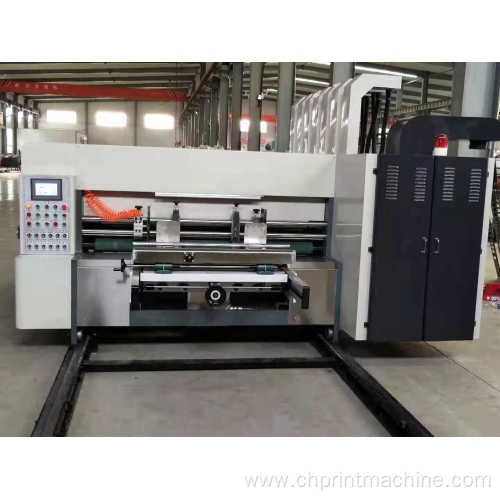

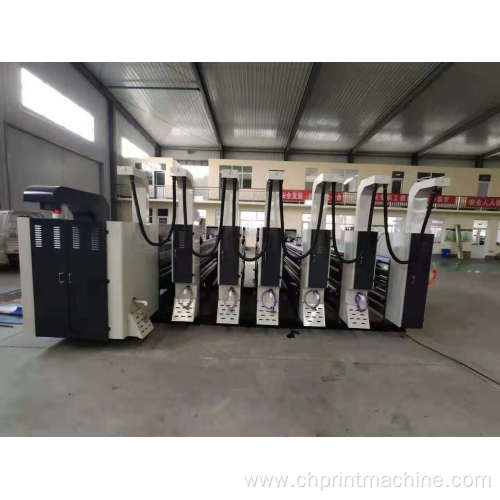

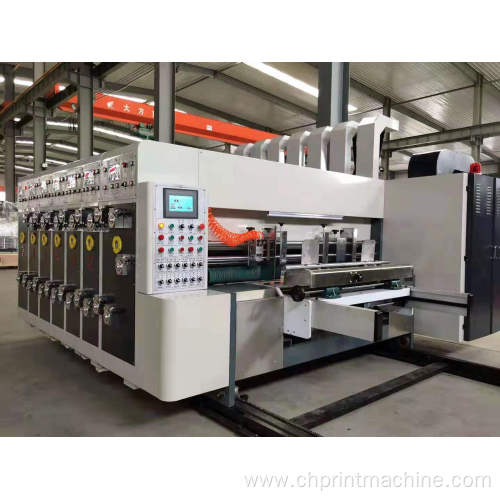

Mini Type ZYKM 650*1700 Carton Box Making Machine / Multicolor Flexo Printing Slotting Die-Cutting Stacking Machine
This compact yet powerful automated carton manufacturing system is engineered for high-efficiency production of corrugated boxes, combining flexographic printing, slotting, die-cutting, and stacking in a single integrated workflow. Designed for medium-scale packaging operations, this machine delivers precision, reliability, and versatility—ideal for businesses seeking to streamline their box-making process while maintaining consistent quality across diverse product lines.
At the heart of this unit lies its advanced multi-functional design: a 2000mm maximum paper coverage area enables flexible formatting for various cardboard sizes, with an effective printing zone of 950x1700mm ensuring accurate ink placement. The machine supports up to five color printing stations, making it suitable for branded packaging needs. With a maximum speed of 150 pieces per minute and economy mode between 130–150 pcs/min, it balances productivity with energy efficiency through a frequency-controlled main motor (7.5 kW), reducing operational costs without compromising performance.

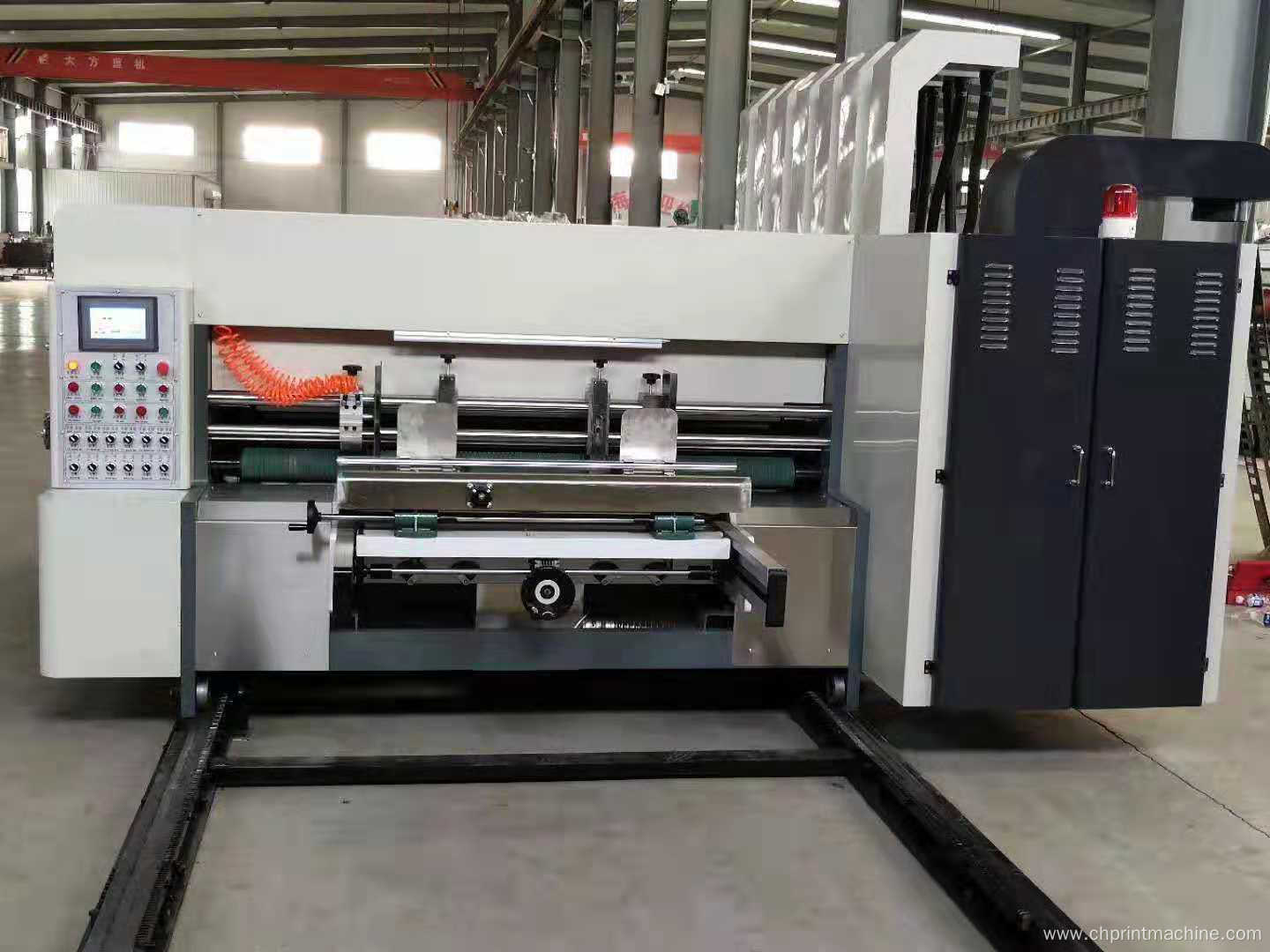

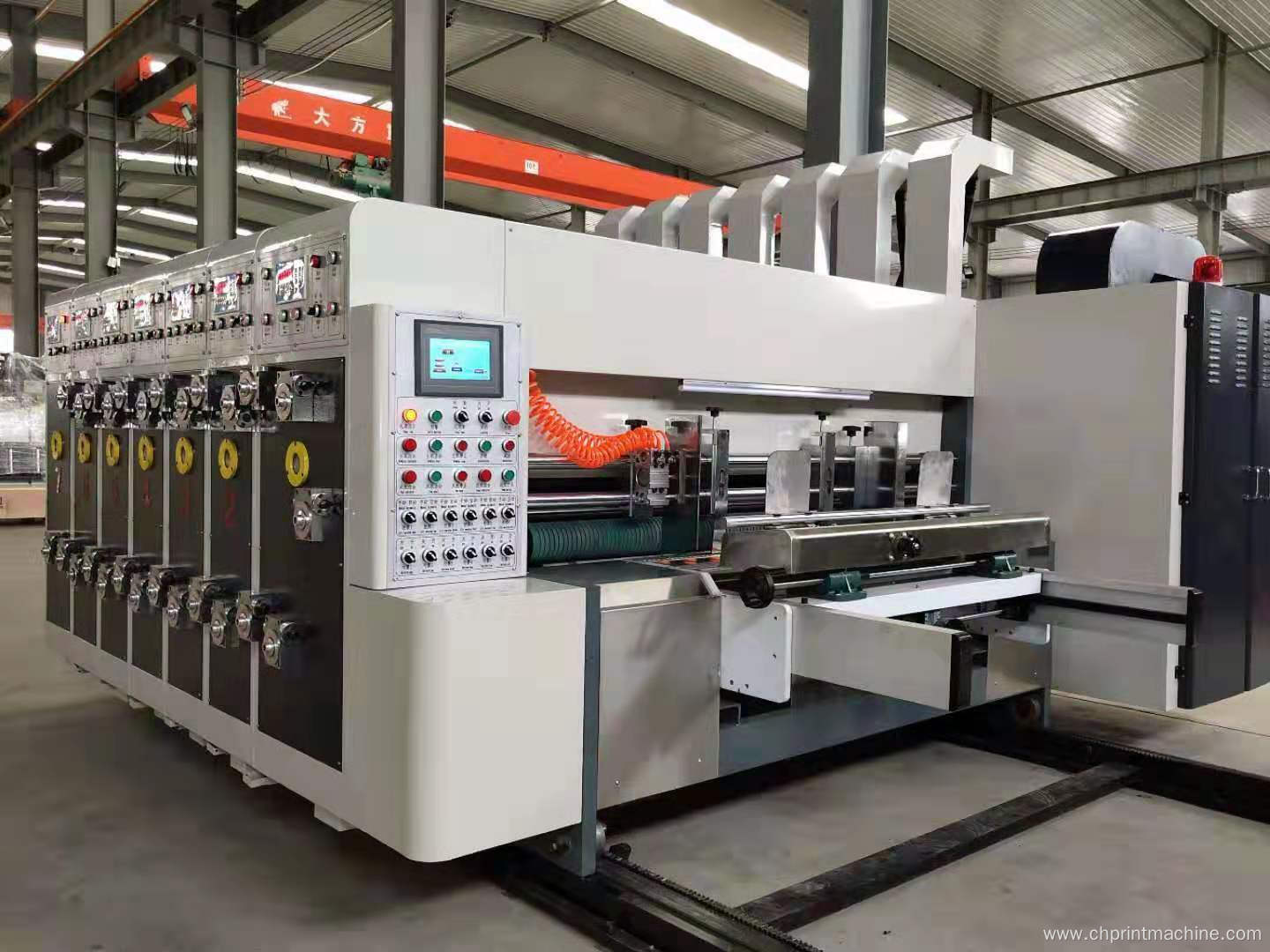

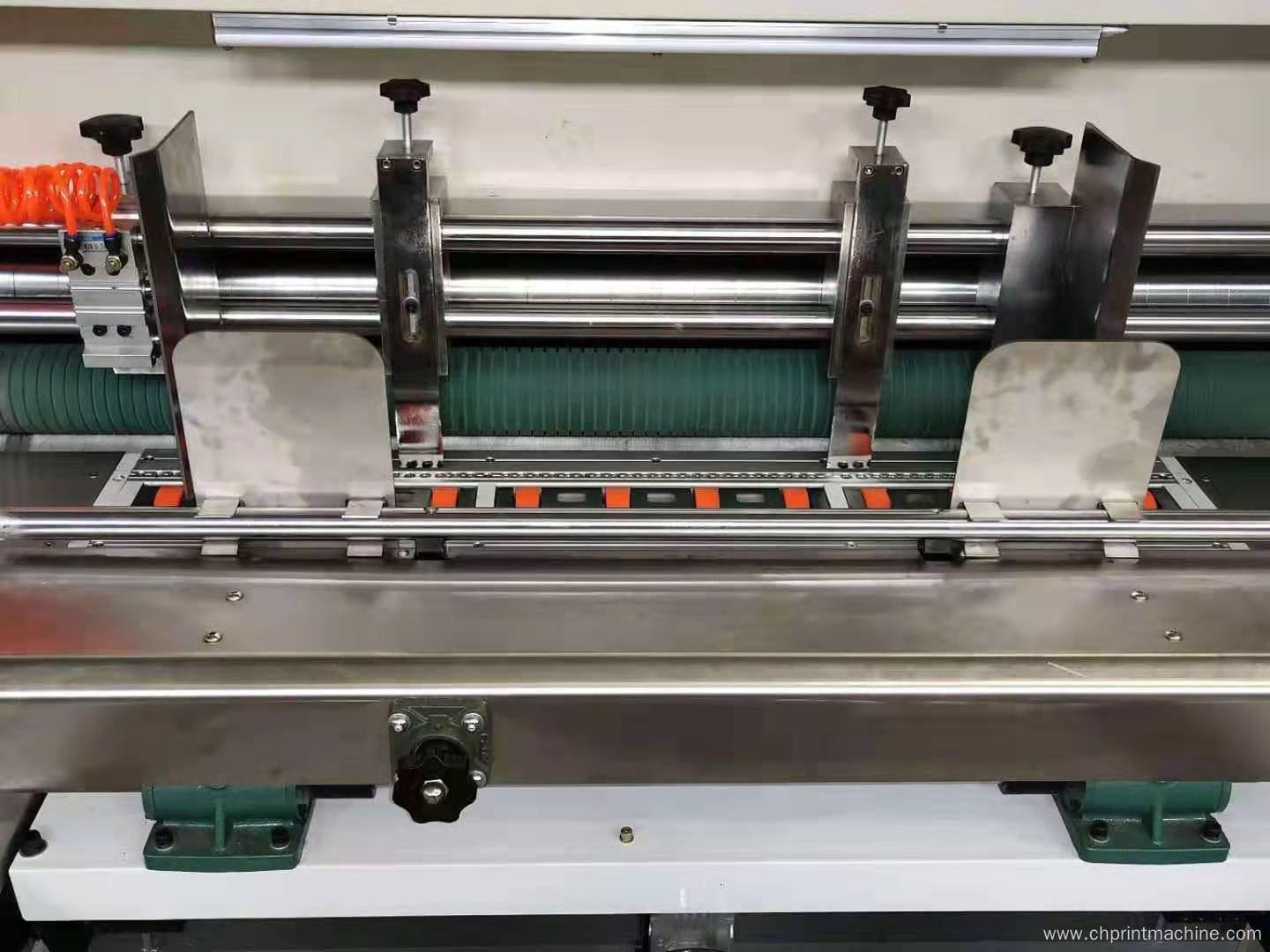

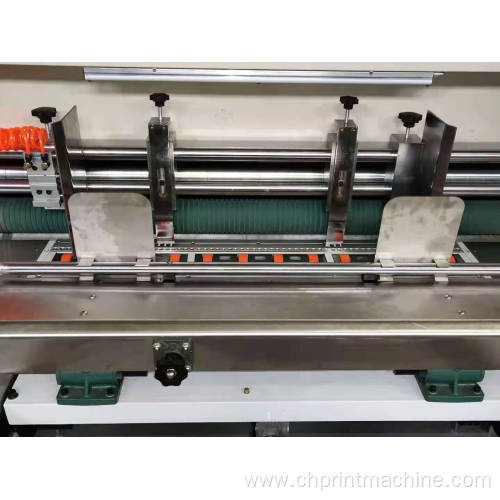

Key features include a pneumatic interlock system for operator safety, a suction-assisted leading-edge feeding mechanism that ensures smooth sheet handling even on thicker materials, and a precisely adjustable paper feed roller system (0–12mm clearance) for optimal grip. The printing department integrates high-precision rollers—such as the φ292mm plate roller with hard chrome plating and balance correction—for sharp image transfer, paired with a φ124mm pressure roller and optional anilox roller (φ156mm) for controlled ink distribution. These components work together to deliver vibrant, registration-stable prints across multiple colors, ideal for food, cosmetics, electronics, and pharmaceutical packaging.

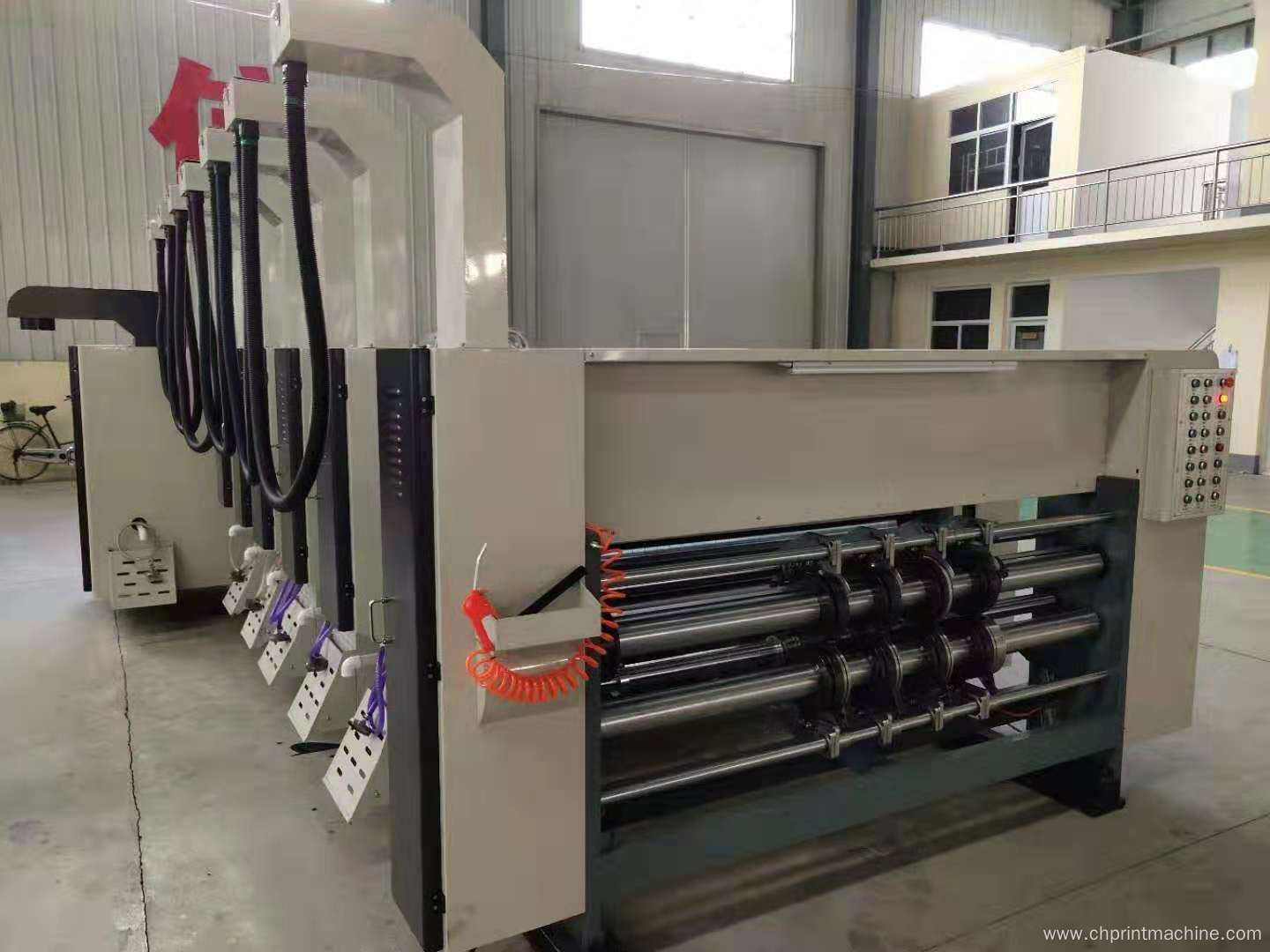

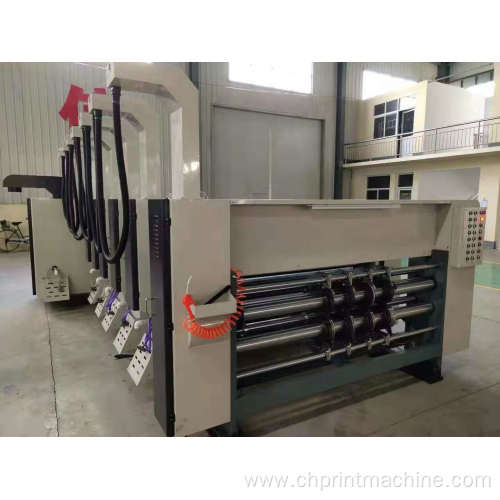

The slitting and creasing section offers robust mechanical control: a planetary gear-driven phase adjustment allows 360° digital positioning during both operation and stop, ensuring perfect alignment between printed graphics and die-cut lines. The knife holder uses hardened alloy steel blades (5–7mm width) for clean, precise cuts, while dual middle shafts enhance stability and reduce paper waste during high-volume runs. Meanwhile, the stacking unit includes an automatic pick arm (manual or electric option), a bed lift with 1600mm height capacity, and a safety brake system to prevent accidental movement—a critical feature for continuous unattended operation.
Designed for global markets, this machine excels in environments requiring reliable automation, such as e-commerce fulfillment centers, industrial packaging facilities, and small-to-mid-sized manufacturers producing custom corrugated boxes. Its modular structure supports easy maintenance, and all key components—from transmission gears (HRC58–62 hardness, 6-level accuracy) to rubber rollers (φ142mm, wear-resistant coating)—are built for long-term durability under daily use.
Users consistently praise its ease of setup, minimal downtime, and consistent output quality. Many highlight how the intelligent ink circulation system (pneumatic diaphragm pump + filter) reduces cleaning time and improves print consistency over extended shifts. Additionally, the ability to adjust side baffles, front gaps, and box height digitally makes it adaptable to changing production requirements without manual recalibration.
Common inquiries often focus on material compatibility—this machine handles cardboards from 2 to 12 layers thick—and whether it supports inline folding or gluing. While not a full folder-gluer, it can be paired with external systems for downstream finishing. Another frequent question involves setup complexity; however, most operators report a manageable learning curve thanks to intuitive controls and clear visual indicators throughout the machine’s interface.
