Automatic Paper Box Printing and Die Cutting Machine for High-Precision Corrugated Packaging

This advanced automated corrugated box production system integrates printing, slotting, and die-cutting functions into a single high-efficiency unit, ideal for manufacturers seeking precision, speed, and reliability in carton fabrication. Designed for global industrial use, it supports both small-batch customization and large-scale continuous operation while maintaining consistent quality across diverse paperboard types.

Key features include a robust cast iron frame (HT250, 60mm thickness) with secondary annealing treatment, ensuring structural stability under heavy-duty conditions. The machine employs spiral gears made from 20CrMnti alloy steel—heat-treated, ground, and lubricated automatically—to minimize noise and maximize transmission accuracy. All roller components are dynamically balanced, chrome-plated, and polished for smooth operation and long service life. Premium bearings from reputable brands like HRB and Wuxiang enhance durability, while control elements from Delta (Taiwan) and Schneider (France) ensure stable performance and easy maintenance.

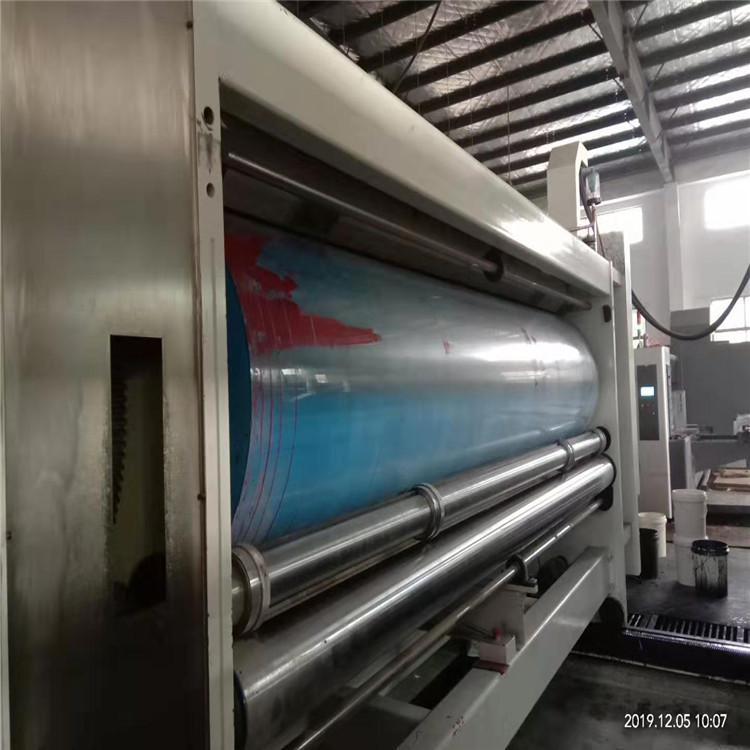

The feeding mechanism uses a servo motor system from Rexroth (Germany), offering precise alignment without damaging the cardboard’s integrity. Adjustable suction-assisted feeding and pneumatic flatness control optimize material handling, especially for variable board thicknesses. A color touch screen interface enables users to input production plans, monitor real-time output, store up to 999 job profiles, and automatically halt operations upon completion—reducing waste and increasing productivity. The printing unit utilizes hardened steel rollers with hard chromium plating and anilox cylinders for sharp image transfer, while the rotary die-cutting module delivers accurate creasing and cutting within ±1.5 mm tolerance.

Perfect for packaging professionals in food, electronics, cosmetics, and logistics sectors, this machine excels in producing boxes ranging from 320×640 mm to 1270×2200 mm. With a maximum speed of 150 pieces per minute and a running speed of 120 pieces per minute, it balances throughput with precision. Its modular design allows seamless integration into existing production lines or standalone setup for specialized facilities.

Users praise its intuitive controls, minimal downtime, and consistent print clarity even at high speeds. Many highlight how the pre-programmable settings reduce manual adjustments significantly—especially beneficial for businesses handling frequent product changes or custom orders. Some operators note that the machine’s quiet operation improves workshop ergonomics compared to older models.

Common questions often center on maintenance intervals, compatibility with different board weights (typically 200–600 gsm), and training requirements. Most buyers report that basic mechanical knowledge is sufficient for daily operation, with optional remote diagnostics available through the PLC system. While not designed for unattended overnight runs, its automatic stop function ensures safety during extended shifts.
