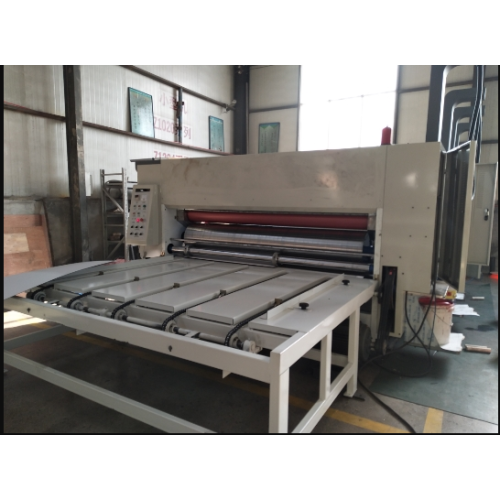

Flexo corrugated paperboard printing machine

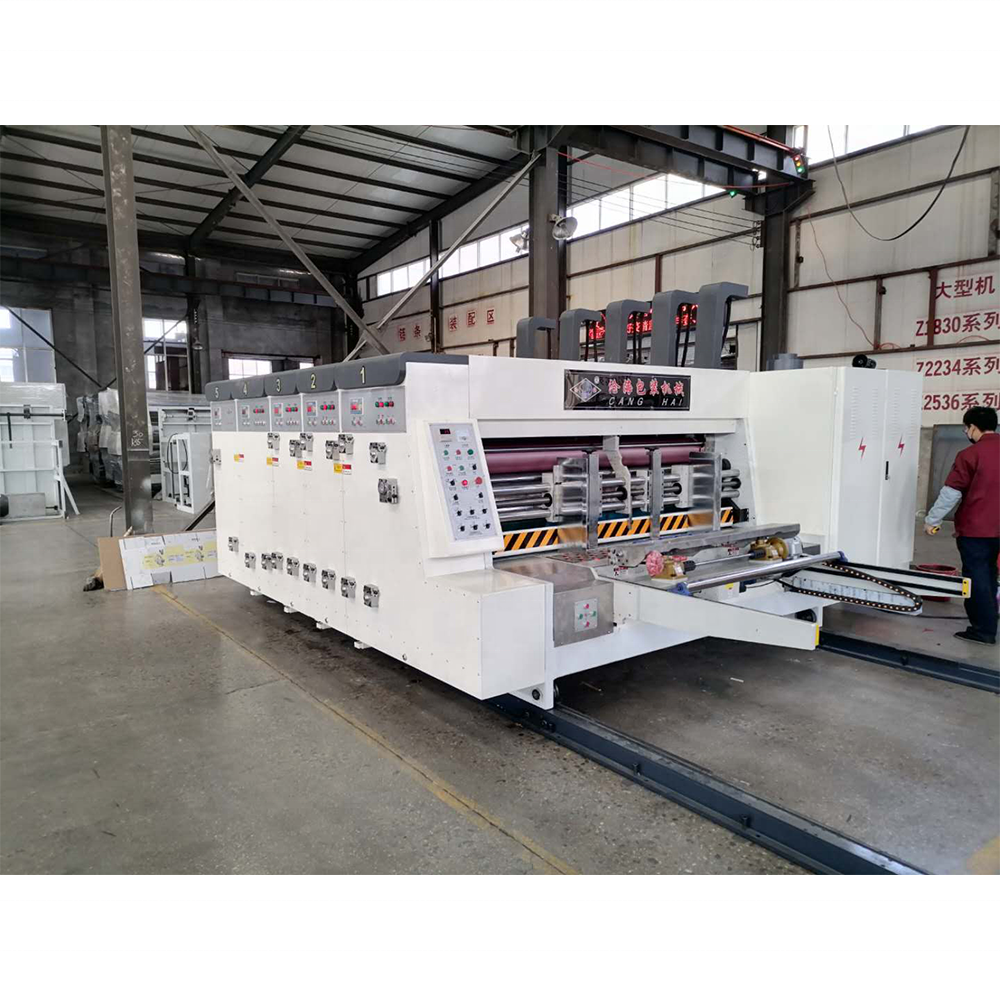

2/3/4 Color Flexo Printing Machine with Slotter and Die Cutter for Corrugated Carton Boxes – High Precision, Efficient, and Durable

Discover a premium flexographic printing solution designed specifically for high-volume corrugated packaging production. This advanced 2/3/4 color flexo printing press combines precision engineering, modern automation, and robust materials to deliver consistent print quality on various paperboard substrates. Whether you're manufacturing shipping boxes, retail packaging, or custom printed cartons, this machine offers the reliability and performance needed for professional-grade results in global markets.

At the heart of this system lies a modular CAD-designed structure that ensures each component operates with maximum efficiency. The motor-driven printing units feature gear transmission using high-grade nodular cast iron (QT150) with fine milling precision, while the shafts utilize keyless joints to prevent center wear—ensuring long-term dimensional accuracy and minimal maintenance. With an automatic oil spray lubrication system, noise levels are reduced, and gear life is extended, making it ideal for continuous industrial use.

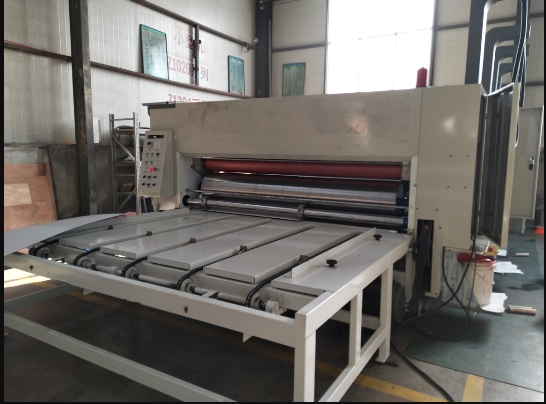

The machine employs a chain-table feeding mechanism for stable material handling and semi-automatic paper loading, reducing operator fatigue and increasing throughput. Its main motor is controlled via inverter technology, offering energy-efficient operation and smoother speed regulation compared to traditional systems. These features collectively contribute to lower operational costs and higher productivity over time.

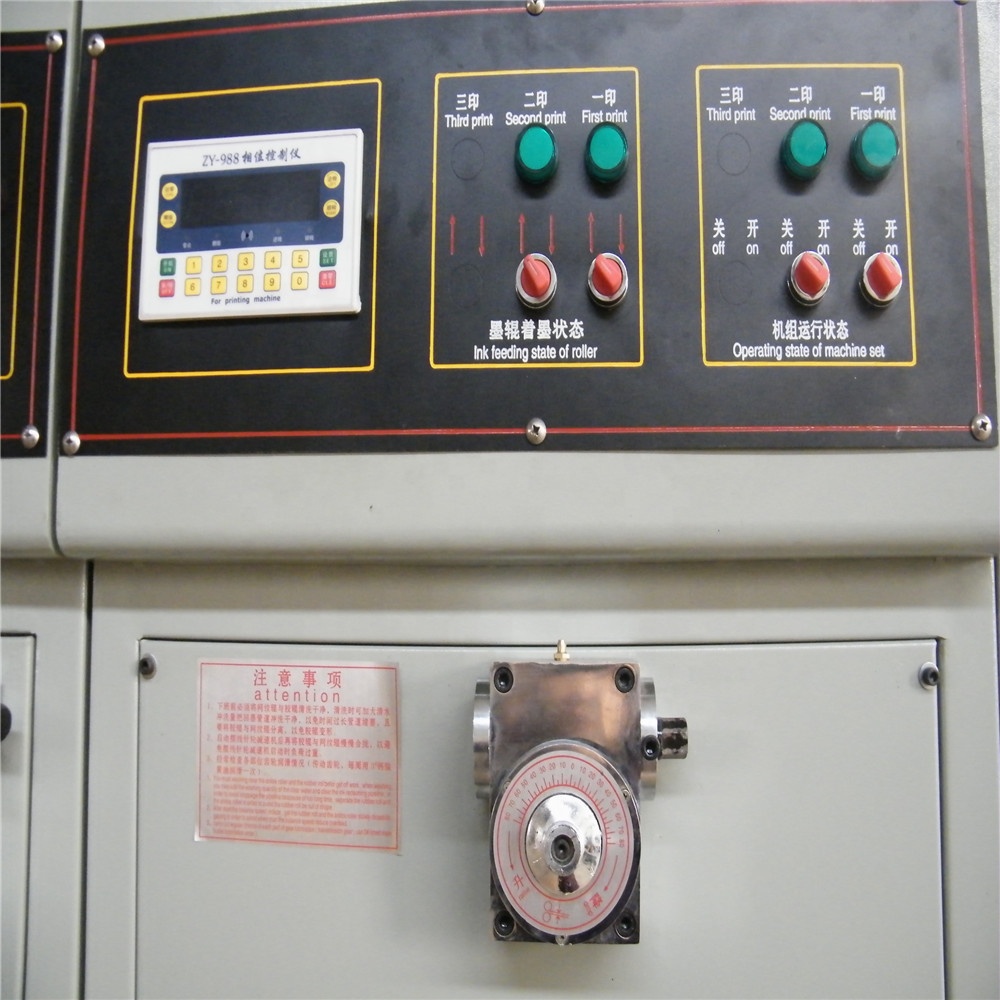

Key components include two fully adjustable printing stations equipped with hard-chromium-plated cylinders that undergo surface grinding and balance correction for ultra-smooth rotation. Each unit allows manual lateral adjustment (±20mm), enabling quick setup changes without compromising alignment. The phase control system uses planetary gears and digital displays for precise 360° electric positioning—critical for accurate registration across multiple colors.

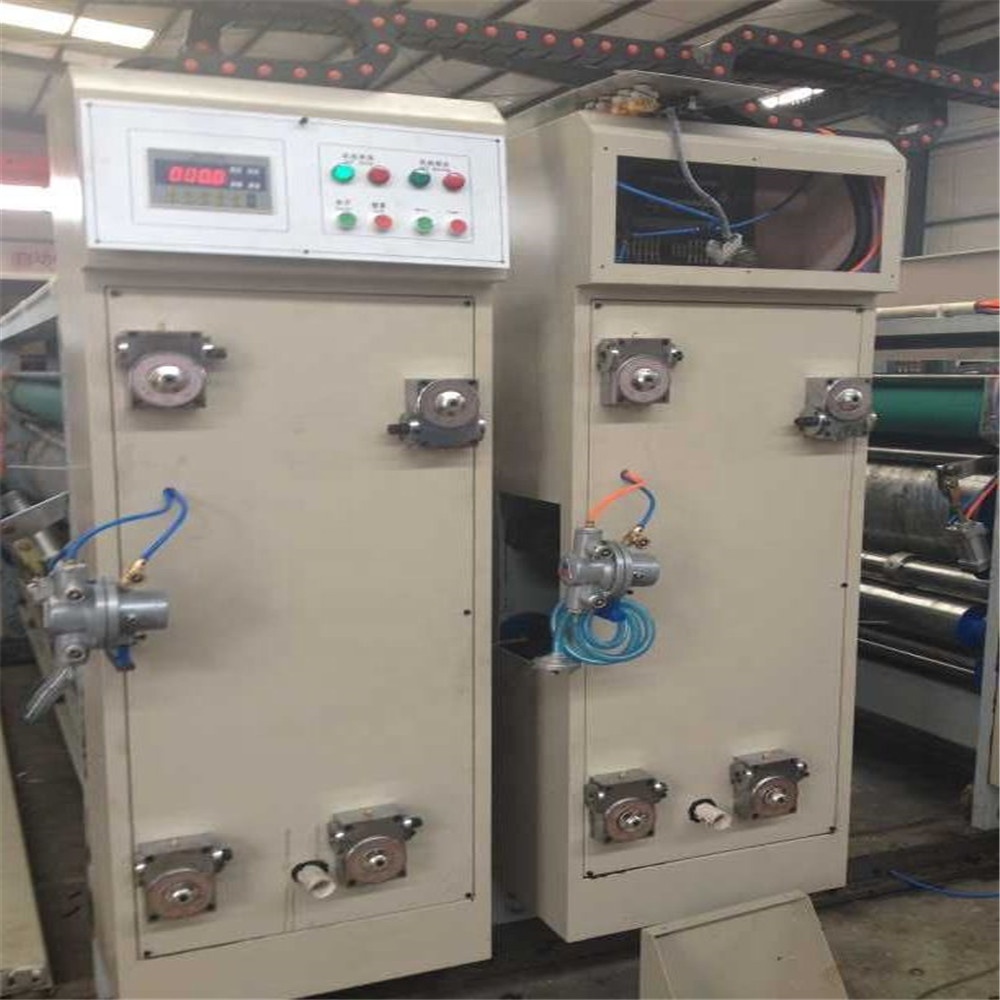

Embossing rollers are also treated with precision grinding and chromium plating for durability and uniform pressure distribution. Manual pressure adjustment ranges from 0 to 11mm, with real-time scanning feedback to ensure consistency. Anilox rollers come with pneumatic lifting mechanisms to avoid plate damage during operation, plus scale disk indicators for easy calibration within the same range. Rubber rollers are made from specialized formulations and hardened surfaces, ensuring even ink transfer even under high pressure, minimizing wear and tear over extended runs.

Ink delivery is managed by a pneumatic membrane pump system, providing steady flow and simplified cleaning procedures. Stainless steel ink fountains include retaining blocks for efficient ink replacement and quick washing cycles. Filters and screens help maintain ink purity, preventing clogs and enhancing print clarity—a must-have for brands requiring sharp graphics and vibrant colors on cardboard packaging.

This versatile flexo press supports both vertical and horizontal cylinder configurations, accommodating sheets up to 2500 x 2000 mm, making it suitable for large-format box manufacturers. It’s particularly well-suited for industries such as e-commerce packaging, food and beverage containers, pharmaceutical cartons, and logistics solutions where high-speed, accurate printing is essential.

Users have reported significant improvements in print consistency, reduced downtime due to mechanical wear, and faster changeovers thanks to intuitive controls and modular design. Many appreciate how the machine handles complex multi-color jobs with minimal misregistration—a common challenge in conventional setups.

Common questions often revolve around maintenance intervals, compatibility with different inks (water-based, solvent-based, UV-curable), and ease of integration into existing production lines. While specific needs may vary by region, most operators find the machine straightforward to operate after initial training, especially when leveraging its built-in diagnostics and visual indicators for troubleshooting.

For businesses seeking a durable, high-performance flexo printing system capable of delivering clean, crisp images on corrugated materials, this model stands out as a top-tier choice—offering value through longevity, precision, and adaptability in today’s competitive packaging landscape.
