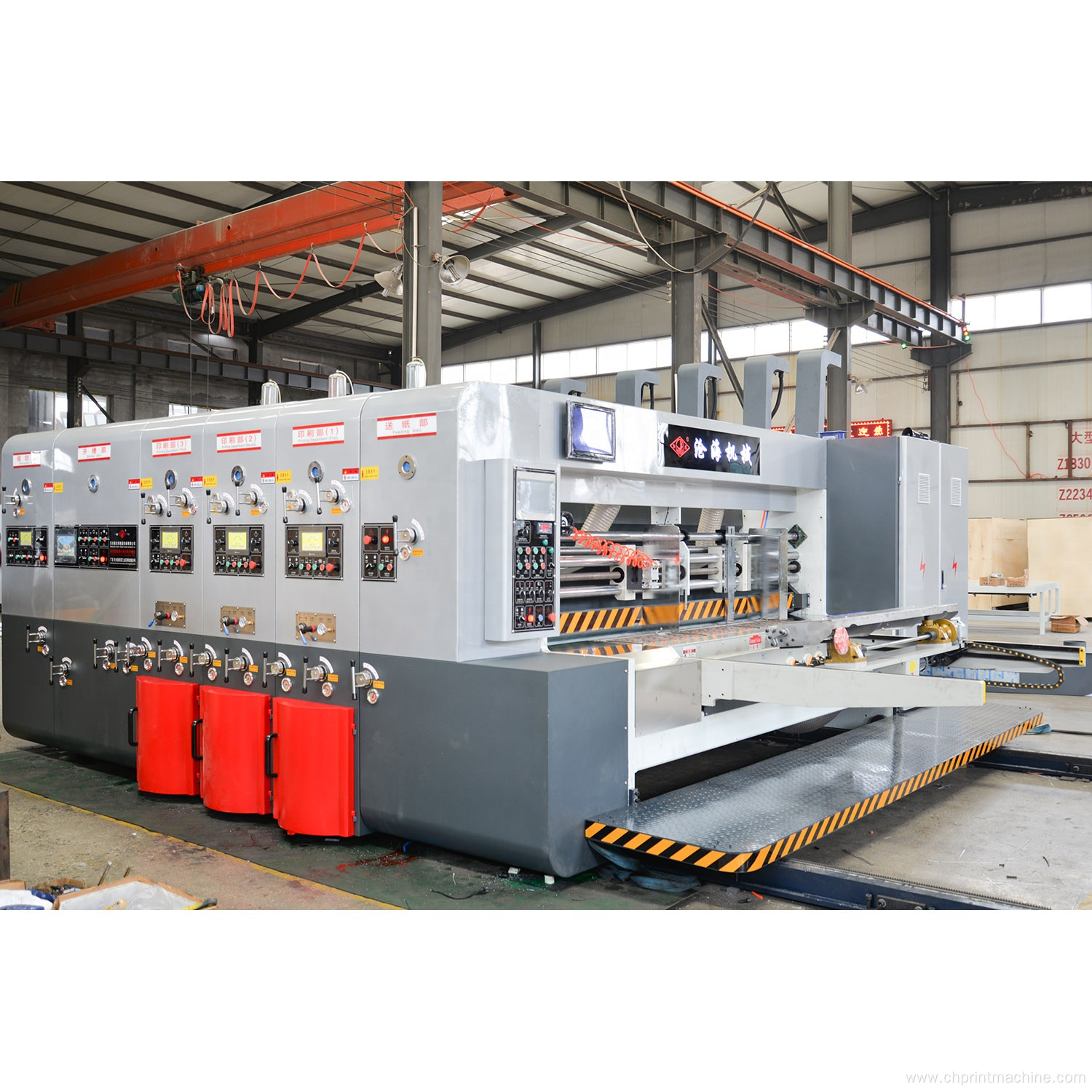

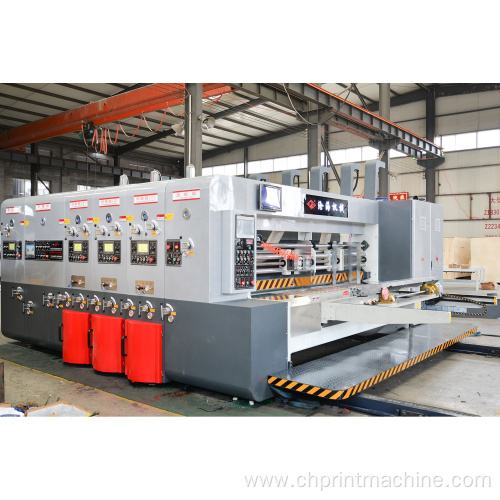

High-Speed Flexographic Printing, Slotting, and Die-Cutting Machine for Corrugated Board – Model 1020
This advanced corrugated board processing system is engineered for industrial-grade efficiency, precision, and durability. Designed for manufacturers in packaging, logistics, and e-commerce sectors, the Model 1020 integrates printing, slotting, and die-cutting into a single seamless workflow—ideal for producing high-quality boxes with minimal downtime. With a maximum printing area of 950x2000 mm and a machine speed up to 220 meters per minute, this equipment delivers consistent output while maintaining superior print clarity and structural integrity across three- and five-layer corrugated materials.
Key features include a robust frame constructed from medium-frequency quenched and tempered steel, ensuring long-term dimensional stability under heavy load. The gear-driven transmission system utilizes hardened, precision-ground components for smooth operation, reduced vibration, and extended service life. Each unit operates independently with clutch-controlled motors and integrated alarm systems for enhanced safety during maintenance or unexpected stoppages. Additionally, closed-loop spray lubrication ensures uniform oil distribution across all moving parts, minimizing wear and maximizing reliability over time.
The machine’s intelligent design supports flexible production needs—from small batch runs to continuous high-volume manufacturing. Its digital control panel allows operators to adjust ink flow, pressure, and cutting depth with ease, reducing material waste and improving consistency. High-quality bearings from reputable brands like NSK and Wafangdian guarantee smooth rotation, while Siemens electrical components ensure stable performance even under fluctuating power conditions. Pneumatic elements from Yadeke and diaphragm pumps from Wuhan Jinchangjiang contribute to reliable automation and efficient fluid management throughout the process.
Perfect for facilities involved in box fabrication for food packaging, retail displays, export containers, or custom product shipping solutions, this multifunctional unit streamlines operations by eliminating the need for separate machines. Whether producing standard cartons, custom-sized inserts, or promotional packaging, the Model 1020 offers flexibility without compromising quality. It's especially suited for companies seeking an end-to-end solution that combines cost-effectiveness, low maintenance, and scalable throughput.
Users have consistently praised its ability to handle diverse paper thicknesses—from 260x650 mm minimum feeding size to 1000x2200 mm maximum—making it adaptable to both compact and large-format applications. Operators appreciate the intuitive interface, which simplifies setup and reduces training time, while engineers commend the modular construction that facilitates easy servicing and component replacement.
Common questions often revolve around technical support and installation. While the machine comes fully assembled and tested before shipment, on-site commissioning by trained technicians is available upon request—though costs related to travel, accommodation, and meals are typically borne by the buyer. Warranty coverage extends up to three years, though many clients report continued operation beyond a decade without significant issues, thanks to the durable build quality and proactive maintenance protocols built into the system.
For global businesses looking to optimize their corrugated box manufacturing process, this versatile flexo printing and die-cutting press stands out as a future-proof investment—one that balances productivity, precision, and longevity in a single integrated platform.
