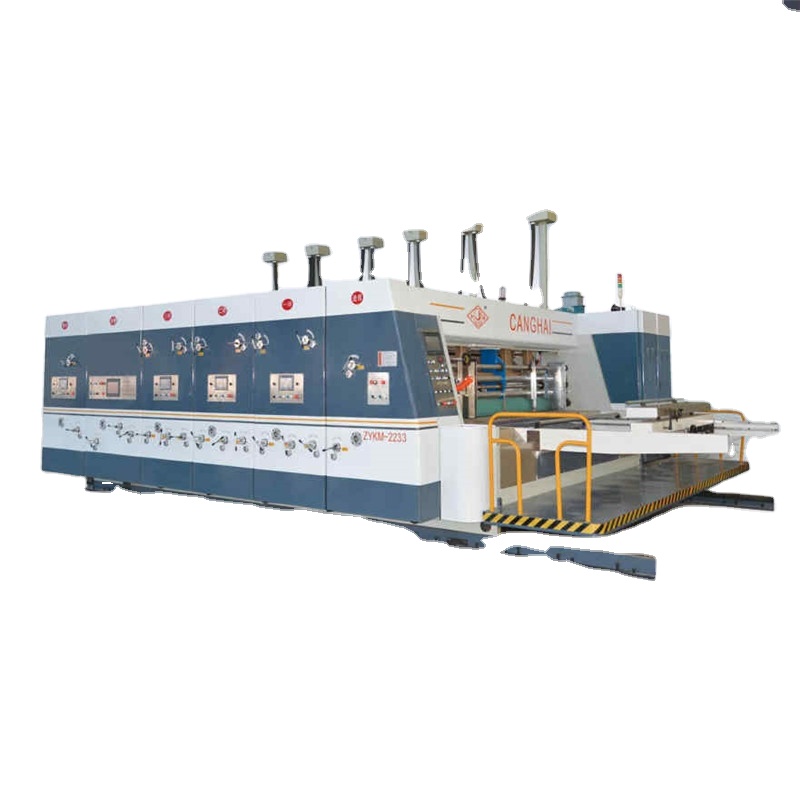

Specification
Main technical parameter
| name | Unit | ZYKM-1630 type |
| Max paper coverage area | mm | 1660*3200mm |
| Skip feed paper size | mm | 2000*3200mm |
| Effective printing area | mm | 1600*3000 |
| Min feeding size | mm | 400*750mm |
| Printing cardboard thickness | mm | 7.2 |
| Machinable cardboard thickness | layers | 3,5 |
| Max speed | Pieces/min | 140 |
| Economy speed | Pieces/min | 100~120 |
| Topping precision (four color) | mm | ±0.5 |
| Slotting precision | mm | ±1.5 |
| Cutting precision | mm | ±1.5 |
| Frequency conversion power of main motor | kw | 7.5—18.5 |
| Shape size(length*width*high) | mm | 5000mm*3500mm*2500mm |

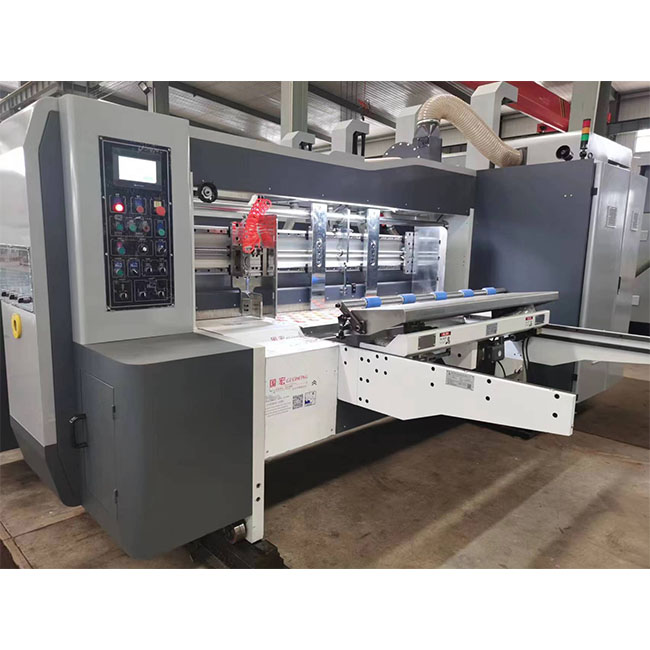

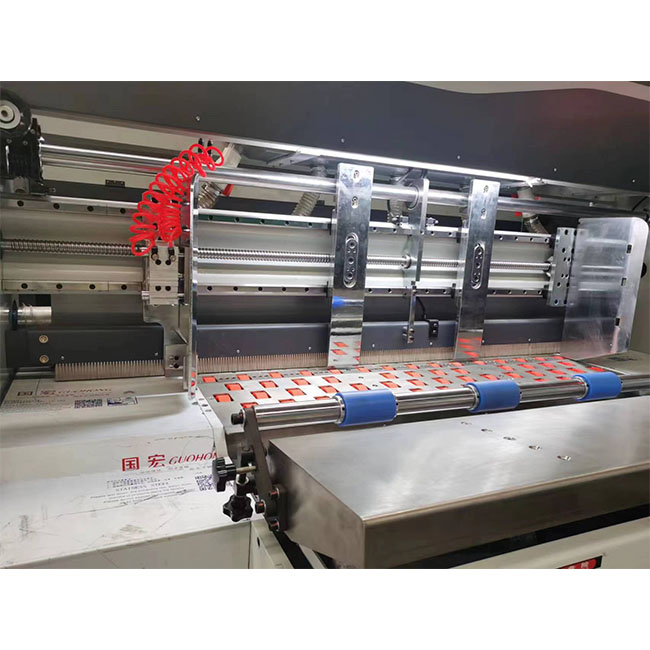

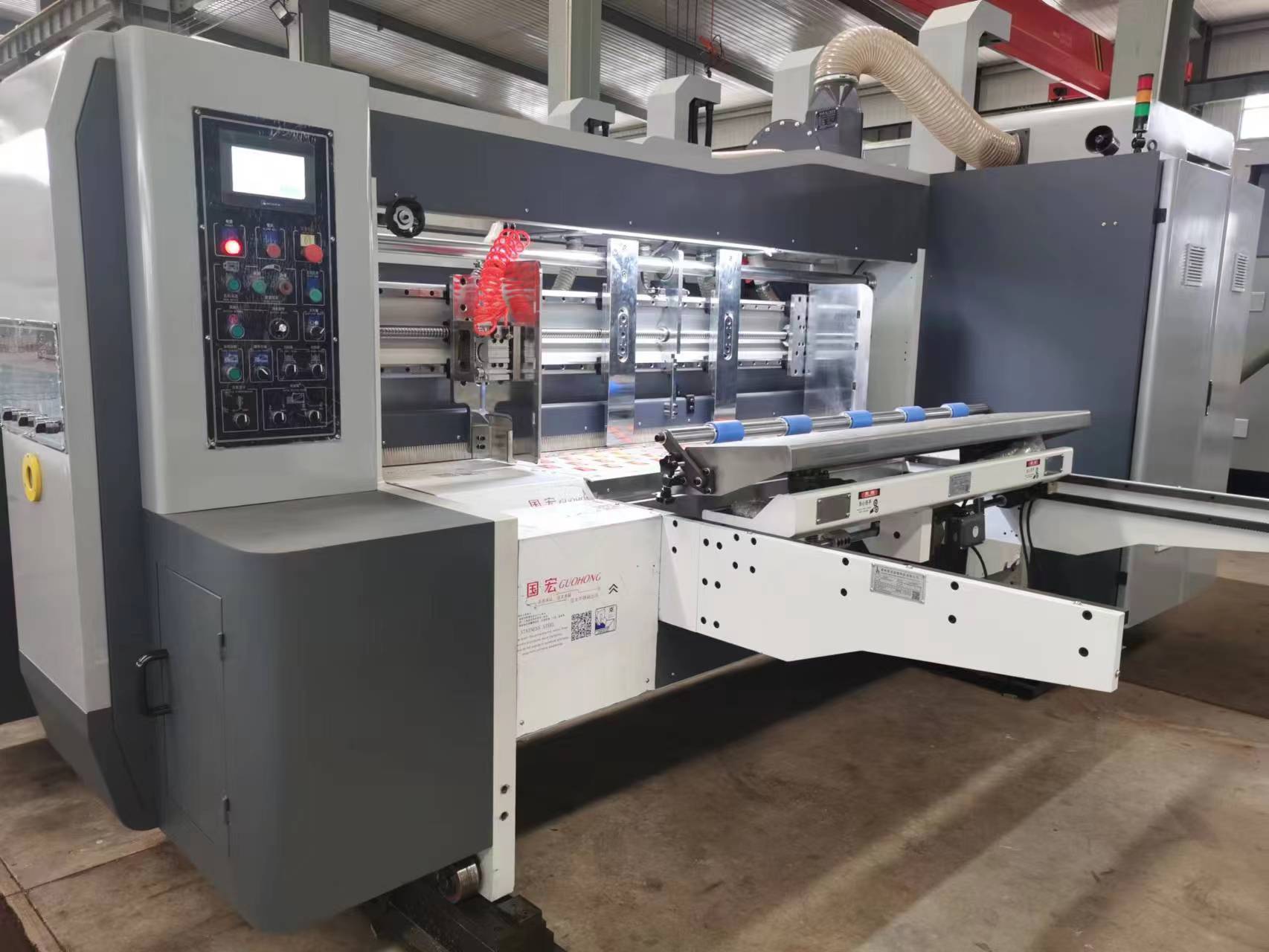

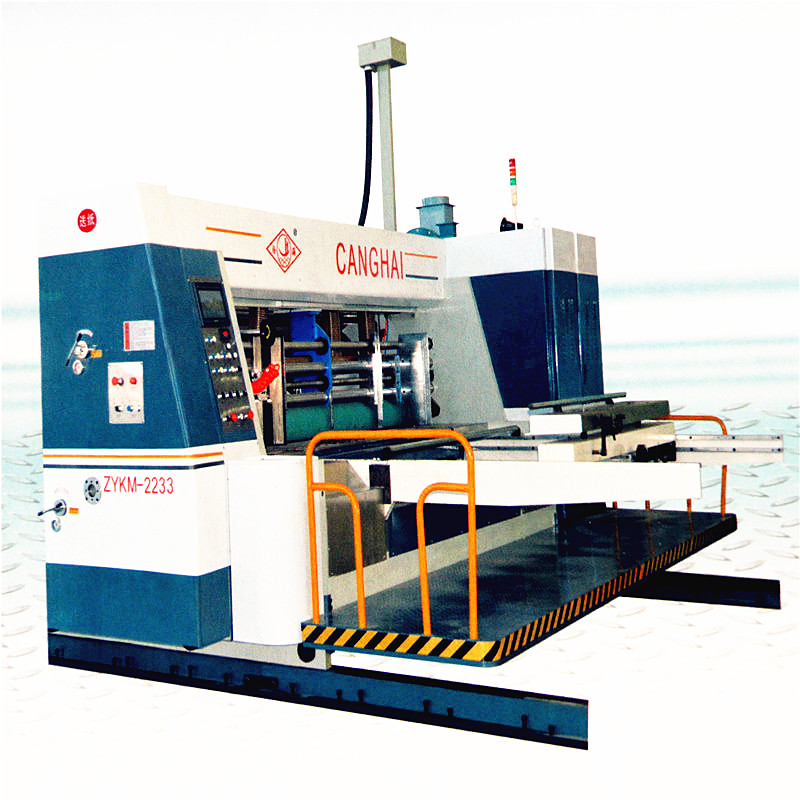

Paper feeding unit
- Lead edge feeder system, inverter adjust air volume, feeding in precision and steady.
- Double feeding roller model, quick replacement mechanism for the first feeding rubber roller, with spring adjustment function, it can prevent distortion and to ensure accurate feeding of cardboard.
- Brushes and suction device remove dust from board surface.
- Touch screen displays production speed and quantity.
- Adjust the feed interval by manual.

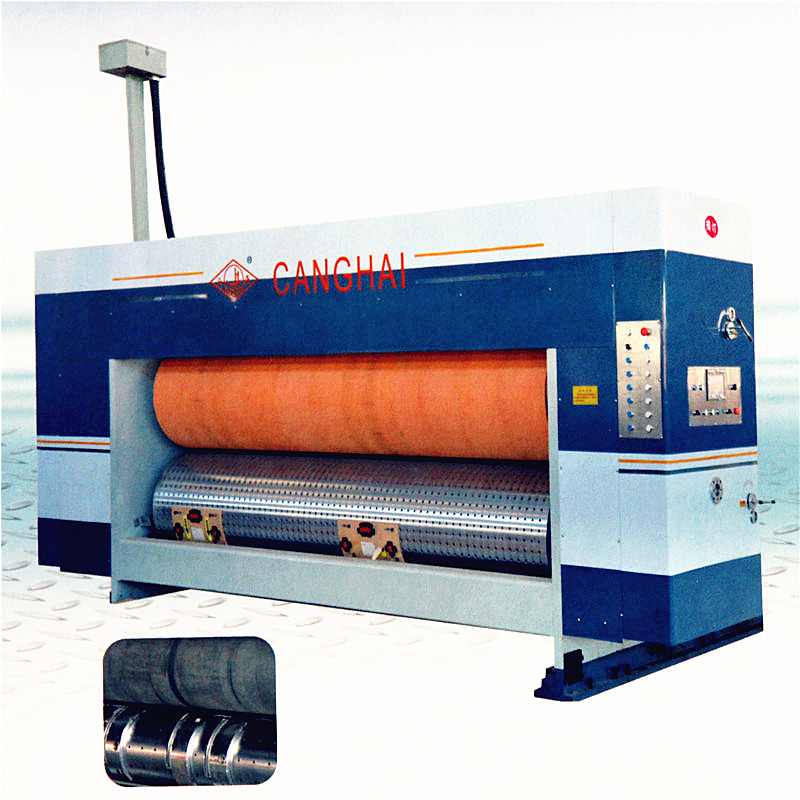

The printing machine (the 3th printing have per-creasing roller)
1. Feed roller and two paper wheels.
2. Down feed roller, embossed hard chrome plated, 16mm wall thickness.
3. Eccentric structure is adopted for the upper and lower roller clearances. The adjustment range is 0-12mm.

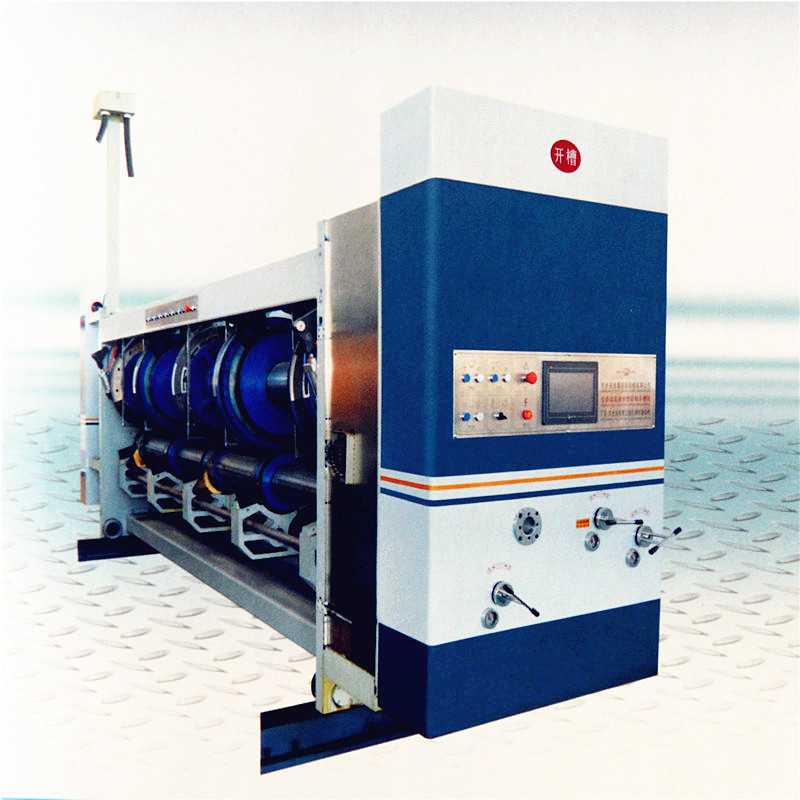

Slotter unit

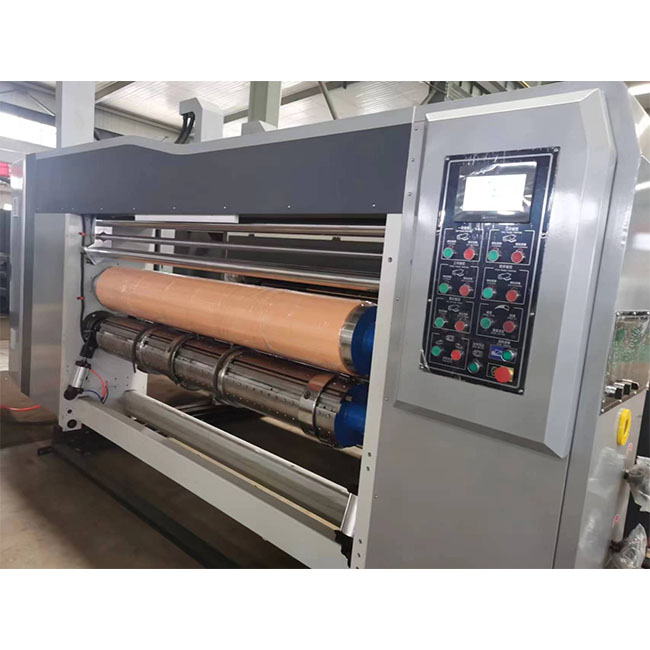

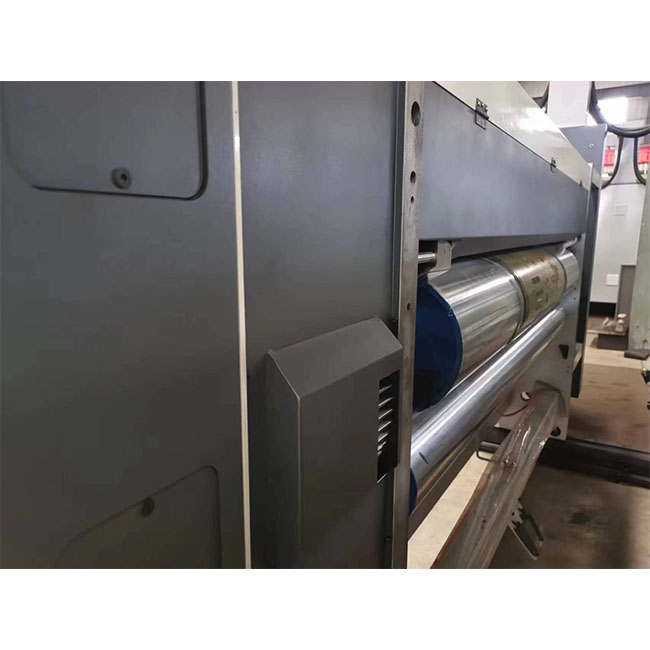

Die cutting unit
- Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.
- Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die cut, this can lighten machine load and increase rubber roller and die knife life.
- Matching with feeding system, it with auto up and down device, the rubber roller will down when feeding paper. The rubber roller will up when stop feeding paper. To make sure every paper die cut correctly.
- The mechanical transmission rubber roller move 58mm in left and right side. It also with wear and tear regular could increase the life of rubber roller.
- Die cut phase adopt PLC touch screen, 360 degree adjust electric number.
- Machine with rubber amend device, the rubber roller can be used after many times amend.
- Free die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved efficiency. (optional )
