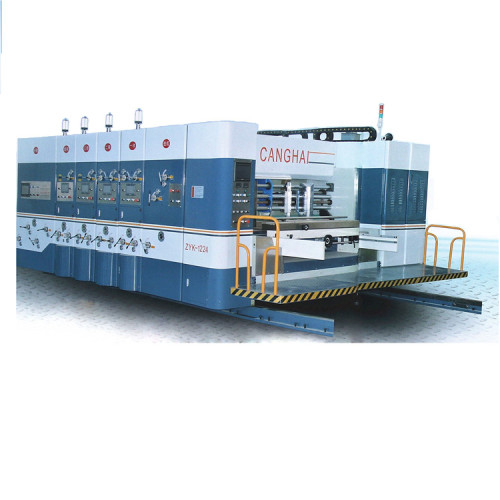

Canghai High-Speed Flexo Printing Slotter Die Cutter Machine – Five-Color Corrugated Box Production System
This advanced five-color flexographic printing, slotting, and die-cutting machine is engineered for high-volume corrugated cardboard packaging production. Designed with precision engineering and robust materials, the Canghai ZYKM-1630 model delivers exceptional print quality, consistent dimensional accuracy, and efficient operation across various paperboard thicknesses—from 3 to 5 layers—making it ideal for modern box manufacturing facilities worldwide.
With a maximum paper coverage of 1660 x 3200 mm and an effective printing area of 1600 x 3000 mm, this system supports large-format packaging needs while maintaining tight tolerances: ±0.5 mm for multi-color registration and ±1.5 mm for both slotting and die-cutting. Capable of running up to 140 pieces per minute at peak speed (with economical operation between 100–120 ppm), it balances productivity with stability for continuous industrial use.

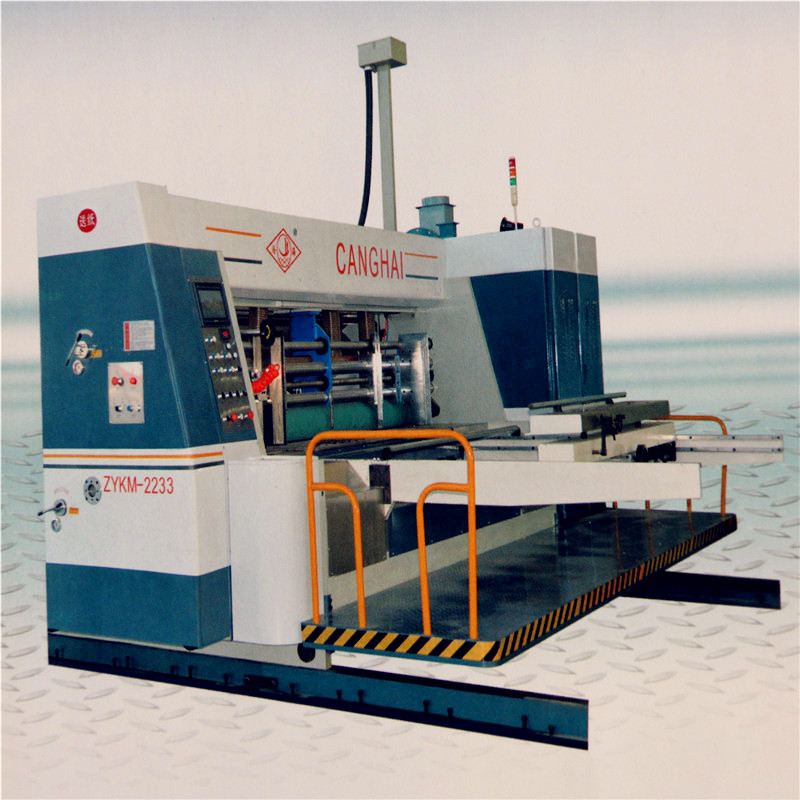

Key features include a lead-edge feeding mechanism with inverter-controlled air volume adjustment, ensuring reliable sheet handling; dual feeding rollers with quick-change rubber roller technology and spring-loaded pressure control to prevent misfeeds or board distortion. Dust removal brushes and suction devices maintain clean surface conditions for optimal ink transfer. The touch-screen interface allows real-time monitoring of production speed and quantity, while manual feed interval adjustments offer flexibility for custom jobs.

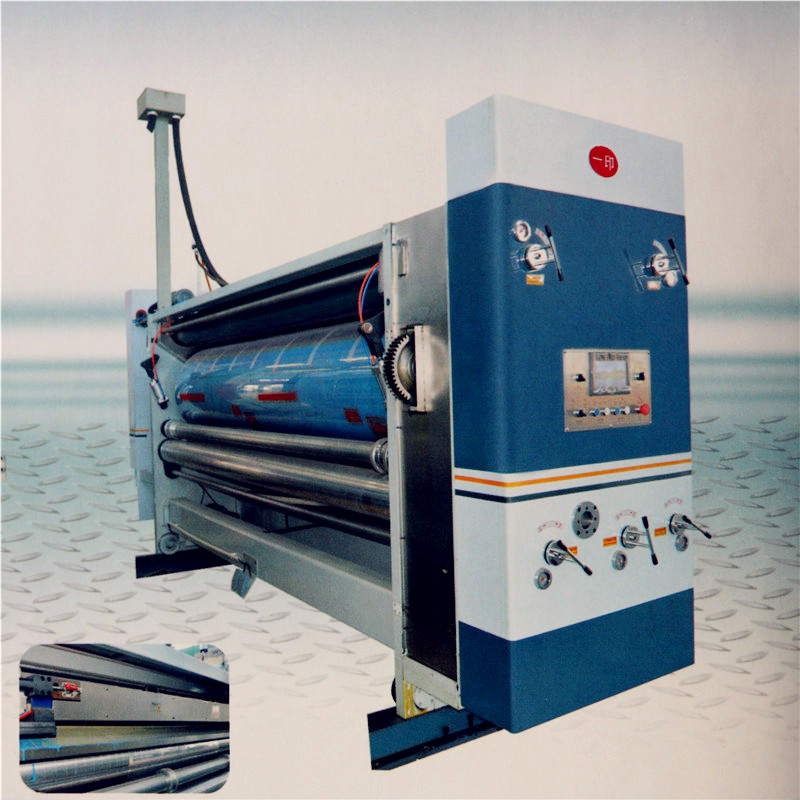

The printing unit integrates high-quality anilox rollers from Changzhou Haili and precision-engineered rubber rollers from Jinghui, featuring hard chrome plating, dynamic balance, and wear-resistant coatings. Ink circulation uses pneumatic diaphragm pumps for consistent flow, and filters protect the screen roller from impurities. A unique three-printing station setup includes a pre-creasing roller for enhanced folding performance—an essential feature for complex box designs requiring accurate creasing before final forming.

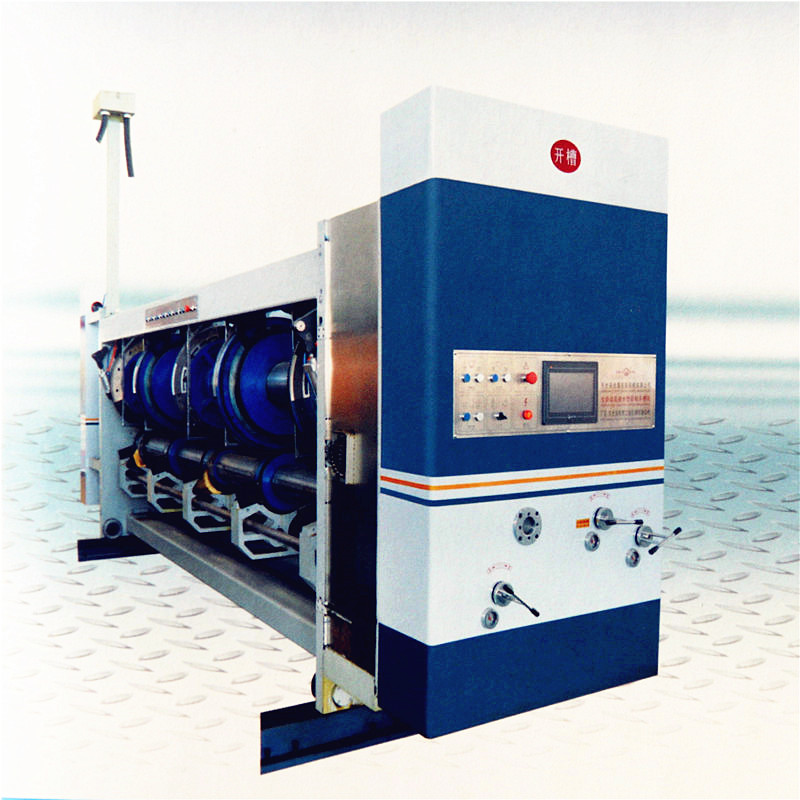

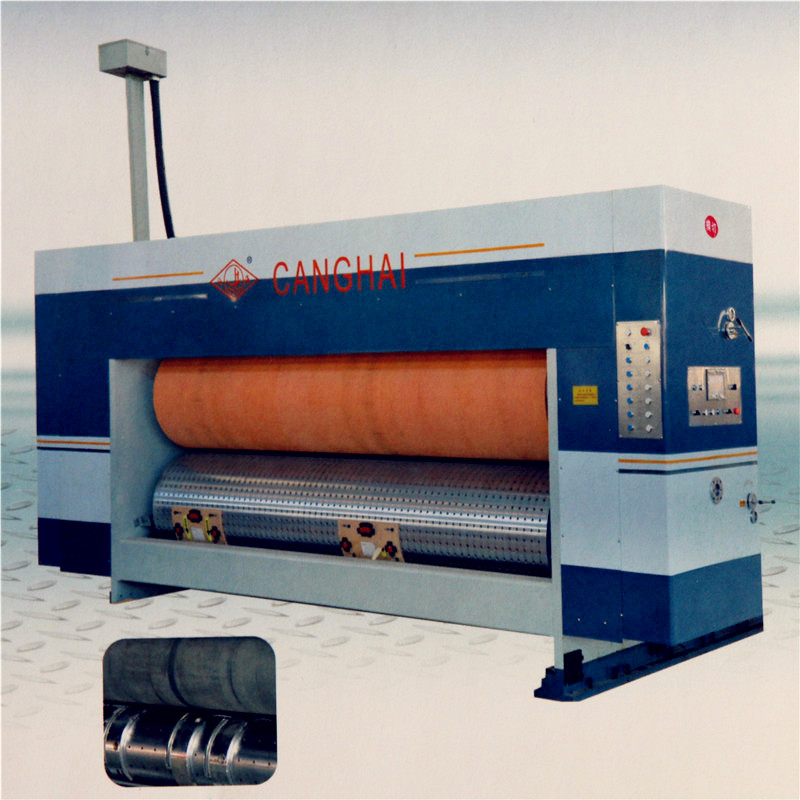

The die-cutting module utilizes hardened steel rollers with rigid chrome coating, offering superior durability and smooth motion under load. An automatic separation system via cylinder eccentricity reduces mechanical stress when not cutting, extending rubber roller life. The integrated rubber roller auto-lift mechanism ensures precise alignment during feeding cycles, guaranteeing every piece is cut correctly without operator intervention. Additionally, a free-form die-mould slotting option (optional) eliminates the need for dedicated dies in standard box production, reducing costs and increasing throughput efficiency.
This machine excels in environments demanding reliability, versatility, and automation—such as e-commerce packaging plants, food-grade carton producers, pharmaceutical box manufacturers, and logistics companies producing custom shipping containers. Whether processing lightweight single-wall boards or heavy-duty double-wall stock, its modular design accommodates diverse material types and formats, including minimal sizes down to 400 x 750 mm.
Users consistently praise its operational simplicity, minimal downtime, and long-term durability. Many report over a decade of trouble-free service, highlighting the manufacturer’s commitment to build quality and after-sales support. With a comprehensive three-year warranty and global technical assistance available, this system represents a smart investment for businesses seeking scalable, high-performance packaging solutions.
Frequently asked questions reveal that buyers appreciate the factory-direct sourcing model, which ensures cost-effective pricing and direct access to expert engineers. While installation and training require buyer-paid travel expenses, the return on investment through reduced labor costs, improved yield rates, and fewer defects makes this equipment a top choice for international packaging professionals looking to upgrade their production line.
