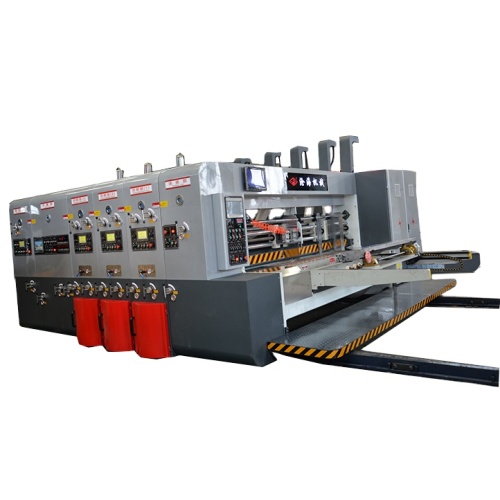

automatic multicolor printer slotter and die cutter machine

High-Speed 4-Color Automatic Corrugated Box Printing, Slotting, and Die-Cutting Machine – YK1428

This advanced integrated corrugated box production system combines high-speed printing, precise slotting, and efficient die-cutting in a single automated workflow. Designed for modern packaging manufacturers, the YK1428 machine delivers exceptional productivity, accuracy, and reliability—ideal for producing high-quality folding cartons used in food, electronics, cosmetics, and industrial packaging industries worldwide.

With a maximum speed of up to 160 sheets per minute and an economic operating range of 120 sheets per minute, this automatic water-based printing press ensures fast turnaround without compromising quality. The unit features a robust 37 kW main motor, precision-engineered chrome-plated rollers, and a sturdy 60 mm frame thickness that guarantees long-term stability under heavy-duty conditions. Whether you're processing small-format boxes or large-format packaging materials, the machine supports paper sizes from 350×750 mm up to 1500×3000 mm, with optional skip-feed capability for irregular layouts.

Key highlights include:

• Four-color printing with intelligent phase adjustment via PLC touch screen control
• Double-slotter design that eliminates tool collision and enables seamless processing of oversized cartons
• Auto-lift anilox roller system synchronized with feeding mechanism for consistent ink transfer
• Precision die-cutting unit with rubber roller auto-separation function to reduce wear and extend service life
• Integrated dust removal brushes and suction devices for clean board handling
• Self-locking gap adjustment and spring-loaded slitting knives for smooth operation
• Emergency stop switches on every module for operator safety
• International brand components including bearings, pneumatic parts, and electrical elements

The machine’s modular construction allows quick changeovers between different box styles—reducing downtime significantly. Each component, from the lead-edge feeder to the die-cutting station, is engineered for durability and minimal maintenance. The use of hardened alloy gears, precision linear guides, and dynamic balance correction ensures consistent performance over time, even at full operational capacity. For users seeking flexibility, the system can be customized with additional punch units or creasing tools based on specific production needs.

Common applications span across e-commerce packaging, pharmaceutical blister packs, retail display boxes, and export-ready shipping containers. This versatile solution is especially suited for businesses aiming to scale their output while maintaining tight tolerances—such as ±0.35 mm for top registration and ±1.2 mm for slotting precision. Its ability to handle board thicknesses from 2 mm to 10 mm makes it adaptable to both lightweight and heavy-duty corrugated materials.

Users consistently praise the machine’s ease of operation, reduced setup times, and improved print consistency compared to older models. Many report that after integrating this system into their workflow, they’ve seen a noticeable increase in order fulfillment speed and a decrease in material waste due to better alignment and fewer misfeeds.

FAQs:

• Is this a factory-direct product? Yes, we are a manufacturer with over 25 years of experience in producing high-performance automatic corrugated box machines.
• What kind of support do you offer post-purchase? We provide three-year warranty coverage and dedicated technical assistance for troubleshooting and spare parts supply.
• Can technicians be dispatched overseas for installation? Yes, our engineers can travel internationally for commissioning and training—but all associated travel expenses must be covered by the buyer.
• How does this compare to other systems in terms of lifespan? Many clients have successfully operated similar units for more than a decade with no major mechanical failures, thanks to premium materials and smart engineering.
