Semiautomatic paper flute laminating machine

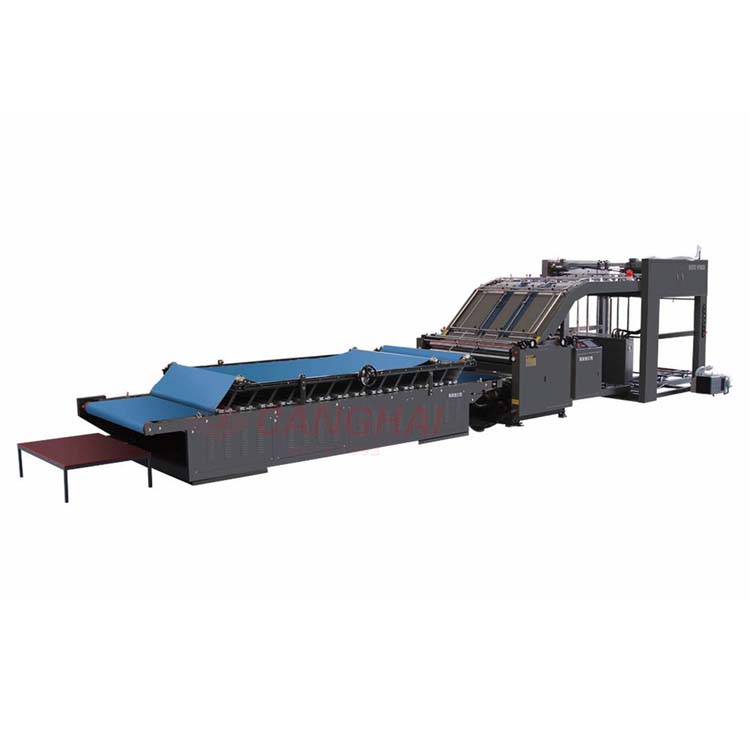

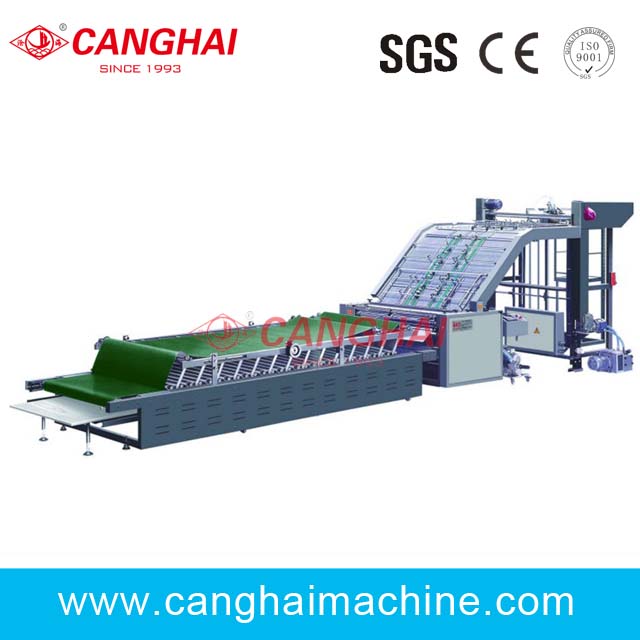

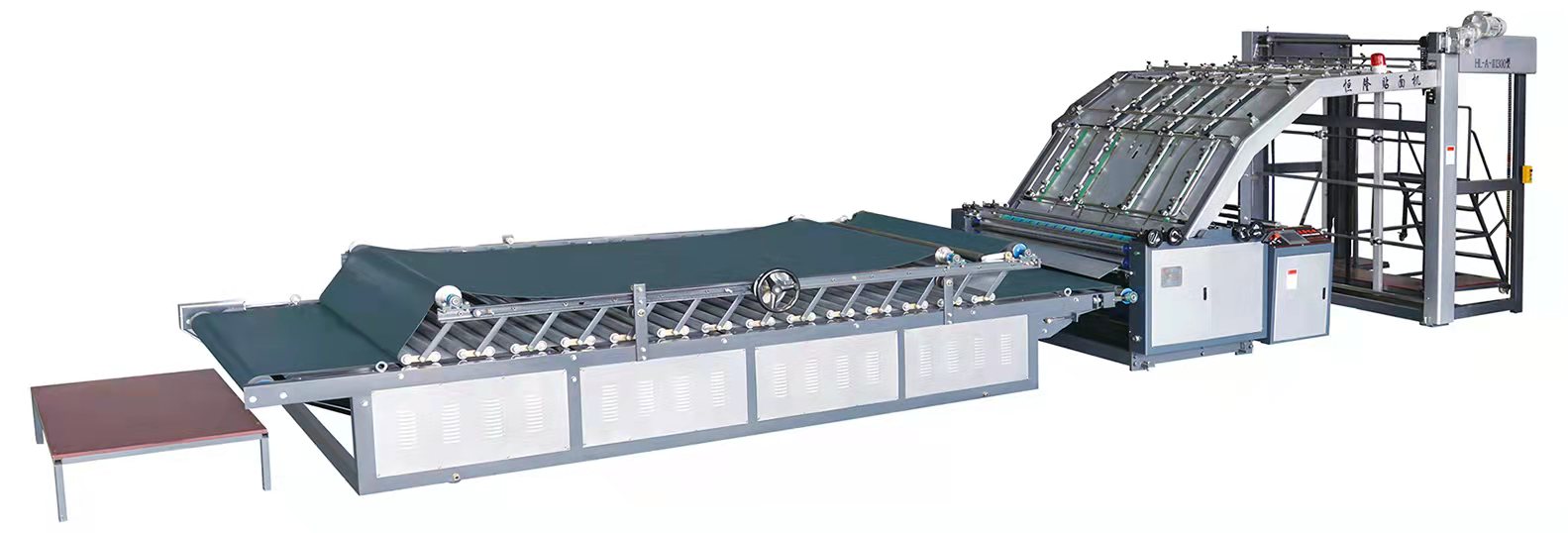

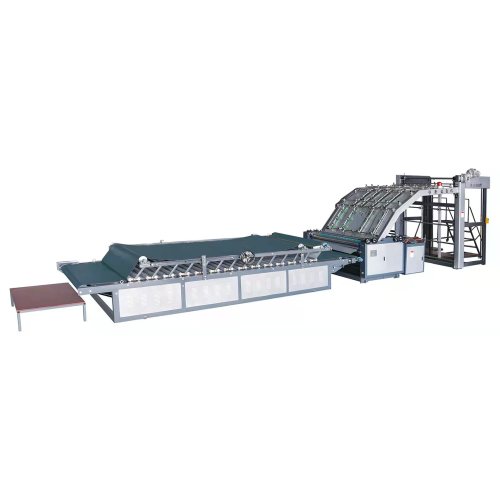

Semiautomatic Paper Flute Laminating Machine CH-1300 – High Precision, Efficient Corrugated Board Production

This semiautomatic paper flute laminating machine is engineered for industrial-grade corrugated board manufacturing, offering reliable performance, precise alignment, and smooth operation. Designed to meet global packaging demands, it combines advanced servo technology with intuitive control systems to ensure consistent quality in every batch. With a maximum laminating size of 1300mm x 1300mm and a minimum of 360mm x 360mm, this model supports flexible production runs across various industries including food, electronics, and consumer goods packaging.

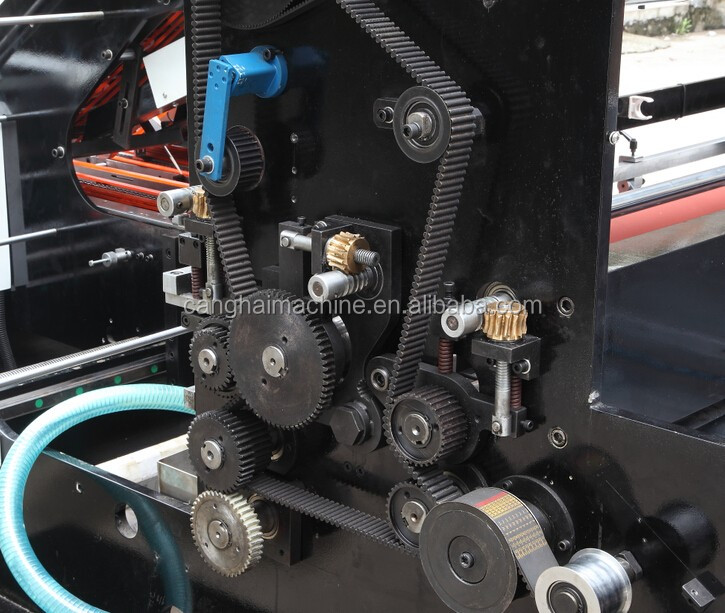

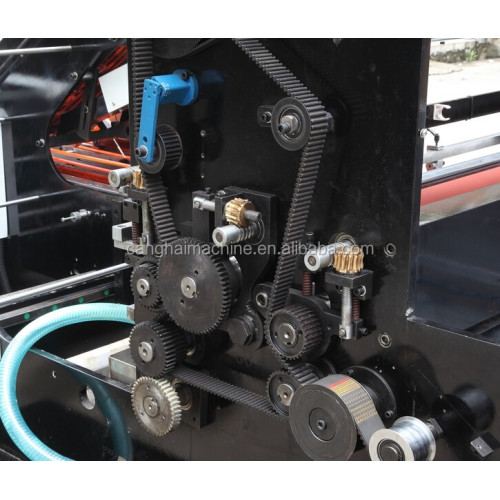

Key features include a Taiwan-made delta servo motor system that eliminates signal interference from traditional brake/clutch mechanisms, ensuring faster response times and higher accuracy. The PLC-controlled interface allows independent operation of each function—feeding, gluing, positioning, and pressure application—resulting in reduced downtime and improved throughput. A suction-based automatic feeding mechanism ensures synchronized movement between base and surface paper, minimizing waste and enhancing productivity at speeds up to 100 pieces per minute.

The machine’s innovative dual-layer design includes an intermediate positioning guide block connected to a lifting mechanism, enabling accurate placement of the face paper relative to the core. This precision-driven setup prevents misalignment or slippage during lamination, maintaining uniform thickness and structural integrity. Additionally, users can adjust the advance amount of the top layer manually for customized bonding depth, making it ideal for both standard and specialty cardboard applications.

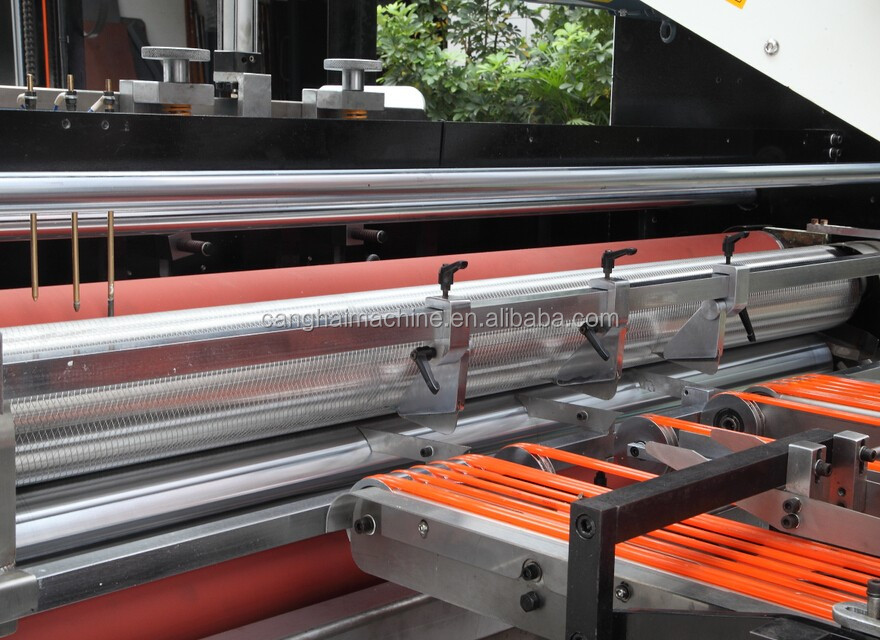

With a power consumption of just 8.5 kW and a compact footprint of 8.8m x 1.95m x 1.7m, this laminator offers energy-efficient operation without compromising on capacity. Weighing approximately 3 metric tons, it provides stable performance even under continuous use. Its robust construction and modular components make maintenance straightforward, while the inclusion of high-quality materials like stainless steel rollers and wear-resistant belts extends service life significantly.

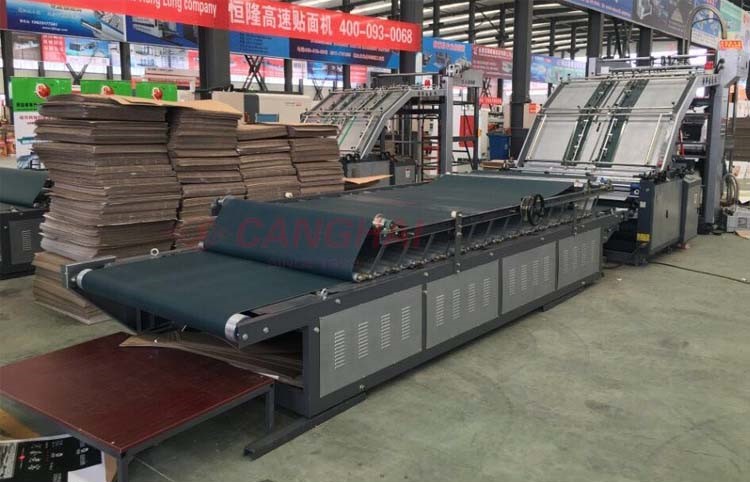

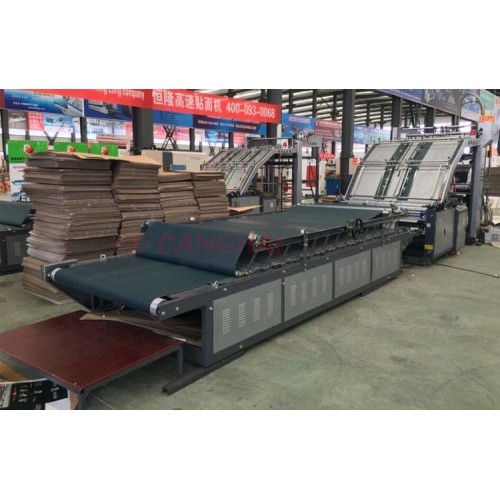

Commonly used in corrugated box factories, packaging plants, and print finishing facilities worldwide, this equipment excels in environments requiring high-volume output with minimal operator intervention. Whether producing single-wall or double-wall boards, the CH-1300 delivers professional results suitable for export markets demanding compliance with international standards such as ISO 9001 or FSC certification.

Users praise its ease of setup, consistent glue distribution, and low error rate compared to older models. Many note that after implementing this machine, their production efficiency increased by up to 40%, especially when handling medium-weight paper grades ranging from 250gsm to 500gsm. Operators appreciate the ergonomic layout and clear visual indicators that simplify troubleshooting and reduce learning curve for new staff.

How does the machine handle different paper sizes? It automatically adjusts feed speed based on sheet dimensions, using real-time feedback from sensors to maintain tension and prevent wrinkling. Is there a warranty period? Yes, a three-year manufacturer’s guarantee covers all mechanical and electrical parts, reflecting confidence in long-term reliability. Can technicians be sent overseas for installation? Yes, qualified engineers can travel internationally to assist with setup and training, though travel expenses are the buyer’s responsibility. What sets this apart from fully automated options? It strikes a balance between cost-effectiveness and automation—ideal for mid-scale operations seeking scalability without heavy investment.
