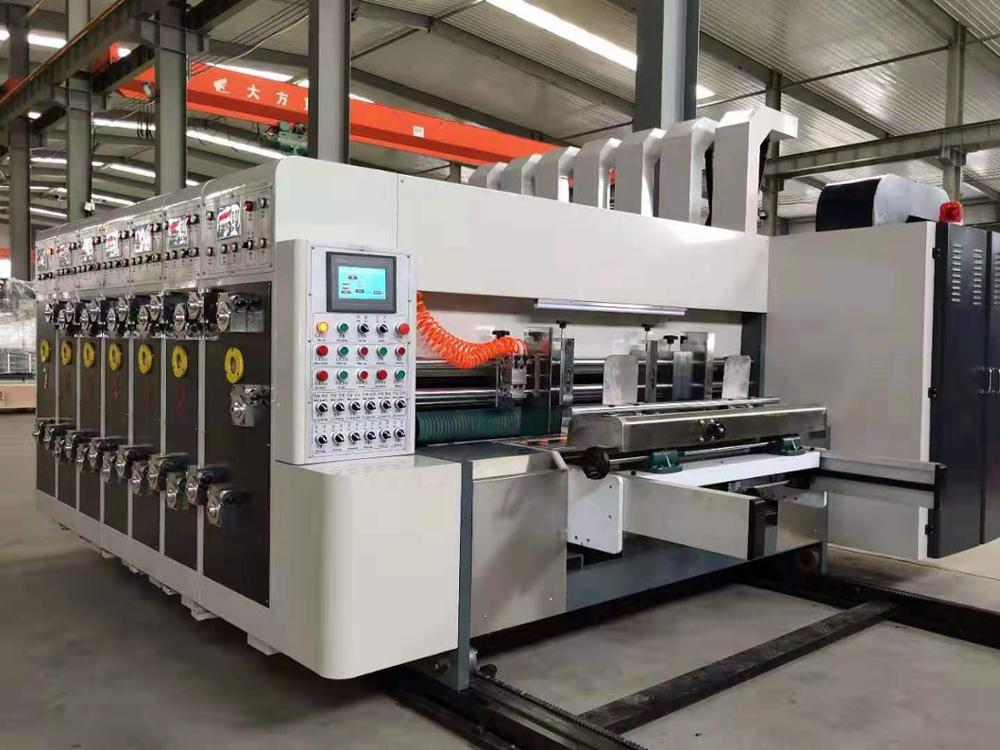

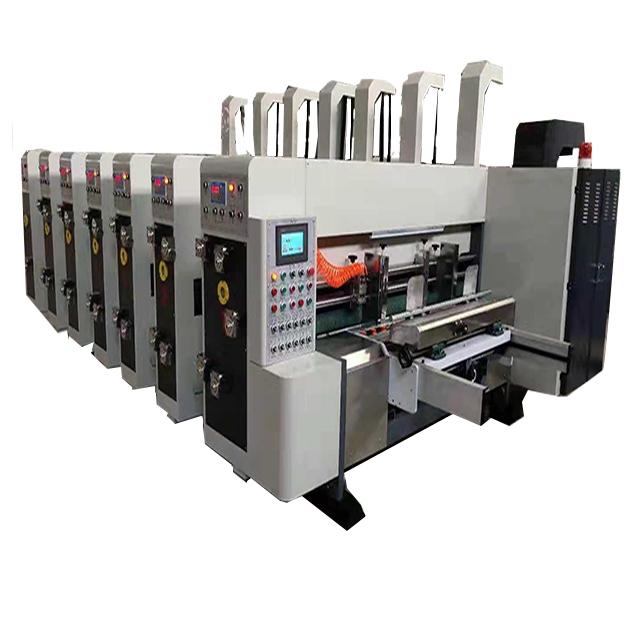

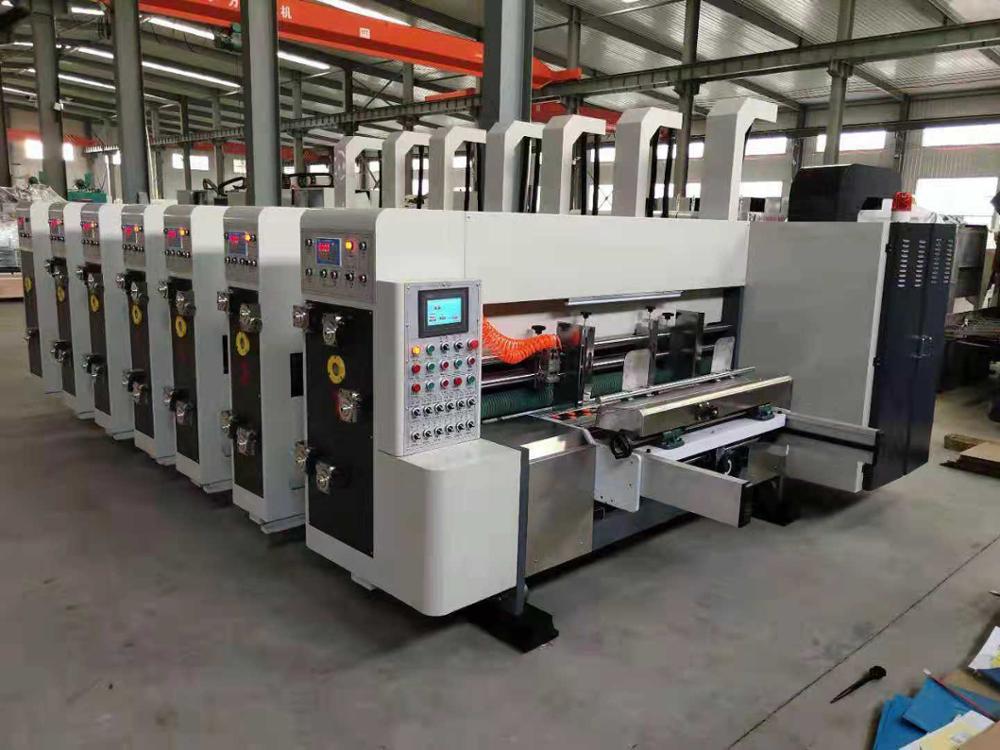

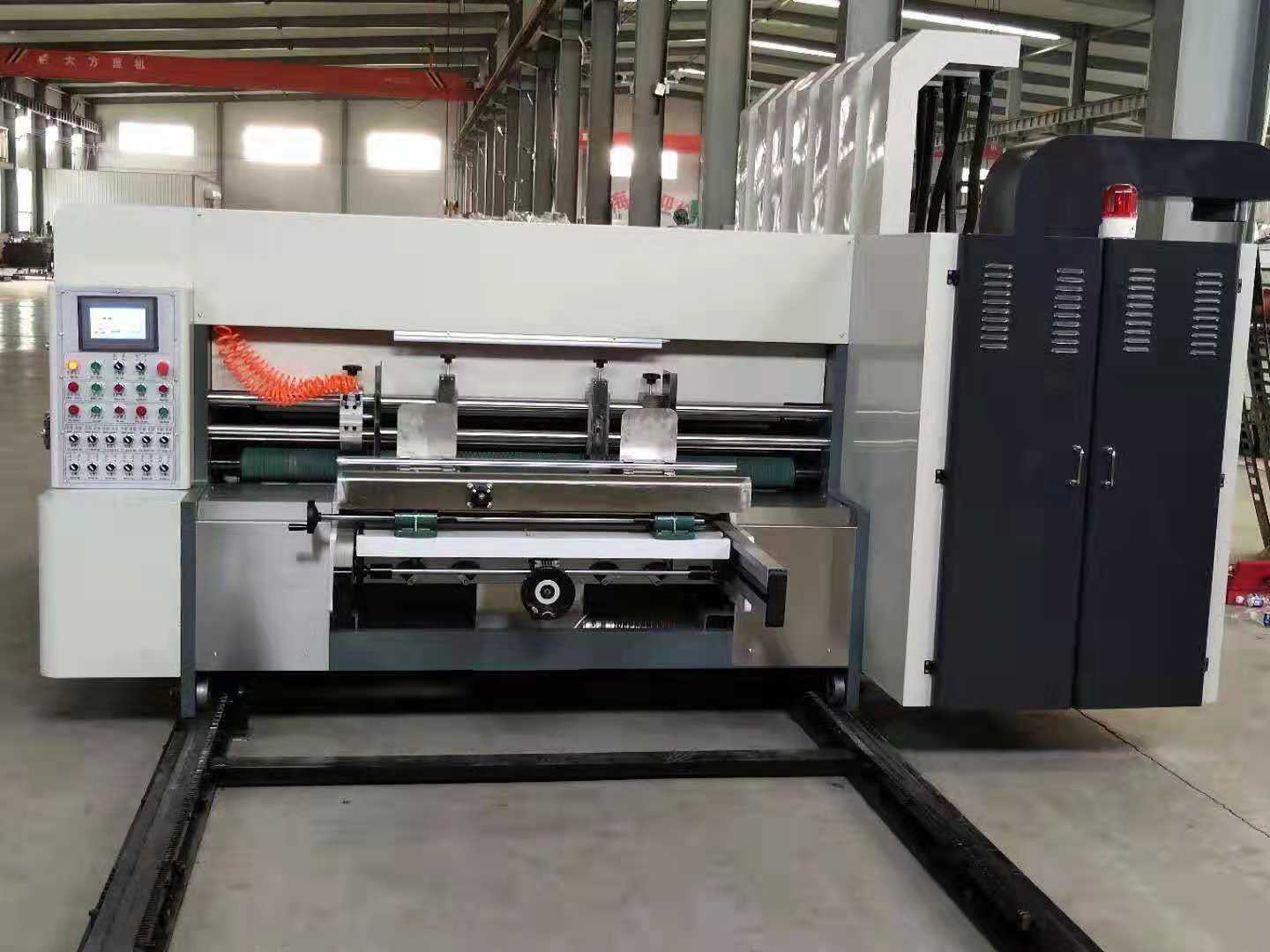

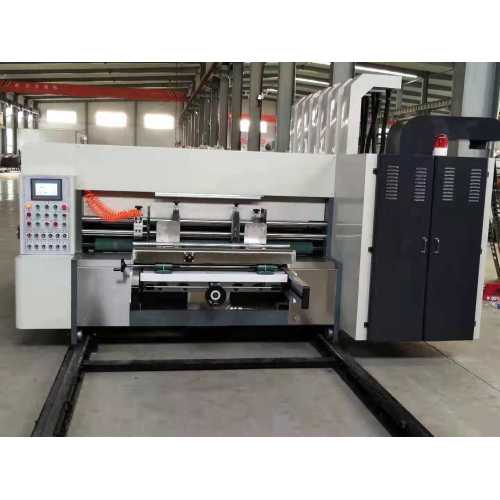

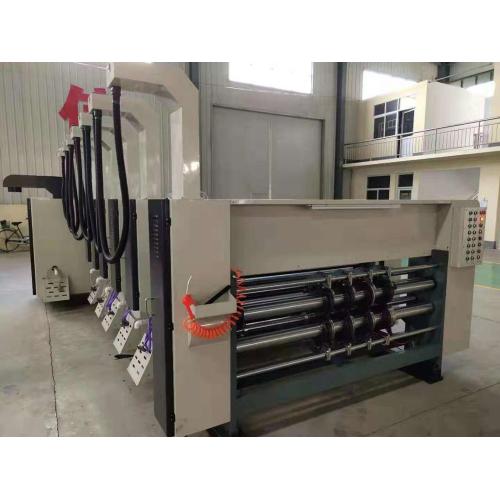

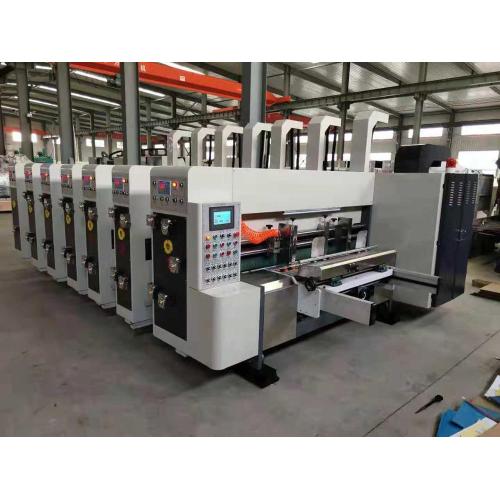

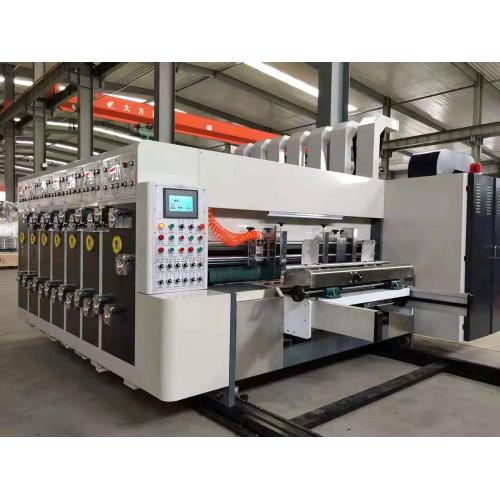

High-Quality Mini Flexo 1/2/3/4/5/6 Color Printing Slotting Die-Cutting Machine for Corrugated Box Production

This compact yet powerful flexographic printing and die-cutting system is engineered for modern packaging manufacturers seeking precision, speed, and reliability in producing corrugated boxes. Designed with advanced automation and ergonomic features, this machine delivers consistent high-quality output across various paperboard thicknesses—ideal for small to mid-scale production lines globally. Whether you're manufacturing retail packaging, shipping containers, or custom display boxes, this versatile solution offers an efficient blend of performance, durability, and ease of operation.

Key Features

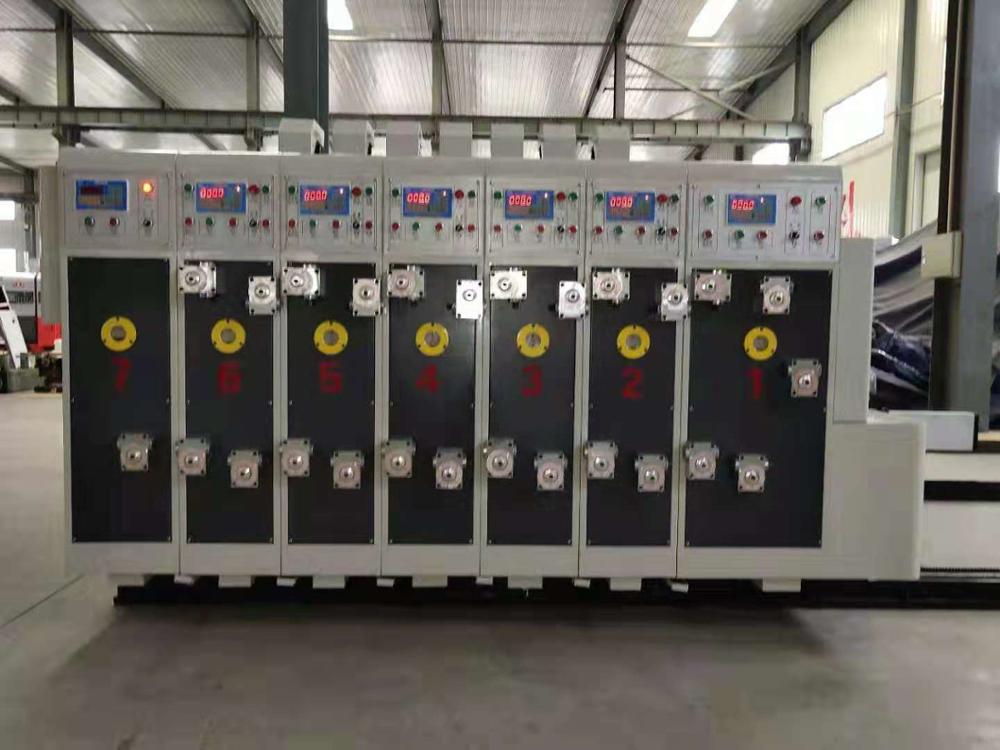

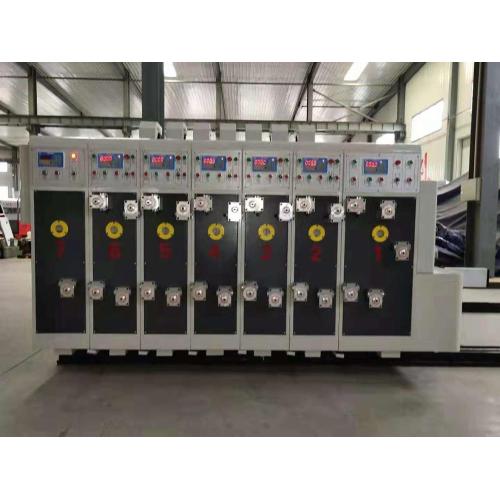

• Multi-Color Flexo Printing Capability (1–6 Colors): Equipped with a modular printing unit that supports up to six color stations, enabling vibrant, registration-accurate designs on cardboard substrates.

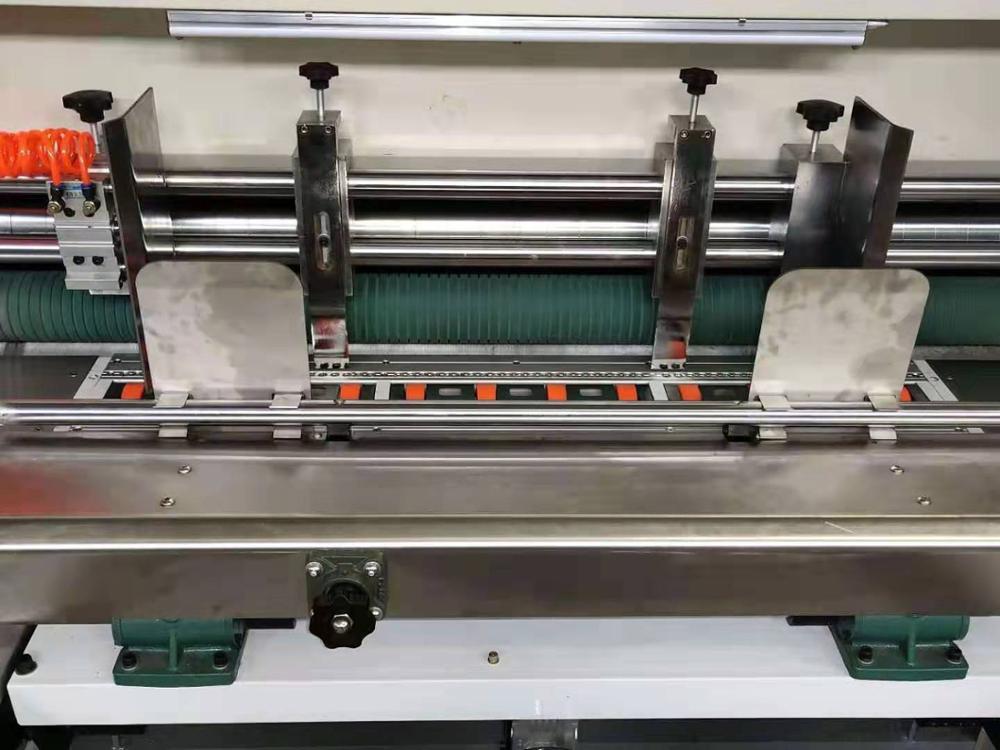

• Automatic Paper Feeding System: Utilizes vacuum-assisted suction rollers and pneumatic cylinder-driven feeding for smooth, jam-free sheet handling from 2–12 layers of board stock.

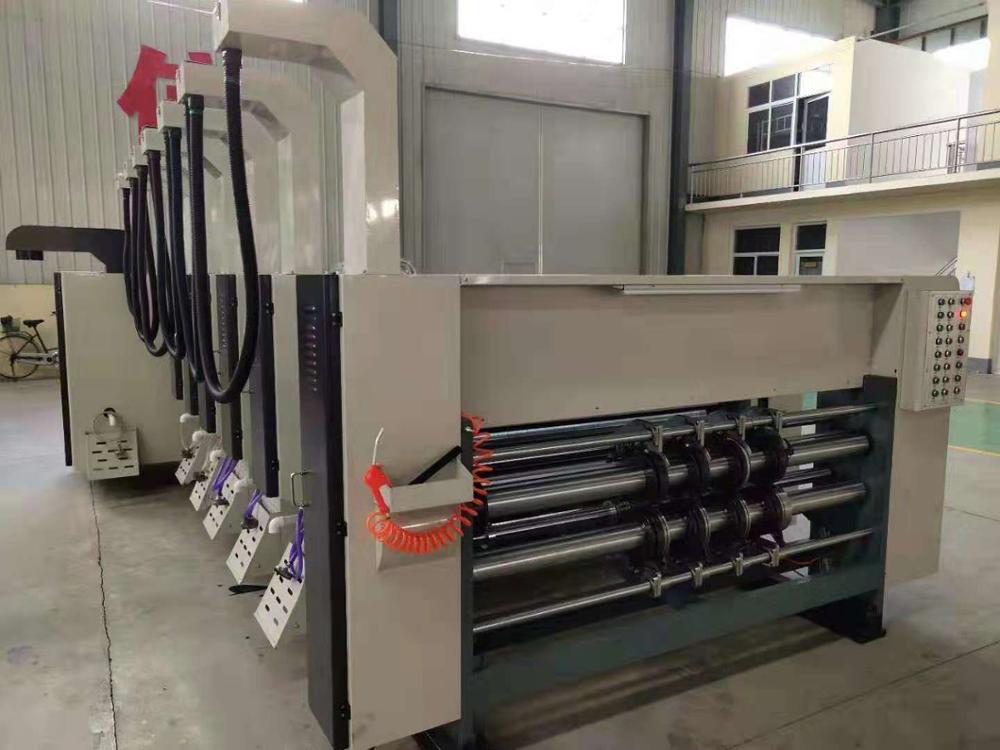

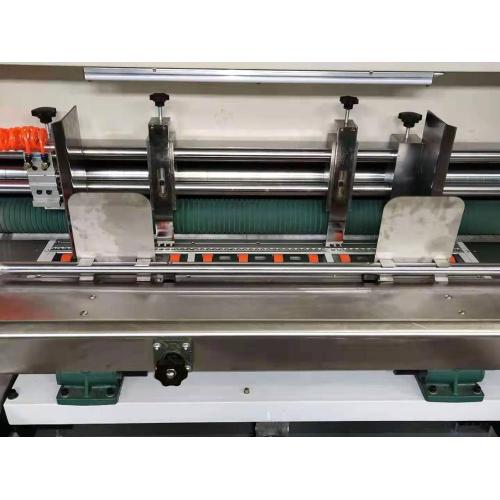

• High Precision Slitting & Creasing Unit: Features hardened steel shafts with precise pressure adjustment (0–12 mm), ensuring clean folds and sharp score lines without material damage.
• Digital Phase Adjustment (360°): Allows real-time synchronization between printing, slitting, and creasing modules for perfect alignment—even during high-speed runs.
• Robust Transmission Gear System: Made from hardened 45# steel with six-grade accuracy, offering long-term stability and minimal wear over 10+ years of continuous use.
• Energy-Efficient Motor Control: Main motor uses variable frequency drive (VFD) technology for stable startup, reduced energy consumption, and enhanced safety through built-in overload protection.

Detailed Description

The machine’s core strength lies in its seamless integration of multiple functions: feeding, printing, slotting, creasing, and stacking—all within a single automated cycle. The effective printing area measures 650 x 1700 mm, accommodating standard box sizes while maintaining tight tolerances for edge-to-edge consistency. With a maximum speed of 150 pieces per minute and economy mode at 130–150 pcs/min, it balances productivity with operational efficiency. The anilox roller system (available in Dalian or Haili brands) ensures uniform ink distribution across the plate surface, with options for 180–300 mesh lines per inch depending on print detail requirements. Ink circulation is managed via a diaphragm pump system that maintains steady flow and minimizes waste. For quality assurance, the unit includes an automatic ink filter and digital monitoring for viscosity control. Safety is prioritized through a comprehensive interlock system, alarm bells during operation, and emergency stop mechanisms. The paper pick-up arm in the stacking section operates either manually or automatically, with adjustable air-baffle positioning to prevent misfeeds. Additionally, the bed lift mechanism supports stack heights up to 1600 mm and features a braking motor to ensure safe stopping without slippage.

Applications

This machine excels in environments requiring fast turnaround times and reliable output for:

• Custom printed packaging for e-commerce and retail products
• Corrugated boxes for food, cosmetics, electronics, and pharmaceuticals
• Display stands and promotional packaging for trade shows
• Small to medium volume production where flexibility and low setup time are critical

User Reviews

Users worldwide praise the machine’s robust build, intuitive controls, and minimal downtime. Many highlight how the digital phase adjustment simplifies color registration changes, reducing trial-and-error setups. Operators appreciate the quiet operation compared to older models, especially when running in shared workspaces. Customers note that the combination of manual and electric adjustments allows fine-tuning without constant technician intervention—a major benefit for remote or resource-limited facilities.

Frequently Asked Questions

Is this machine suitable for international markets?

Yes, it meets global industrial standards for safety, electrical compliance, and environmental sustainability. It has been exported to over 40 countries including Europe, North America, Southeast Asia, and the Middle East. What makes your product stand out from competitors?

Our 25+ years of manufacturing experience, combined with precision engineering and customer-focused after-sales support, sets us apart. Unlike many suppliers, we offer extended warranty coverage (up to 3 years) and spare parts availability even after 10+ years of service. Can technicians be sent overseas for installation?

We provide trained engineers for overseas installation and training, though travel expenses must be covered by the buyer. This ensures proper setup and operator familiarization, maximizing uptime and minimizing early-stage issues. How durable is the gear system?

All transmission gears undergo heat treatment and shaving processes, achieving hardness levels of HRC 58–62. These components are designed for over a decade of uninterrupted operation with minimal maintenance. What kind of materials can it process?

It handles paperboard thicknesses ranging from 2 to 12 layers, making it ideal for both lightweight cartons and heavy-duty shipping containers. The adjustable rollers accommodate different board densities without compromising print clarity or cutting precision.
