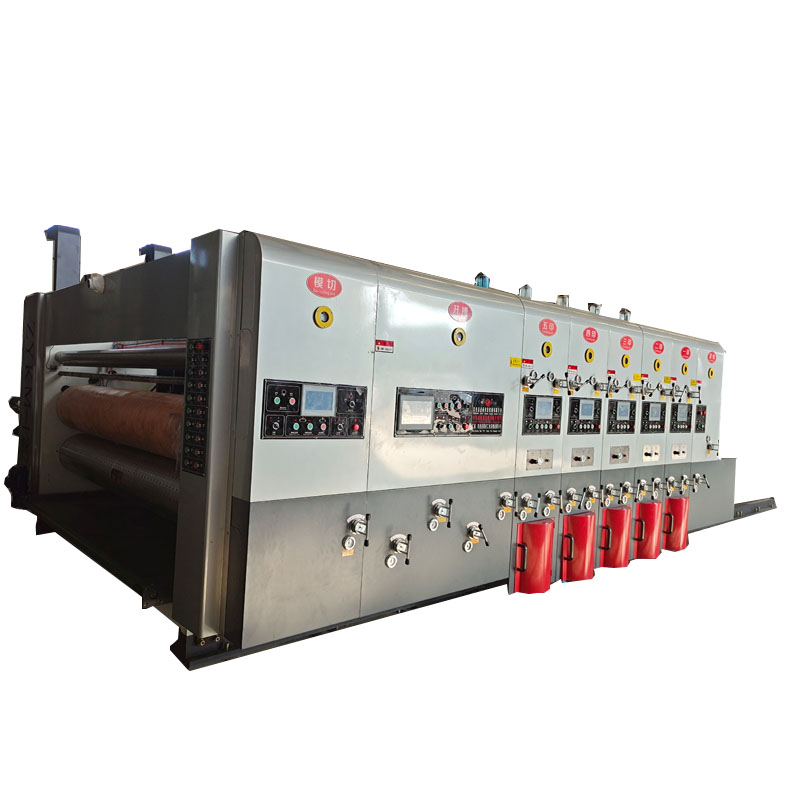

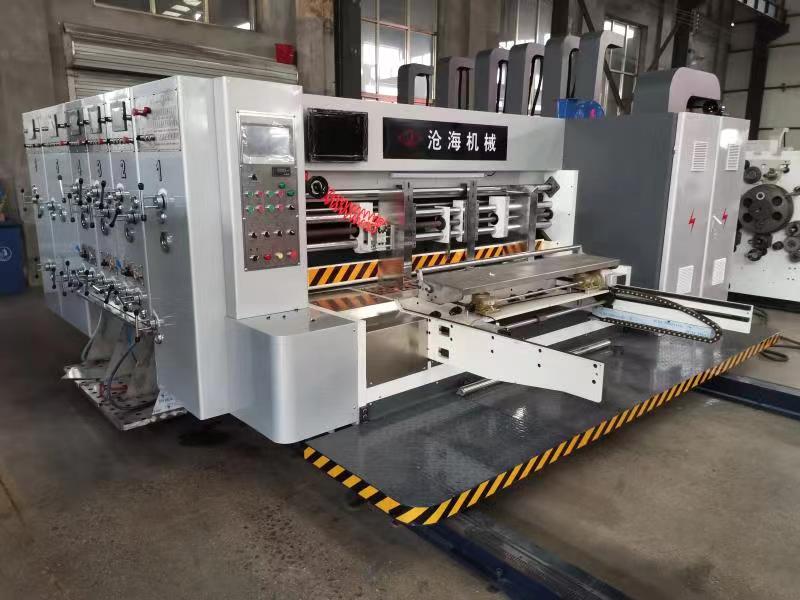

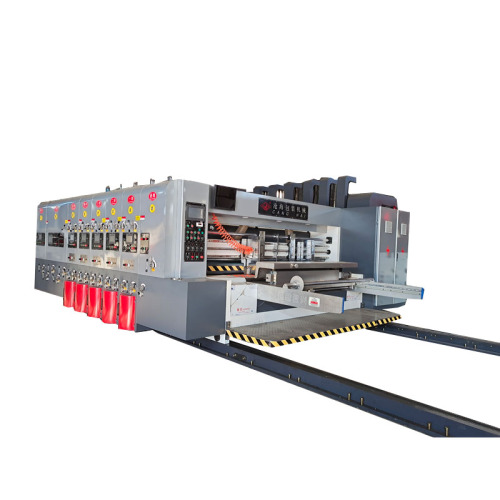

High Precision Automatic 2/3/4 Color Printing, Slotting, and Die-Cutting Machine for Corrugated Carton Box Production
This advanced industrial solution is engineered for high-volume, precision manufacturing of corrugated cardboard boxes, integrating cutting-edge automation with robust mechanical design. Designed for global markets outside China and its territories, this machine delivers exceptional print accuracy, consistent die-cutting performance, and seamless integration into modern packaging production lines.

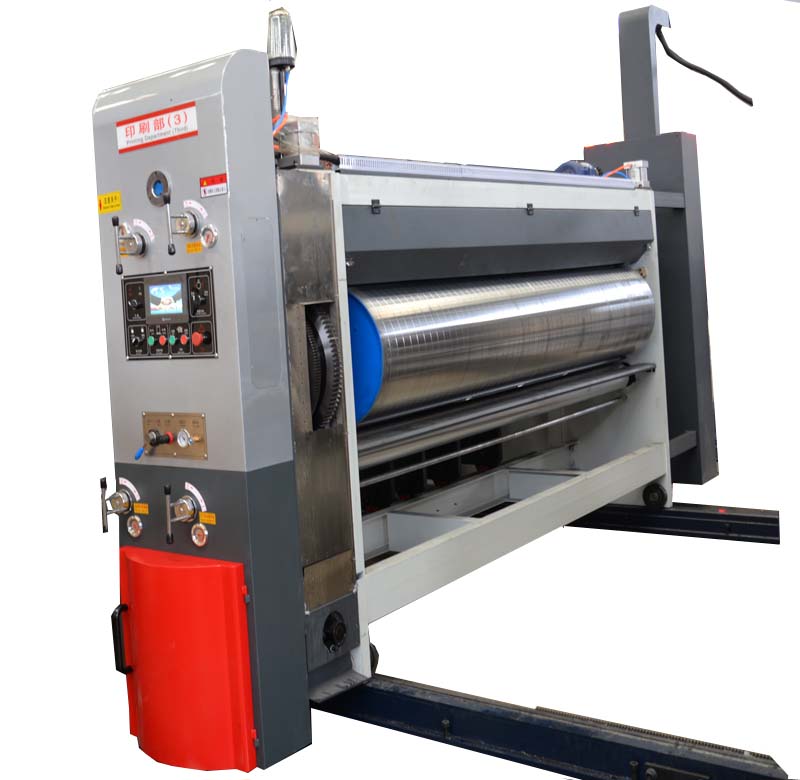

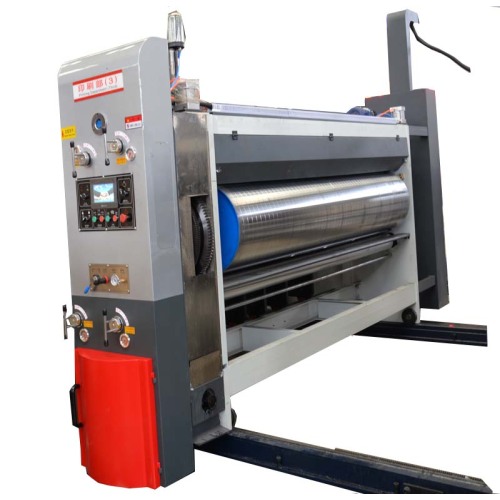

Key features include a PLC-controlled printing unit with precise slot phase adjustment, ensuring smooth operation and reliable output. The entire frame and critical components undergo stress-relief aging treatment followed by CNC precision machining, guaranteeing long-term dimensional stability. High-quality steel rollers are dynamically balanced using computerized systems and coated with hard chrome plating to enhance durability and reduce wear over time. The transmission gears, made from 40CrMoTi alloy steel, achieve six-grade precision with Rockwell hardness between HRC58–62, enabling superior color registration and consistent print quality across extended runs.
Each module includes electric separation and pneumatic locking mechanisms for enhanced safety during maintenance or operational adjustments. Emergency stop switches located at front, middle, and rear sections provide immediate shutdown capability, while individual unit-level emergency stops allow targeted halts without affecting the entire system—ideal for continuous production environments where worker safety is paramount. A fully automated spray lubrication system ensures optimal gear and roller performance while preventing oil leakage, maintaining cleanliness in sensitive facilities.
The machine supports sheet sizes ranging from 320×750 mm to 1250×2800 mm, accommodating various box formats used in e-commerce, food packaging, electronics, and pharmaceutical industries. With a maximum printing speed of 100 sheets per minute and an economic range of 80–100 sheets per minute, it balances productivity with energy efficiency. Plate roller diameter measures 420 mm, and the overall machine width is 2800 mm, making it suitable for mid-to-large scale operations requiring consistent throughput and minimal downtime.
Manufactured with keyless connecting rings throughout the electrical system, this model eliminates backlash common in traditional couplings, preserving chromatic accuracy over thousands of hours of operation. The die-cutting precision remains within ±1.0 mm, and the top register accuracy stays under ±0.75 mm—critical for brands demanding sharp graphics and perfect alignment in their packaging designs. The machine’s structural integrity is reinforced with a 6 mm thick frame, and its total weight of 32,500 kg ensures stable performance even under heavy-duty conditions.
Common applications span logistics packaging, retail product boxes, display units, and custom-printed cartons for consumer goods. Whether producing single-color labels or multi-color branded packaging, this machine adapts effortlessly to diverse substrates including kraft paper, white board, and laminated materials. Its modular architecture allows easy expansion with optional accessories such as automatic feeding systems, stackers, or glue applicators, making it a future-proof investment for growing businesses.
Users consistently praise the machine's reliability, low maintenance needs, and ease of use once operators are trained. Many report significant reductions in waste due to improved registration accuracy and fewer manual interventions. The built-in safety protocols and intuitive control interface make it accessible to both experienced technicians and new team members, streamlining onboarding processes across international teams.
Frequently asked questions highlight the manufacturer’s commitment to quality: the company offers a three-year warranty backed by over two decades of experience in producing high-speed water-based printing slotting die-cutting machines. Technicians can be dispatched overseas for installation and training, though travel-related expenses must be covered by the buyer. Global clients appreciate the responsive after-sales support, which includes spare parts supply, technical troubleshooting, and remote diagnostics via secure cloud platforms.
