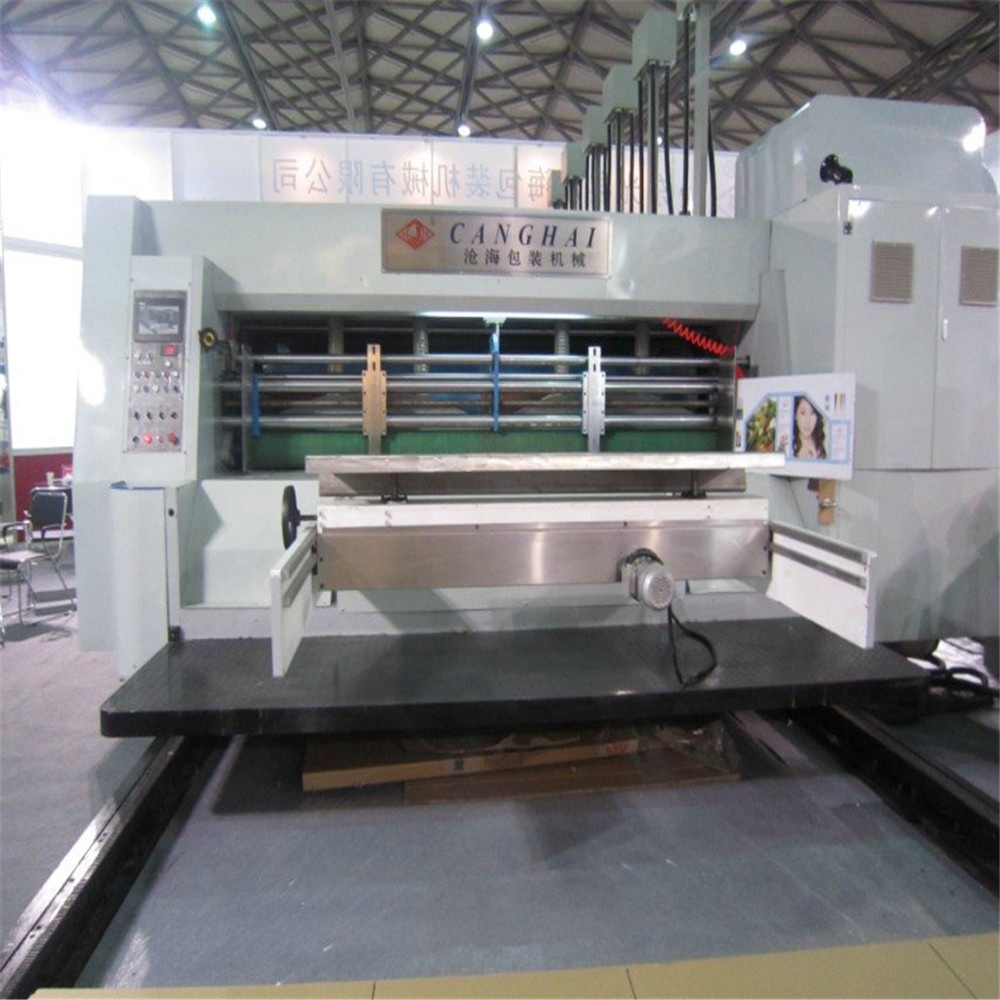

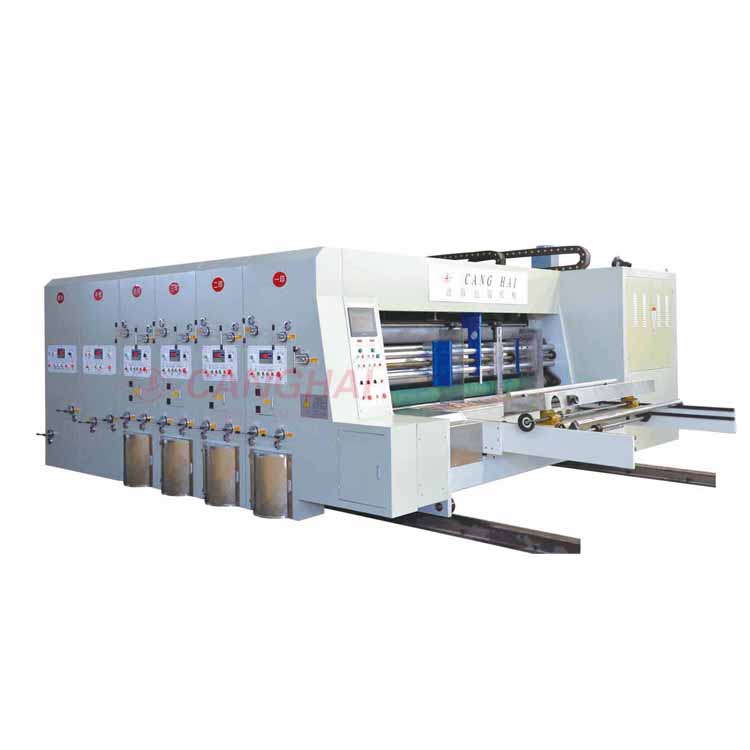

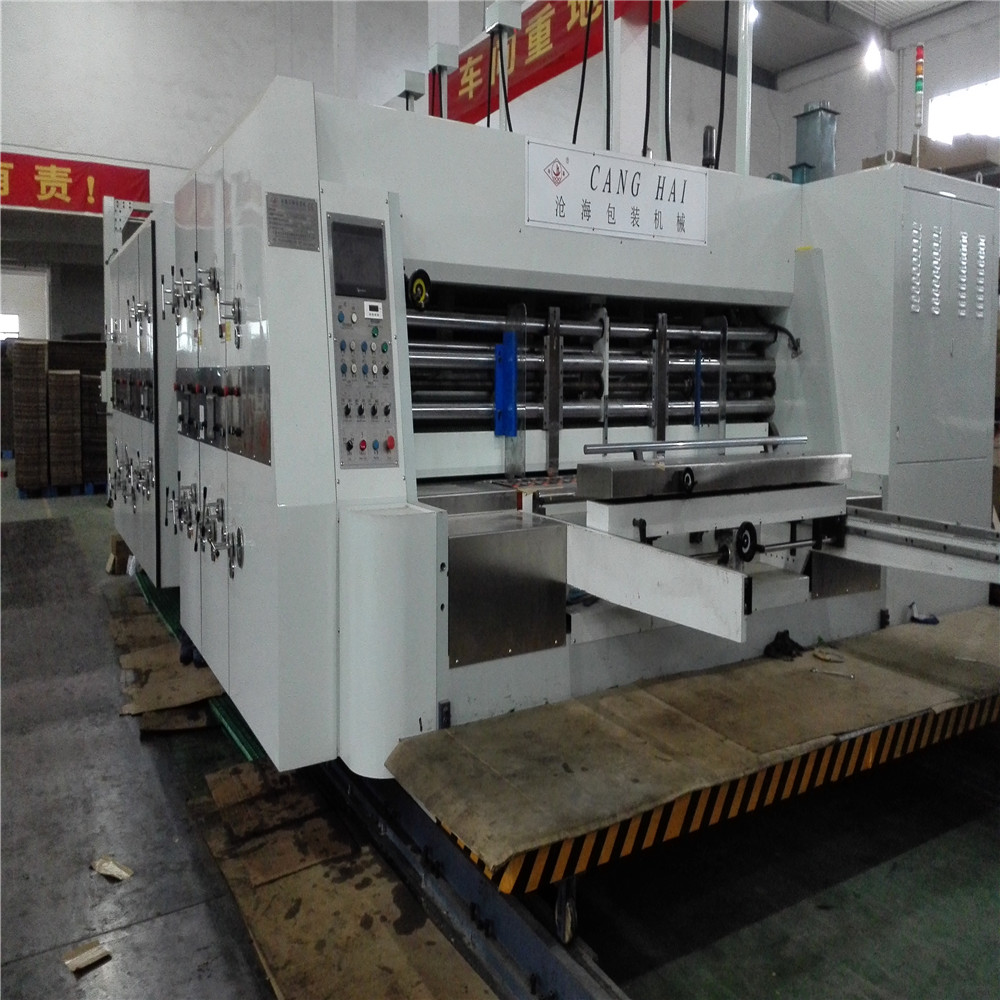

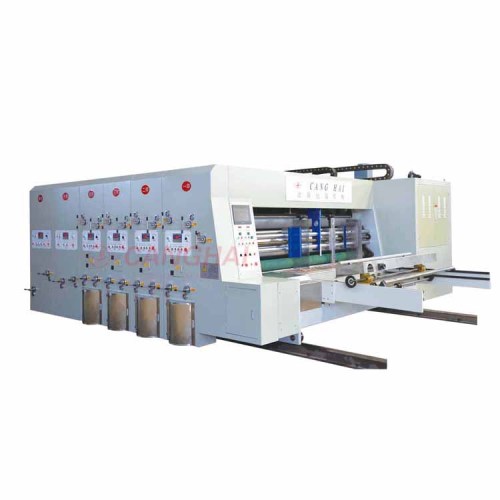

Automatic High-Speed Printer Slotter Die Cutter Machine for Corrugated Cardboard Production
This advanced automatic high-speed printer slotter die cutter machine is engineered for precision, durability, and seamless integration into modern packaging manufacturing lines. Designed specifically for corrugated cardboard processing, it combines cutting-edge automation with industrial-grade components to deliver consistent quality across a wide range of paperboard thicknesses—from 2mm to 10mm—making it ideal for producing boxes, displays, and custom packaging solutions at high volume.
Key Features That Set It Apart
The machine features a robust structural design using capt-lock union links, ensuring minimal mechanical play during extended operation. Its transmission system employs 20CrMnTi alloy steel gears, hardened to 60 HRC after heat treatment, guaranteeing long-term reliability under continuous use. All rollers are chrome-plated for enhanced wear resistance and smoother surface contact, while the touch-screen PLC control system allows intuitive adjustment of printing, slotting, and die-cutting parameters in real time.
Detailed Functional Description

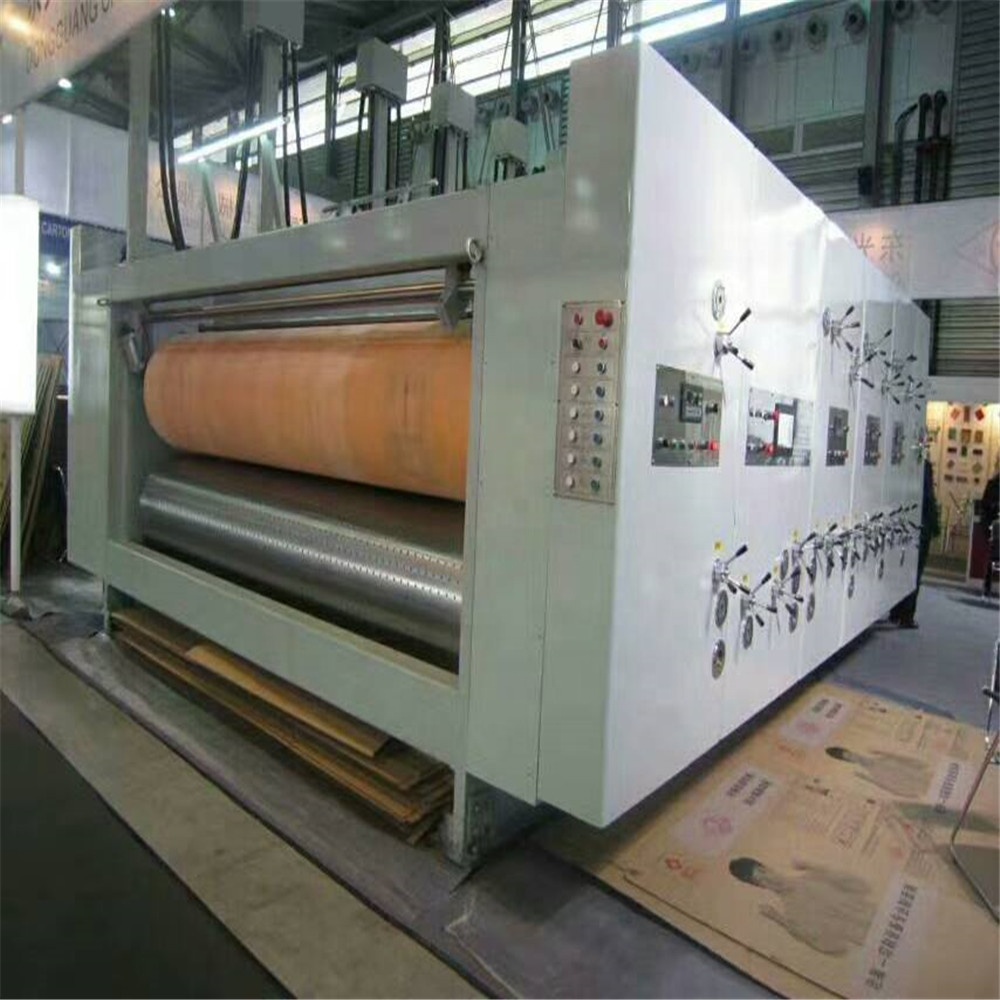

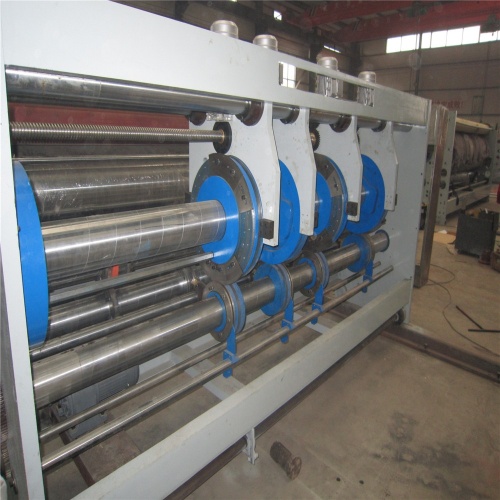

Equipped with a servo-driven feeding unit, this machine ensures accurate paper delivery without mechanical slippage, thanks to dual rubber rollers powered by precision motors. The vacuum suction feed mechanism adjusts automatically based on air pressure, maintaining optimal alignment regardless of board size or material type. The printing section uses dynamically balanced cylinders made from high-quality steel with chrome plating, enabling sharp image reproduction even at speeds up to 160 sheets per minute. Both slotting and die-cutting units offer ±1.2mm and ±1.5mm precision respectively, supported by electrically controlled phase adjustments via the same touch interface used throughout the system.
The die cutter roller includes an auto-separation feature that disengages the blade when not in use, reducing unnecessary load and extending tool life. Additionally, the glue roller can be manually adjusted and repositioned along its axis to maintain uniform coating over time—a critical factor in achieving consistent adhesion and minimizing waste. The stacker unit is designed for safe, efficient accumulation of finished products, with adjustable height settings and anti-fall safety mechanisms to protect operators during routine handling.
Applications Across Industries
Perfectly suited for manufacturers of retail packaging, e-commerce shipping containers, promotional displays, and industrial cartons, this machine streamlines production processes from raw sheet input to final box output. Whether you're producing small batches of specialty packaging or large volumes of standard corrugated boxes, its flexibility in handling sizes ranging from 320×720mm to 1270×2600mm makes it adaptable to diverse customer needs. The ability to switch between different paper types—including single-faced, double-faced, and triple-wall corrugated boards—further enhances its utility in multi-product environments.
User Feedback Highlights
Users consistently praise the machine’s operational stability, especially during long runs. Many note how the automated positioning systems reduce setup time significantly compared to older models. One operator from Germany remarked, “The precision in slotting and die-cutting has eliminated our previous issues with misaligned folds and uneven cuts—especially important for our luxury product packaging.” Another from the UK highlighted the ease of maintenance: “Even with frequent changes in job specifications, the touch-screen interface lets us adjust everything quickly without needing technical support every time.”
Frequently Asked Questions
What distinguishes this model from others in the market? Unlike many competitors, this unit integrates all core functions—printing, slotting, die-cutting, and stacking—into a single synchronized workflow, eliminating manual intervention points and improving throughput efficiency. The inclusion of Swiss servo technology and a fully programmable PLC system ensures repeatability and accuracy across thousands of units per day.
Is there a warranty period? Yes, we provide a three-year comprehensive warranty covering parts and labor. In fact, several clients have reported using similar machines in their facilities for over a decade without any major service interruptions, testifying to the build quality and engineering excellence.
Can it handle variable batch sizes efficiently? Absolutely. With its modular design and digital controls, the machine supports quick changeovers between jobs, allowing users to switch between various dimensions and configurations within minutes. This adaptability is particularly valuable for businesses serving multiple industries or seasonal demand spikes.
How does it ensure print registration accuracy? The printing cylinder incorporates dynamic balancing and zero-return functionality, which maintains perfect alignment whether the machine is running at full speed or during start-up/shutdown cycles. Combined with 360-degree electronic phase adjustment, this results in crisp, clean images free from smearing or blurring.
What kind of maintenance is required? Routine checks include inspecting roller surfaces for wear, cleaning ink rollers and dies regularly, and verifying the integrity of the vacuum system. However, thanks to the durable materials and intelligent monitoring features, maintenance intervals are extended compared to traditional mechanical systems, reducing downtime and labor costs.
