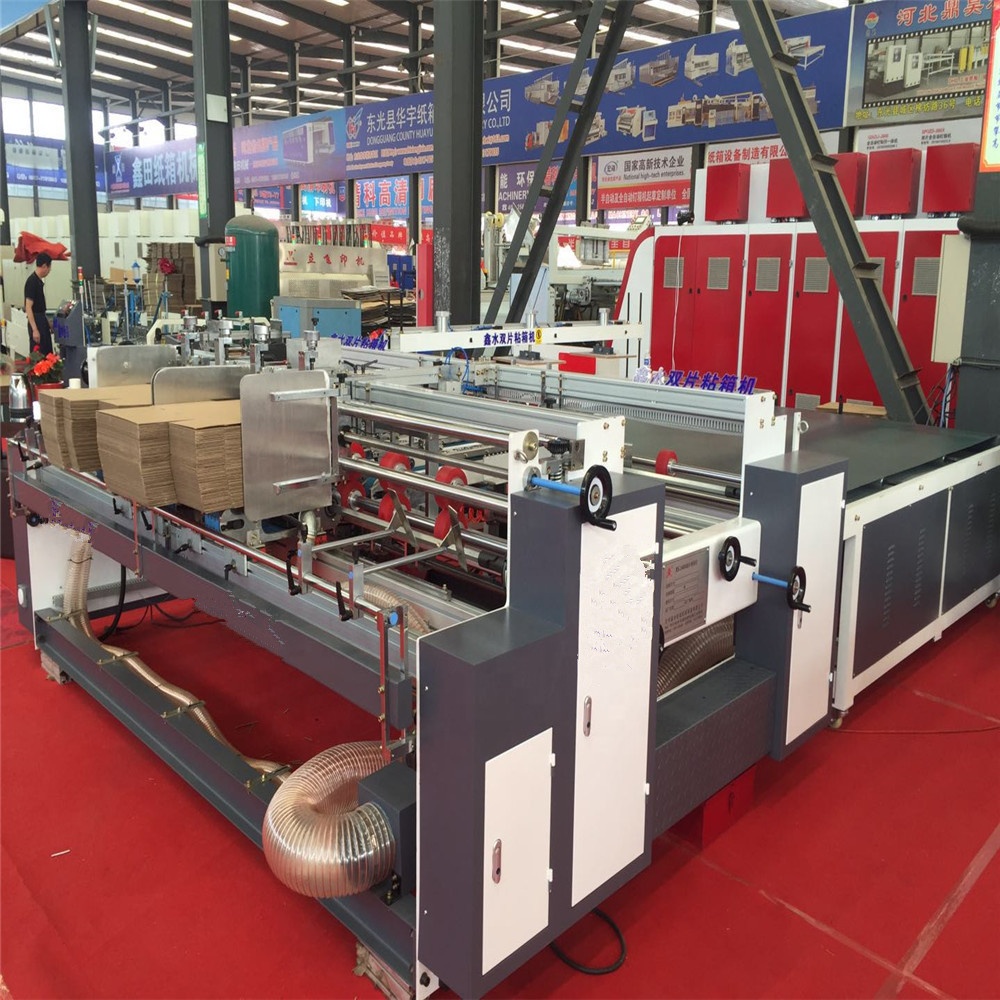

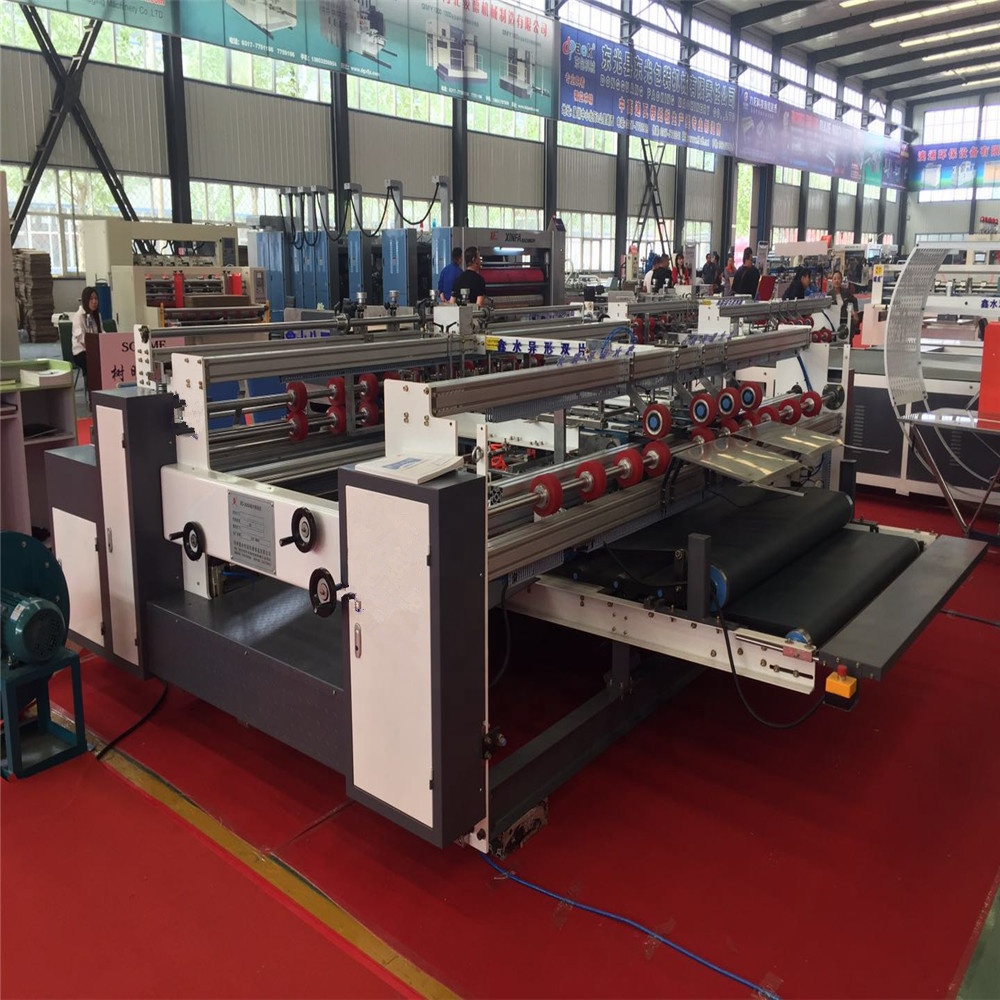

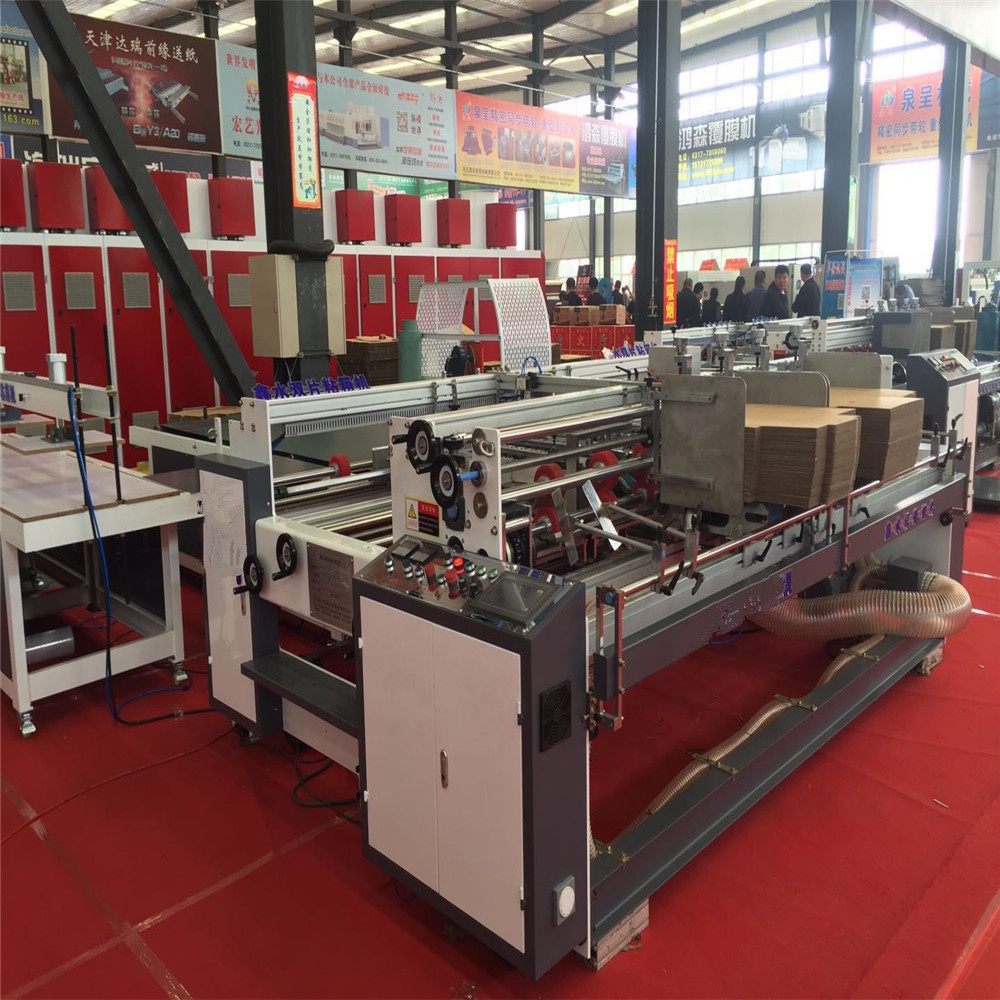

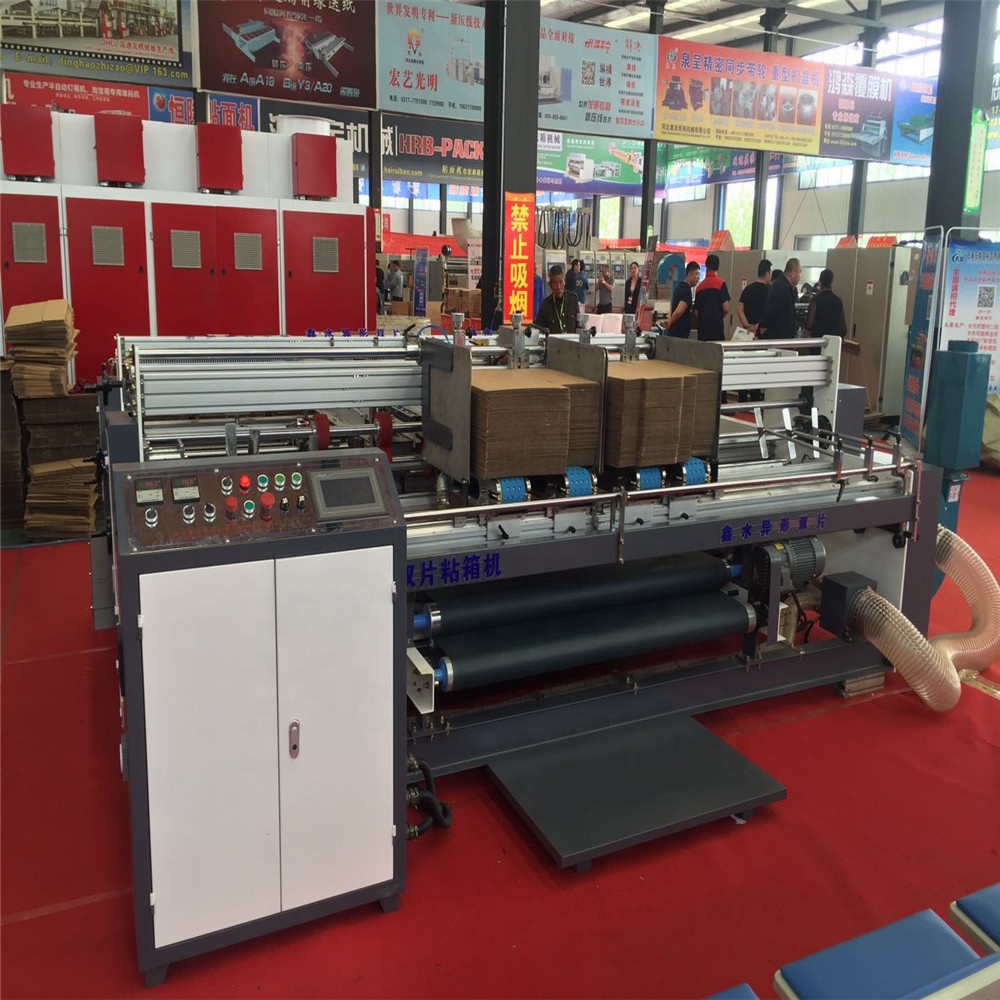

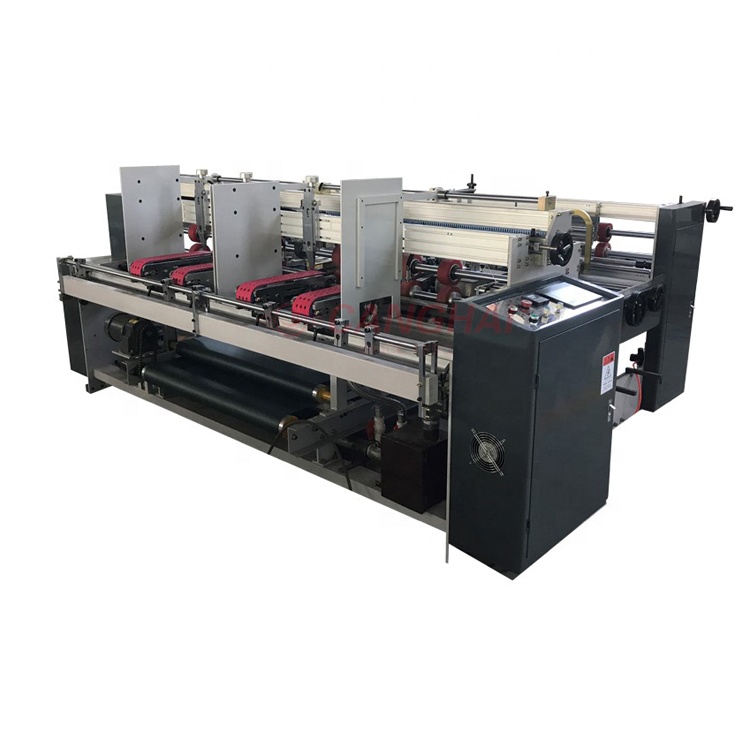

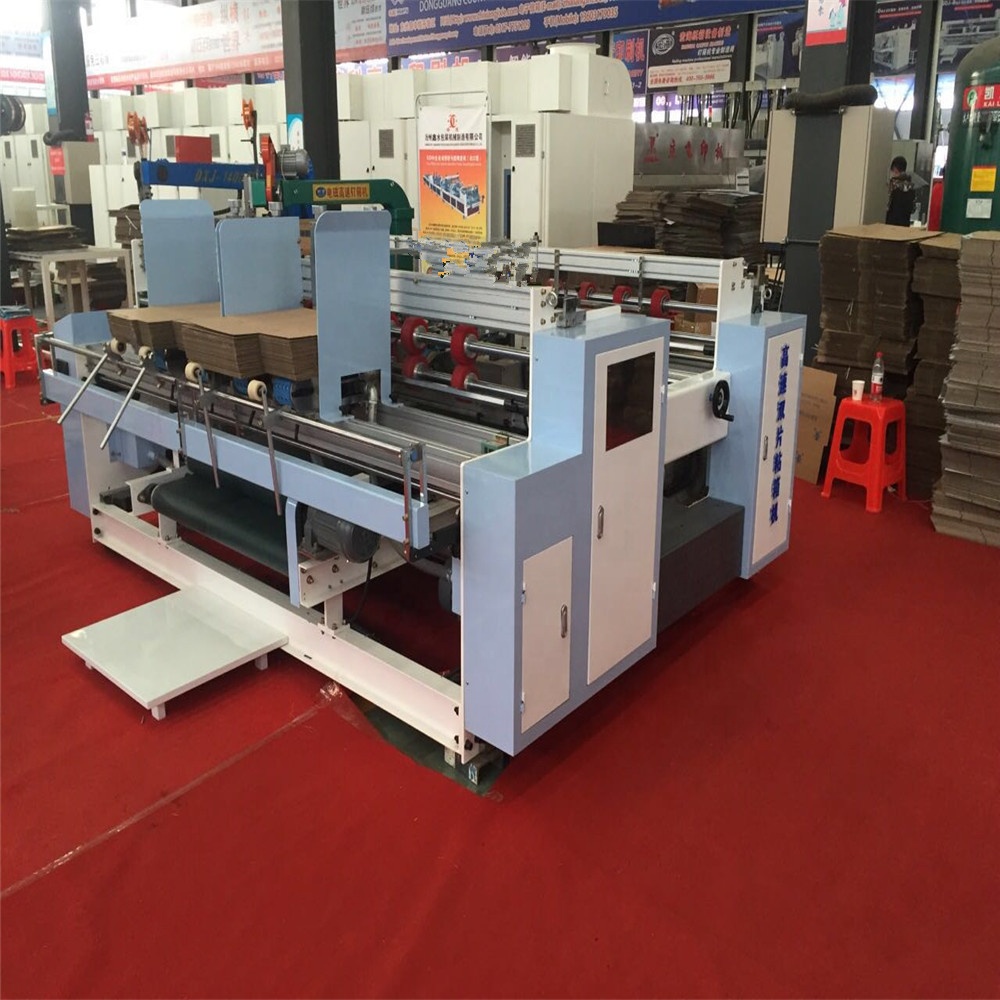

Double PC gluer machine can be used AA PC ,AB pc,two PC carton and single PC carton to glue, this machine can instead of the manual gluing, reduce the work ,compare with the traditional semi-auto gluer machine ,can save labor,,Because of different working model,compare with above two carton gluing process, can largely improve the product quality
Main technology :
This machine adopt frequency convertor to adjust speed,PLC control,model convert,match with high speed clutch, run and control exactly.
This machine with separate paper-feeder system,with hard wind absorption feeding pare,can double PC and single PC to feed paper
When this machine work two PC carton, two PC paper can glue in moving, and 4 face positon well and exact.While two PC to one PC,worker can manual fold in folding part,meanwhile can manual errect to the crossing part of creasing line and corrugated line ,so as to finish the final shaping.
Parameter :
| The max feeding size | 1200*1200mm |
| The min feeding size | 450*330mm |
| Paper | A-E corrugated paper and 5-ply paperboard under 6mm |
| Machine speed | 0-86m/min |
| Machine size | 3550*3180*1250mm |
| Heat power | 1.25kw |
| Whole power | 6.0kw |
