Brand: Canghai
Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Printing Shops
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, United States, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Thailand, Malaysia, Argentina, Chile, Algeria, Sri Lanka, Romania, Bangladesh
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Turkey, United States, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Argentina, South Korea, Chile, Uae, Romania, South Africa, Malaysia
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Hot Product 2019
Core Components: Plc
Application: Machinery &Amp; Hardware, Apparel
Type Of Packaging: Cartons
Packaging Materials: Plastic
Degree Of Automation: Automatic
Power Type: Electric
Place Of Origin: China
Service System: Online Support
Core Selling Point: Easy To Operate
Type: Other
Condition: New
Automatic Grade: Automatic
Driven Type: Electric
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Packaging Material: Wood
Dimension(L*W*H): Machine Model
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant
Packaging Type: Cartons
Weight: 500 KG
Brand Name: Canghai
Machine Speed: 120-150 pcs/min
Slotting Width: 45-150 mm
Thickness Of Slotting Knife: 3-5 mm
Showroom Location: Turkey, Viet Nam

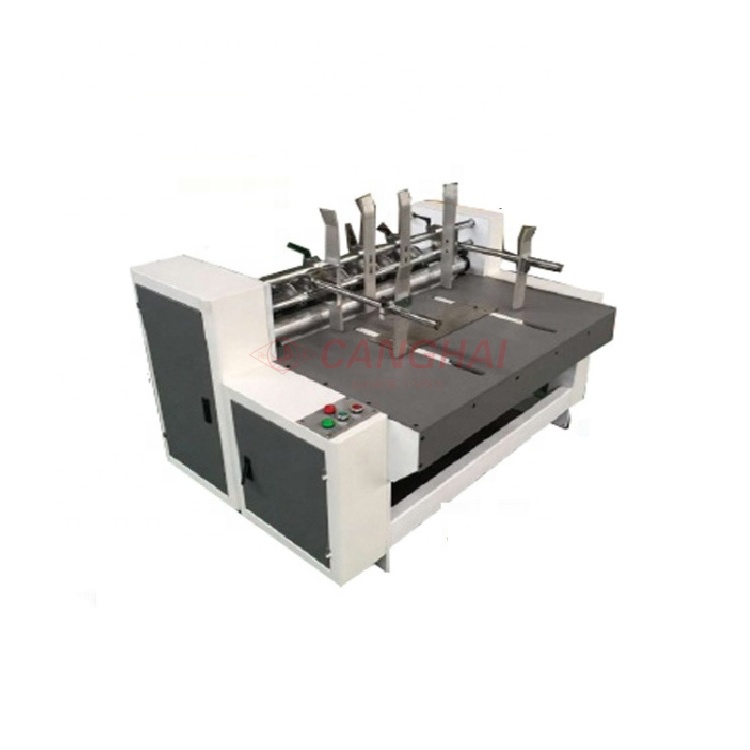

Item: auto corrugated cardboard partition slotting machine
Keywords 1: partition slotting machine
Keywords 2: corrugated cardboard partition slotting machine
Keywords 3: auto partition slotting machine
Place Of Origin: Hebei, China
Voltage: 220V/380V/440V
Power: 1.1 KW, 1.1 kw
Packaging: wooden case auto corrugated cardboard partition slotting machine
Supply Ability: 10 Set/Sets per Month auto corrugated cardboard partition slotting machine
Port: Xingang, shanghai, qingdao
Choose the corrugated paperboard which you want to process, adjust the side feeding baffle (1 in Picture A) . Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles (1 in Picture A) right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
When the length of paperboard is big , can move the front feeding baffle (3 in Picture A) right or left. Adjustment method : loose the screws in circle of below picture, move the two front feeding baffles (3 in Picture A), adjust the front feeding baffles to the suitable positions according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
机械最高速度 Machine max speed | 120 张/分钟 120 pieces/min |
最大进纸尺寸 (长×宽) Max feeding size (L×W) | 1000mm×300mm,1200x600mm,1400x600mm |
最小进纸尺寸 (长×宽) Min feeding size (L×W) | 100mm×75mm |
开槽间距 Min slotting distance | 45 mm |
开槽数量 Slotting number | 九组开槽刀 9 groups of slotting knives |
切槽宽度 Slotting width | 3.5mm 5mm 7mm (根据纸板厚度任选一) (Choose one according to the thickness of paperboard) |
外形尺寸 (长×宽×高) Dimension (Length*Width*Height) | 1500mm×1450mm×1300mm |

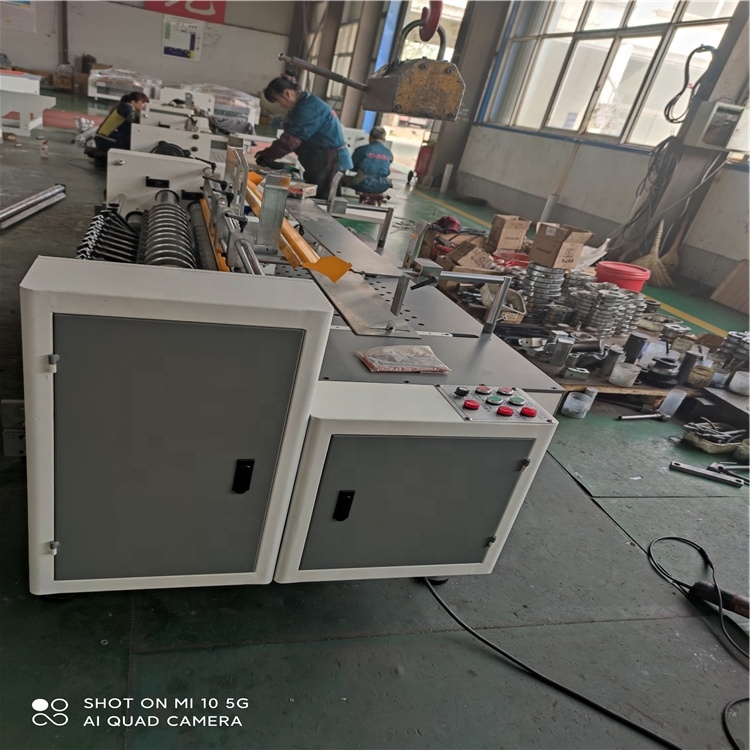

Factory picture
Product Categories : Partition Machine & Clapboard Inserting Machine
