Core Components: Plc
Place Of Origin: China
Type: Other
Condition: New
Automatic Grade: Automatic
Driven Type: Pneumatic
Warranty: 1 Year
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Key Selling Points: Easy To Operate
Packaging Type: Film
Packaging Material: Plastic
Applicable Industries: Carton Box Making Machine
Color: Customer's Requirements
Advantage: Precision
Brand Name: Canghai
Dimension(L*W*H): 7300*2000*1900
Name: partition assembler machine
Showroom Location: Egypt, Canada, Turkey, United States, Italy, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh
Application: carton box factory
Voltage: 380/220/440V
Power: 7.5KW
Weight: 4000 KG
Packaging: plastic film package
Supply Ability: 5 Set/Sets per Month
Port: Tianjin Port

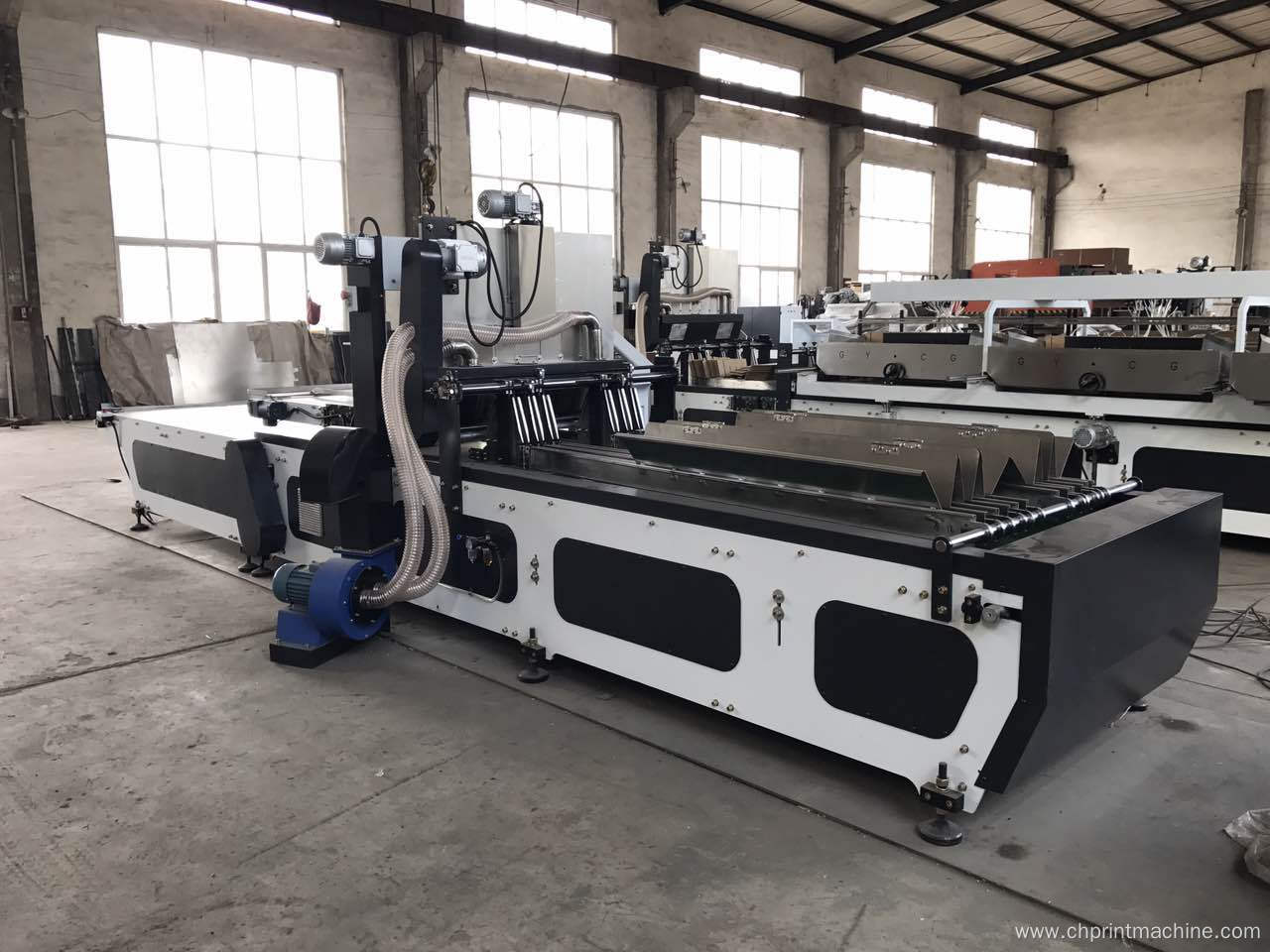

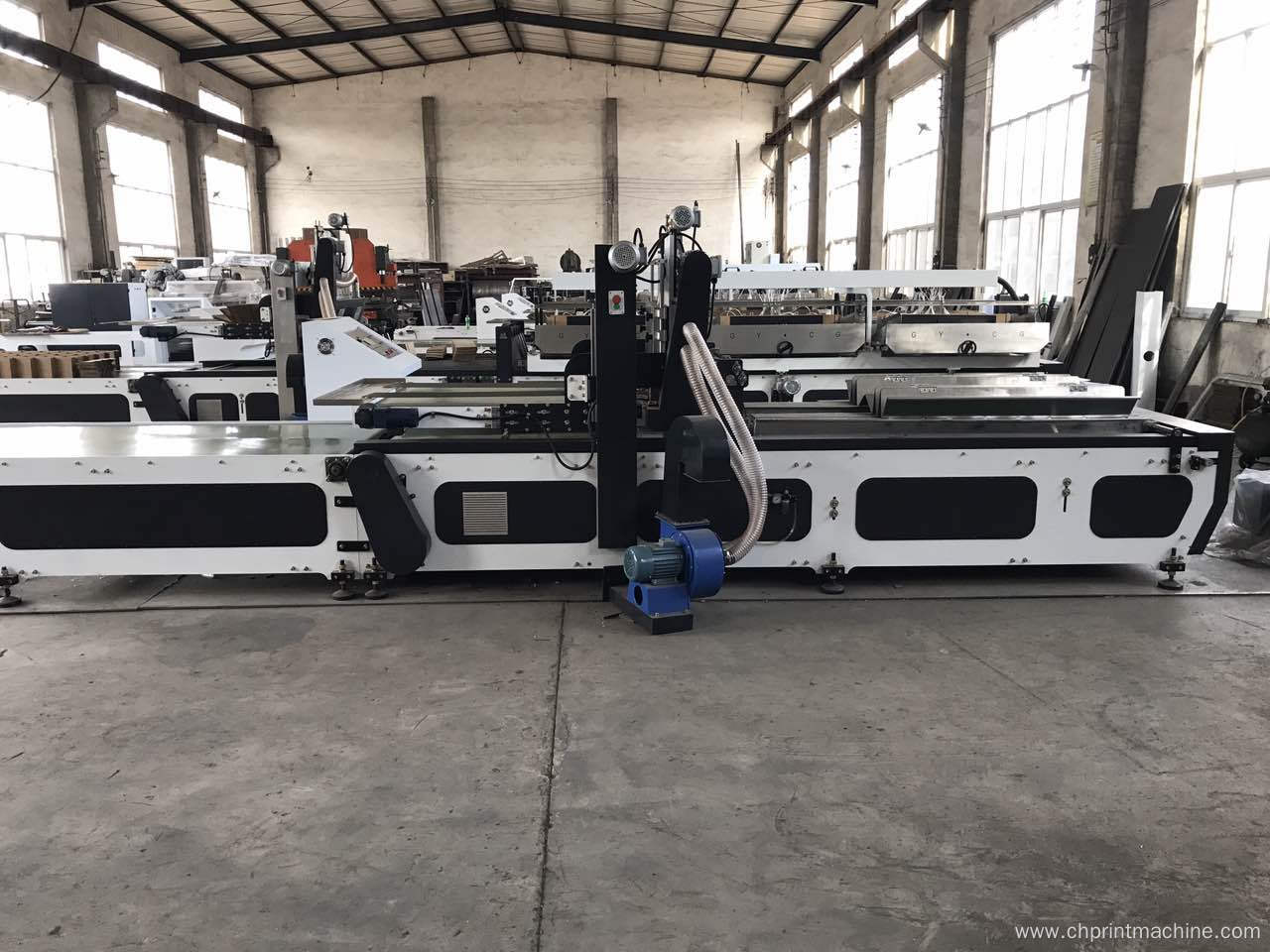

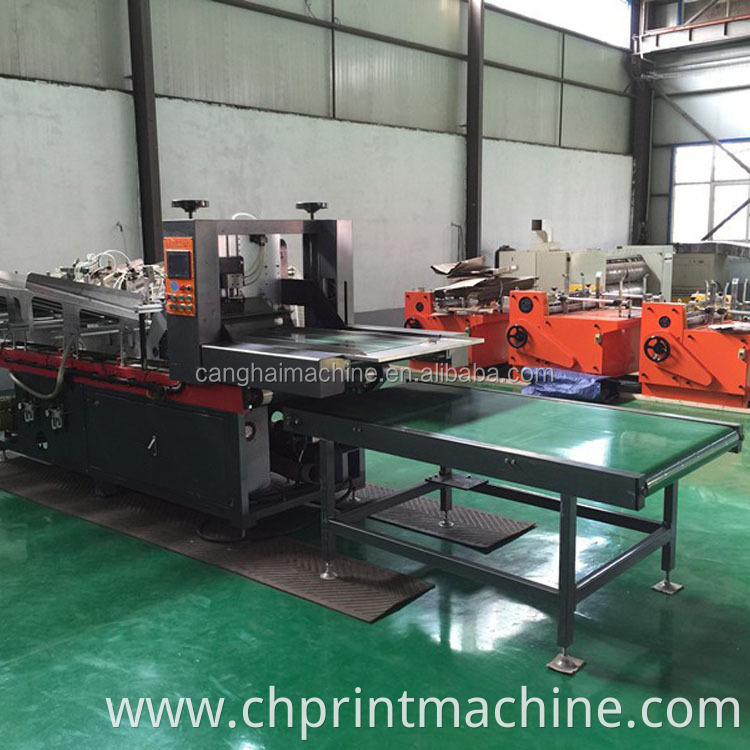

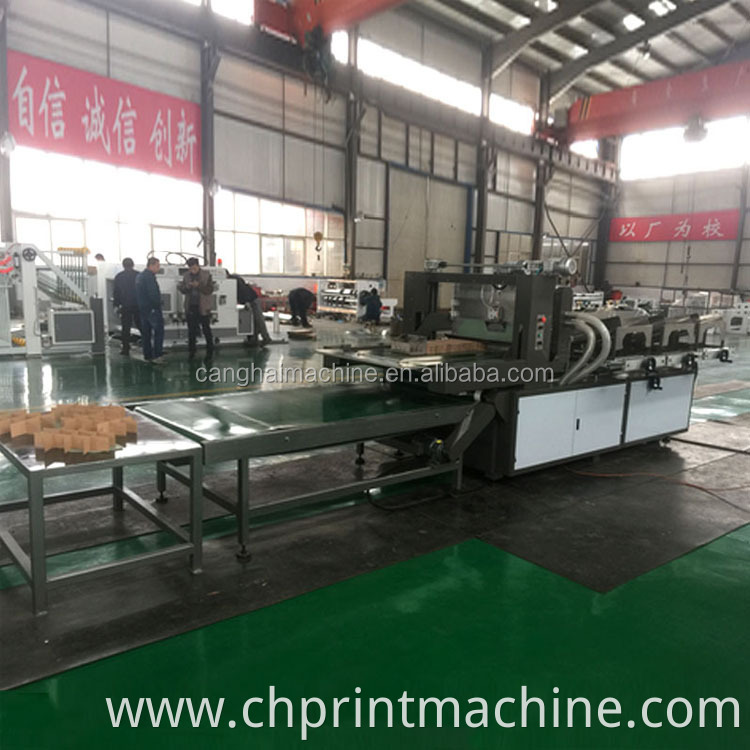

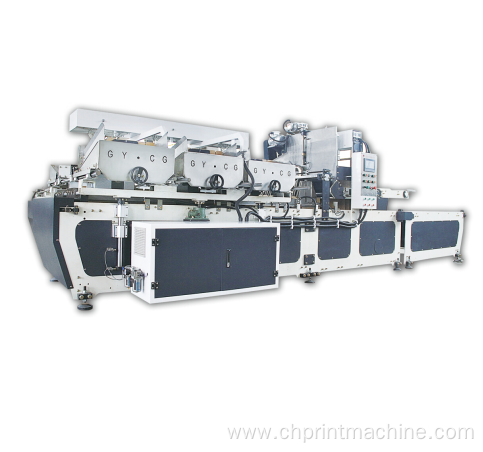

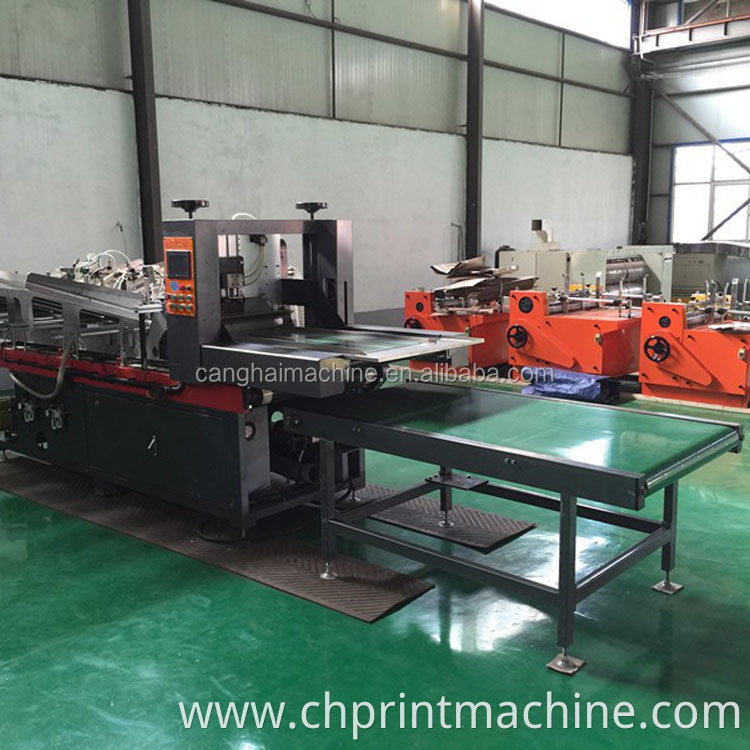

Automatic partition assembler machine has beautiful appearance and compact structure. Adopting electric control switch, pneumatic locking, PLC control and man-machine interface. This machine is easy to operate, stable running and high production efficiency , used in beverage, wine, fruit, and electronic products etc. clapboard assembler packaging . It is the ideal equipment of each carton industry.

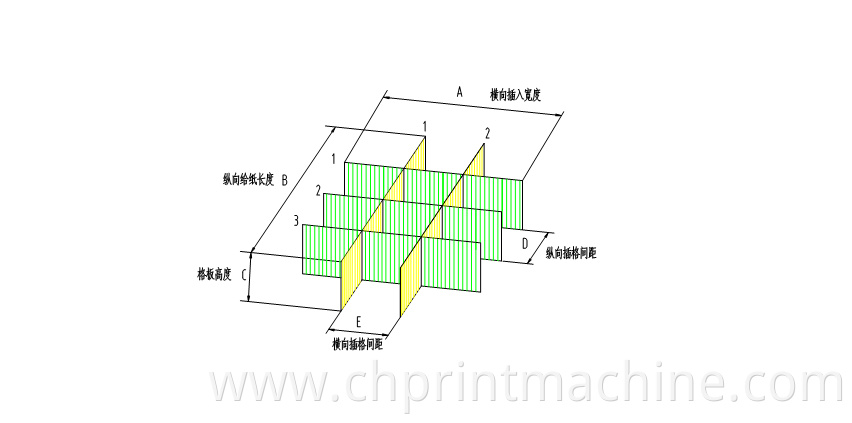

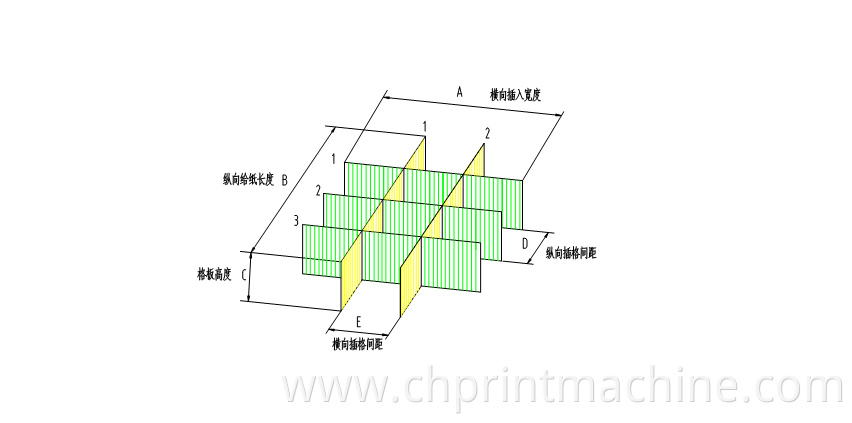

|   Name CGJ600-3L
  |    Unit  |    Data  |
|   Horizontal inserting width: A  |    mm  |    120~900  |
|   Lengthways sheets length: B  |    mm  |    210~600  |
|   Clapboard Height: C  |    mm  |    85~300  |
|   Lengthways clapboard distance: D  |    mm  |    20~500  |
|   Horizontal clapboard distance: E  |    mm  |    45-850  |

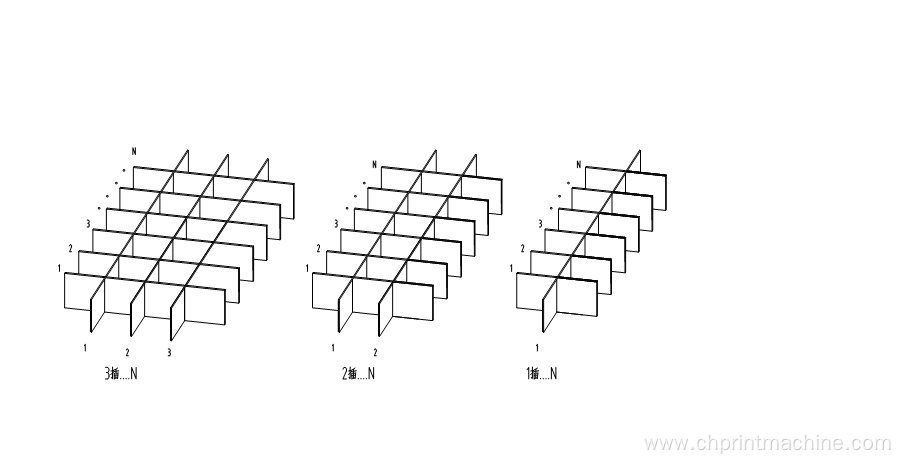

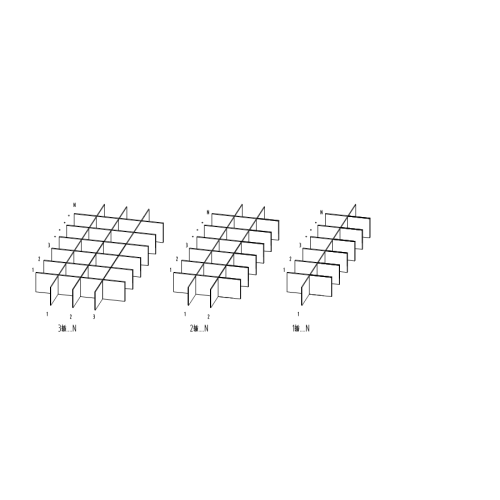

|   Lengthways sheets No.  |    Pcs  |    1-6  |
|   Horizontal clapboard No.  |    Pcs  |    1-29  |
|   Carton inserting mouth width:F  |    mm  |    board thickness  |
|   Carton thickness:G  |    mm  |    1.5~8mm  |
Remark: Special size need confirm before confirm the order

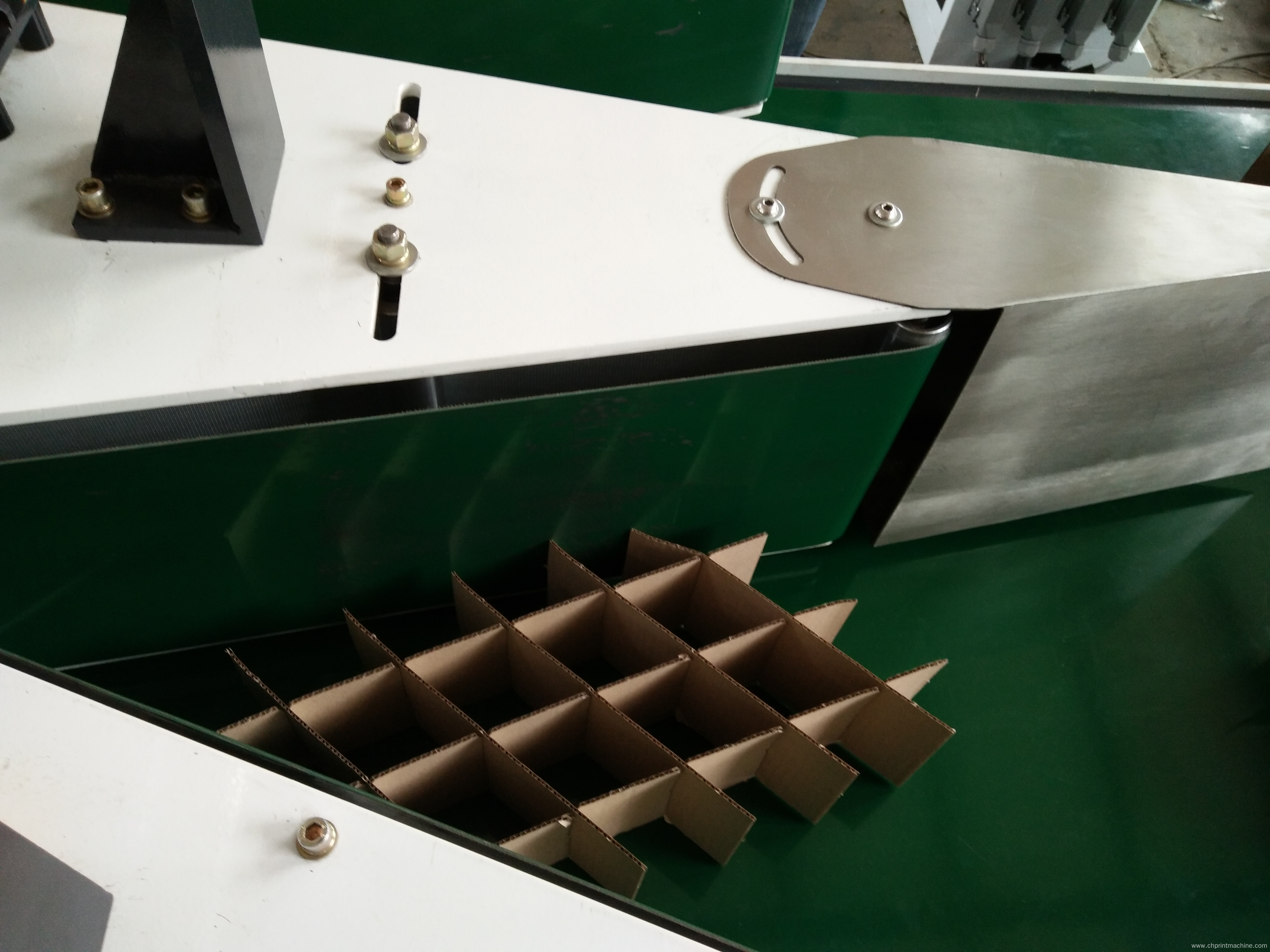

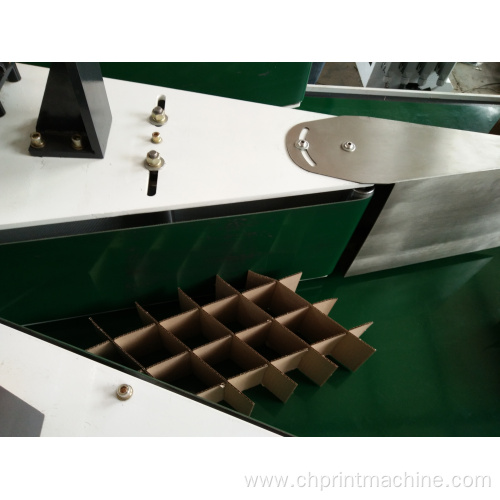

The testing partition board should meet the following requirements
Partition board molding: die cutting molding
Partition board interval should have bevel/oblique opening(as shown in the following figure
