double sheet folder gluer

Basic Info

BrandCANGHAI

Types OfGluing Machine

Applicable IndustryManufacturing Plant

Out-of-warranty ServiceVideo Technical Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Egypt, Turkey, Saudi Arabia, Thailand

Showroom Location (in Which Countries Are There Sample Rooms Overseas)Egypt, Viet Nam, Saudi Arabia, Thailand

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsPlc, Motor

StatusNew

ApplicationFood, Machinery &Amp; Hardware

Type Of PackagingCartons, Film

Packaging MaterialsPlastic, Wood

Degree Of AutomationAutomatic

Power TypeElectric

Place Of OriginChina

Warranty Period1 Year

Core Selling PointEasy To Operate

ConditionNew

TypeGluing Machine

Video Outgoing-inspectionProvided

Machinery Test ReportProvided

Driven TypeElectric

Place Of OriginHebei, China

Automatic GradeSemi-Automatic

After-sales Service ProvidedEngineers Available To Service Machinery Overseas

Warranty1 Year, 1 Year

Packaging MaterialPlastic, Metal

Warranty Of Core Components2 Years

Brand NameCANGHAI

Packaging TypeCartons, CANS, case

Dimension(L*W*H)2200x1900x1300nn

Key Selling PointsHigh Rigidity

ColorMulti-color

MaterialHigh quality steel

Feeding WayManual

Speed80m/min

OEM&ODMAccept

Functiongluing folding machine

Applicable IndustriesManufacturing Plant, Printing Shops, Advertising Company

Showroom LocationIndonesia, Thailand

Voltage220V/380V

Weight1.7 KG

BrandCanghai

Namedouble sheet folder gluer

Additional Info

PackagingExport standard package

Productivity100 set/year

Place of OriginChina

Supply Ability100 Set/year

CertificateCE, ISO

PortXingang,Tianjin,China

Product Description



double sheet folder gluer

Semi-automatic press Folder Gluer Machine is developed to give companies the flexibility to produce short runs of any shape boxes, quickly and easily.
The machine is set-up and ready to start making boxes in seconds.
The machine just need small place, easy to operate, only minimal training required, no need for skilled labour. Change from one design box to nest in seconds, ideal for small batch production and variety of replacement.
Save glue, just need 1/3 glue than manual gluing.
Save labor, the maximum speed of machine is 56 m/min, the efficiency is 3-4 times than manually operated.

Carton box bonded firmly, tidy and no excess glue. Double head grinder (we have patent) can be very good to polish the sticky part, to remove UV light plastic film or coating layer from the sticky part before gluing, improving adhesion of glue. You don't need to worry about carton easy to open.

The folding unit is manually, improving work efficiency and making better creasing.



Max.length of cardboard (Length +Width of carton) mm
2800
Min. length of cardboard (Length +Width of carton) mm
340
Max.width of cardboard (Width+Height of carton) mm
1515
Max.width of cardboard (Width+Height of carton) mm
250
Feeding height mm
900
Motor power kw
2.3
Machine weight kgs
2000
Working speed (pcs/m)
40
Overall size(mm)
5500L x 1800W x 2000H



Detailed Images







Certifications
Our Company




Product Categories : Folder Gluer Machine > Folder Gluer Machine

Product Images

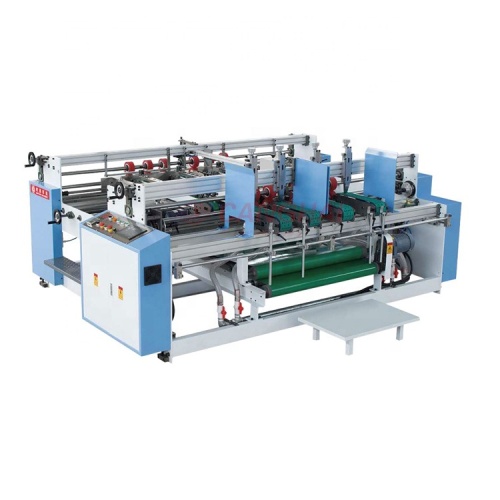

  • double sheet folder gluer
