Semiautomatic press folder gluer machine

Basic Info

Brand: Canghai

Additional Info

Packaging: Export standard package

Transportation: Ocean

Supply Ability: 1000 Set/Sets per Year

Port: X,i,n

Product Description

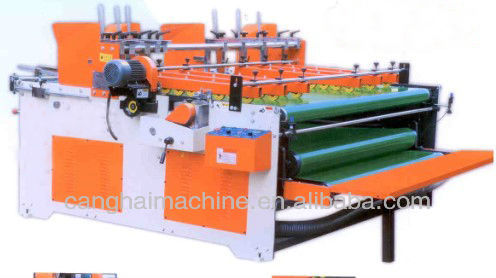

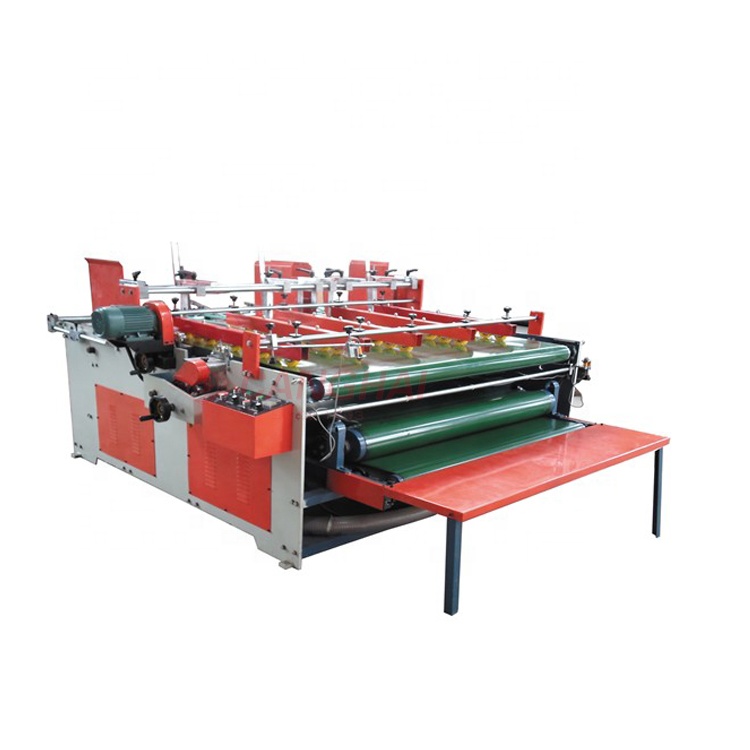

Semiautomatic press Folder Gluer Machine

Semi automatic manual paperboard folder gluer machine2

Manual semiautomatic 2 sheets box folder gluer machine6

Corrugated mini semiautomatic box folder and gluer machine6

Semi-automatic press folder gluer machine is developed to give companies the flexibility to produce short runs of any shape boxes, quickly and easily.
The machine is set-up and ready to start making boxes in seconds.
The machine just need small place, easy to operate, only minimal training required, no need for skilled labour. Change from one design box to nest in seconds, ideal for small batch production and variety of replacement.
Save glue, just need 1/3 glue than manual gluing.
Save labor, the maximum speed of machine is 56 m/min, the efficiency is 3-4 times than manually operated.

Max.length of cardboard (Length +Width of carton) mm	2800
Min. length of cardboard (Length +Width of carton) mm	340
Max.width of cardboard (Width+Height of carton) mm	1515
Max.width of cardboard (Width+Height of carton) mm	250
Feeding height mm	900
Motor power kw	2.3
Machine weight kgs	2000
Working speed (pcs/m)	40
Overall size(mm)	5500L x 1800W x 2000H

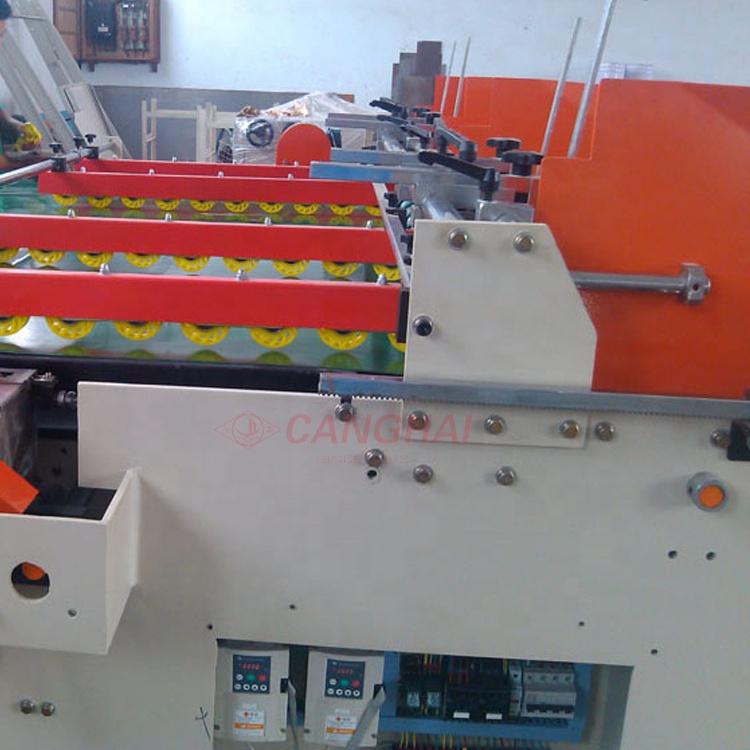

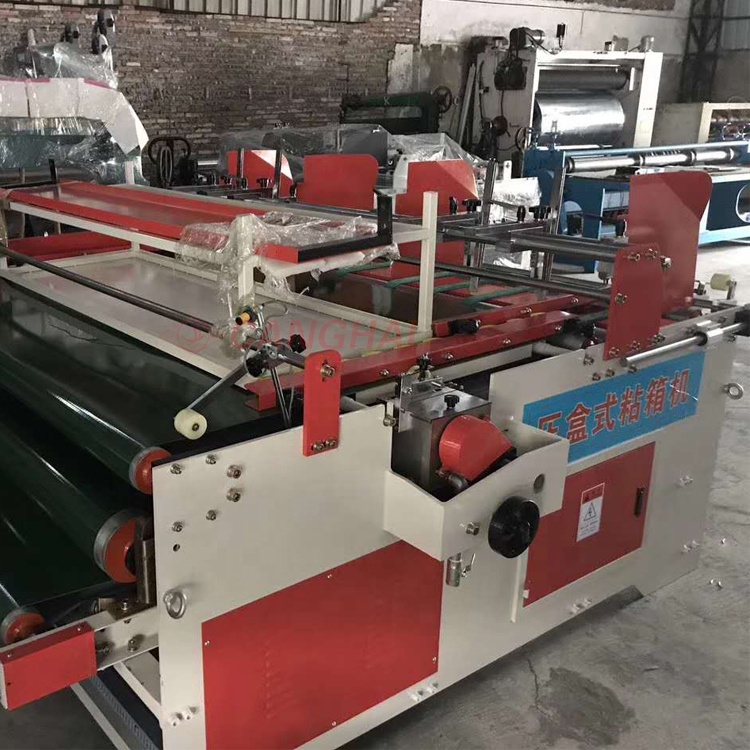

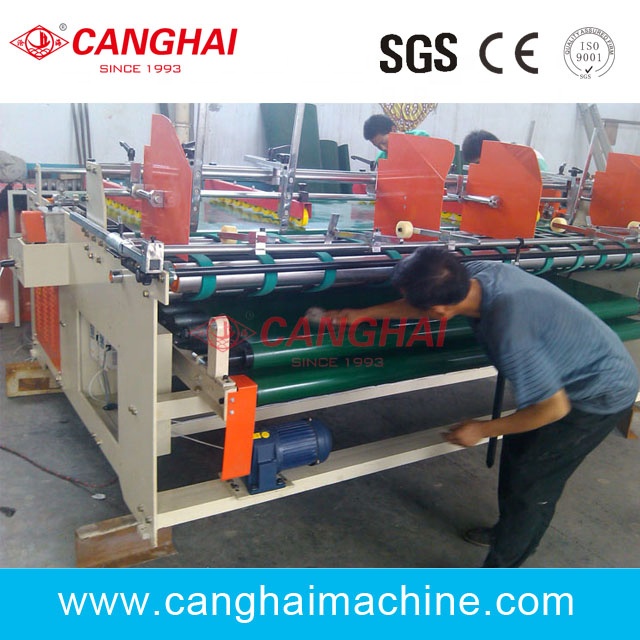

Detailed Images

Carton box bonded firmly, tidy and no excess glue. Double head grinder (we have patent) can be very good to polish the sticky part, to remove UV light plastic film or coating layer from the sticky part before gluing, improving adhesion of glue. You don't need to worry about carton easy to open.

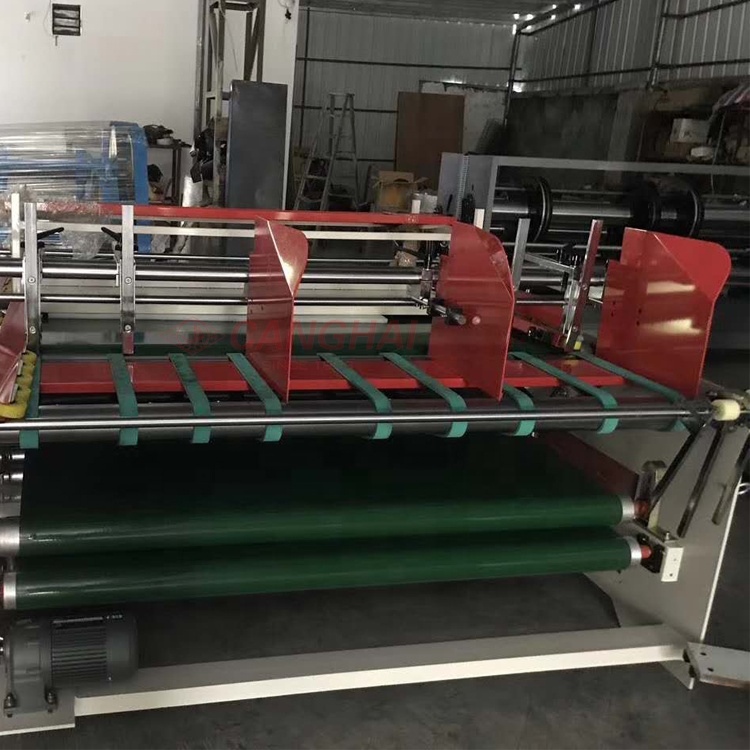

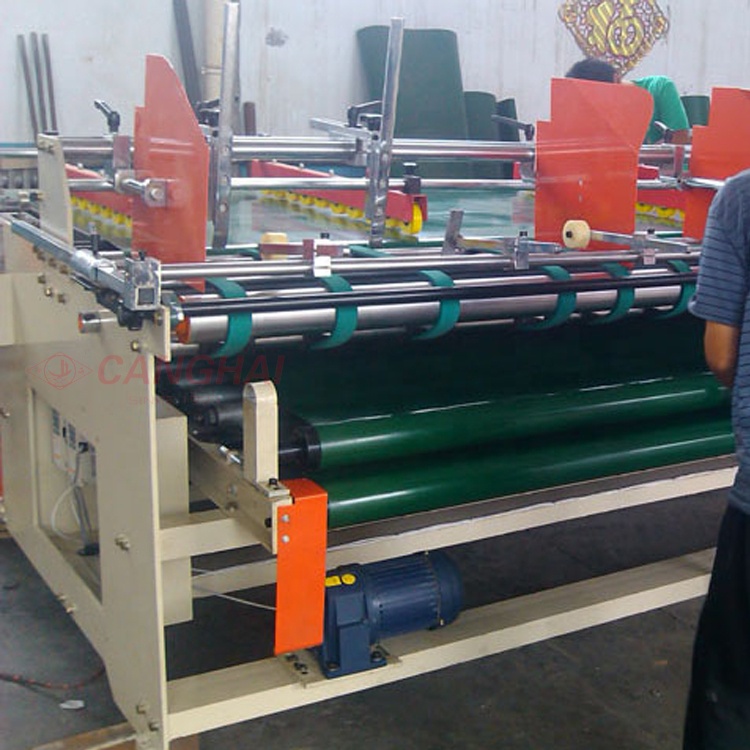

The folding unit is manually, improving work efficiency and making better creasing.
