Introduction

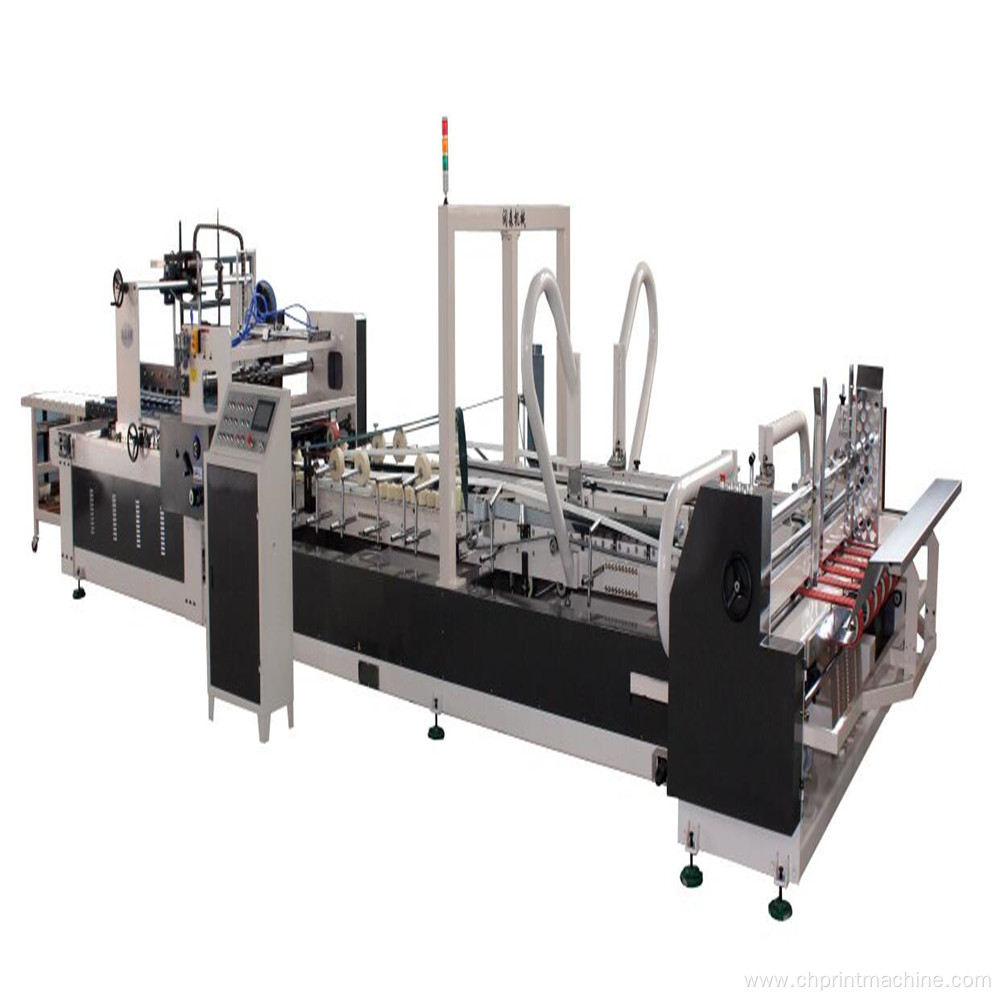

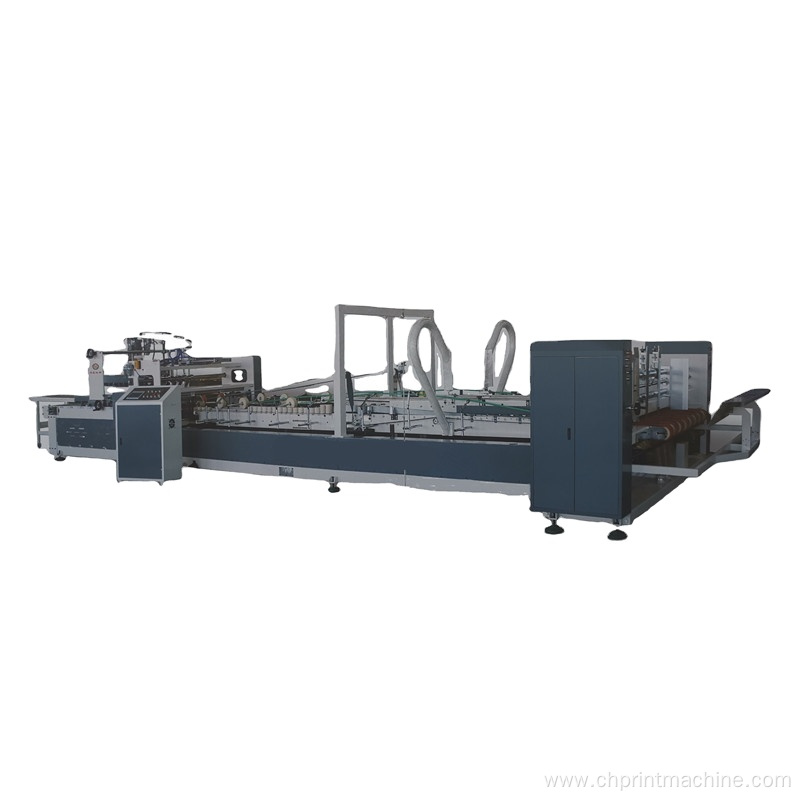

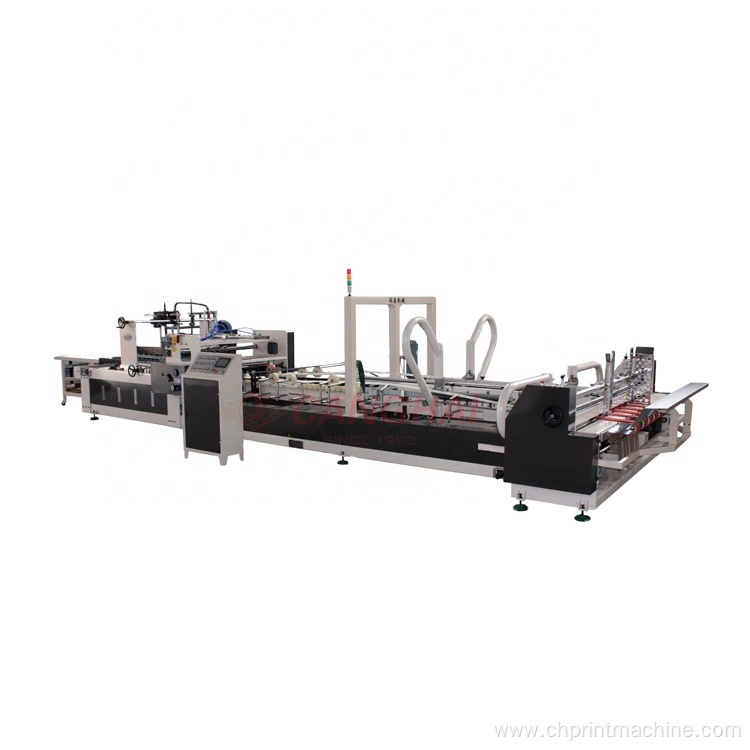

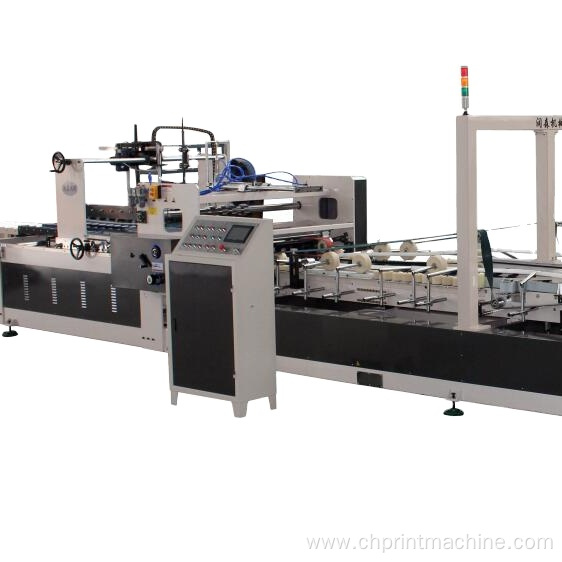

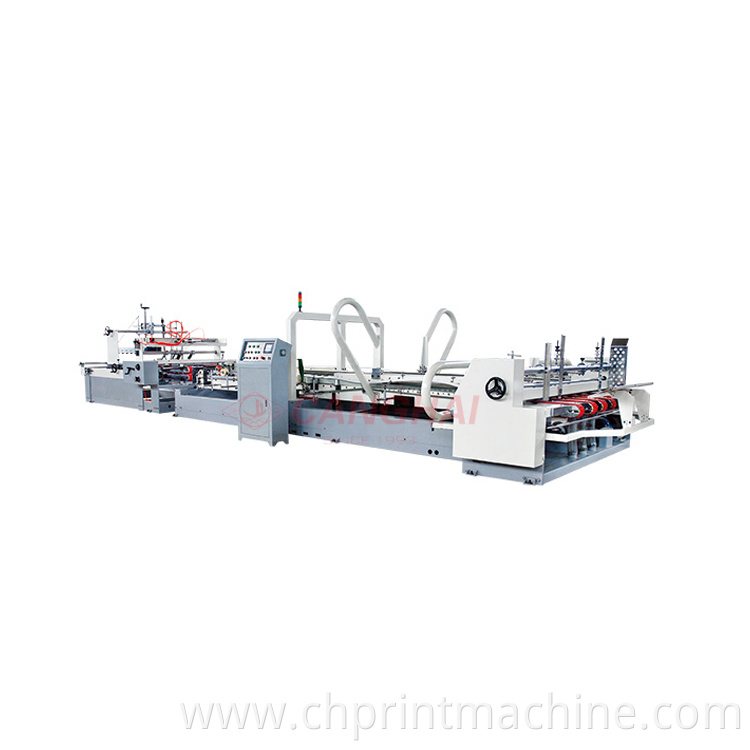

1.Automatic folder gluer is consist of three parts which are feeding paper part, glue folding part and counting stacking part. Speed adjust by digital, range adjust by PLC, double frequency convertor synchronous operation, with quick reliable and precise control mode. Automatic feeding paper, automatic gluing and folding, automatic counting, automatic stacking and output, Gluing speed can reach to 150m/min, energy-saving, labor saving.
Feeding department:
1.Adopt adsorption type belt lead edge paper feeding method, accurately and stable.
2.Adopt high-grade electromagnetic clutch and electromagnetic brake system. Paper feeding department can be controlled individually. Easy operation.
3.Creasing wheel is adjustable for the thickness 2-8mm of cardboard.
4.Frequency control of motor speed with the glue folding department, has a speed of 0-130m/min.

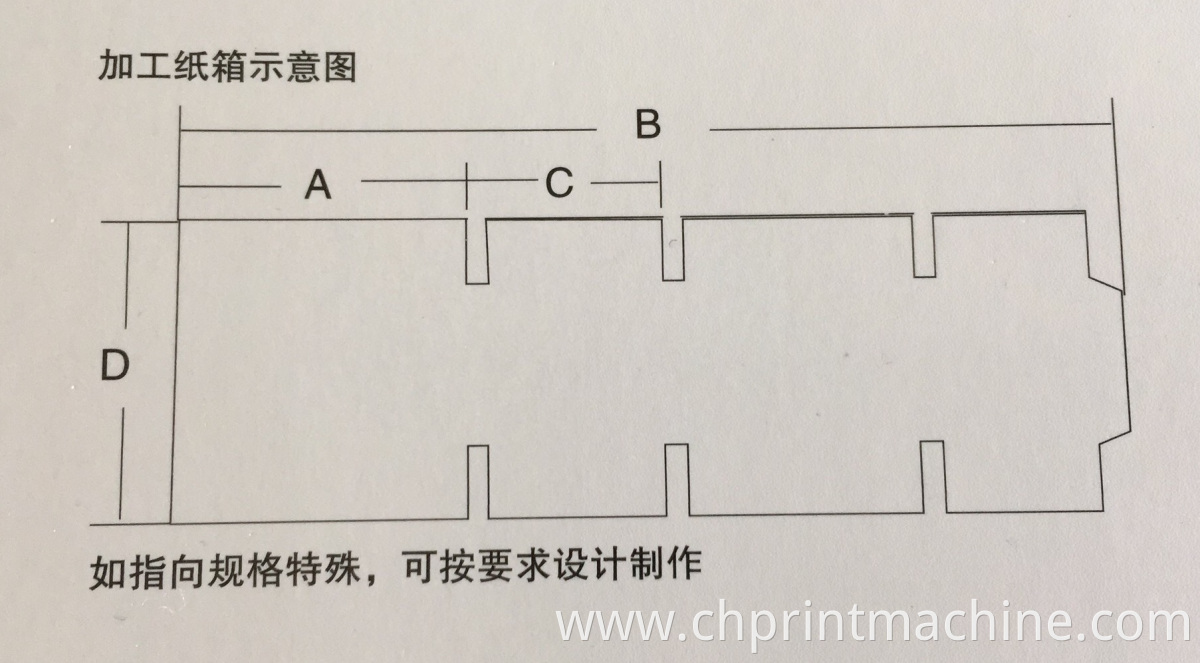

5.Front baffle and the belts of the feeding unit can be adjusted right and left, quick adjustment of various sizes and length of the cardboard box.
Glue folding department:
1.Main motor adopt frequency control of motor, no noise, convenient and stable.
2.Imported circular seamless docking convey belt made of high wear resistant materials, folding of cardboard accurately and automaticly.
3.Gluing department selects high quality stainless steel gluing wheels, coating evently, trouble free and glue saving.
4.Folding department equipped with paper corrective and creasing corrective device.
5.Folding Department equiped with two rows fixed position wheel, precision shaping.
6.Folding speed 0-130m/min.
7.The right and left baffles are adjusted electrically.
Counting and stacking department:
1.With PLC programmable controller and touch screen digital control, easy operation, input data without downtime, automatic counting, stacking and output.
2.Countiing department adopt frequency control, speed can be adjusted.
3.With imported circular seamless docking convey belt, stacking trimly, has a speed of 0-130m/min.
4.With knocking system beat the paperboard, has corrective function.
5.Counting and output pneumatically,with PLC, accuracy and fast.
6.Output department adopt upper and lower belt compressing tightly, make the carton gluing firmly and output trimly.
