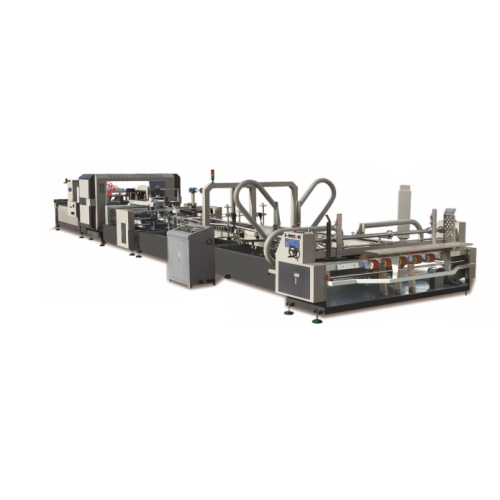

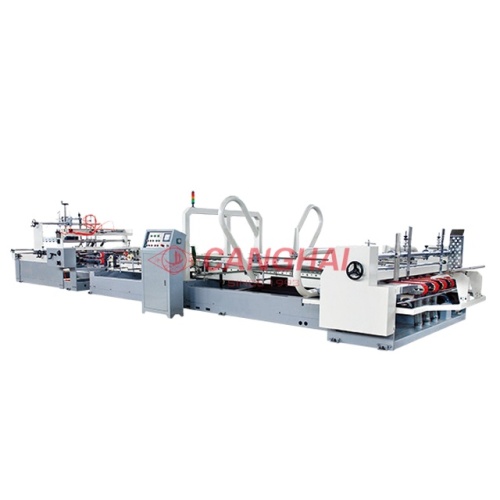

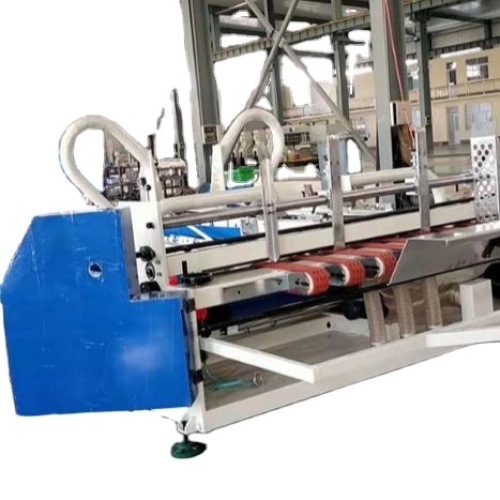

Automatic Paper Folder Gluer machine

Basic Info

Brand: Canghai

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Printing Shops

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, United States, Germany, Viet Nam, Philippines, Peru, Indonesia, India, Mexico, Thailand, Malaysia, Kenya, Argentina, Uae, Algeria, Romania, Nigeria

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, United States, Germany, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, India, Mexico, Thailand, Kenya, South Korea, Chile, Uae, Romania, Malaysia

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1.5 Years

Core Components: Plc

Degree Of Automation: Automatic

Use: Paper Forming Machine

Place Of Origin: China

Warranty Period: 1 Year

Core Selling Point: Easy To Operate, High-Accuracy

Condition: New

Automatic Grade: Automatic

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty Of Core Components: 1 Year

Usage: Paper Forming Machine

Warranty: 1 Year

Key Selling Points: High Productivity

Brand Name: CANGHAI

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company

Showroom Location: Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Colombia, Algeria, Romania, Bangladesh

Dimension(L*W*H): L1400*W3500*H1700

Voltage: 380V

Weight: 70000 KG

Additional Info

Transportation: Ocean

Product Description

Introduction:

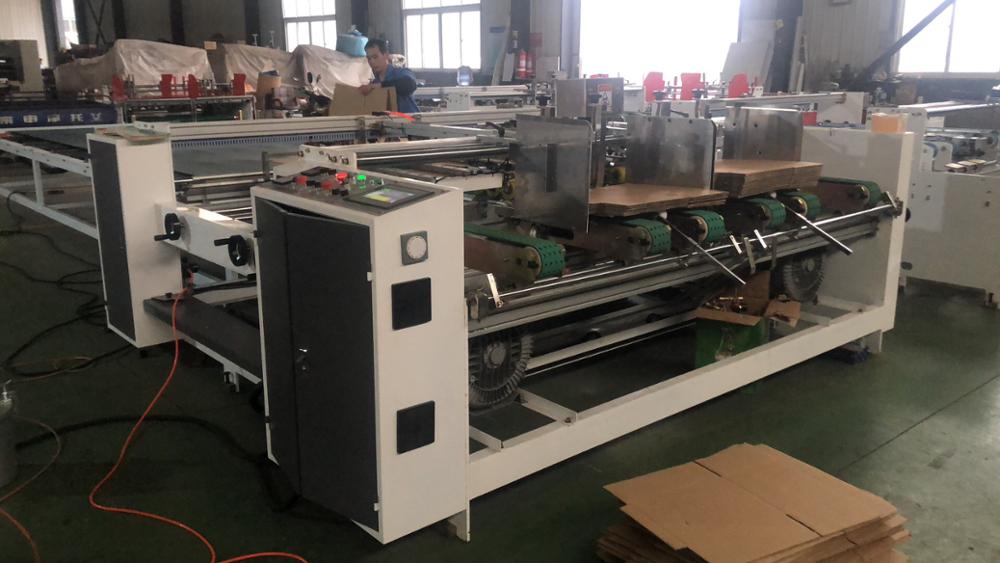

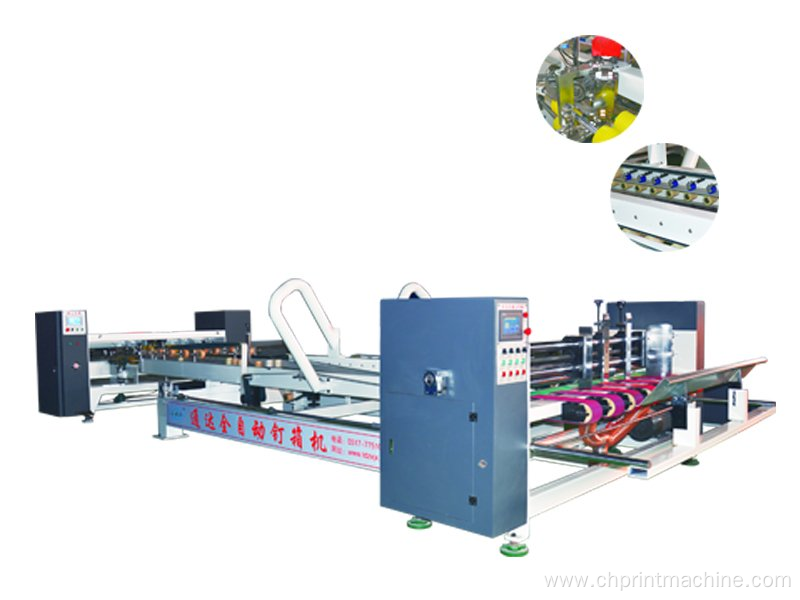

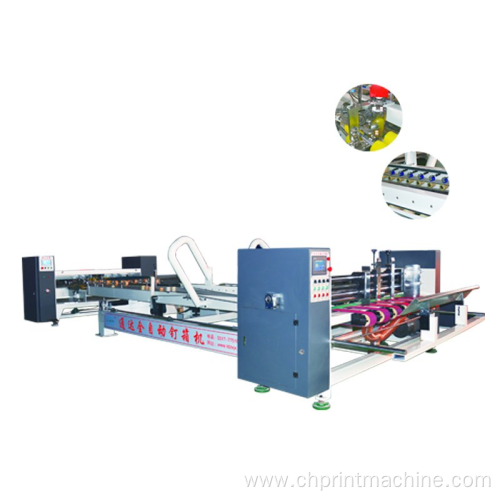

The automatic folder gluer Stitcher Machine is composed of feeding, folding and stitching parts, alignment and correction parts. Frequency conversion speed regulation, simple and reliable operation. Automatic folding, automatic counting, automatic stacking output. Average stitching speed 60m/min,it is about 70-110 pieces. Glue speed 130m/min,,it is about 100-200 pieces.

Feeder department

1. It adopts dopt the belt leading edge suction paper, accurate and reliable.
2. the use of high-grade electromagnetic clutch and electromagnetic brake system, so that the feeder part can be controlled independently, simple and reliable operation.
3. Press paper wheels adjustable, suitable for the thickness of cardboard 2-8mm.
4. The front baffl e of the feeder part and the paper belt can be adjusted .

Folding part

1. The main motor adopts frequency conversion speed regulation, the system is noiseless, the speed regulation is flexible and stable.

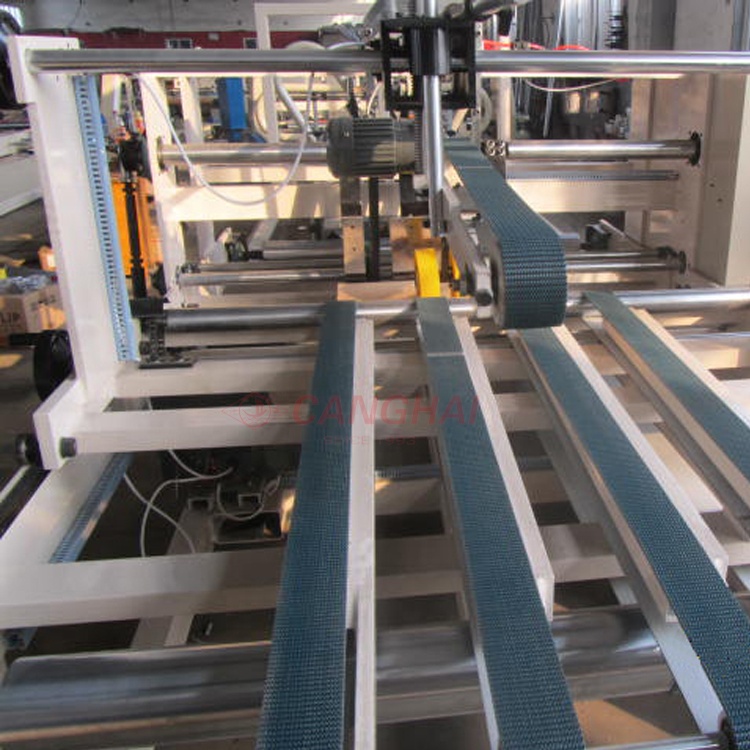

2. It adopts imported high friction belt conveying board, automatic folding.

Count and stacker part

1. Digital control, simple operation, reliable action, can not stop the input data, automatic counting, accurate output.
2. With deviation correction function, deviation can be adjusted.
3. Counting and pushing using pneumatic, reliable,accurate and fast action.

Basic configurations

1. Mechanical size:L1400*W3500*H1700 Weight :7 tons
2. Motor power :380V 13kw
3. The main components are imported.
4. Motor Taiwan Taibang Hangzhou Zhenyu Electrical Siemens PLC Delta

MAIN PARAMETERS
Max. size((A+B)x2	2200mm	Min. Length A	170mm
Min. size(A+B)x2	880mm	Max. Height D	700mm
		Min. Height D	150mm
Min.(C+D+C)	280mm	Max. width of nail tongue E	35mm
Min. rocking cover C	100mm	Max. feed height	1100mm
Max. rocking cover C	400mm	Max. Length A	700mm
Max. Width B	450mm	Min. width B	170mm
Speed(nail/minute)	800	Nunber of nails	1-99

Recommend Products

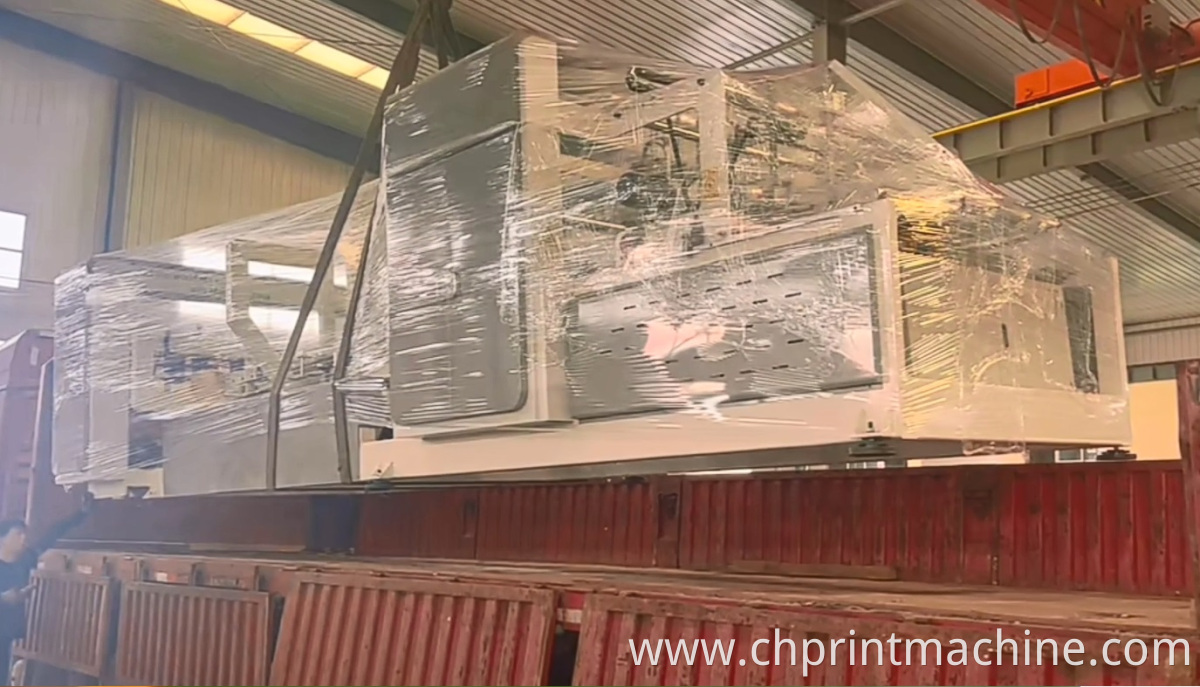

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
