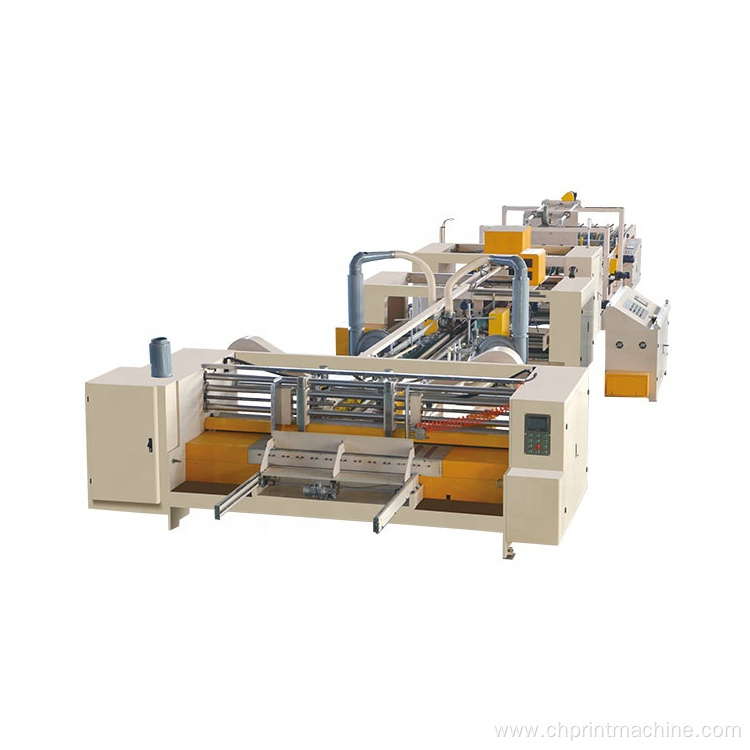

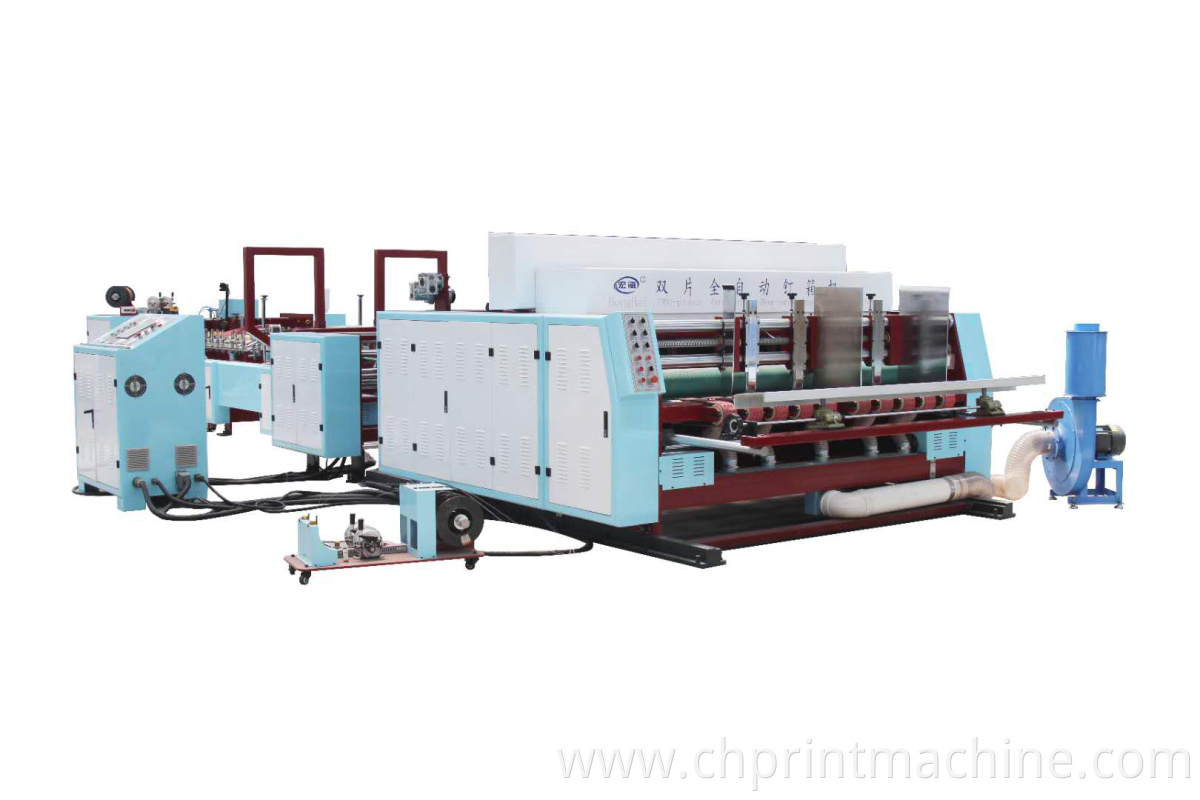

2500 Double pieces automatic Stitching Machine For Carton Box
Functions and features:
1. This machine adopts Japanese Yaskawa and Mitsubishi brand servo drives, which are precise and accurate, with fewer mechanical transmission parts, which can effectively reduce the failure rate of the machinery;
2. The contactor in the entire control box adopts the Japanese Mitsubishi brand;
3. The relay adopts the French Schneider brand, the circuit breaker adopts the Japanese Mitsubishi brand, the photoelectric and proximity switch adopts the Japanese Omron brand; the cylinder and solenoid valve are the Taiwanese Adek brand;
4. The whole set of nail heads are all made of special steel and processed by computer numerical control;
5. The bottom mold and the blade are made of Japanese tungsten steel (wear-resistant);
6. The box with lid can be nailed;
7. The power of nail head is Yaskawa servo motor, mechanical speed: 700-800 nails/min;
8. Four nails, about 60 pieces per minute;
9. This machine adopts nine servo drive motor systems;
10. One machine with dual purpose, can nail single-chip nail carton, double-chip nail carton;
11. Reinforced nails can be nailed, single nail and double row nails can be completed at one time;
12. The stacking department automatically counts and outputs, and the finished product is sent out for easy bundling;
13. This machine uses a computer screen to display failure instructions;
14. Protection device for the isolation transformer of the complete electrical appliance;
15. Automatic wire feeding system, no wire alarm, 20KG large flat wire, saving time;
16. Suitable for small and medium-sized cartons, fast and labor saving;
17. Suitable for three-layer, five-layer and seven-layer corrugated cardboard (special instructions are required for seven layers).
Detailed description:
The two-piece automatic Stitching machine is composed of six parts: the lead edge absorption paper feeding part, the paper receiving part, the folding part, the nail part, the counting output part and the electrical control part. PLC control touch screen is used to input data, and the action of the nail box is controlled by a servo motor, which is simple and reliable. Automatic paper feeding, automatic folding, automatic correction, automatic nailing, automatic counting, automatic stacking output. Advanced technology and reliable quality.
A. Paper feeding unit:
1. The main motor adopts frequency conversion speed regulation, the system is noiseless, and the speed regulation is flexible and stable.
2. Adopting double servo paper feeding method, the adjustment is stable, efficient and accurate.
3. The paper feeding section can be adjusted electrically, which is suitable for the paper feeding needs of various carton boxes, which is convenient and quick.
4. Equipped with side flapping device to ensure that the paper is not skewed.
B. Head set nail unit:
The front edge is fed into the nail box part of the head group, and then patted into place on the front side of the nail box, and the size of the nail opening of the head group is finely adjusted to meet the standard requirements.

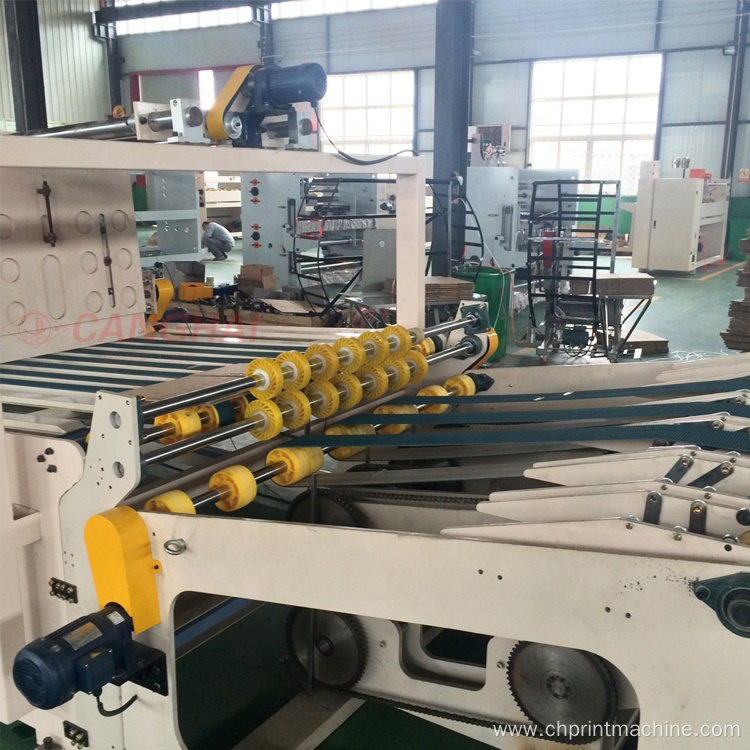

C. Paper receiving unit:
1. The receiving part is the buffer connection of the folding part immediately after the cardboard nailed out by the head group is sent out.

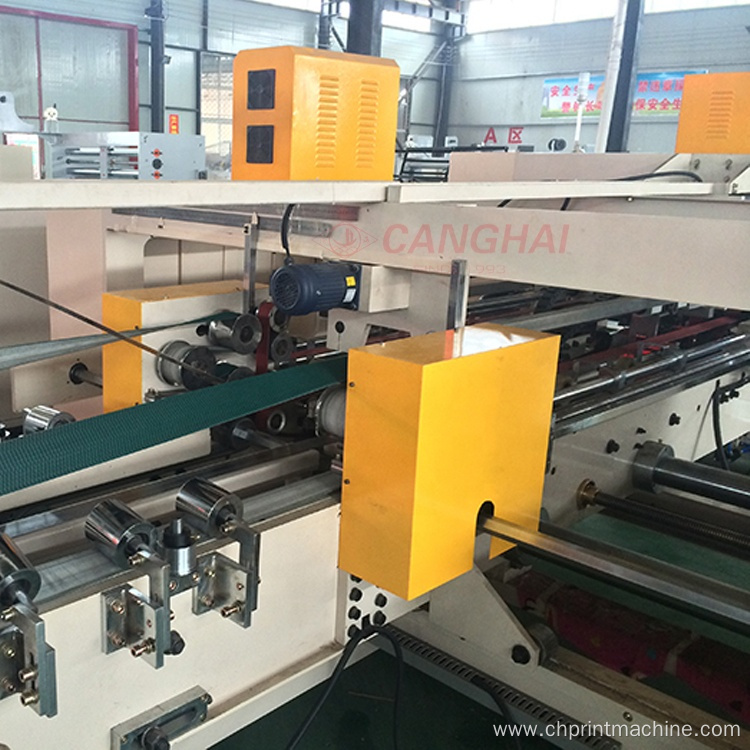

D. Folding unit:
1. Linked with paper feeding department, frequency conversion speed regulation.
2. Imported porous belt is used to convey the cardboard, which is automatically folded and absorbed throughout the entire process, effectively avoiding the skew, slipping and stacking of various cardboards such as heavy boxes, film boxes, and glazing boxes during work, making the whole machine more stable and efficient .
E. Correction unit:
1. This machine has a shaping device in front of the nail box behind the folding part. Before the nail box, the folded carton is reshaped and patted to ensure that the nailed carton has no scissors.
2. Servo motor is used in the correction part.
F. Nail unit
1. The head of the nail box is made of special material, which is wear-resistant and not easily damaged.
2. The characteristic of this machine is that the head is directly driven by a servo motor, and the speed is stable and accurate.
3. The nailing line adopts 2 reels of 20kg large reel flat wire automatic wire feeding device at a time, reducing the number of wire changes and improving production efficiency.
4. This machine can perform multi-function operation of single nail, double nail, strengthening nail, head and tail nail on carton.
5. The nail speed can reach 700-800 nails per minute
G. Counting and accumulation output section
After the nail box department completes the cartons, the counting and stacking department will automatically send out and pack them.
| Model | SQDJ-2500 |
| Max feeding size(A+B) | 1250(single piece)1100(double piece) |
| Min feeding size(A+B) | 650 |
| Max size(C+D+C) | 860 |
| Min size(C+D+C) | 360 |
| Min C | 25 |
| Max C | 500 |
| Max B | 500 |
| Min B | 200 |
| Max A | 900 |
| Min A | 450 |
| Max D | 700 |
| Min D | 110 |
| Width E | 30-35 |
| Nail distance(mm) | 30-120(high speed ) |
| Nail number | 2-99 |
| Speed (nail/min) | 700-800 |
| weight(T) | 12T |
