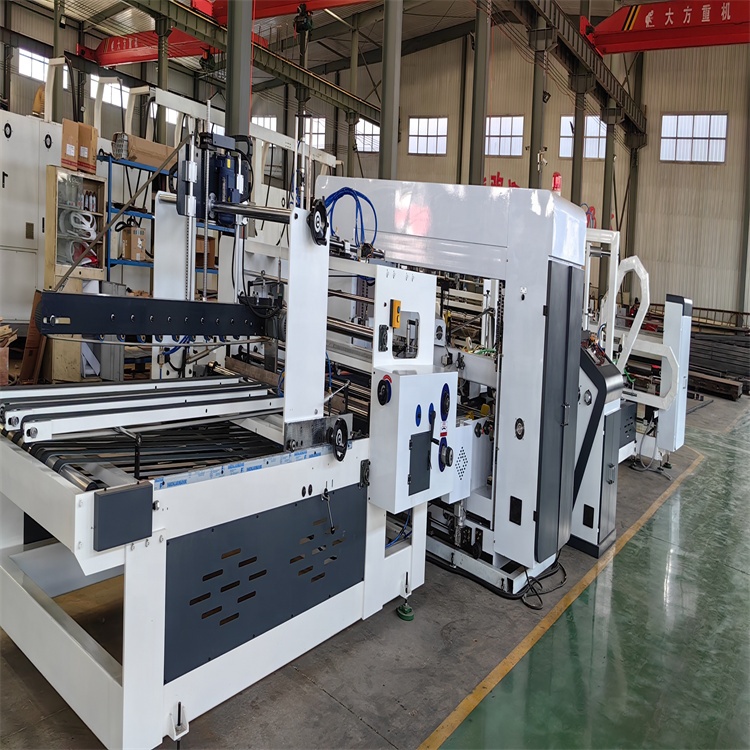

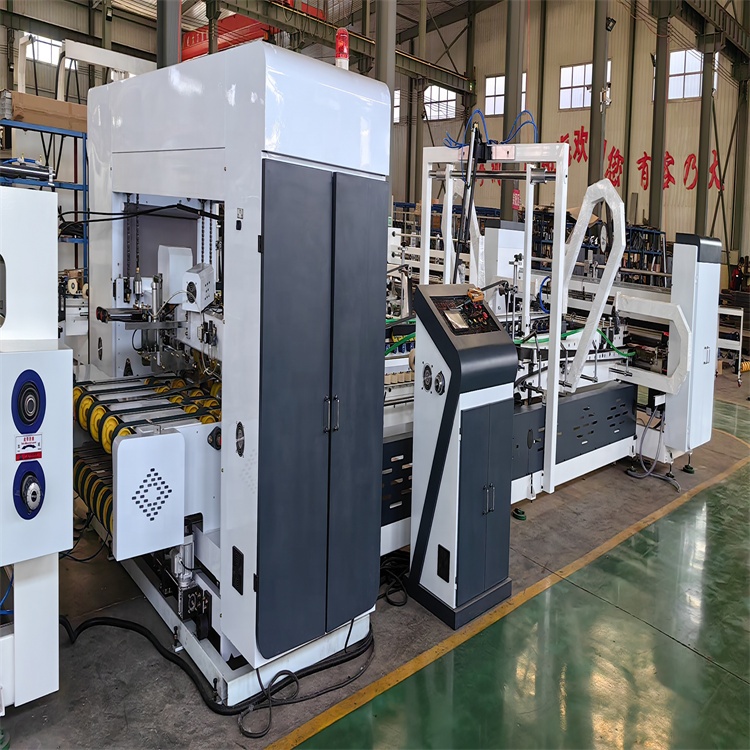

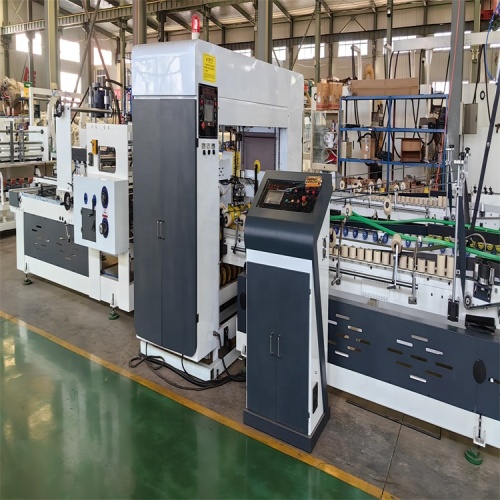

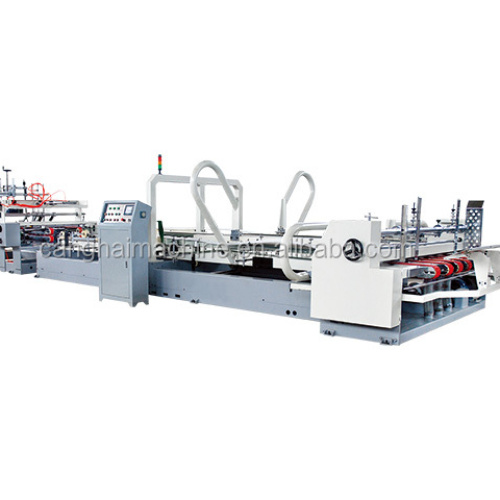

Rs-qzd2600 Automatic folding and gluing box machine
Performance
2600 automatic box gluing machine, by the paper feeding part, gluing folding part, counting stacking output part, three parts. Frequency conversion speed regulation, automatic folding, automatic counting, automatic stacking output, simple and reliable operation. The gluing speed can reach 100 -- 240 pieces/min. Advanced reasonable structure design and manufacturing, the operator's cultural level requirements are not high, in one to two working days can master all the operating procedures, and ensure the safety of operators.
Main technical Features

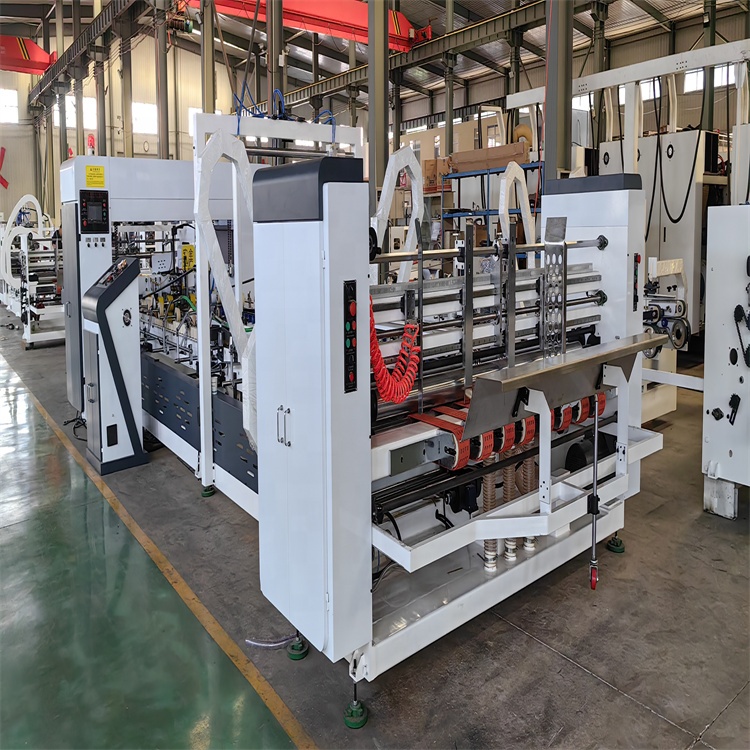

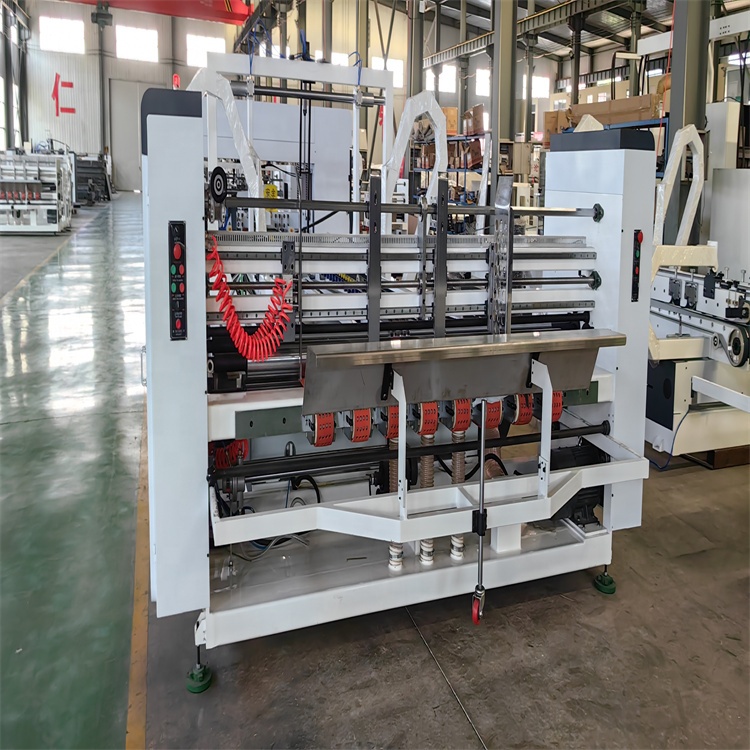

1. Paper feeding department
A. Adopt high friction belt suction paper feeding way, accurate and reliable, better adapt to the processing of bending paper board.
B. Adopt high grade electromagnetic clutch and electromagnetic brake system, so that the paper feeding section can be controlled separately.
C. The feeding part and the folding part are linked with frequency conversion speed regulation, the average speed is 100-180 pieces/min.

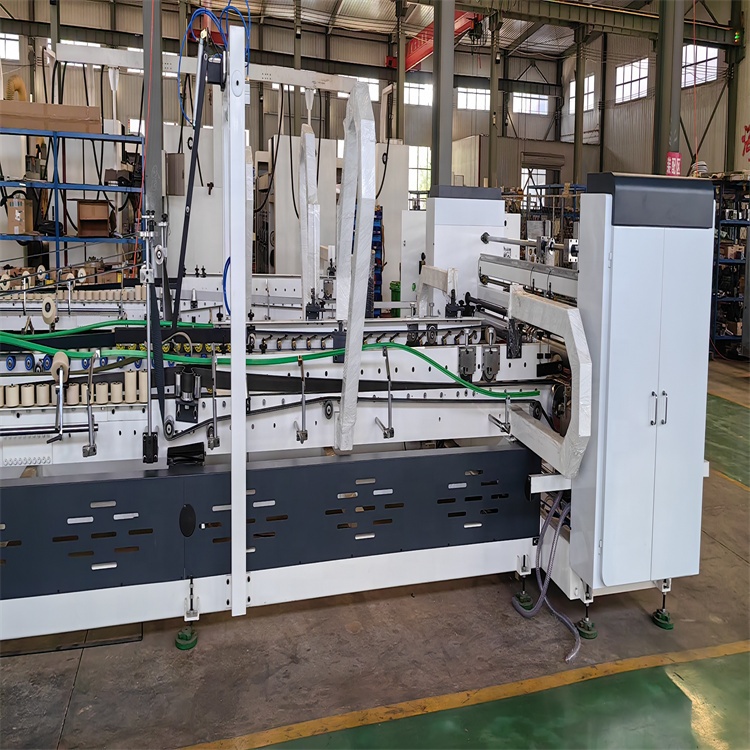

2, automatic folding gluing part
A. The conveyor belt adopts the ring belt without joint and high friction imported from Germany to ensure the paperboard
Delivery is accurate.
B. Stainless steel coating wheel, coating uniform and save glue, never rust, resistant to a variety of glue corrosion.
C. The folding part is equipped with paperboard line pressing correction device. Unique pressing Angle in finishing features, full
The orientation can be adjusted, which can make the indentation line arranged again when the cardboard is folded, concise and efficient
Bottom to prevent the occurrence of "scissors mouth" phenomenon, suitable for different thickness of corrugated cardboard.
D. The use of high-grade linear guide rail and linear bearing, so that the machine is simple to operate, less error, and more
Long durable, as long as the lubrication in place basic fault-free.
3. Counting and stacking Department
A. This machine has a unique, the most advanced coaxial asynchronous device, each to the best of his ability, deviation correction
Good. PLC programmable controller and touch screen, digital control. Quick response,
The action is accurate and reliable, and the operation is simple.
B. Counting and pushing adopts pneumatic way, the action is reliable, accurate and fast.
C. The output part of pressing adopts slow stop conveying device, which can hold more than 200 cartons, so that cartons
It can be pressed for a long time. It not only ensures the carton adhesive required
Strength, and effectively improve the pressure of the carton, so that the carton appearance is more beautiful.
Main technical parameters
Max paperboard size: 2400×1100mm
Min paperboard size :460×170mm
the machine size :13500×3600×2000mm
power:11KW
Power:380V
the machine speed:100—160 m/min
weight:about 6T
