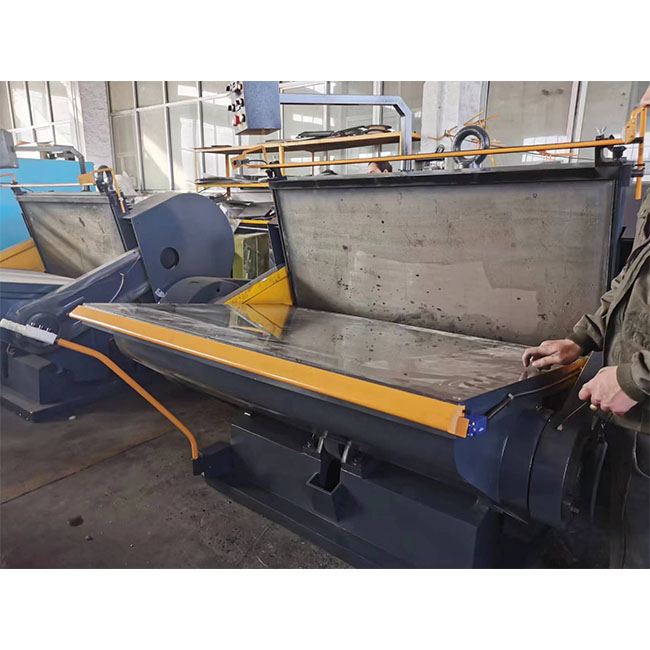

manual creasing and cutting machine

Basic Info

Applicable IndustryManufacturing Plant

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Egypt, Turkey, Mexico, Russia, Spain, Thailand, Algeria, Romania

Showroom Location (in Which Countries Are There Sample Rooms Overseas)Turkey, Mexico, Russia, Thailand, Romania

Video Factory InspectionProvided

Mechanical Test ReportProvided

Core Component Warranty Period1 Year

Core ComponentsPlc, Engine, Bearing

StatusNew

Degree Of AutomationSemi-Automatic

UsePaper Forming Machine

Place Of OriginChina

Warranty Period1 Year

Core Selling PointEasy To Operate

Warranty1 Year

Key Selling PointsEasy To Operate

Feeding WayManual

ApplicationCorrugated Cardboard Production

Speed25pcs/min

After-sales-ServiceOnline Technical Video Support

Suitable ForMaking Corrugated Cardboard

Product NameCarton Box Die Cutting Machine

Model1200

AdvantageHigh Effective

Additional Info

TransportationOcean

Place of Origincanghai

Porttianjin

Product Description


Product Description

HTB1qmaBXyfrK1RjSspbq6A4pFXau.jpg_350x350


1.the machine body made from high quality material, integral casting
2.smooth running ,big pressure and low noise are obviously renarked as 3-step helical gear mechanism is adopted
3.single plate electromagnetic clutch is sensitive and reliable
4. operational altitude is reasonably arranged, moving-bed opens to its optimun
5.safty system is reliable

Working mode: continuous, single, delayed

Safety insurance: handle, case camera, photoelectric, gantry

Voltage control mode: manual

Drive inertia wheel, single wheel, dual wheel (optional)

Lubrication method: electronic oil supply (optional), manual centralized oil supply, manual oil supply

Main material: HT300 (grinding tool material)

Component Material: QT450-5

Spindle material: F38MnFs

Whole machine electrical brands: ABB, Schneider, Chint, Autonics Dc, Toshiba

Whole machine rolling bearings: SKF, HRB

Sliding bearing: zCuZn40Pb2,

Clutch brake: forged impurity free armature, Huayang oxygen free copper coil, asbestos containing copper brake band
 Model
ML1200
Max.Rule Area
1200*830mm
Motor

5.5KW
Weight

4800KG
L*W*H(mm)
1900*2000*1700
