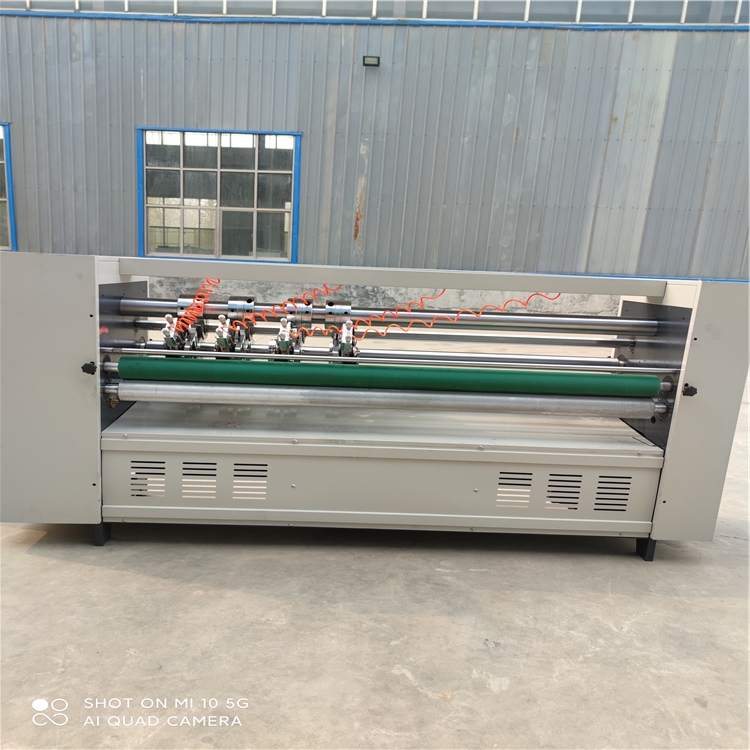

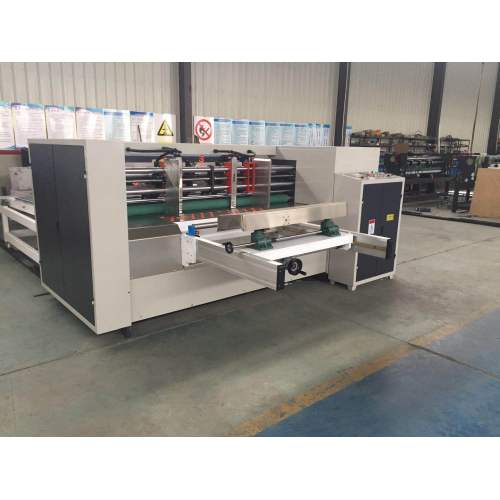

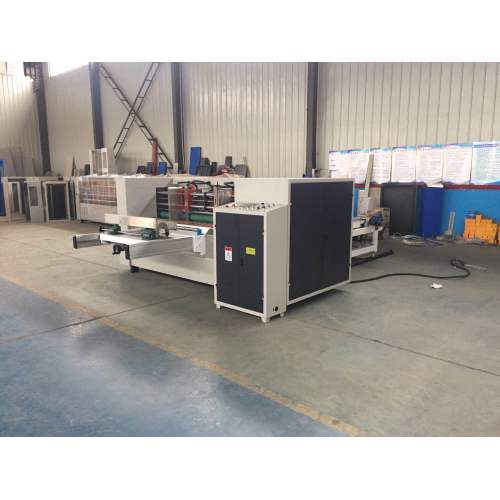

Automatic corrugated slitter scorer machine

Automatic Corrugated Slitter Scorer Machine for High-Efficiency Paperboard Processing

Enhance your packaging production line with this advanced automatic corrugated Slitter Scorer Machine, engineered for precision cutting and scoring of paperboard materials. Designed to meet the demands of modern manufacturing environments, it delivers consistent performance, improved safety, and reduced labor intensity—ideal for businesses seeking reliable automation in carton conversion processes.

This industrial-grade equipment features a robust construction with high-quality tungsten steel blades that ensure clean, burr-free cuts over extended operational periods. Its intelligent control system allows users to set specific quantities, automatically stopping feeding once the desired batch is completed—a feature that boosts productivity while minimizing material waste. The auto-suction feeding mechanism not only increases operator safety but also streamlines workflow by reducing manual handling tasks.

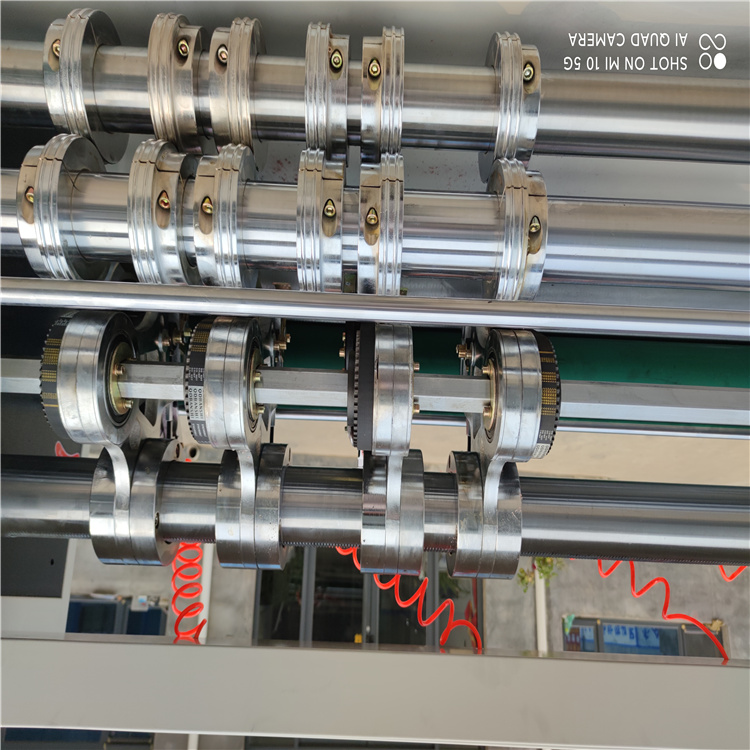

Key highlights include electrically adjustable slitting blade spacing with pneumatic locking for quick setup changes, dual optical guiding axes for stable operation, and an integrated PU ring seal to maintain cleanliness and prevent dust ingress. The scorer unit employs a five-point scoring system with phase-adjustable distance settings, enabling precise creasing for easy folding without damage to the cardboard surface. Additionally, the front and rear rubber rollers help minimize paper length variations during processing, ensuring uniform output across all sheets.

Available in four models—SMBD-ZDSL-1800, SMBD-ZDSL-2200, SMBD-ZDSL-2500, and SMBD-ZDSL-3000—the machine supports effective widths ranging from 1600mm to 2800mm, with minimum slitting lengths of 300mm and widths as narrow as 130mm. Each model offers tailored specifications for different production scales, making it suitable for both mid-sized facilities and large-scale operations. Total power consumption ranges from 5.5kW to 7kW, optimized for energy efficiency without compromising speed or accuracy.

Perfect for manufacturers involved in corrugated box fabrication, display packaging, or custom sheeted products, this machine excels in applications requiring repeatable quality, fast changeovers, and minimal downtime. Whether producing retail packaging, shipping containers, or promotional displays, its versatility ensures seamless integration into existing workflows.

Users consistently praise the machine’s ease of operation, durability under continuous use, and the significant reduction in post-processing defects such as uneven edges or improper scoring. Many note how the automated functions reduce reliance on skilled labor while improving overall throughput—especially beneficial in regions where workforce availability is limited.

Common questions often revolve around maintenance intervals, compatibility with various board thicknesses, and setup time between jobs. The manufacturer recommends routine blade sharpening every 4–6 months depending on usage intensity, and the machine accommodates boards from 1.5mm to 4.5mm in thickness. Setup typically takes less than 15 minutes thanks to intuitive controls and clear visual indicators, allowing operators to switch between different configurations efficiently.

Product Categories : Corrugated Cardboard Production Line > Thin Blade Slitter Scorer Machine
