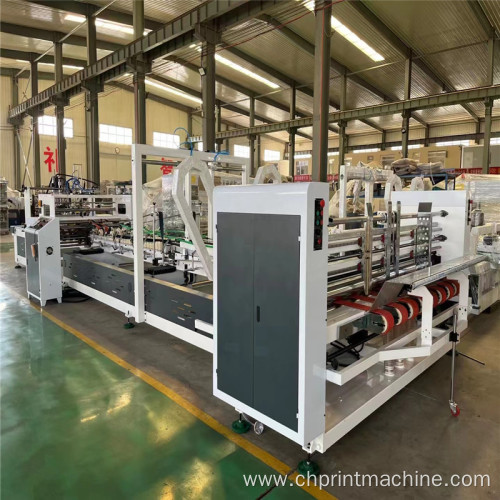

Auto folder gluer & stitching for carton box

Basic Info

Marketing Type: New Product 2020

Core Components: Plc

Condition: New

Automatic Grade: Automatic

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty Of Core Components: 1 Year

Warranty: 1 Year

Key Selling Points: Easy To Operate

Brand Name: CANGHAI

Applicable Industries: Garment Shops, Manufacturing Plant, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company

Showroom Location: Indonesia, Pakistan, Mexico, Russia, Colombia, Bangladesh

Usage: Paper Forming Machine, Corrugated Box

Product Name: Carton Folder Gluer Machine

Place Of Origin: Hebei, China

Voltage: 220V/380V/440V

Weight: 6000 KG

Additional Info

Packaging: POLY FILM

Supply Ability: 10 Set/Sets per Month

Port: TIANJIN

Product Description

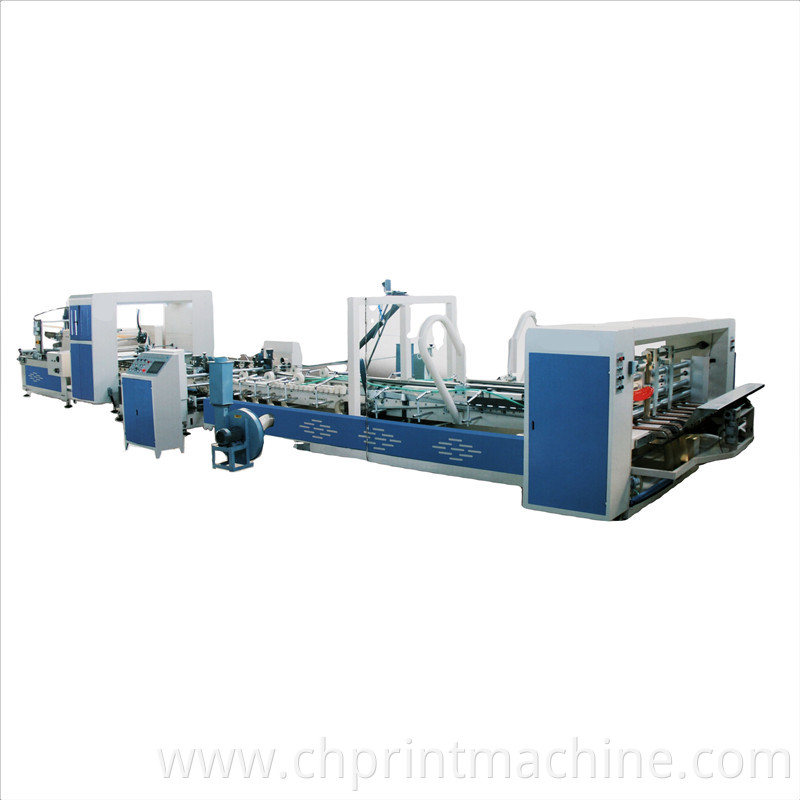

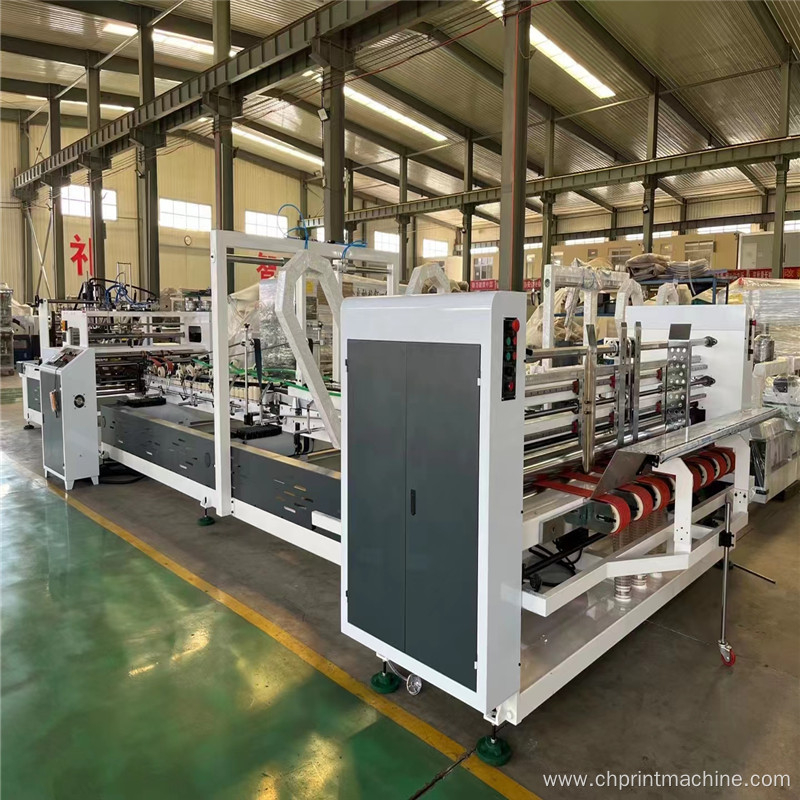

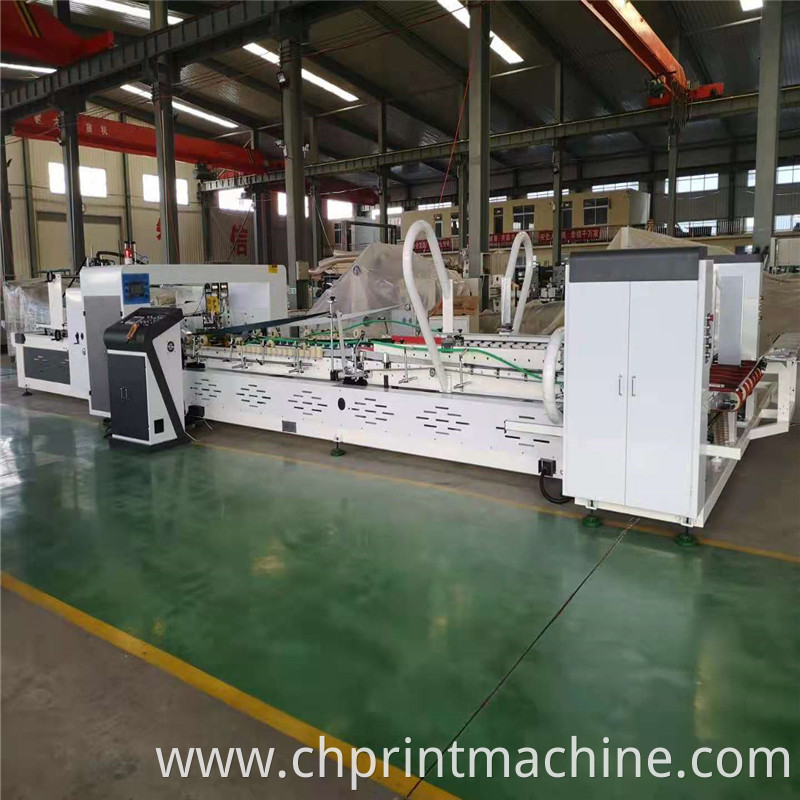

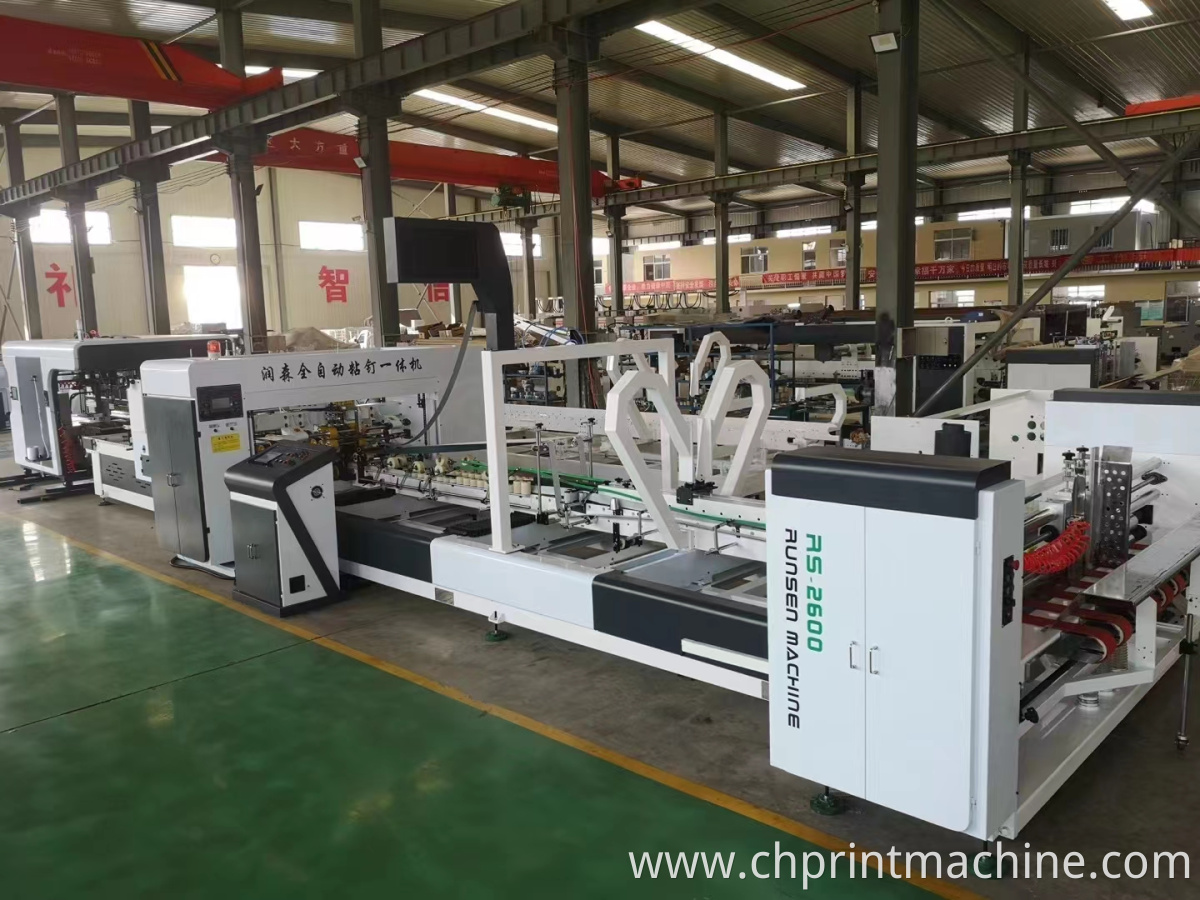

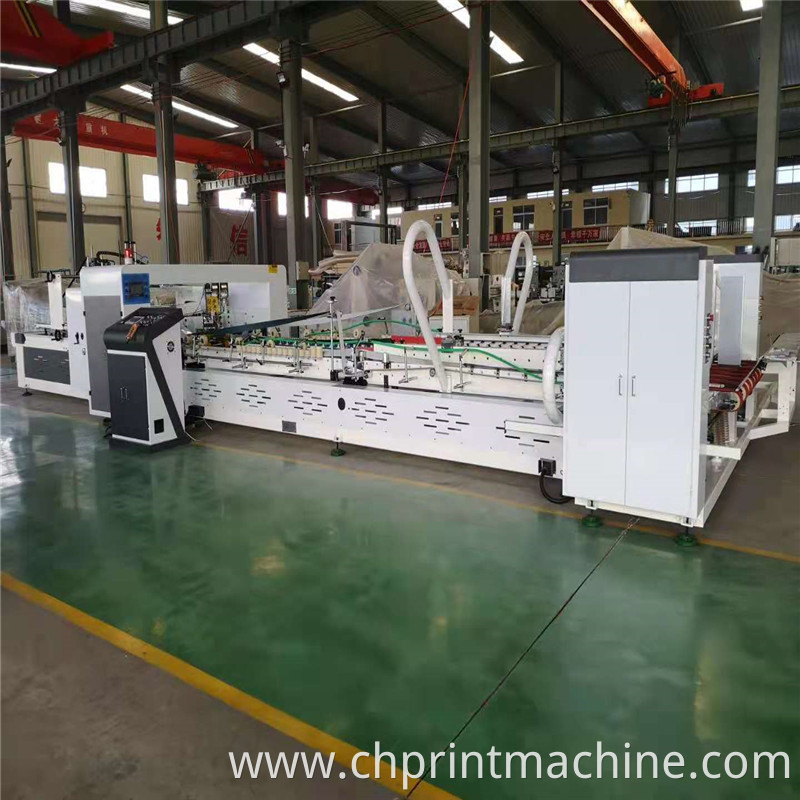

Machine introduction:

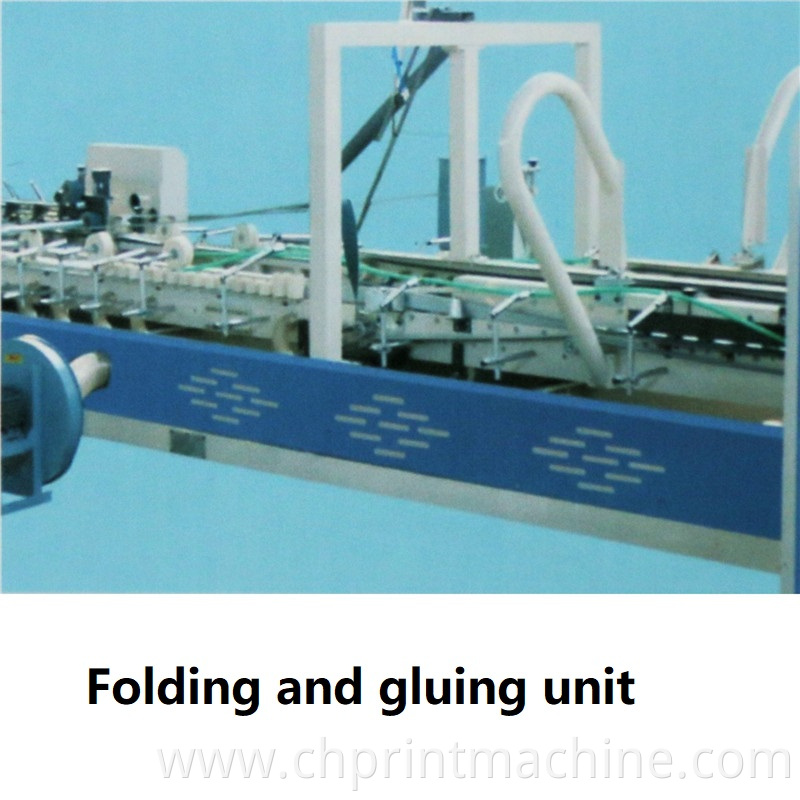

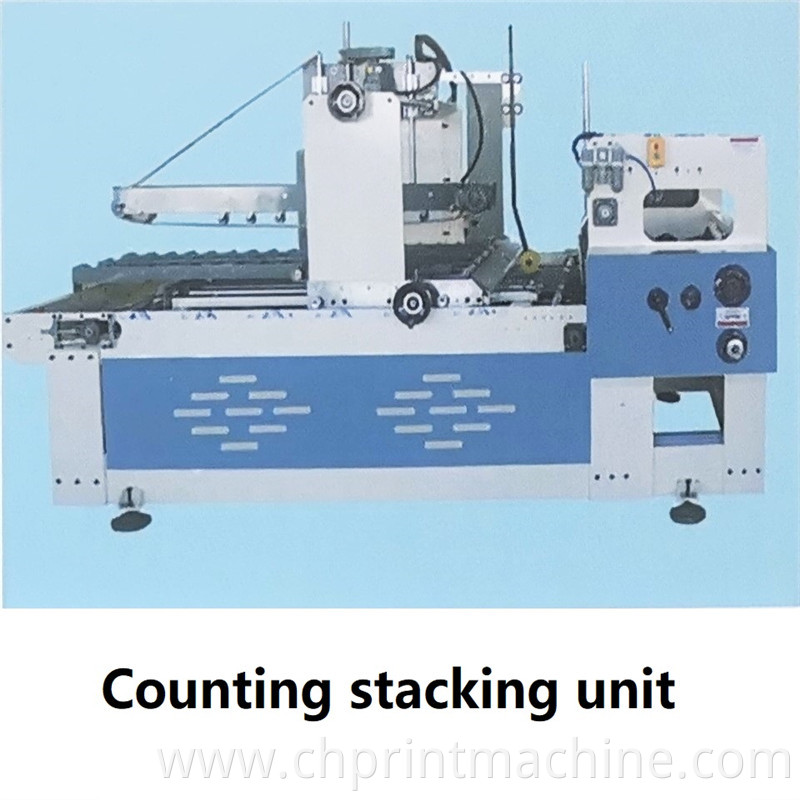

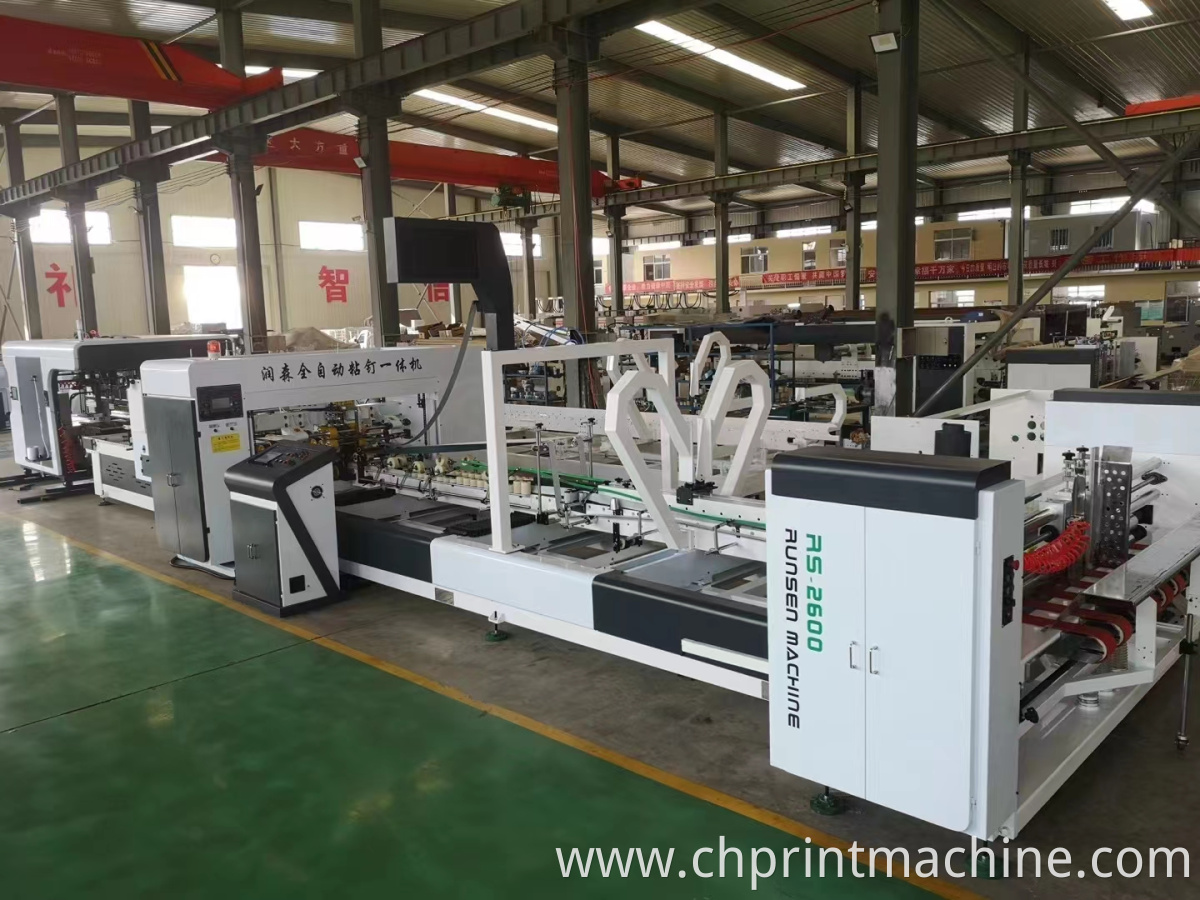

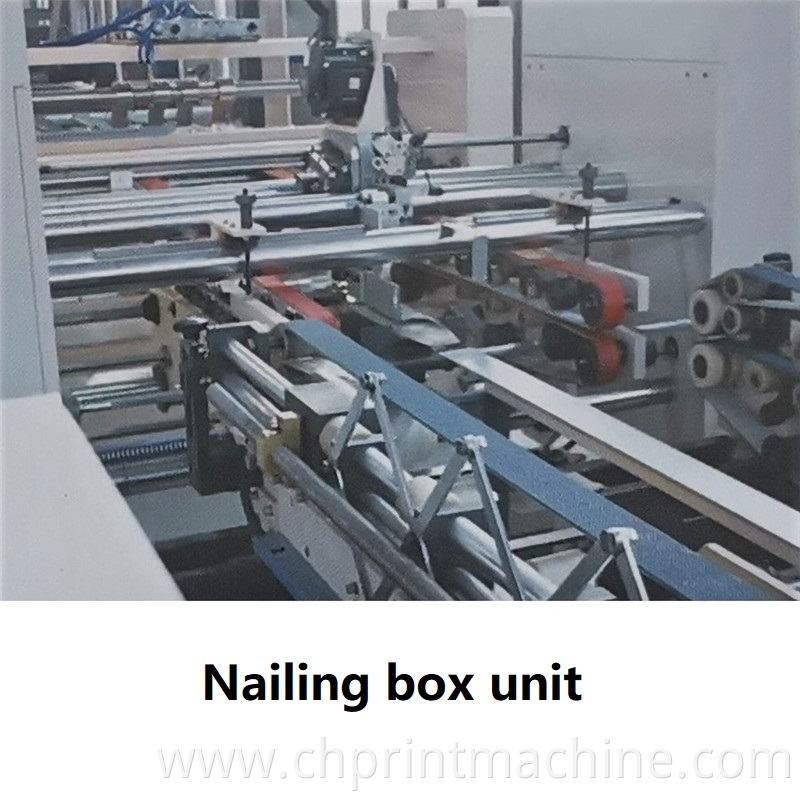

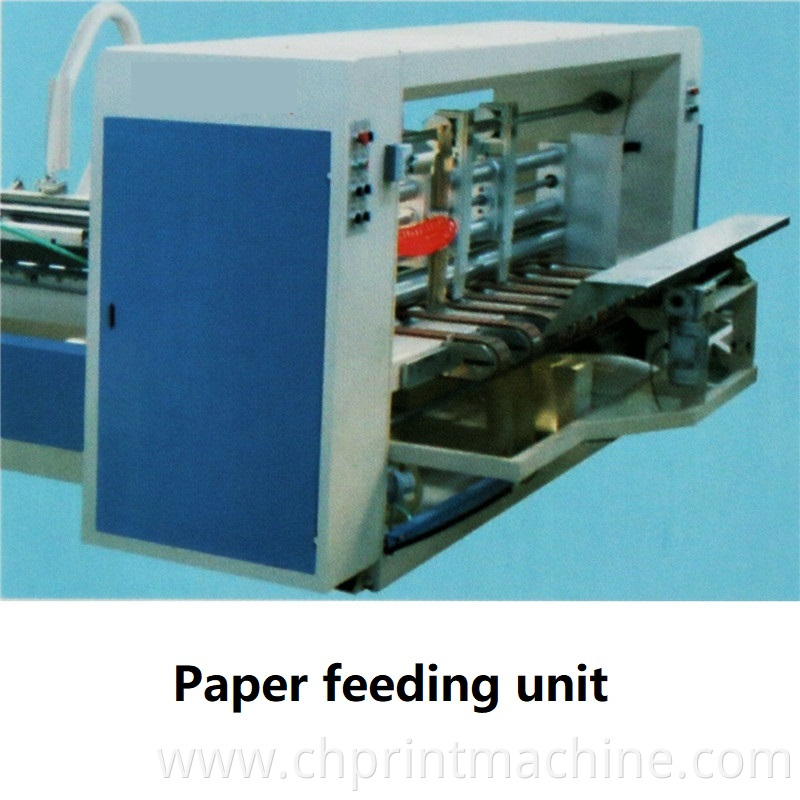

The fully automatic stitching and gluing carton box integrated machine is composed of four parts: paper feeding part, glue coating and folding part, stitching box part and counting and stacking part.Digital display speed regulation, PLC computer amplitude modulation, double frequency conversion synchronous operation, with simple, fast, reliable and accurate control mode, automatic paper feeding, automatic gluing and folding, automatic counting, automatic stacking output, the average glue box speed is 150 meters per minute, The maximum speed is 220 meters per minute, and high efficiency, energy saving and environmental protection are our highest pursuit.

Fuction and features:

1. It is suitable for three-layer and five-layer single-piece carton stapling and bonding; 2. The nail distance range is 40 to 500 mm; 3. The nailing angle is 40 degrees; 4. Single nail and double nail can be adjusted freely, suitable for international No. 17 and No. 18 nails; 5. High cost performance, lower price for the same performance; 6. The forearm sorting function is adopted, and the single block is replaced, and the paper is neatly arranged; 7. The wire feeder adopts intelligent wire feeding, which has little wear on the wire wheel; 8. The computer system adopts the servo motor of international famous brand and stable quality; 9. Fast speed (1050 nails/min); 10. Low equipment failure rate (soft bottom film structure is adopted); 11. The swinging nail head moves smoothly.

The main technical parameters
MODEL	CHRS-2800
INSTALLATION AREA	3500*16000mm
POWER REQUIRED	23KW
MAX CARDBOARD	900*2600mm
MIN CARDBOARD	300*850mm

Specification

item	value
Applicable Industries	Garment Shops, Manufacturing Plant, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
Showroom Location	Indonesia, Pakistan, Mexico, Russia, Colombia, Bangladesh
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition	New
Automatic Grade	Automatic
Usage	Paper Forming Machine
Place of Origin	China
	Hebei
Brand Name	CANGHAI
Voltage	220V/380V/440V
Dimension(LWH)
Weight	6000KG
Warranty	1 Year
Key Selling Points	Easy to Operate
Product name	Carton Folder Gluer Machine
Usage	Corrugated Box

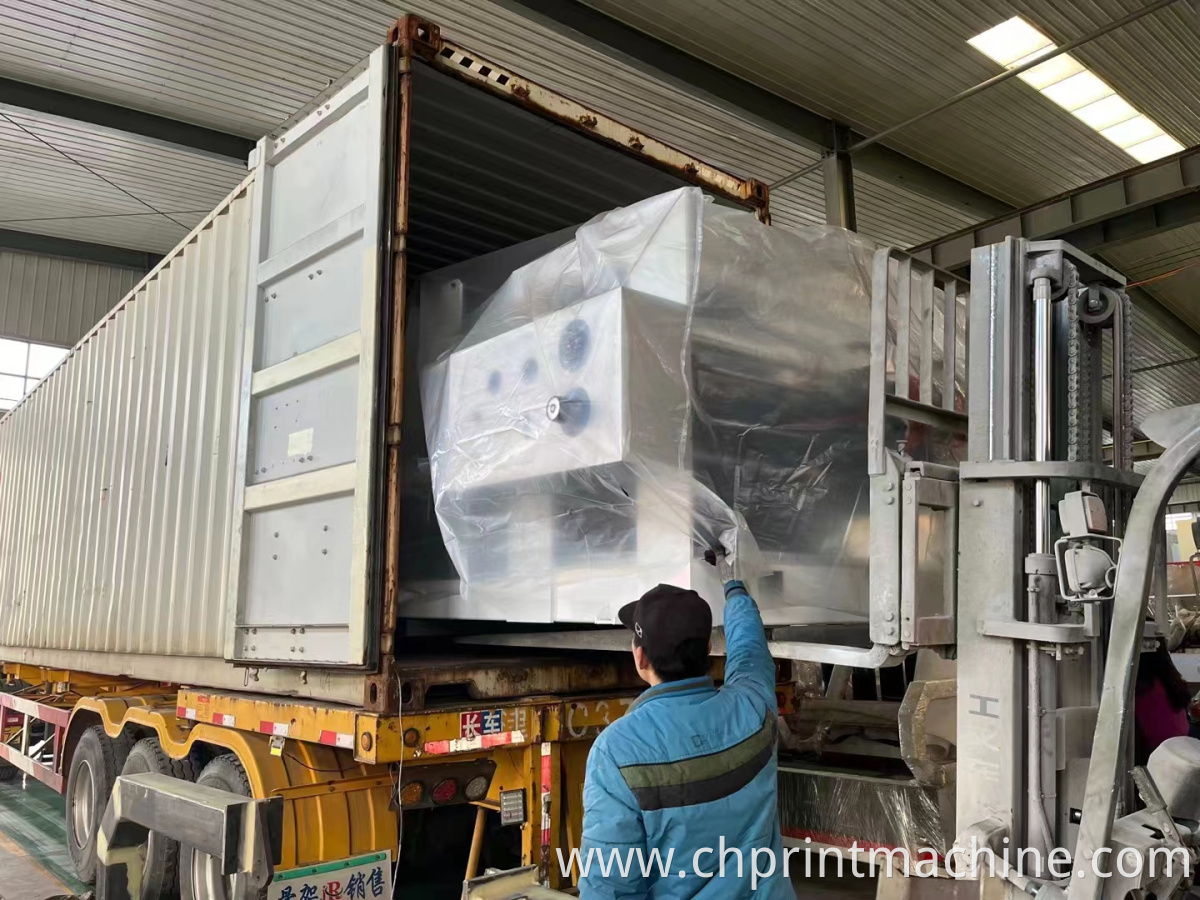

Packing & Delivery

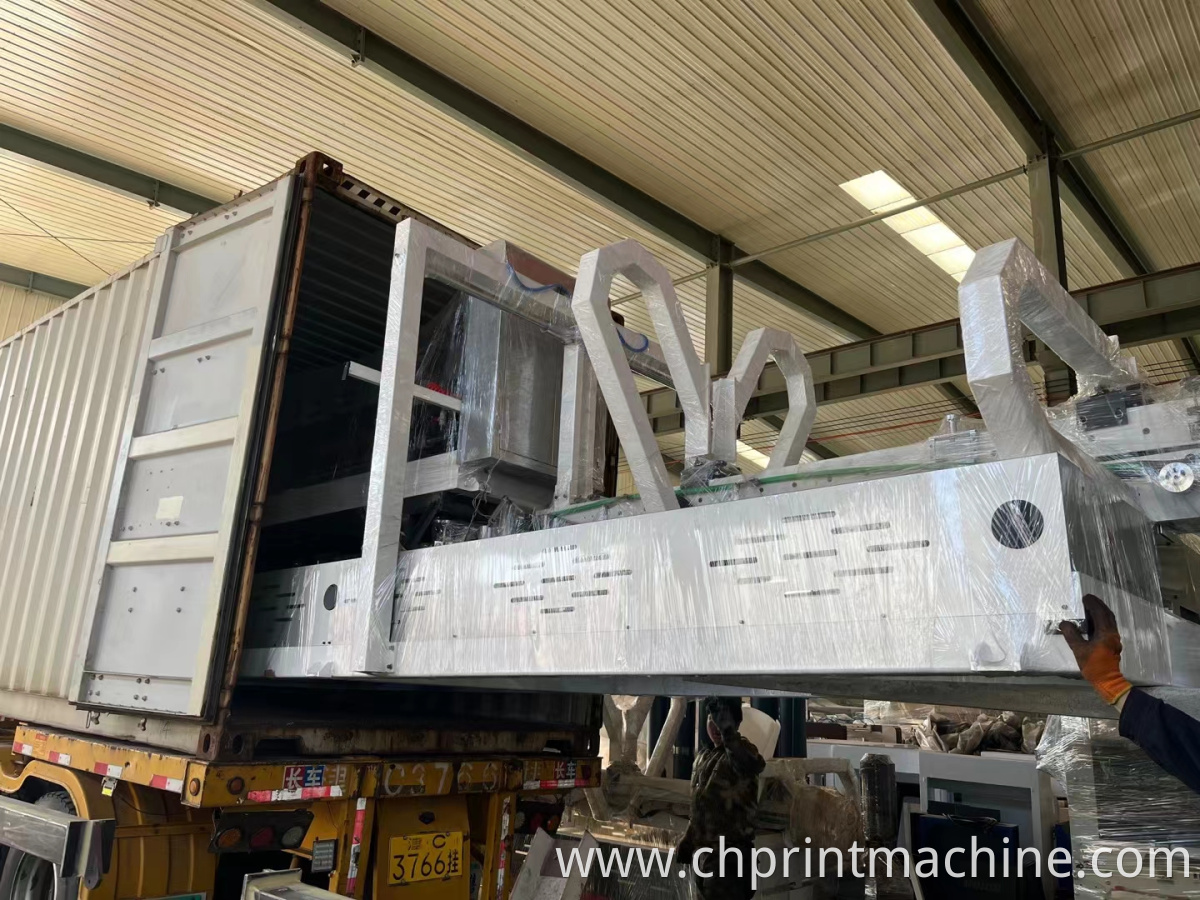

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
