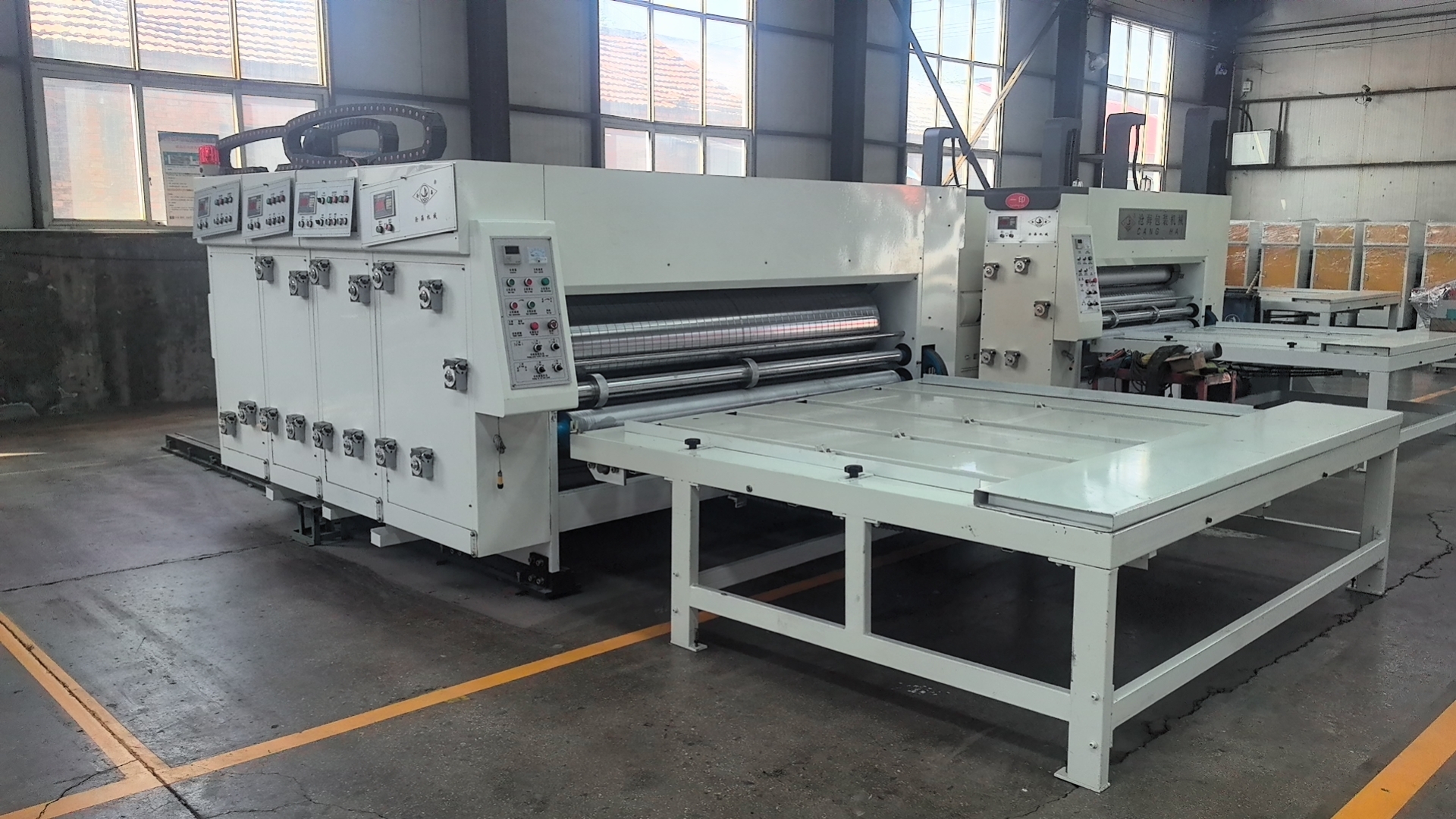

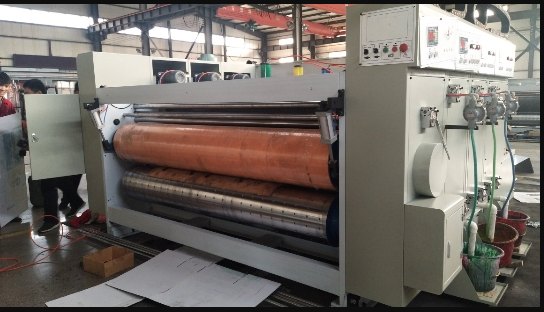

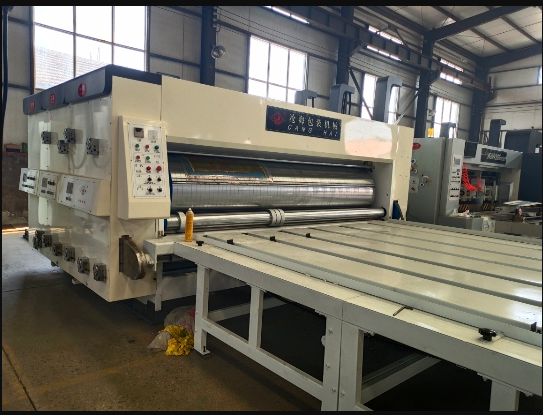

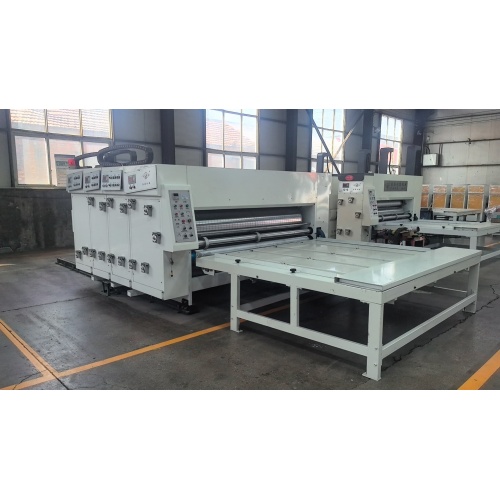

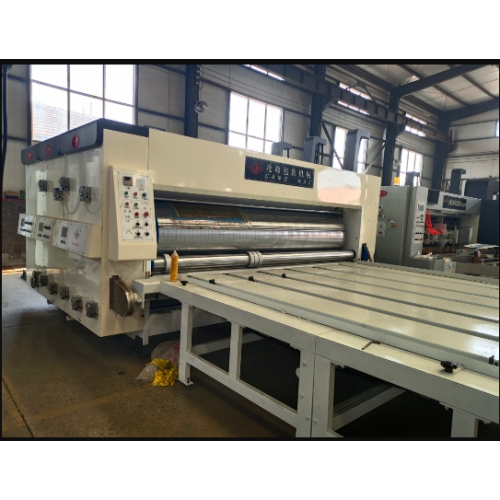

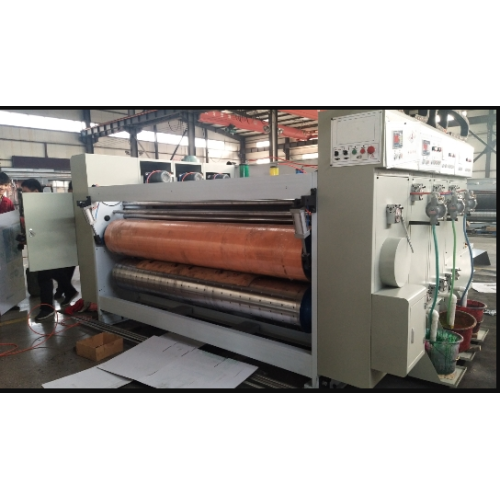

High-Speed Automatic Slitting and Die-Cutting Machine for Cardboard Packaging – Model 1020, 1428, 1630
This advanced automatic slitting and die-cutting machine is engineered for precision, efficiency, and versatility in modern packaging production. Designed for high-volume cardboard processing, it supports three distinct models—1020, 1428, and 1630—each tailored to varying sheet sizes and operational demands. With a maximum speed of 60 pieces per minute across all variants, this equipment ensures rapid throughput while maintaining exceptional accuracy in every cut, slot, and print alignment. Ideal for corrugated box manufacturers, folding carton producers, and custom packaging solutions providers, this system delivers consistent performance under heavy-duty conditions.
The core strengths of this machine lie in its modular design, electric phase-adjustable mechanisms, and intelligent control systems. It features a chain-driven feeding mechanism that guarantees stable material handling even at elevated speeds. Precision gears made from hardened steel ensure long-term durability and minimal wear, while the use of planetary gear structures allows full 360-degree adjustment during both rotation and stationary phases—critical for accurate registration and complex pattern alignment. The integrated PLC touch screen interface simplifies operation, enables real-time monitoring, and stores job parameters for quick recall, reducing setup time between batches.
Key technical highlights include: - Max feeding size: Up to 1660 x 3100 mm (Model 1630), ideal for large-format packaging. - Minimum slotting depth: Ranging from 250 mm (Model 1020) to 430 mm (Model 1630), enabling deep creasing for rigid boxes. - Slot width: Uniform 7 mm across all models for clean, consistent cuts. - Registration precision: Within ±0.6 mm, ensuring perfect ink alignment across multiple colors. - Die-cutting accuracy: Maintained within ±1.2 mm tolerance for sharp, repeatable shapes. - Cardboard thickness compatibility: Supports 3mm, 5mm, and 7mm board types—ideal for diverse product packaging needs. - Automatic ink feed system: Reduces waste and enhances consistency through pneumatic roller lift and independent rotation control.

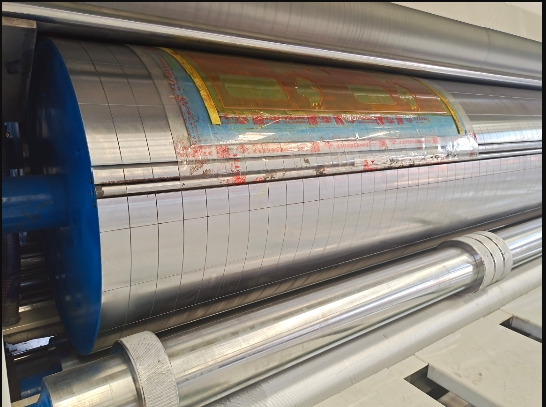

Additional innovations enhance productivity and reduce downtime: - Manual synchronization for box height adjustments in the slitting unit. - Electrically adjustable knives for fine-tuned cutting precision without manual intervention. - Rubber rollers with automatic displacement technology to extend anvil life and maintain uniform pressure. - Quick-replacement rubber cushions sourced internationally for superior wear resistance and ease of maintenance. - Built-in counting device to track production output accurately and efficiently.
These machines are widely used in industries requiring reliable, high-quality folding box manufacturing such as food packaging, consumer goods, pharmaceuticals, cosmetics, and e-commerce fulfillment centers. Whether producing standard retail boxes or custom-designed containers, this solution offers flexibility, speed, and reliability. Its ability to handle both normal and linkage feeding patterns—including reverse configurations—makes it adaptable to intricate designs like interlocking flaps or multi-layered inserts.
Users consistently praise its robust build quality, intuitive controls, and minimal need for operator intervention. Many report significant reductions in material waste due to precise blade positioning and consistent tension control. Operators appreciate the clear visual feedback from the touchscreen interface and the ease of switching between different job profiles. Maintenance staff note how the spray lubrication system and chrome-plated shafts contribute to extended service intervals and smoother operation over time.
Frequently asked questions include: - Can this machine handle variable-sized sheets? Yes, with minimum feeding dimensions starting at 250 x 530 mm for standard slots and 380 x 750 mm for linked configurations. - Is it suitable for multi-color printing? Absolutely—the modular design allows integration of up to several color units in sequence. - How does it compare to older mechanical models? Unlike traditional setups, this model uses digital phase control and automated adjustments, significantly improving repeatability and reducing human error. - What kind of support is available? Comprehensive documentation, remote diagnostics, and access to spare parts ensure continuous uptime and smooth troubleshooting.
