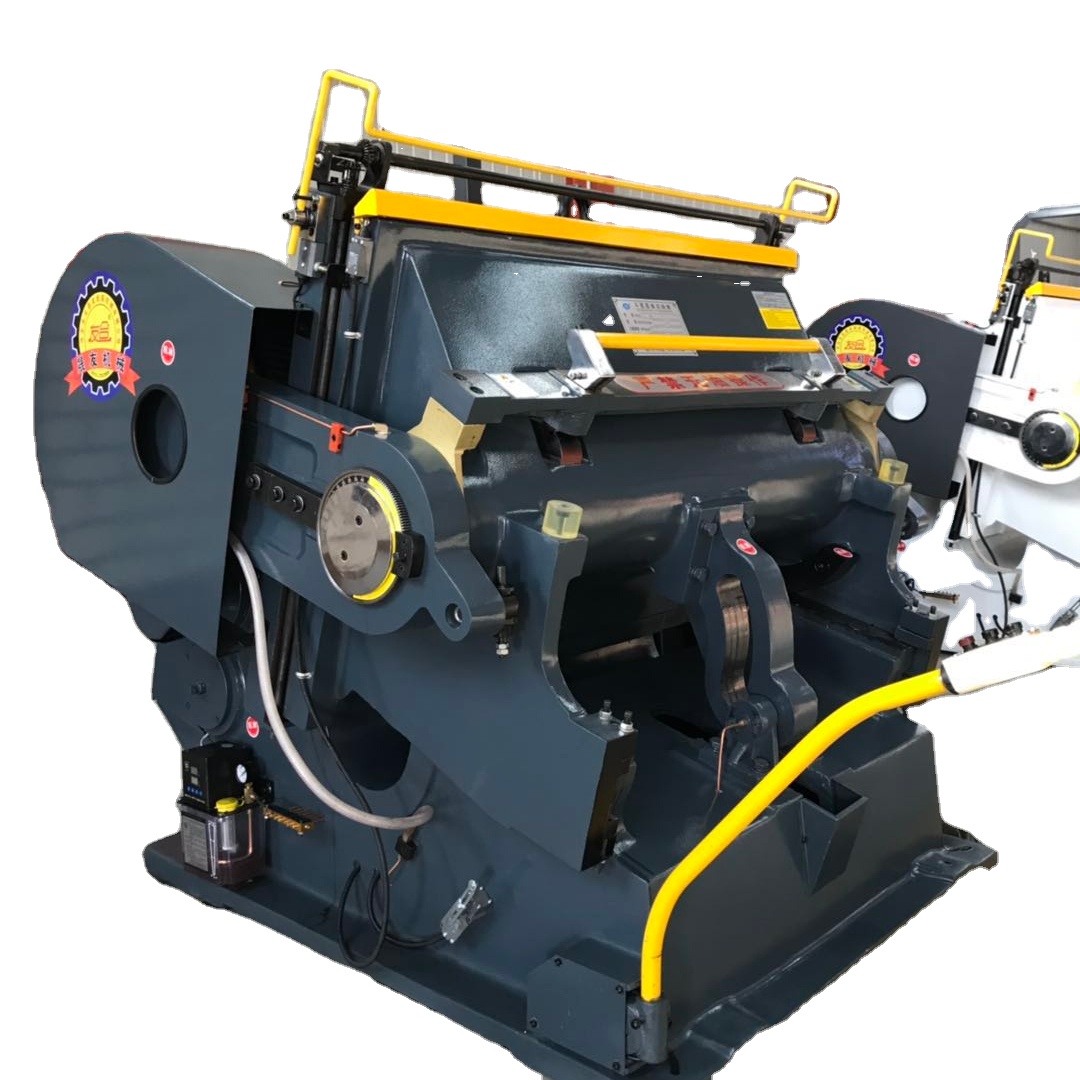

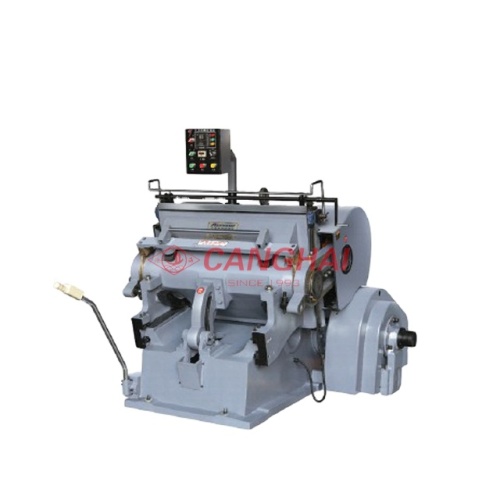

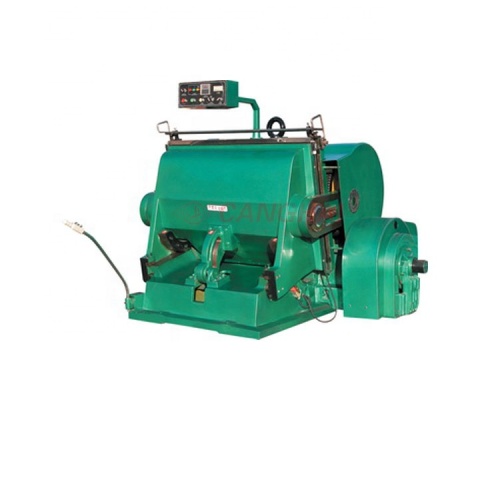

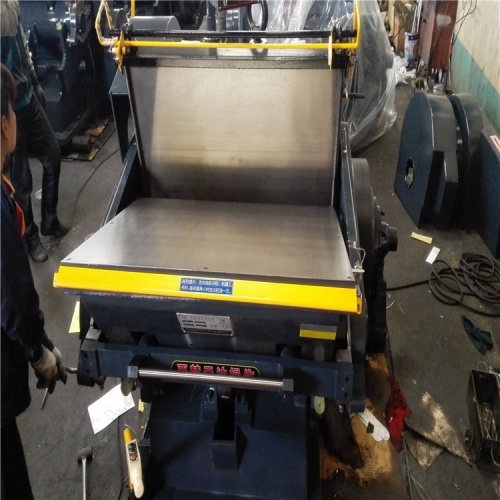

Manual Paper Cardboard Die Cutter and creasing machine

Basic Info

Model No.: 1400

Brand: Canghai

Applicable Industry: Manufacturing Plant

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Turkey, Viet Nam, Peru, Russia, Thailand, Algeria, Romania

Showroom Location (in Which Countries Are There Sample Rooms Overseas): India, Thailand, Algeria

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Status: New

Degree Of Automation: Semi-Automatic

Use: Paper Forming Machine

Place Of Origin: China

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Max.Rule Area (mm): 1400*1000

Max Rule Length: <45m

Motor Power(Kw): 7.5kw

Weight (Kg): 6500kg

Overall Deminsion(L*W*H) (mm): 2000*2450*1900

Automatic Grade: Semi -Atuo

Voltage: Voltage

Warranty: 1 Year After-sale Service

Place Of Origin: Hebei China

Additional Info

Packaging: standard packaging

Transportation: Ocean

Place of Origin: hebei

Port: tianjin

Product Description

Functions and characteristics:

1 High strength dve to one piece casting by using top quality materials for machine body

2 Smooth runing, big pressure and low noise are obviously remarked as 3-step helical gear mechanism is adopted

3 Single plate electromagnetic clutch is sensitive subreliable

4 Operational altitude is reasonably arranged.Moving-bed opens to its optimun

5 Safty system is really reliabl

Note:(The color of equipment can be choose from)

RQ serial die cutting & creasing machines special equipments of die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packaging, decoration and plastic industries. RQ machines have been acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.

Technical Parameters:

Model	Max.Rule Area (mm)	Working speed(strokes/min)	Max Rule Length	Motor power(kw)	Weight (kg)	Overall Deminsion(LWH) (mm)
ML750	750*520	25±2	<25m	2.2	1900	126014001280
ML930	930*670	23±2	<25m	5	3000	1670*13701630
ML1040	1040*720	21±2	<30m	5.5	4000	180016801600
ML1100	1100*800	20±2	<30m	5.5	4500	190017801700
ML1200	1200*850	18±2	<38m	7.5	6500	200021401940
ML1300	1300*920	18±2	<38m	7.5	6500	200021401940
ML1400	1400*1000	17±2	<38m	7.5	7200	201024001950
ML1500	1500*1100	17±2	<40m	7.5	8500	201024801960
ML1600	1600*1250	16±2	<43m	11	11800	217025602080
ML1700	1700*1280	16±2	<45m	11	12500	217025602100
ML1800	1800*1280	16±2	<50m	11	14200	218027602100
ML2000	2000*1400	16±2	<58m	15	16500	227031002150
