Automatic card thin blade slitter machine

Basic Info

BrandCanghai

Applicable IndustryManufacturing Plant, Machinery Repair Shops, Printing Shops

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Egypt, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Thailand, Malaysia, Argentina, Algeria, Sri Lanka, Romania

Showroom Location (in Which Countries Are There Sample Rooms Overseas)Egypt, United States, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Thailand, Argentina, Chile, Uae, Algeria, Romania, South Africa, Ukraine, Malaysia

Old And NewNew

SpeciesPaper Cutting Machine

Programming ControlYes

Place Of OriginChina

Warranty Period1.5 Years

Productivity200 M/Min

Core Selling PointHigh-Accuracy

Max. Feasible Width1300mm

Mechanical Test ReportProvided

Video Factory InspectionProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1.5 Years

Core ComponentsMotor

PLC BrandSchneider

ConditionNew

ComputerizedYes

Place Of OriginHebei, China

Warranty1 Year

Machinery Test ReportProvided

Video Outgoing-inspectionProvided

Warranty Of Core Components1 Year

Key Selling PointsEasy To Operate

TypeDie-Cutting Machine

ApplicationIndustrial Paper Cutting Machine

Max. Workable Width1400mm

Cutting Speed20-150m/Min

Production Capacity180 M/Min

AdvantageHigh Stability

ColorRequirement

Product NameSlitting Machine

KeywordPaper Cuting Machine

Voltage380V

Applicable Industriescorrugated carton box factory

Showroom LocationItaly, Viet Nam, Philippines, Indonesia, India, Mexico, Russia, Spain, Thailand, Kenya, Chile, Sri Lanka, Romania, South Africa, Australia

Brand Namecanhai

Dimension(L*W*H)3200*1500*2000mm

Model2200/2500/2800/3000

Output PaperCorrugated Paperboard

Weight1500 kg

Additional Info

TransportationOcean

PortTianjin

Product Description

Product Description

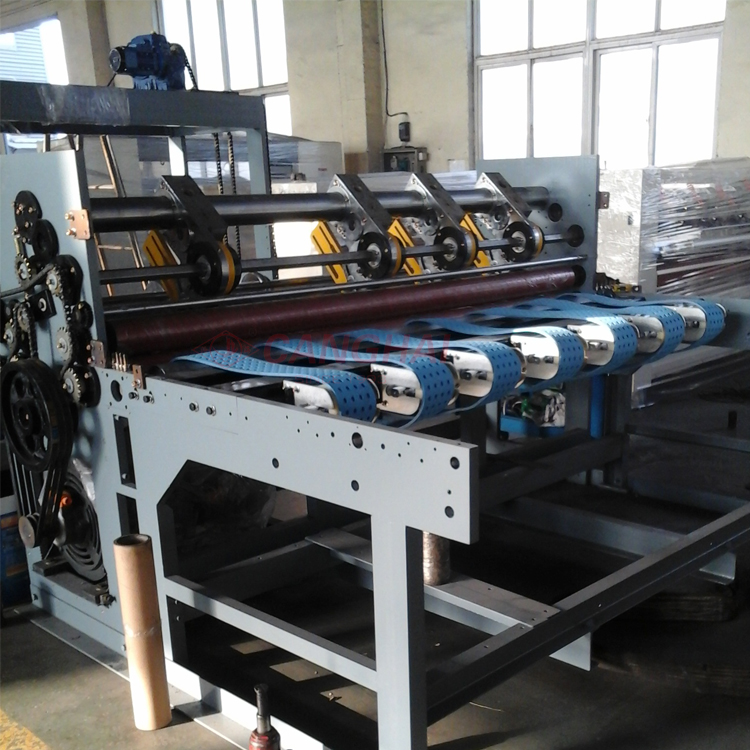

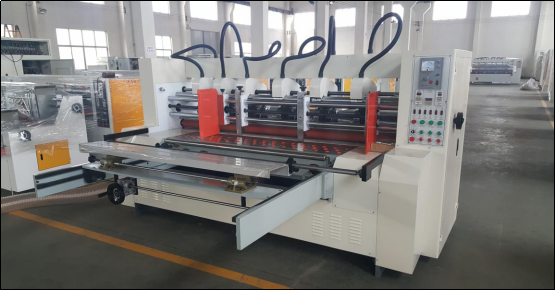

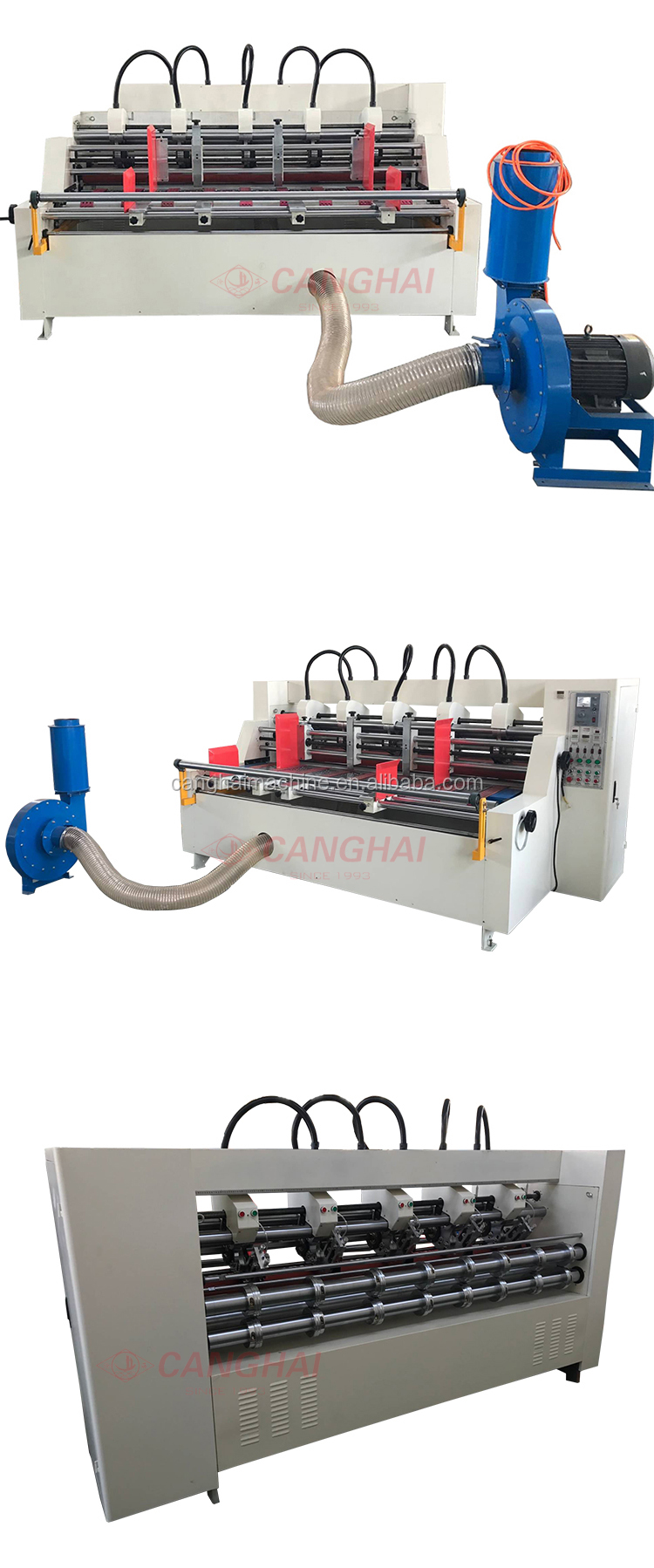

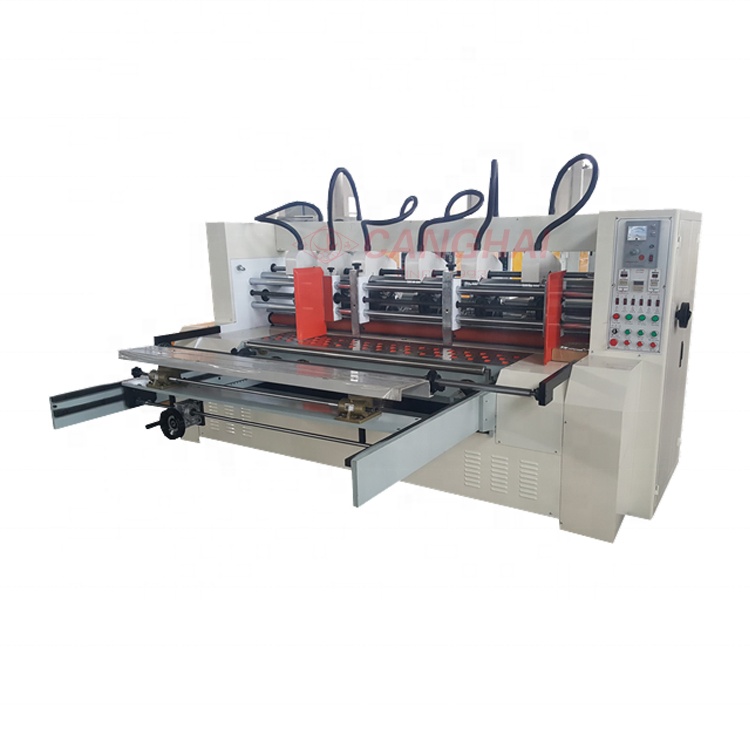

 Automatic card thin blade slitter machine



auto feeder thin balde slitter and scorer machine

Main performance and features:

1.1 the whole machine adopts the servo motor, the PLC control, input order and switching order speed is fast, the operation screen is easy to learn.

1.2 pneumatic lifting and landing knife and pressing line, two types of manual and automatic grinding method; a high degree of automation, saving time and labor.

1.3 electrical appliances with well-known brands at home and abroad, stable and reliable performance.

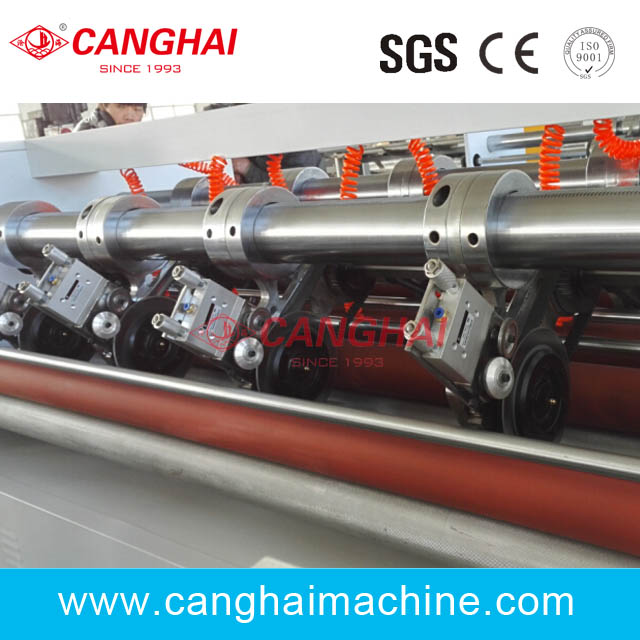

1.4 cutting knife with tungsten alloy blade, long service life, cutting board, neat incision, no indentation, no burr.

The 1.5 line by preloading and coining the combination explosion line, easy bending, linear appearance.

1.6 the transmission part adopts the imported synchronous belt, the transmission is steady, and the running noise is low.

1.7 mechanical positioning using linear guide and ball screw, high precision.

1.8 switch order time is 20-60 seconds.

Two, the main technical parameters:

Width

1600mm

1800mm

2000mm

2200mm

Speed

200m/min

200m/min

200m/min

200m/min

Min.Slitter-spacing

140mm

140mm

140mm

140mm

Min.Score-spacing

0mm

0mm

0mm

0mm

Body-rectification range

200mm

200mm

200mm

200mm

Total power

16.25kw

16.25kw

20.25kw

20.25kw

Dimensions L*W*H

3480*1650*2340

3680*1650*2340

3880*1650*2340

4080*1650*2340

 Technical high speed automatic slitting and creasing machine/Thin Blade Corrugated Paperboard Slitter Scorer Machine

Packaging & Shipping

Technical high speed automatic slitting and creasing machine/Thin Blade Corrugated Paperboard Slitter Scorer Machine

Our Services

Technical high speed automatic slitting and creasing machine/Thin Blade Corrugated Paperboard Slitter Scorer MachineTechnical high speed automatic slitting and creasing machine/Thin Blade Corrugated Paperboard Slitter Scorer Machine

Company Information

Technical high speed automatic slitting and creasing machine/Thin Blade Corrugated Paperboard Slitter Scorer Machine

Customer pictures

Technical high speed automatic slitting and creasing machine/Thin Blade Corrugated Paperboard Slitter Scorer Machine

Contact US

Technical high speed automatic slitting and creasing machine/Thin Blade Corrugated Paperboard Slitter Scorer Machine

Product Categories : Other Packaging Machines

Product Images

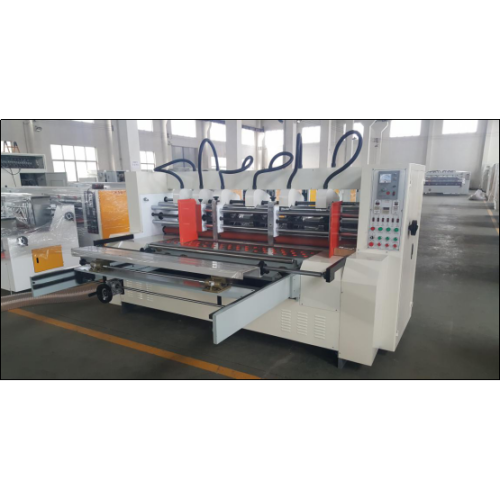

  • Automatic card thin blade slitter machine

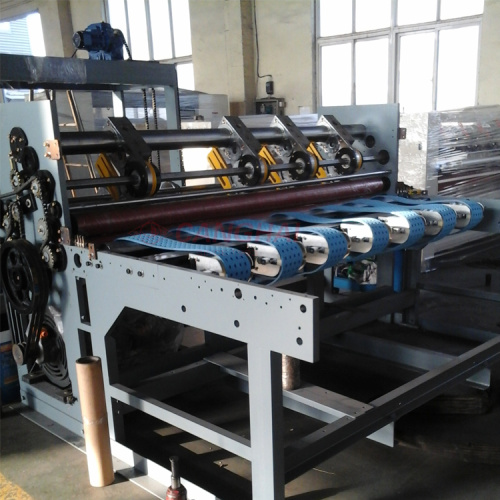

  • Automatic card thin blade slitter machine

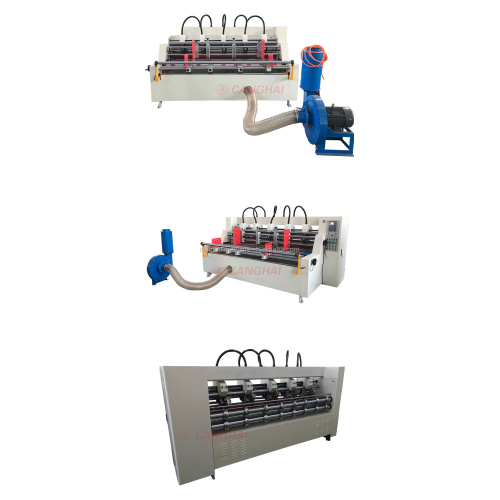

  • Automatic card thin blade slitter machine
