High-Speed Automatic Vacuum Transfer Printing and Die-Cutting Machine for Corrugated Carton Production – Model ZYKM 1226

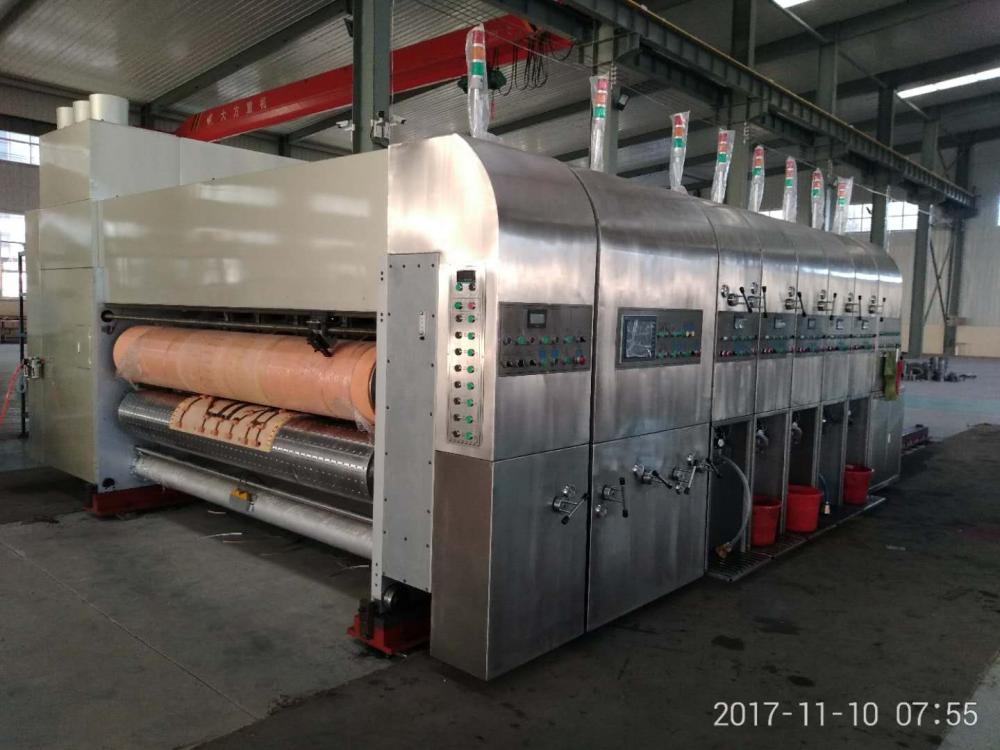

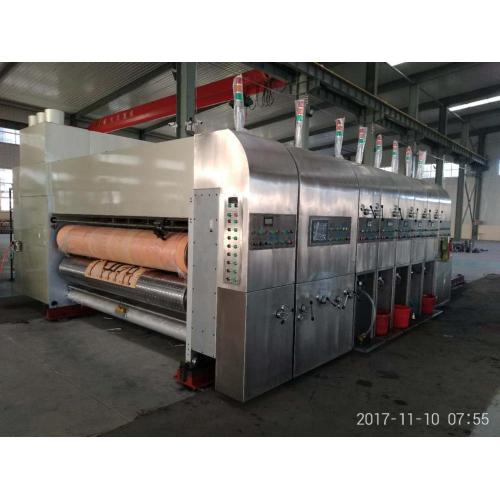

The ZYKM 1226 is a state-of-the-art inline flexographic printing, slotting, and die-cutting system designed specifically for high-volume corrugated box manufacturing. Engineered to deliver precision, efficiency, and reliability, this machine integrates advanced automation technologies with robust mechanical design—ideal for packaging professionals seeking consistent quality in carton production. With a maximum speed of 200 sheets per minute and a wide range of paper sizes from 450×630 mm up to 1600×2600 mm, it supports flexible format changes without compromising accuracy or throughput.

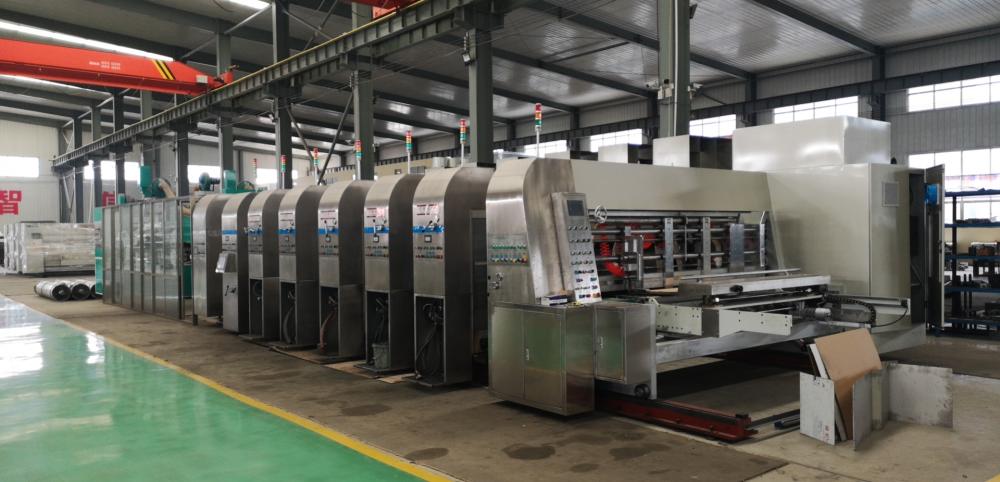

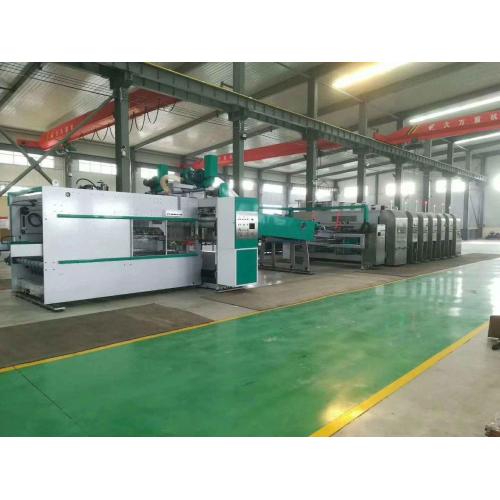

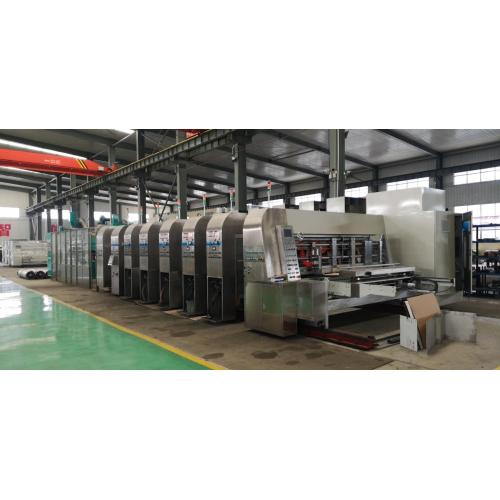

This fully automated solution combines vacuum-fed paper handling, computer-controlled alignment, and real-time feedback systems to minimize waste and maximize uptime. Its modular structure includes dedicated units for feeding, printing, slitting, die-cutting, gluing, folding, and stacking—all synchronized via PLC technology for seamless operation across the entire production line. Whether you're producing standard shipping boxes or custom-designed retail packaging, the ZYKM 1226 ensures sharp graphics, precise creasing, and clean cuts every time.

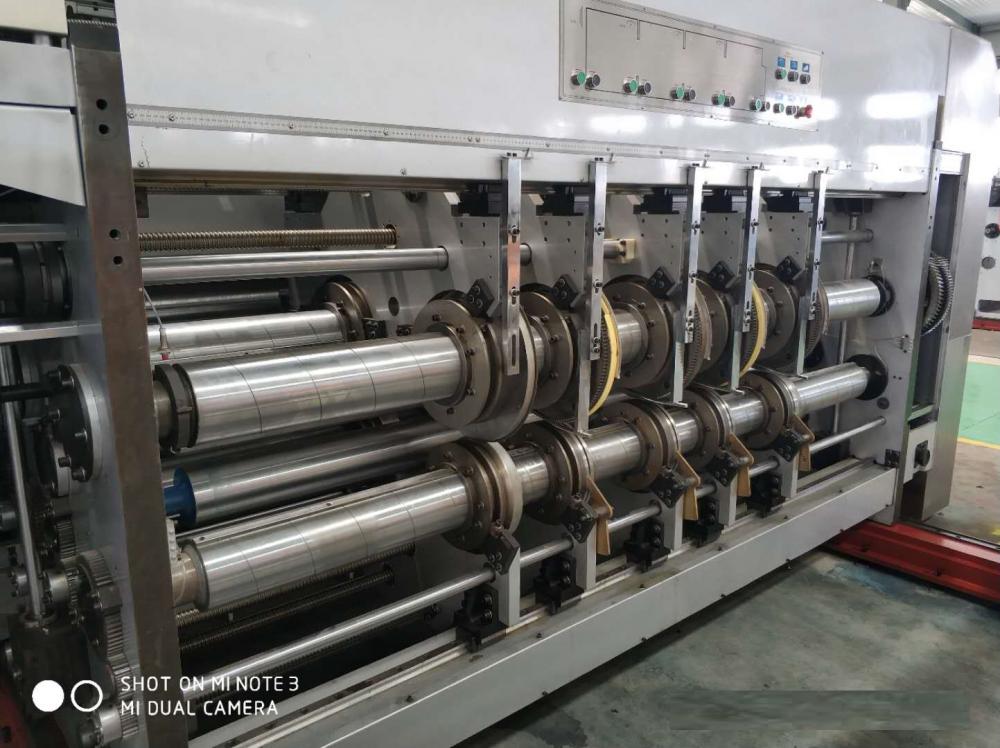

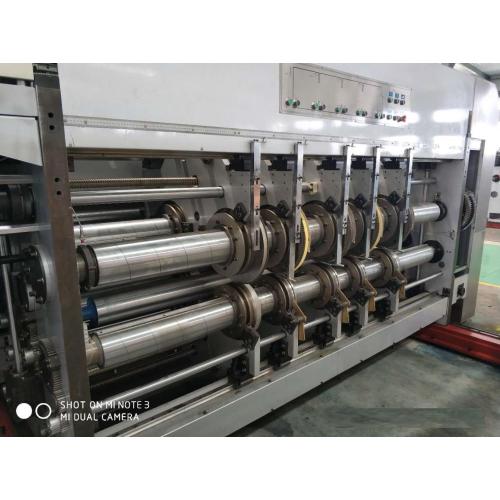

Key features include an electrically adjustable vacuum transfer system that guarantees accurate sheet positioning; dual ink delivery mechanisms for uniform color application; composite slotting tools made from hardened alloy steel; and an intelligent differential compensation system in the die-cutting unit that maintains dimensional consistency even after repeated blade sharpening. The machine also boasts ergonomic controls, including a color touch screen interface, quick-change plate mounting, and pneumatic ink preservation during idle periods to prevent drying issues.
From its reinforced 65mm-thick cast iron frame treated through aging processes to reduce internal stress, to its helical gear transmission optimized for smooth torque distribution, each component is selected for durability under continuous industrial use. Bearings from NSK and Wafangdian, motors from Qingdao Dongyuan, and electrical components from Panasonic ensure long-term performance and minimal maintenance. Integrated dust extraction, centralized lubrication, and emergency stop functions further enhance safety and operational hygiene in any factory environment.
Common applications include packaging for e-commerce, food and beverage, cosmetics, pharmaceuticals, and consumer goods industries where consistent box dimensions, high print clarity, and fast turnaround are critical. This machine excels in both small-batch customization and large-scale production runs, making it suitable for manufacturers looking to scale efficiently while maintaining premium product standards.
Users praise the machine’s intuitive control panel, which allows operators to set parameters such as printing phase, die-cut position, glue length, and conveyor speed directly on the touchscreen. One user noted: “After installing the ZYKM 1226, our setup time dropped by over 50%, and we’ve seen fewer defects due to misalignment.” Another commented: “The vacuum suction system keeps cardboard flat and stable throughout processing—no more wrinkled prints or skewed cuts.”
Q: Can I adjust the printing area size dynamically? A: Yes—the machine supports variable printing zones between 450×630 mm and 1200×2450 mm, with digital adjustments via the PLC interface for quick format switching. Q: Is the die-cutting accuracy affected by blade wear? A: No—the built-in differential compensation mechanism automatically adjusts for changes in cylinder diameter, ensuring consistent cutting precision even after multiple blade replacements. Q: What kind of paperboard can this machine handle? A: It accommodates single-wall, double-wall, and multi-layer corrugated boards ranging from 1.5 mm to 6 mm thickness, with optimal performance on materials up to 1600x2600 mm in size. Q: How does the automatic gluing system work? A: Glue application is synchronized with folding belt speed using photoelectric sensors, allowing real-time adjustment of glue width and position based on box dimensions. A servomotor-driven pusher ensures neat stacking of finished products.
